КАТАЛОГ: CHERY	МОДЕЛЬ: KARRY

---

Подбор авто запчастей на ЧЕРИ KARRY (КАРРИ)

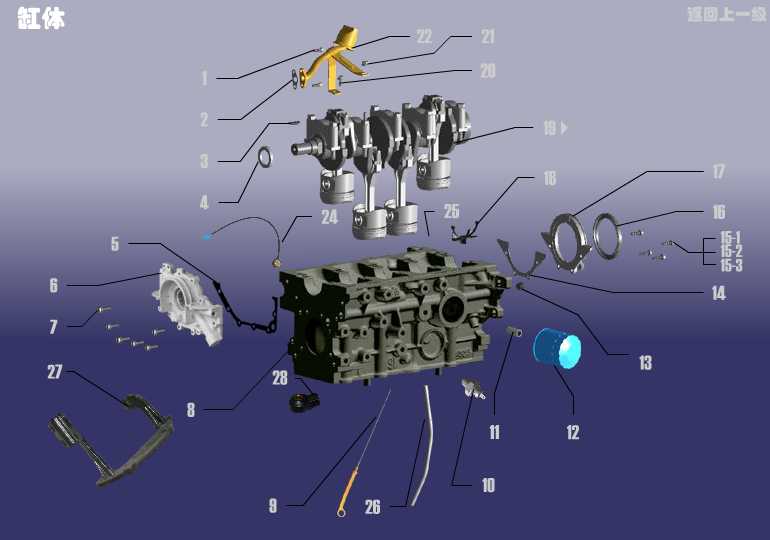

Поз.	Номер	Наименование	Колличество
1	480-1010026	SCREW - INNER HEXAGON WITH SPRING WASHER	2
2	480-1010021	WASHER - CONNECTING FLANGE	1
3	480-1005062	KEY - WOODRUFF	1
4	480-1011020	SEAL - OIL ( CRANKSHAFT FRONT )	1
5	480-1011061	WASHER - OIL PUMP	1
6	480-1011030	OIL PUMP ASSY	1
7	480-1011062	BOLT - HEXAGON FLANGE	6
8	480-1002010EA	BLOCK ASSY- CYLINDER	1
9	480E-1009130BA	OIL DIPSTICK	1
10	A11-3810011	SWITCH -OIL PRESSURE	1
11	480-1012021	CONNECTOR - OIL FILTER	1
12	480-1012010	OIL FILTER ASSY	1
13	480-1002031	PLUG - TAPERED (INNER HEXAGON)	1
14	480-1005031	WASHER - RR OIL SEAL BRACKET	1

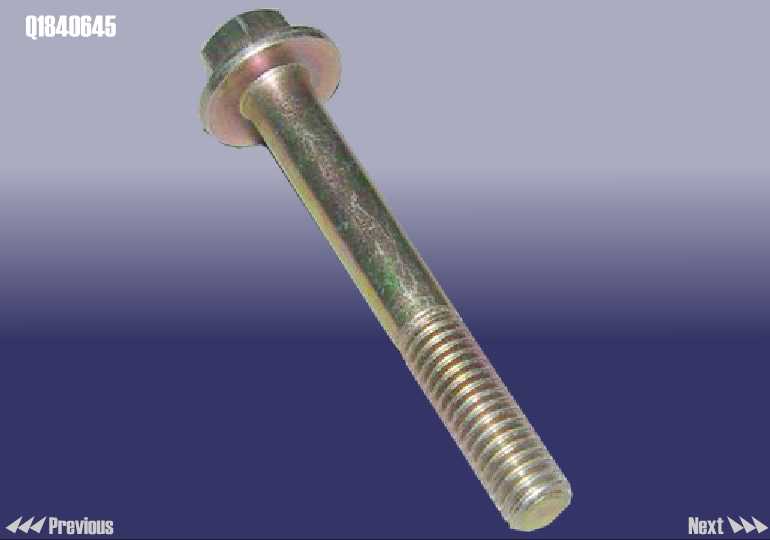

15-1	Q1840645	BOLT - HEXAGON FLANGE	4

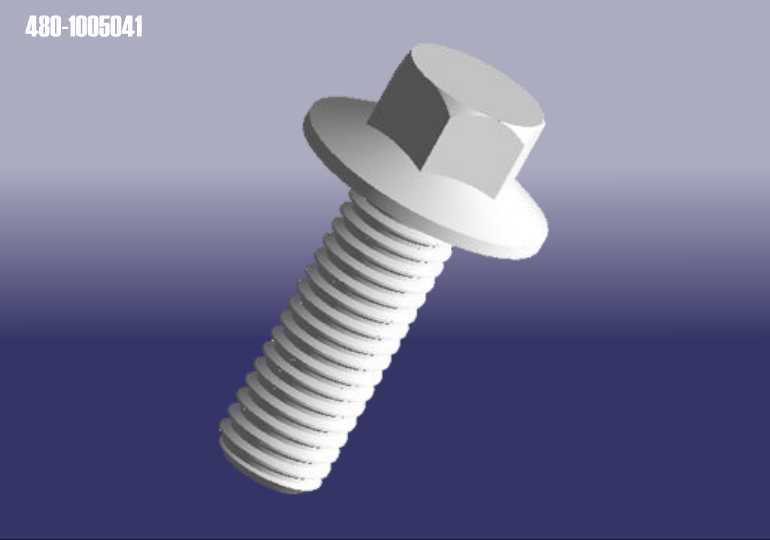

15-2	480-1005041	BOLT - HEXAGON FLANGE	4
15-3	Q1840615	BOLT - HEXAGON FLANGE	4

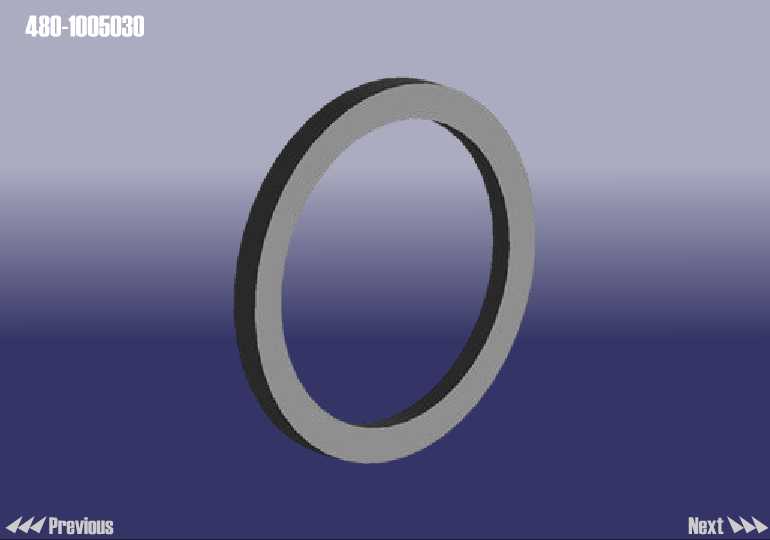

16	480-1005030	OIL SEAL-CRANKSHAFT RR	1
17	480-1005021	BRAKET-RR OIL SEAL	1
18	480-1014020	OIL BAFFLE ASSY - CRANKCASE VENTILATION	1
19	GT-QZLGJG-480EF	CRANKSHAFT ROD MECHANISM	1
20	480-1010027	BOLT - HEXAGON FLANGE	1
21	480-1010022	BOLT - LOCK (HEXAGON)	1
22	480-1010010	OIL STRAINER ASSY	1
24	480ED-1002060	SENSOR - SHOCK	1
25	480-1002042	POSITION BUSH-CLUTCH HOUSING	1
26	480E-1009121BA	PIPE - OIL DIPSTICK	1
27	480ED-1009041	BRACKET-ABSORBER	1
28	A11-3611031	SENSOR - SHOCK	1
