КАТАЛОГ: CHERY	МОДЕЛЬ: TIGGO

---

Подбор авто запчастей на ЧЕРИ TIGGO (ТИГГО)

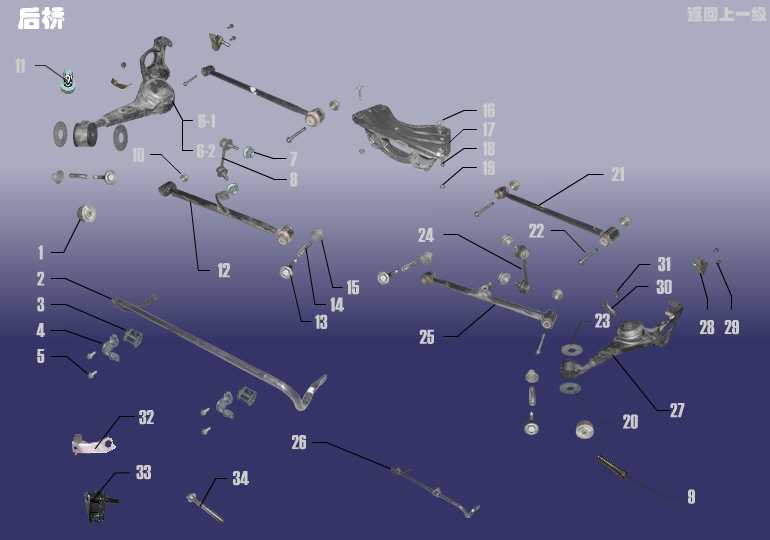

Поз.	Номер	Наименование	Колличество

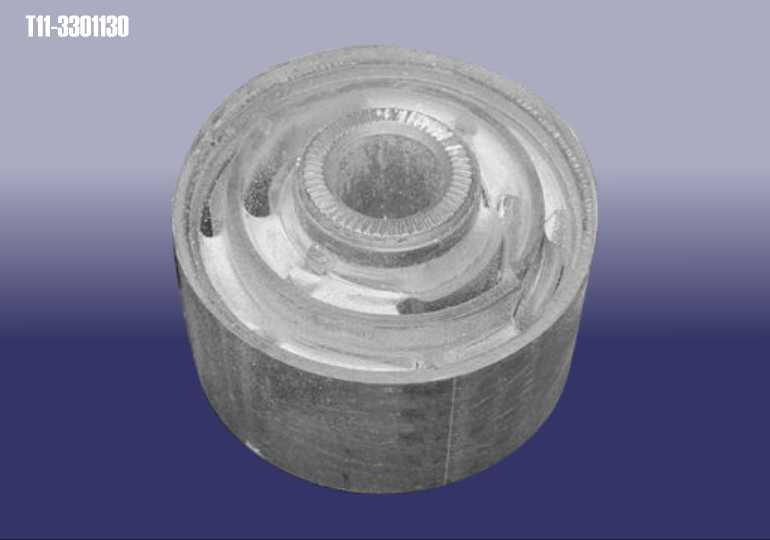

1	T11-3301130	SLEEVE,RUBBER	2

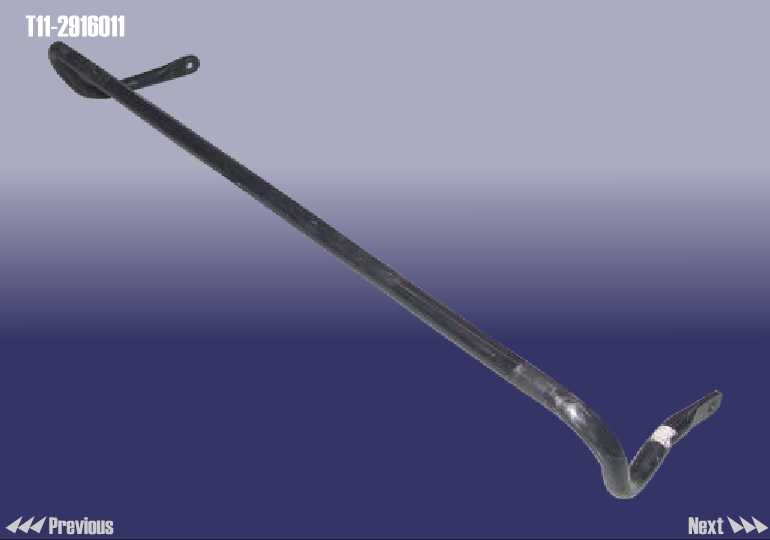

2	T11-2916011	STABILIZER,REAR	1
3	T11-2916013	BRACKET,RUBBER-STABILIZER	2

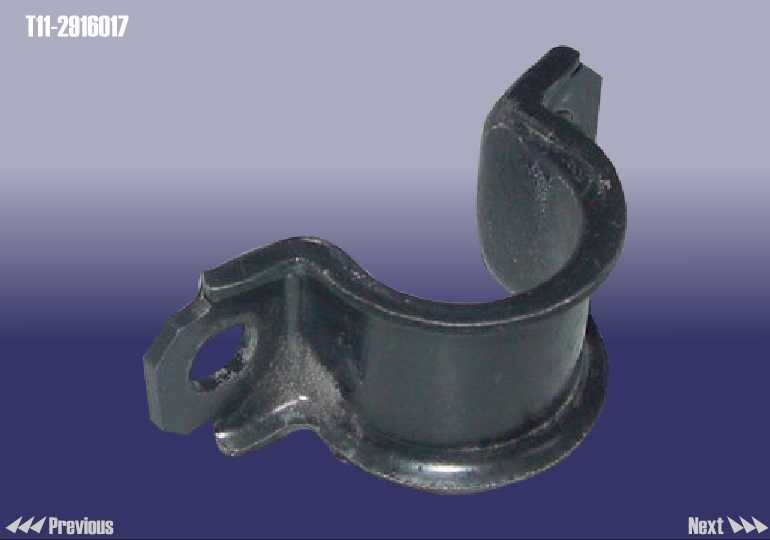

4	T11-2916017	CLIP	2
5	Q1420820	BOLTгмHEXAGON HEAD	4

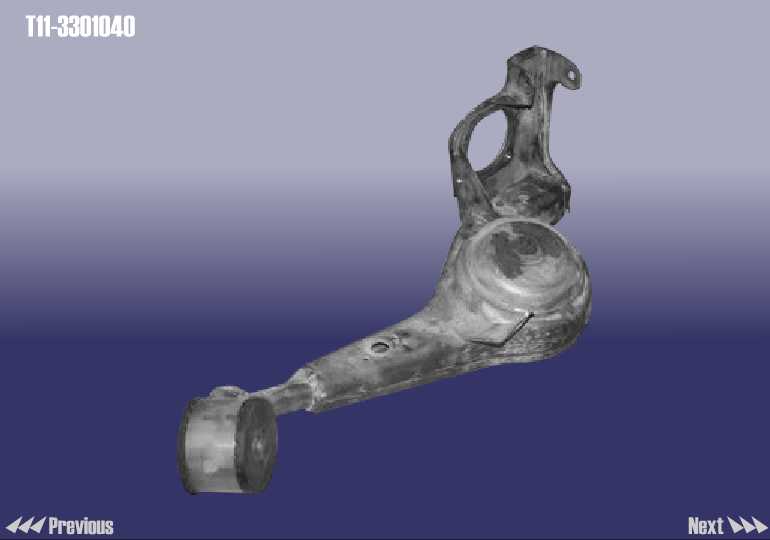

6-1	T11-3301040	ARM(R),DRAG-R.	1

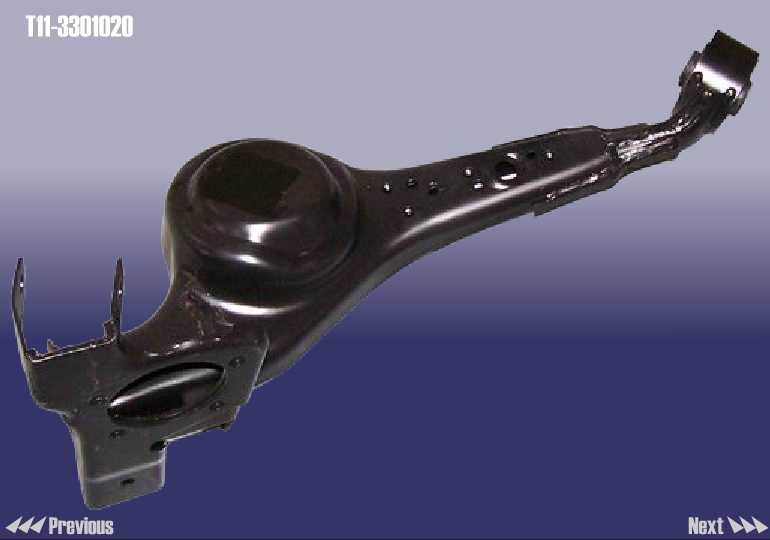

6-2	T11-3301020	ARM - REAR TRAILING RH	1
7	Q330C10	NUT	4
8	T11-2916040	CONNECTING ROD - REAR RH	1

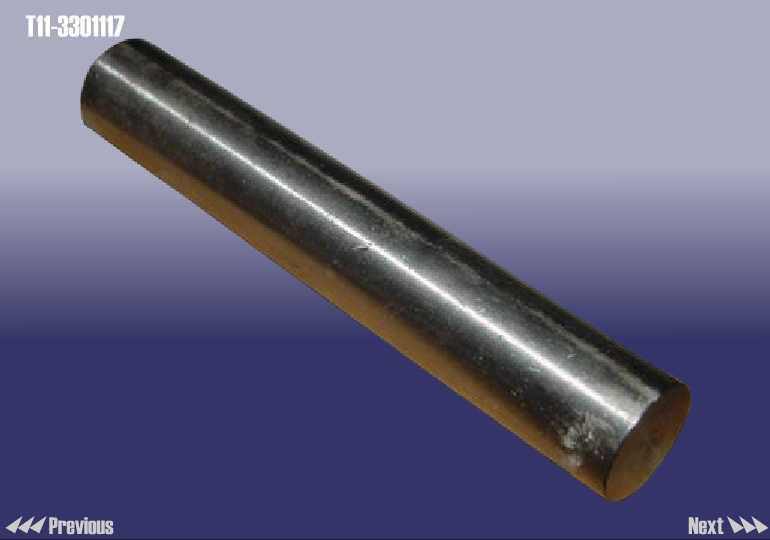

9	T11-3301117	SHAFT - SUPPORT	2
10	Q330B12	NUT	4
11	Q1400820F6	BOLT - COMBINATION	2

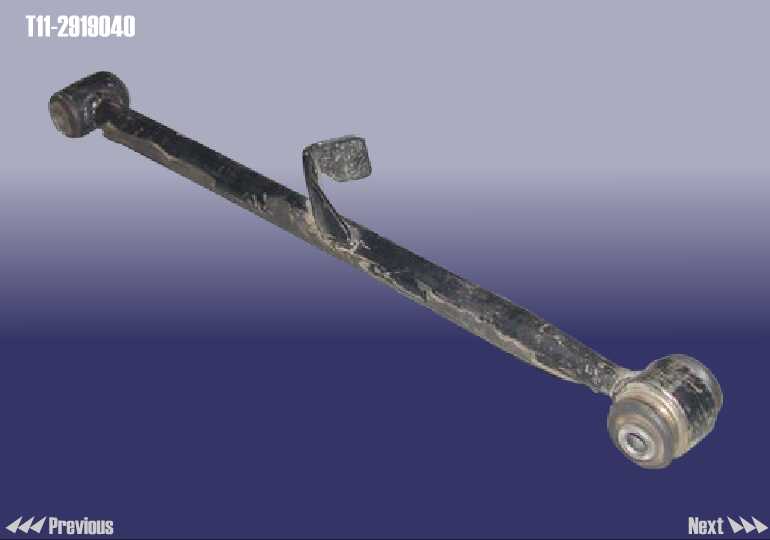

12	T11-2919040	ARM(LOWER),RIGHT ROCKER-REAR SUSPENSION	1
13	T11-2919035	BOLT	2
14	PXTZTG-PXTZTG	SLEEVE - ADJUSTING	2
1	T11-2919033	SLEEVE - ADJUSTING	2

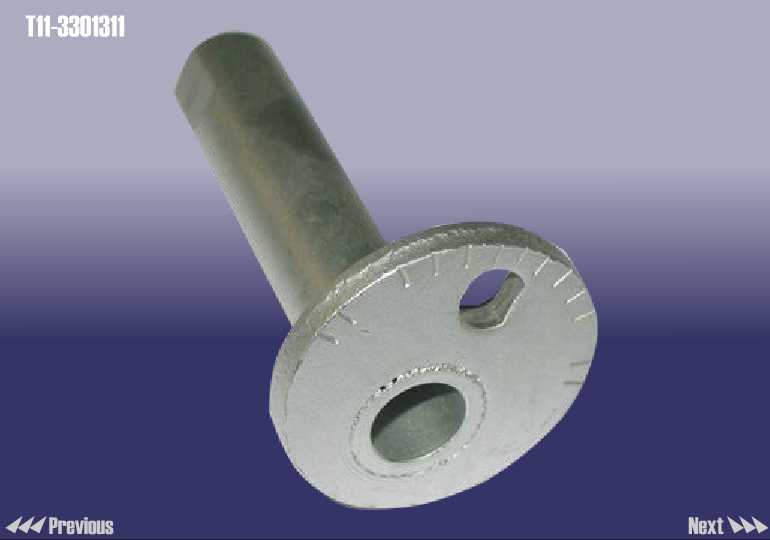

2	T11-3301311	SLEEVE - ADJUSTING	2

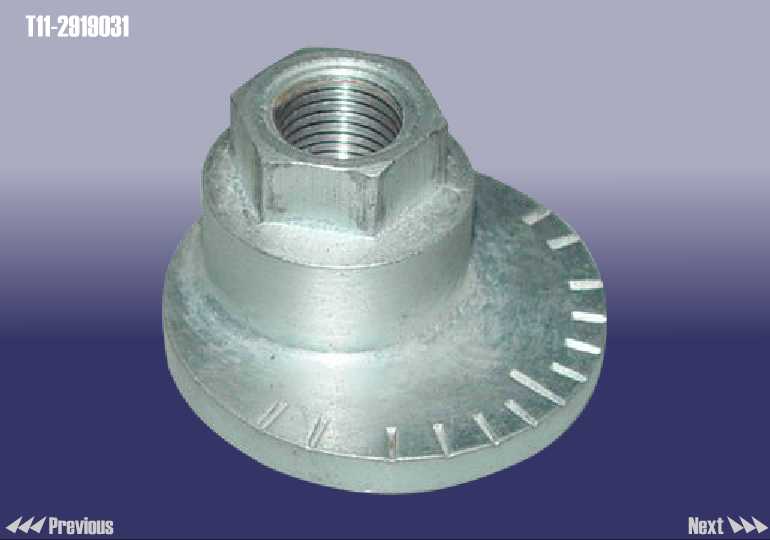

15	T11-2919031	NUT,ECCENTRIC ADJUSTMENT	2

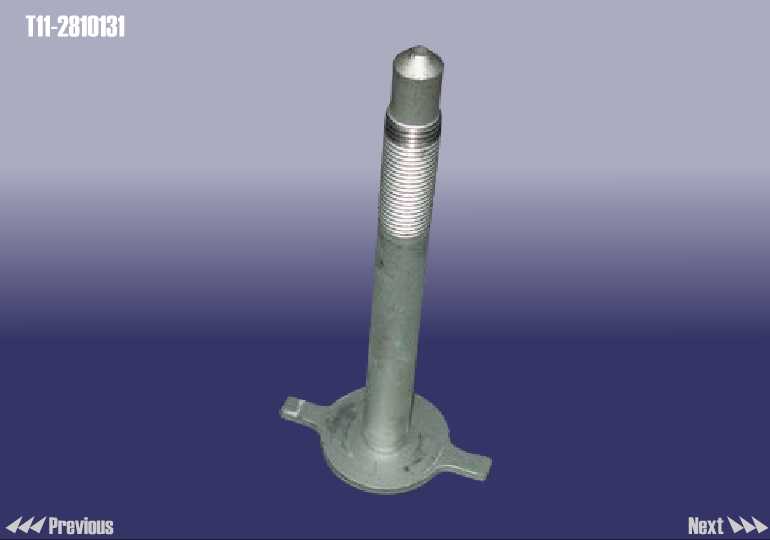

16	T11-2810131	BOLT	2

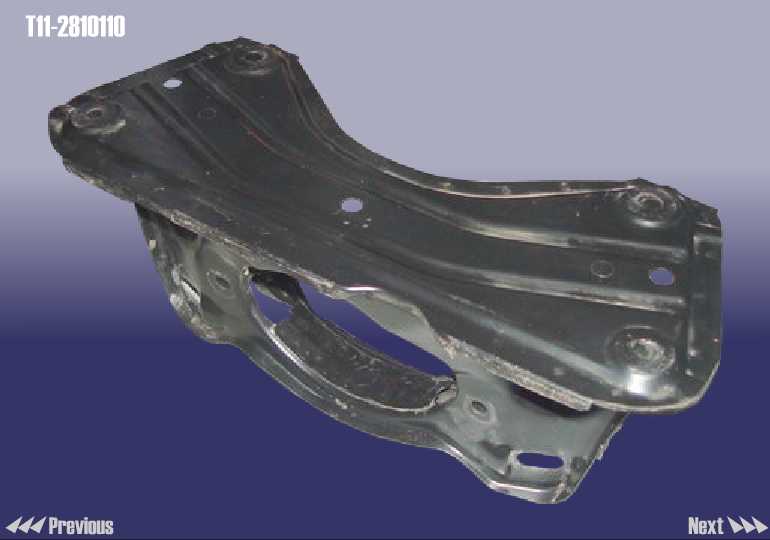

17	T11-2810110	UNDERFRAME ASSY,REAR	1

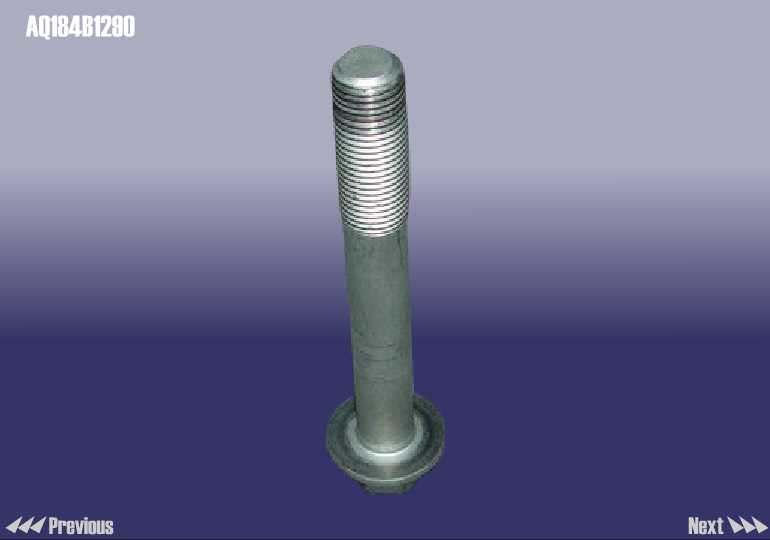

18	AQ184B1290	BOLT	2

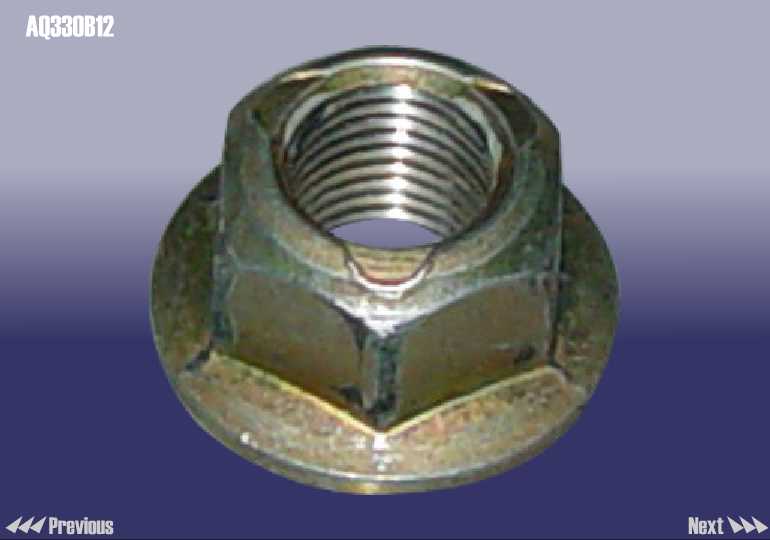

19	AQ330B12	LOCKNUT	2
20	T11-3301033	GASKET - RUBBER	2

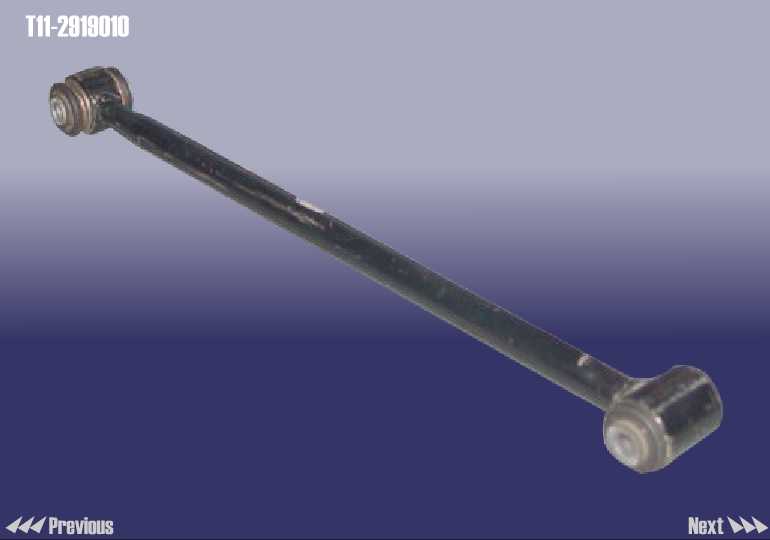

21	T11-2919010	ARM(UPPER),ROCKER-REAR SUSPENSION	2

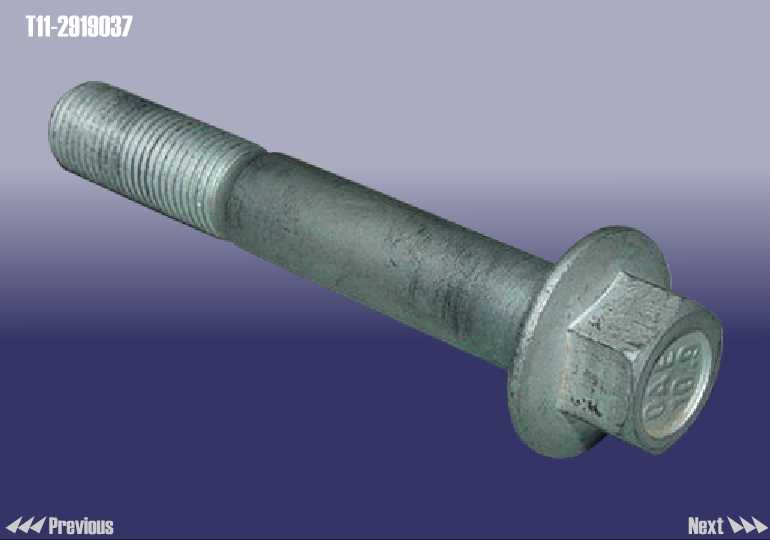

22	T11-2919037	BOLT	2
23	T11-3301031	GASKET - RUBBER	2
24	T11-2916030	CONNECTING ROD - REAR LH	1
25	T11-2919030	ARM(LOWER),LEFT ROCKER-REAR SUSPENSION	1

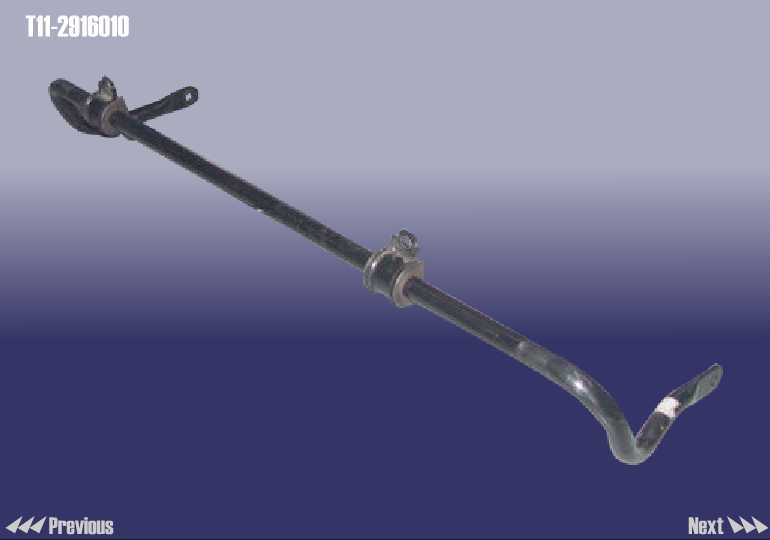

26	T11-2916010	STABILIZER ASSY,REAR	1

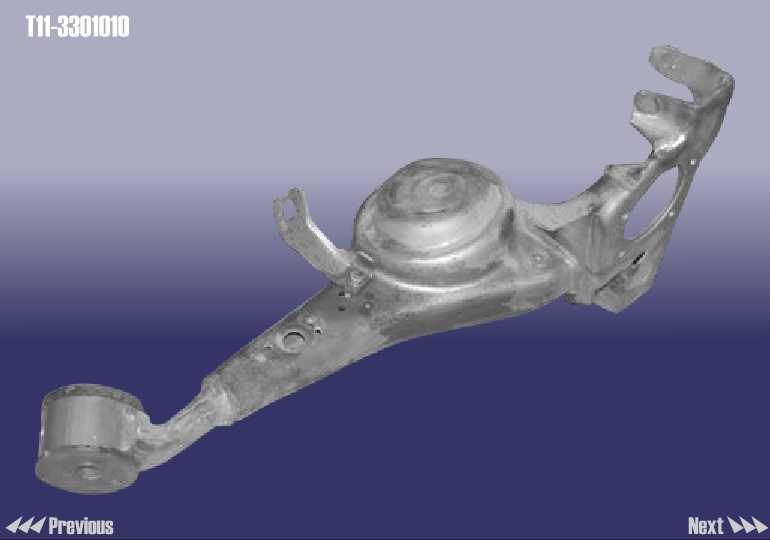

27	T11-3301010	ARM(L),DRAG-R.	1

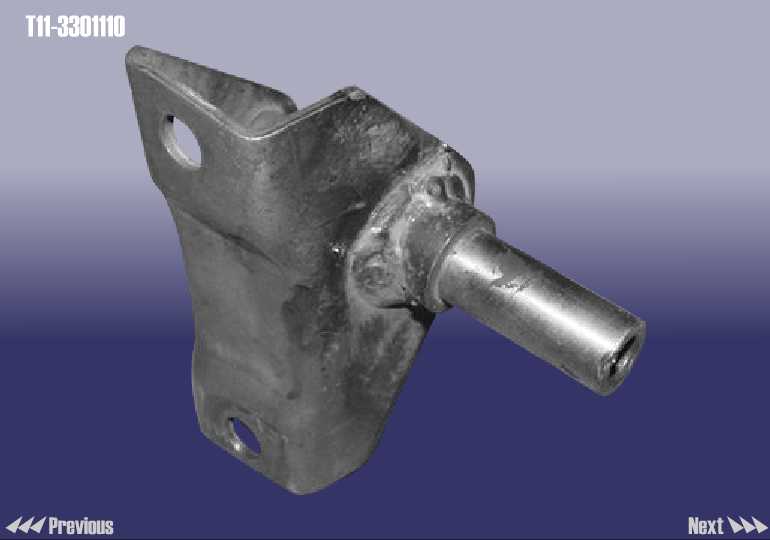

28	T11-3301110	ASSEMBLE BRACKET(L),REAR DAMPER	2

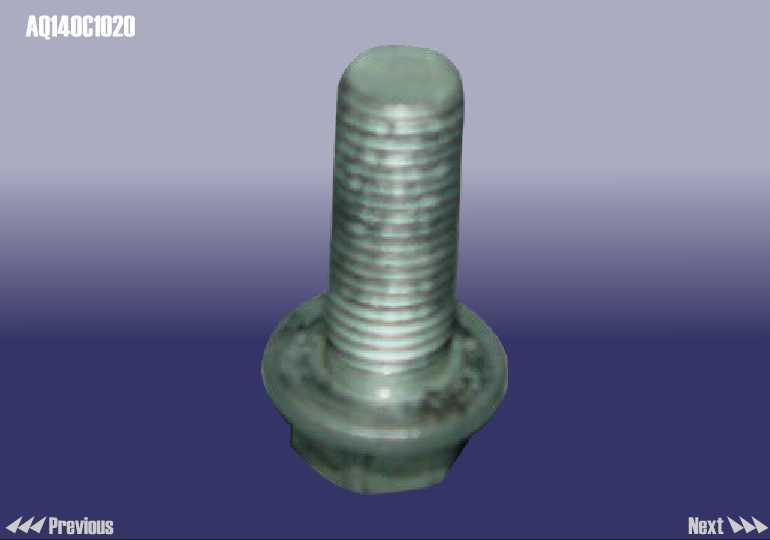

29	AQ140C1020	BOLT	4

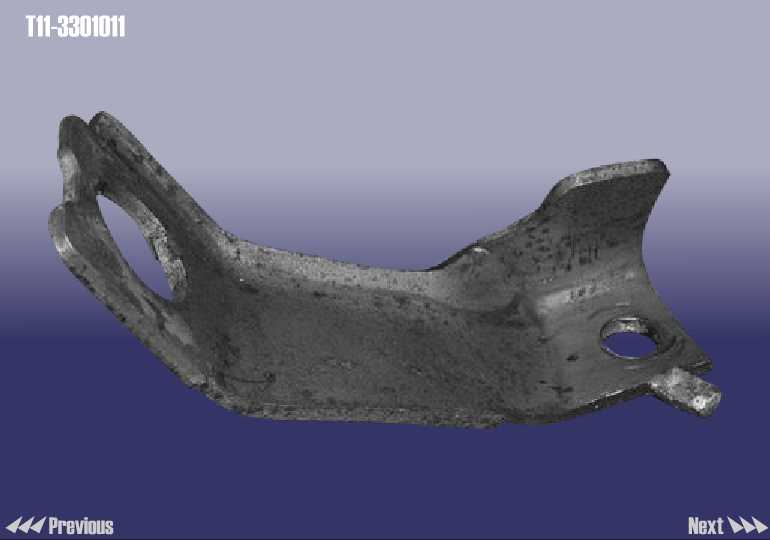

30	T11-3301011	BRACKET(L),PIPE SET	2
31	Q1400820	BOLT	2

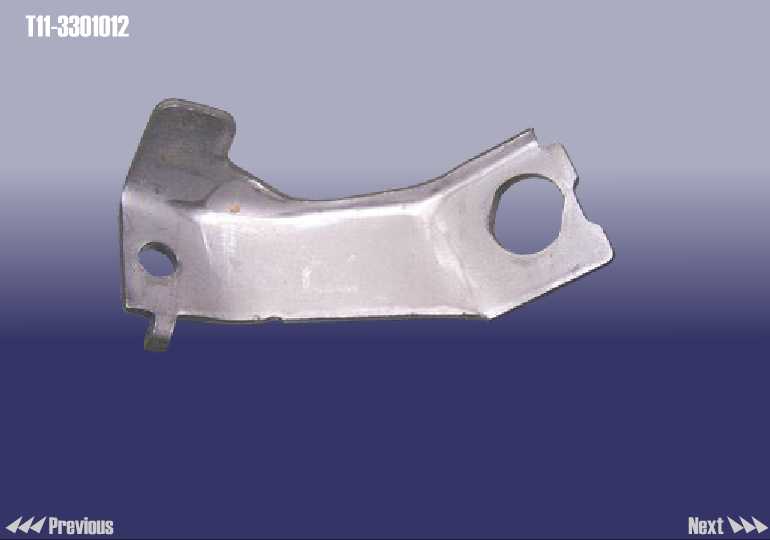

32	T11-3301012	BRACKET	0

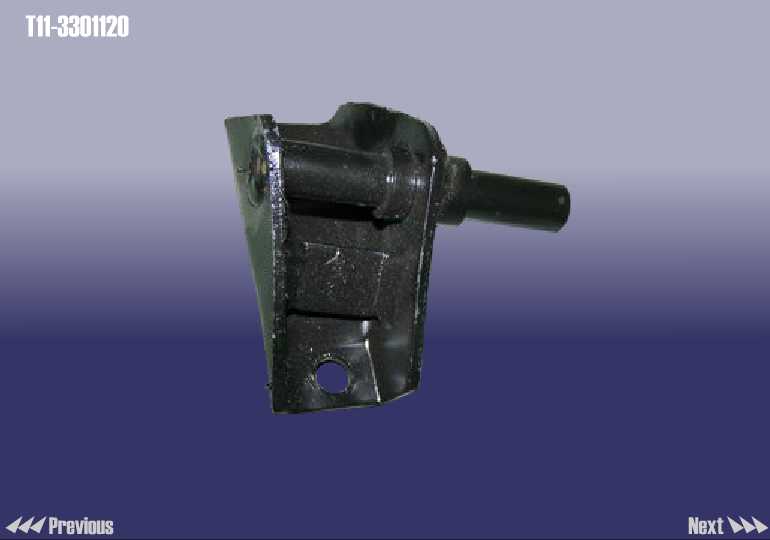

33	T11-3301120	BRACKET	0

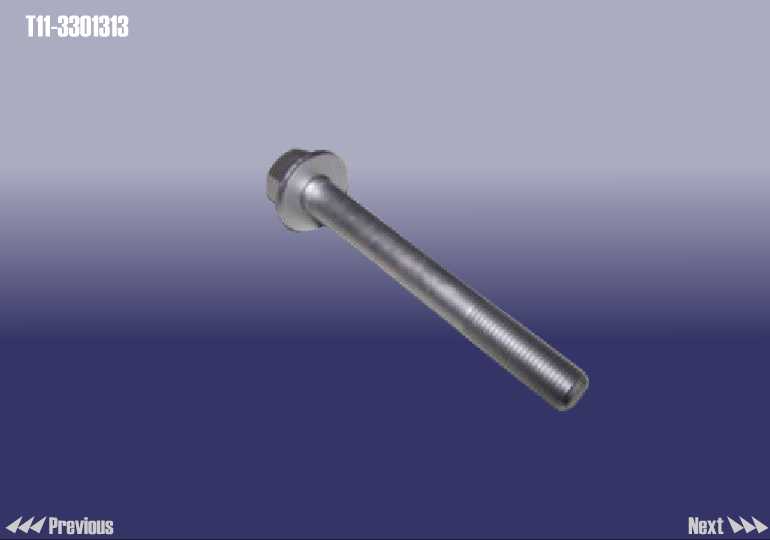

34	T11-3301313	BOLT	0
