КАТАЛОГ: CHERY	МОДЕЛЬ: KARRY

---

Подбор авто запчастей на ЧЕРИ KARRY (КАРРИ)

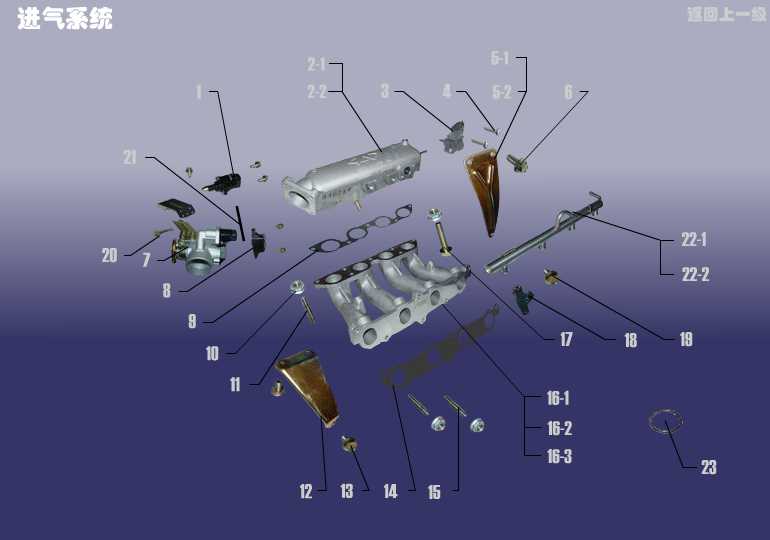

Поз.	Номер	Наименование	Колличество
1	480EE-1008052	STEP MOTOR	1
2-1	480EE-1008010	BODY ASSY - UPR (INLET MANIFOLD)	1
2-2	480EE-1008010BB	BODY ASSY - UPR (INTAKE MANIFOLD)	1

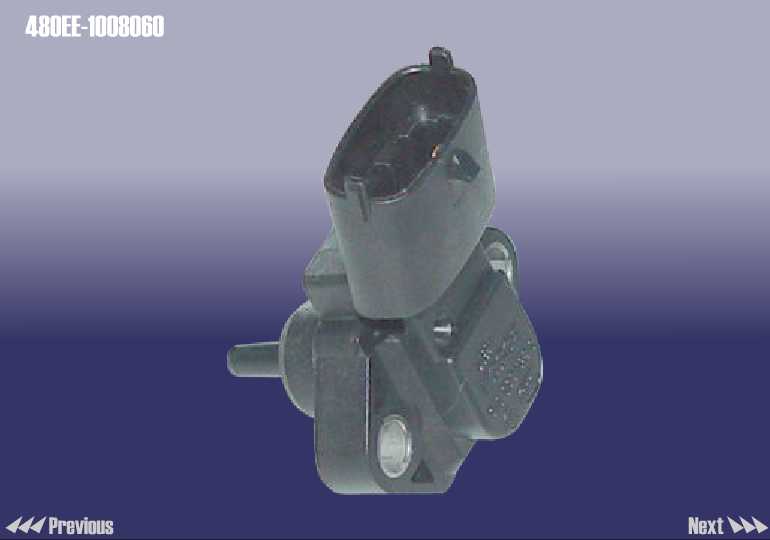

3	480EE-1008060	TMAP SENSOR WITH SEAL WASHER ASSY	1
4	480EE-1008045	SCREW - CROSS RECESSED PAN HEAD	2
5-1	480EF-1008126	BRACKET - INLET MANIFOLD-UPR	1
5-2	480EE-1008126	BRACKET - UPR (INLET MANIFOLD)	1
6	480EE-1008081	BOLT - HEXAGON FLANGE	2
7	480EE-1107040	THROTTLEN BODY ASSY	1
8	480EE-1008051	SENSOR - THROTTLE POSITION	1
9	480ED-1008048	GASKET - INTAKE MANIFOLD LWR	1
10	480-1008023	NUT - LOCK (HEXAGON FLANGE)	6
11	480-1008022	STUD - EQUAL LENGTH	3
12	480EF-1008082	BRACKET - LWR (INLET MANIFOLD)	1
13	480-1008143	BOLT - HEXAGON FLANGE	3
14	480EF-1008021	GASKET - INTAKE MANIFOLD	1
15	480-1008025	STUD - EQUAL LENGTH	3
16-1	480EF-1008014	BODY - LWR (INLET MANIFOLD)	1
16-2	480EF-1008014BB	BODY - LWR (INTAKE MANIFOLD)	1
16-3	480EE-1008014	BODY - LWR (INTAKE MANIFOLD)	1
17	480EE-1008025	BOLT - HEXAGON FLANGE	2
18	480EF-1112010	INJECTOR	1
19	480E-1008053	BOLT - HEXAGON FLANGE	2
20	480EE-1107053	BOLT - HEXAGON FLANGE	4
21	480EE-1107039	WASHER - THROTTLE BODY ASSY	1
22-1	480EE-1112001	FUEL RAIL WITH INJECTOR ASSY	1
22-2	480EF-1112001	FUEL RAIL WITH INJECTOR ASSY	1
23	480EE-1008053	SEAL RING - STEP MOTOR	1
