КАТАЛОГ: CHERY	МОДЕЛЬ: KARRY

---

Подбор авто запчастей на ЧЕРИ KARRY (КАРРИ)

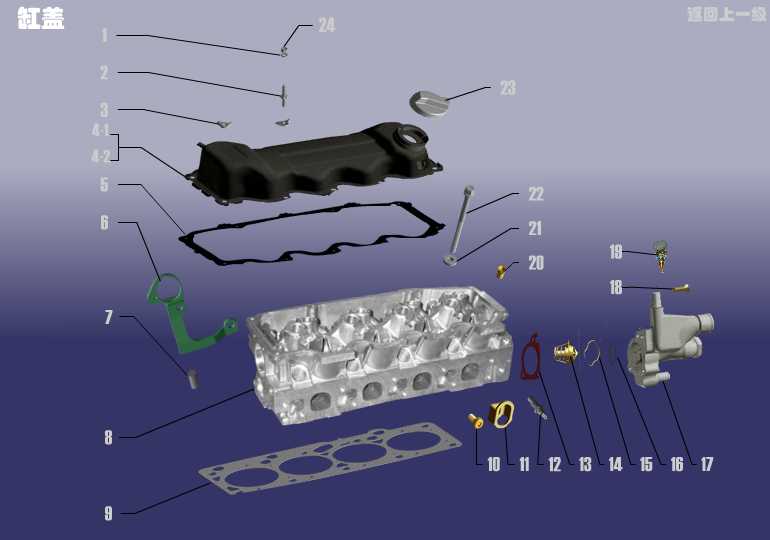

Поз.	Номер	Наименование	Колличество

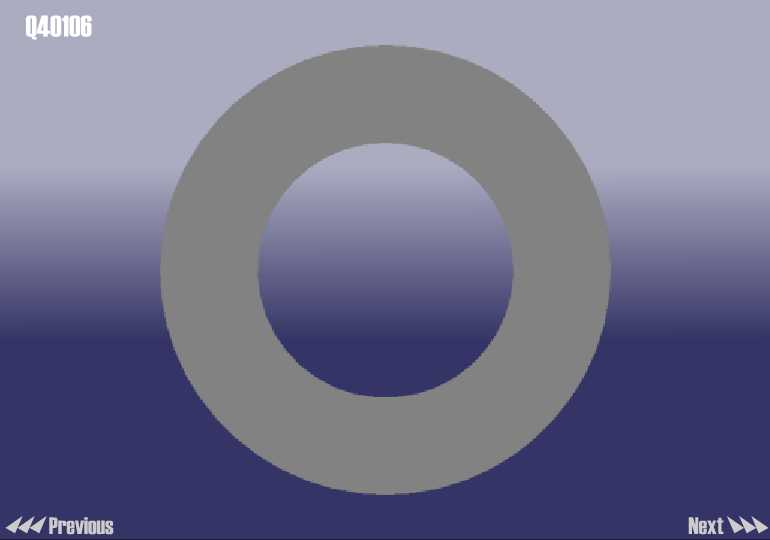

1	Q40106	PLAIN WAHSER	3
2	480-1003074	STUD - EQUAL LENGTH	3

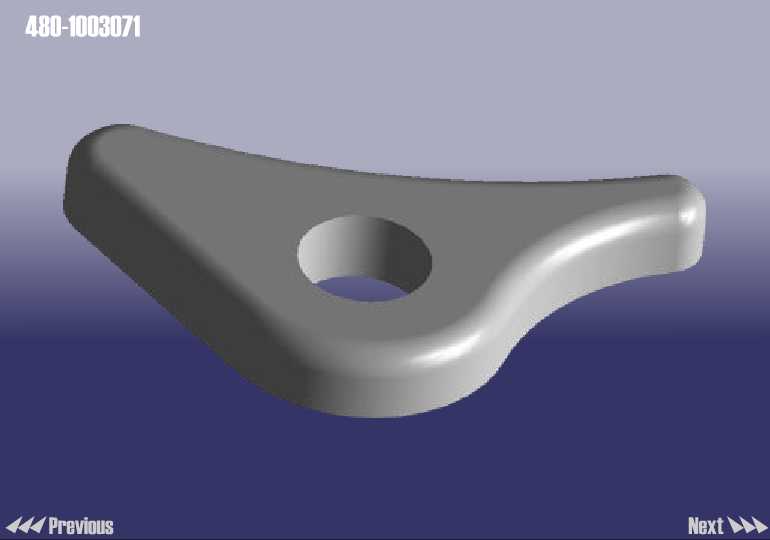

3	480-1003071	WASHER	9
4-1	480-1003030BB	COVER ASSY - ROCKER	1
4-2	480EJ-1003030	COVER ASSY - ROCKER	1

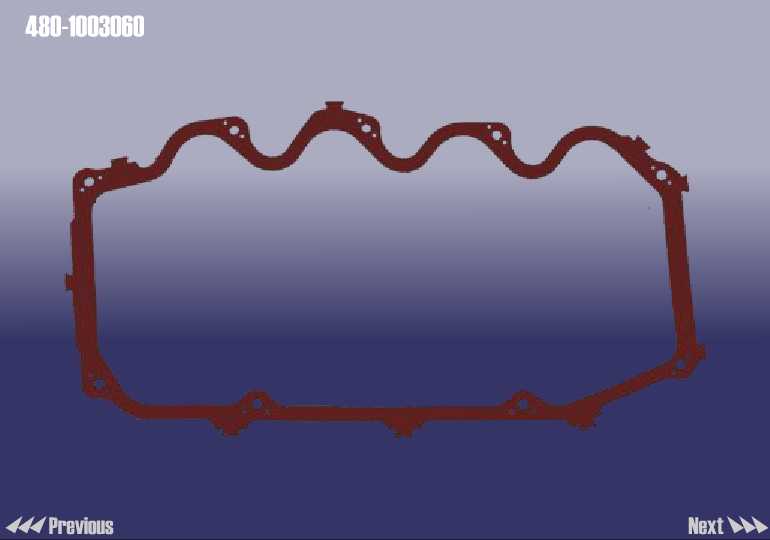

5	480-1003060	GASKET - VALVE CHAMBER COVER	1
6	480E-1003087	HANGER - RR ENGINE	1
7	480-1003081	POSITION PIN - CYLINDER COVER	2
8	480EF-1003010	HEAD ASSY - CYLINDER	1

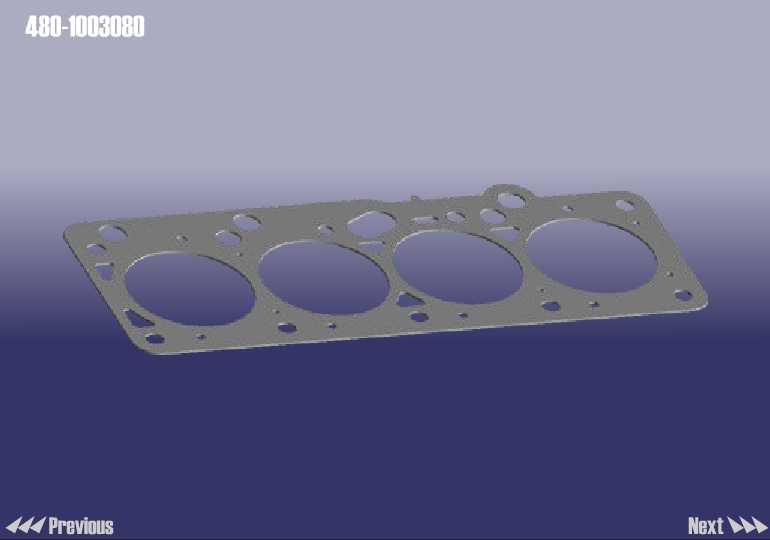

9	480-1003080	GASKET - CYLINDER	1
10	480-1003088	SCREW - INNER HEXAGON KNURLED HEAD	1
11	480EE-1003086	HANGER - FRONT ENGINE	1
12	A11-3808011	SENSOR -TEMPERRATURE	1
13	480-1306053	WASHER - THERMOSTAT SEAT	1
14	480-1306020	THERMOSTAT ASSY	1
15	480-1306012	CLIP - SPRING	1
16	480-1306011	SEAL RING	1
17	480E-1306030CA	SEAT ASSY - THERMOSTAT	1
18	480-1306054	BOLT - HEXAGON FLANGE	3
19	A11-3808030	SENSOR -TEMPERRATURE	1
20	480-1003026	PIPE - OIL SUPPLY	9

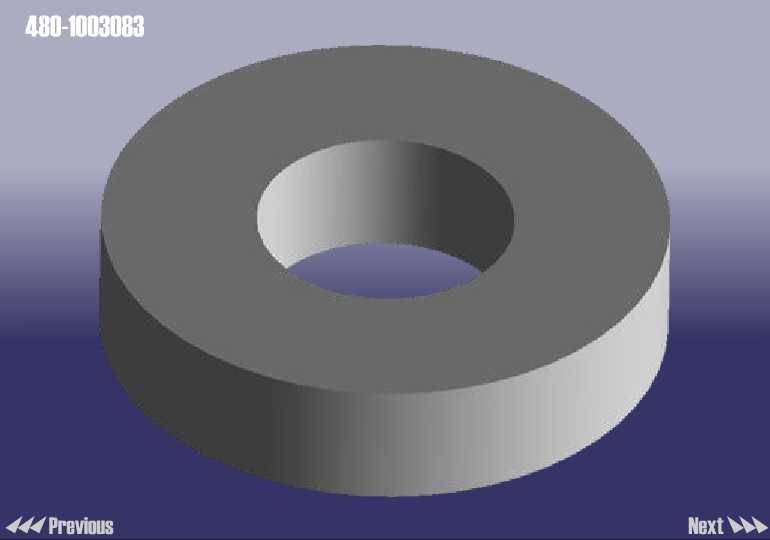

21	480-1003083	WASHER - PLAIN	10

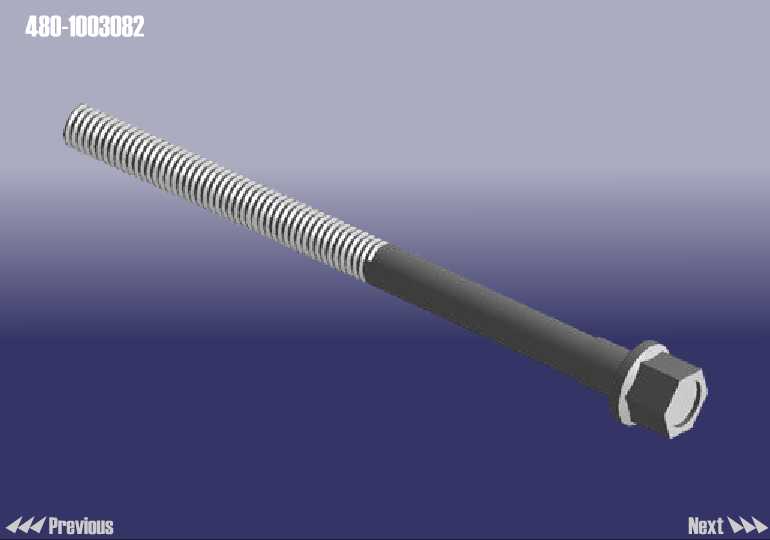

22	480-1003082	BOLT - CYLINDER HEAD	10

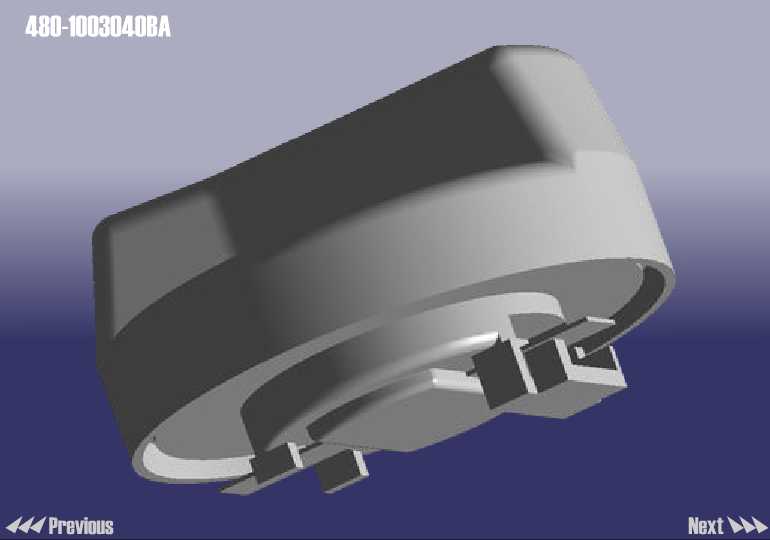

23	480-1003040BA	COVER ASSY - OIL TANK CAP	1

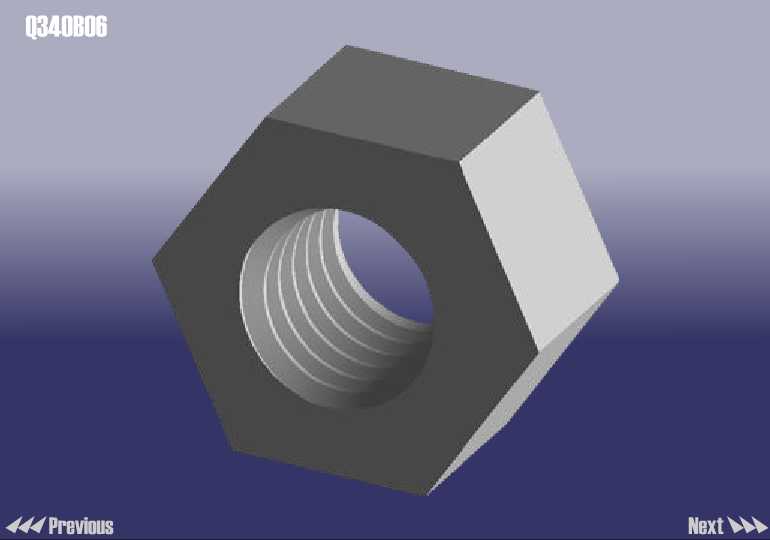

24	Q340B06	NUT - HEXAGON I	3
