КАТАЛОГ: CHERY	МОДЕЛЬ: TIGGO

---

Подбор авто запчастей на ЧЕРИ TIGGO (ТИГГО)

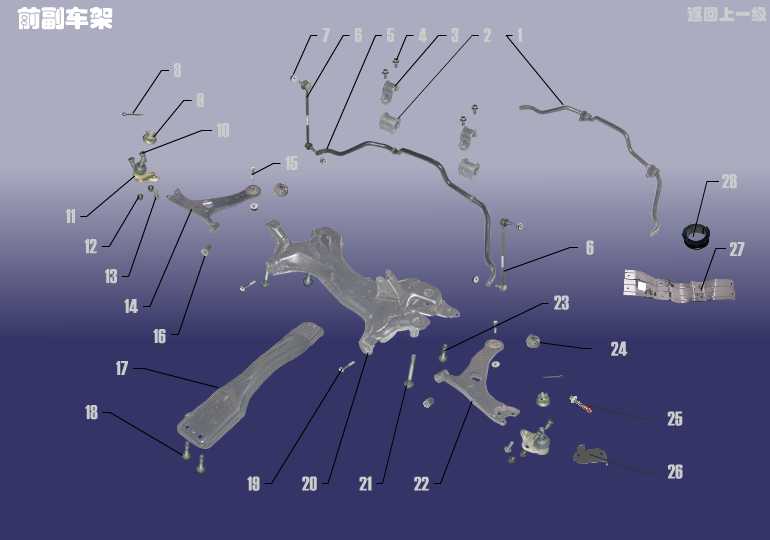

Поз.	Номер	Наименование	Колличество

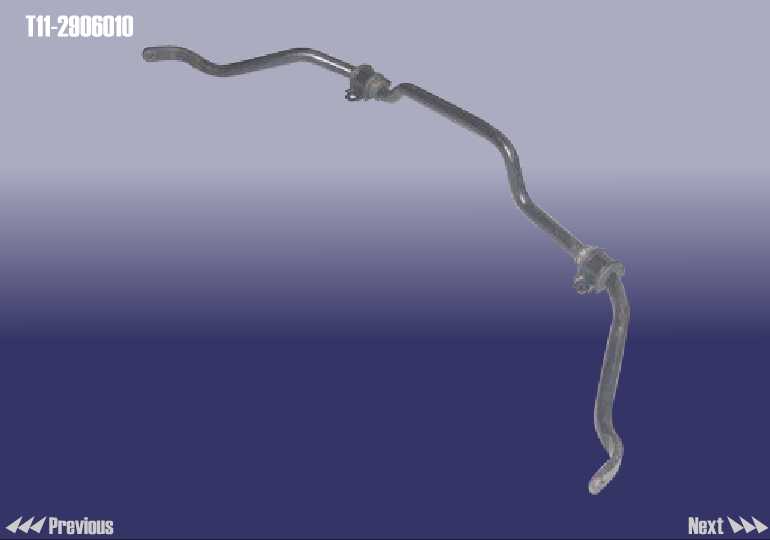

1	T11-2906010	STABILIZER ASSY,FRONT	1
2	T11-2906013	CLIP	2
3	T11-2906017	WASHER(R)	2

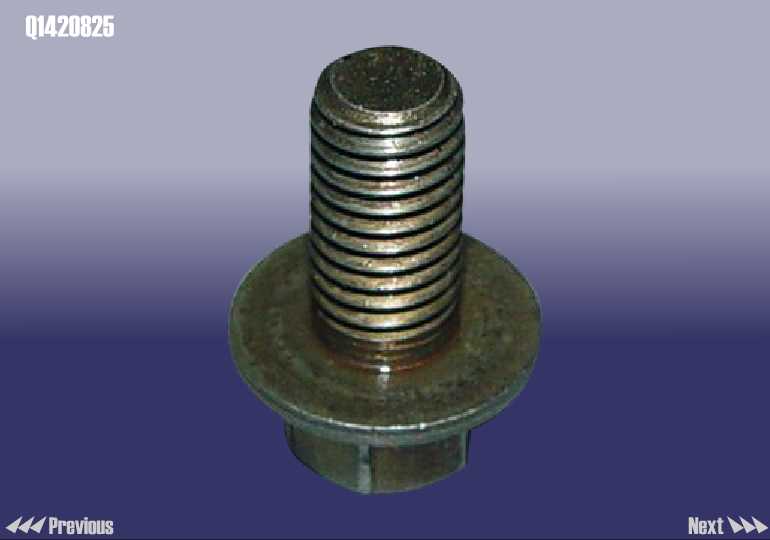

4	Q1420825	BOLT	4
5	T11-2906011	STABILIZER	1
6	T11-2906030	CONNECTING ROD,FRONT	1

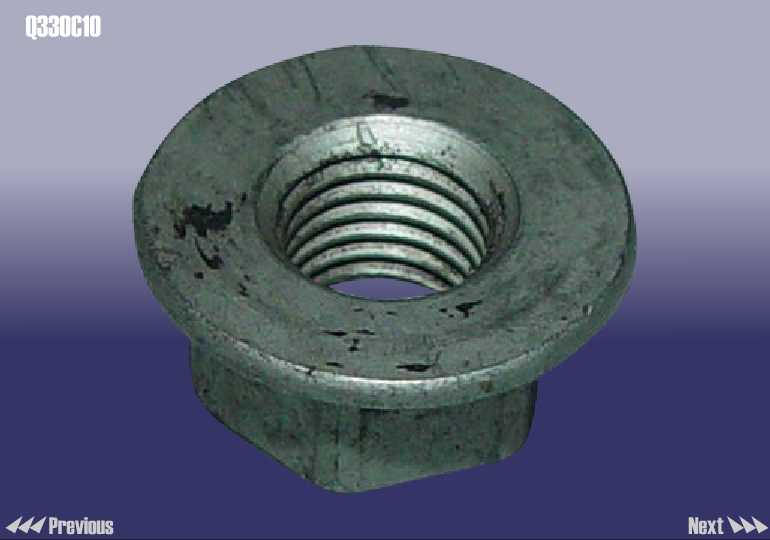

7	Q330C10	NUT	4
8	Q5002525	UNCORK PIN	2
9	T11-2909011	NUT	2
10	T11-2909061	BOLT,FLAT HEAD	4
11	T11-2909060	PIN,BAL-CONTROL ARM	2

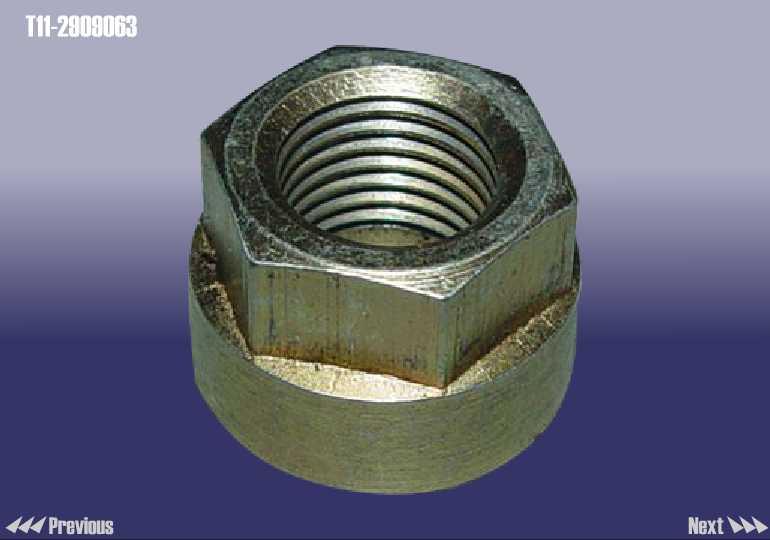

12	T11-2909063	NUT	4
13	AQ184B1220	BOLT	2
14	T11-2909010	ARM(L) ASSY,CONTROL	1

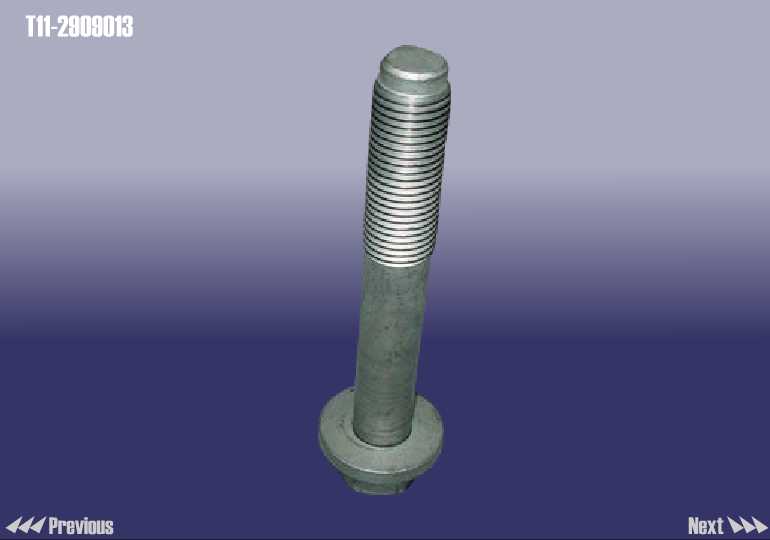

15	T11-2909013	BOLT	2
16	T11-2909070	SLEEVE,RUBBER-FRT	2
17	T11-2801010	GIRGER ASSY,WELDING	1
18	AQ140C1035	BOLT	2
19	AQ330B14	NUT	2
20	T11-2810010	SECONDARY CHASSIS WELDMENT ASSY	1
21	T11-2810013	SELFTAPPINGгмSCREW	2
22	T11-2909020	ARM(R) ASSY,CONTROL	1
23	T11-2810011	SELFTAPPINGгмSCREW	2

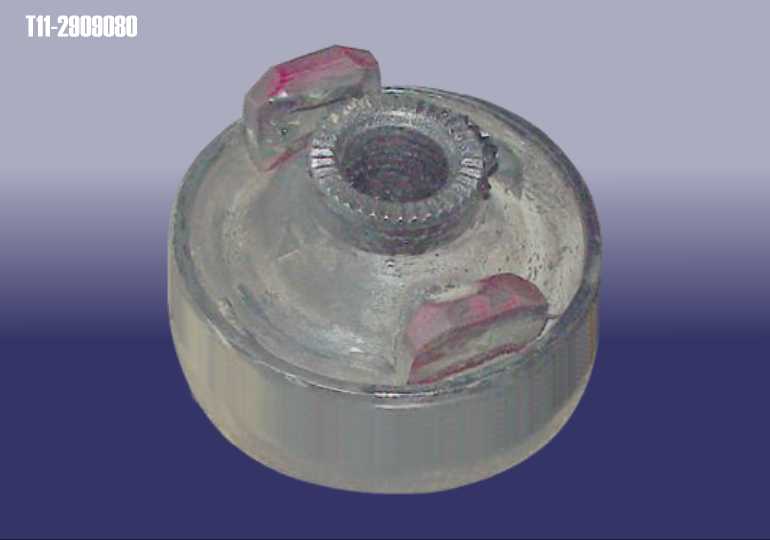

24	T11-2909080	SLEEVE,RUBBER-R.	0
25	AQ1840845S	SCREW	0
26	T11-2906015	WASHER - LH	0
27	T11-2810210	CAMBER BEAM	0
28	T11-2906019	RUBBER - SEAMING	0
29	B11-1703213	GASKET	0
30	B11-2203207	WASHER	0
