КАТАЛОГ: CHERY	МОДЕЛЬ: QQ6

---

Подбор авто запчастей на ЧЕРИ QQ6 (QQ6 )

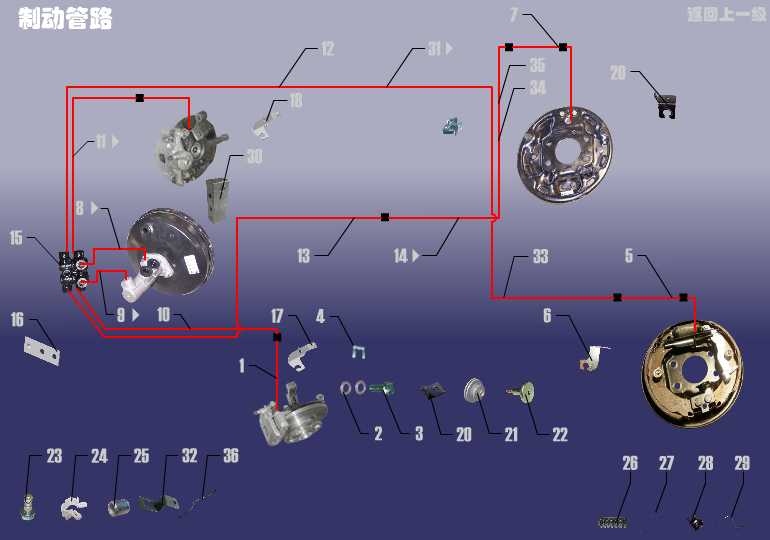

Поз.	Номер	Наименование	Колличество

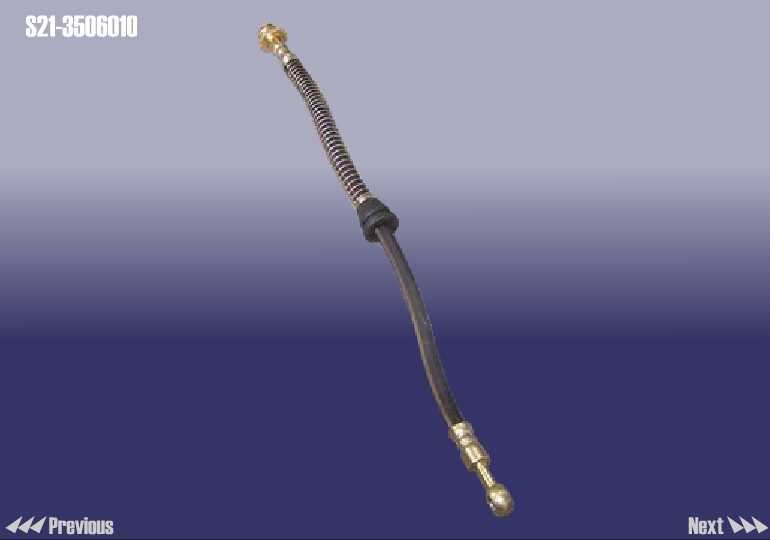

1	S21-3506010	HOSE ASSY -BRAKE FRT	2

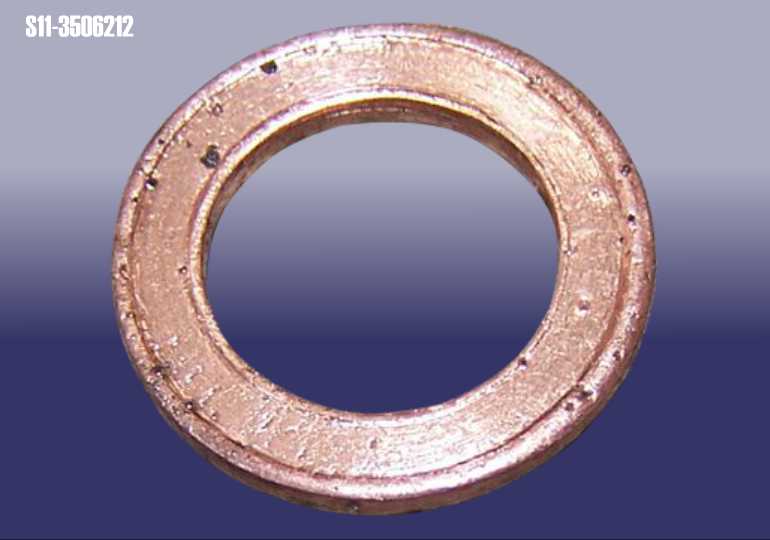

2	S11-3506212	WASHER	4

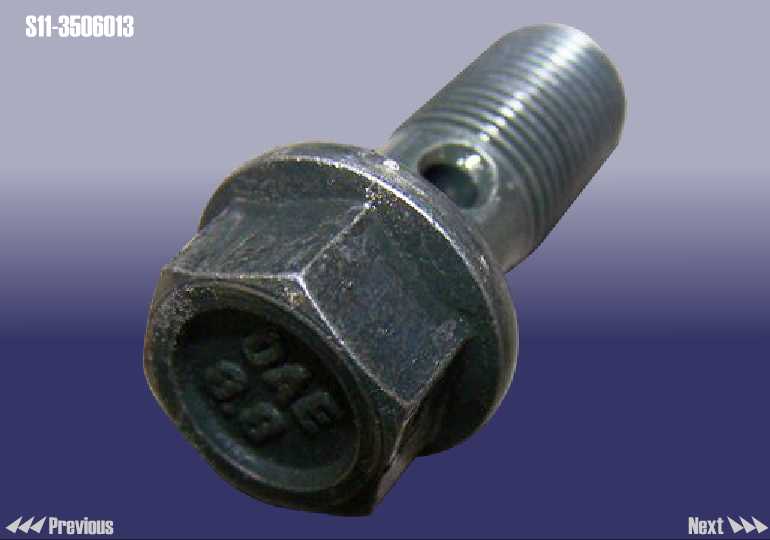

3	S11-3506013	CONNECT BOLT	2

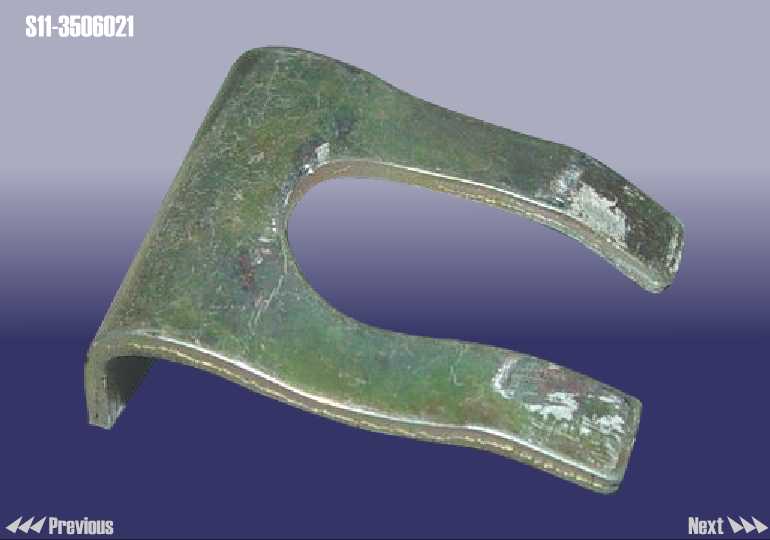

4	S11-3506021	STRAP - HOLDING	6

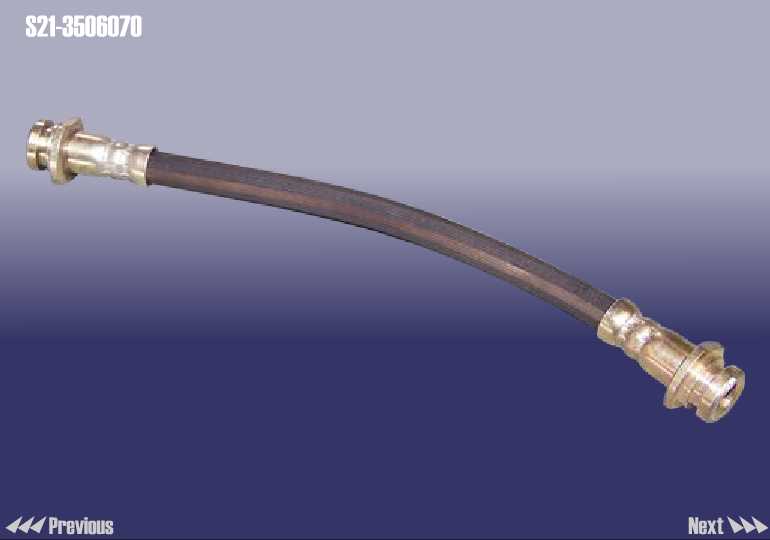

5	S21-3506070	HOSE-ASSY BRAKE RR.LH	1

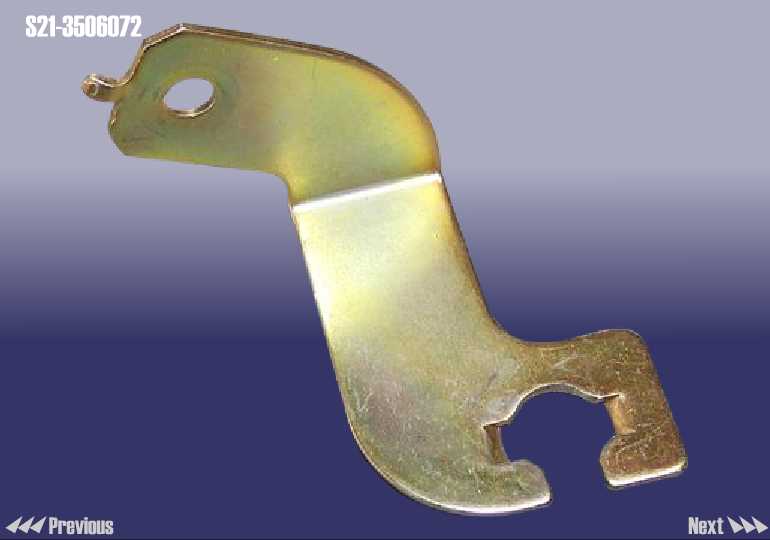

6	S21-3506072	BRACKET-HOSE BRAKE RR.LH	1

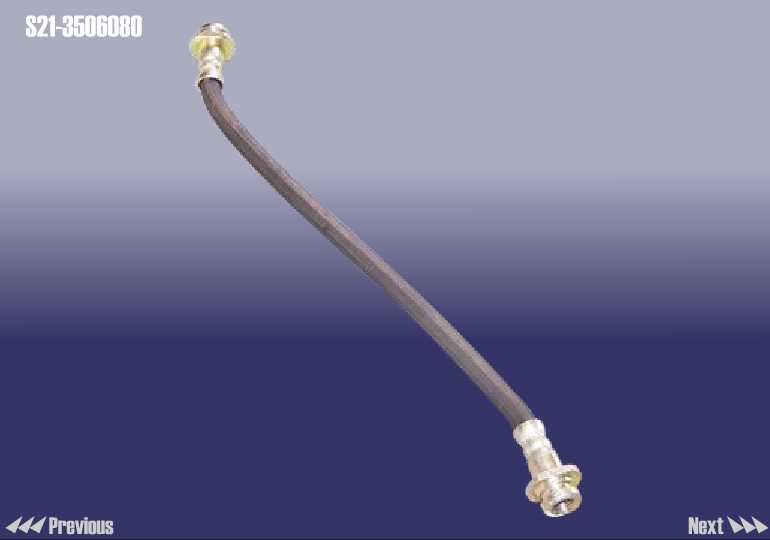

7	S21-3506080	HOSE-ASSY BRAKE RR.RH	1
8	S21ZDGL-ZBQZDG	PIPE - FRONT BRAKE	1

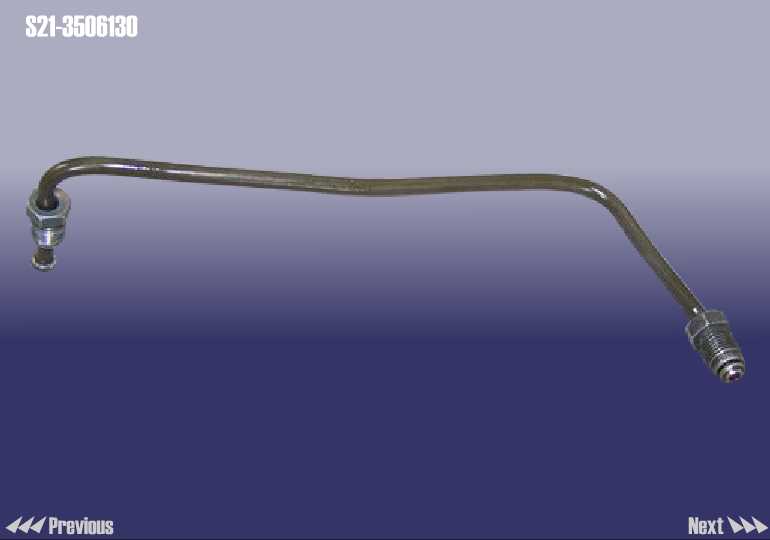

1	S21-3506130	PIPE - FRONT BRAKE	1

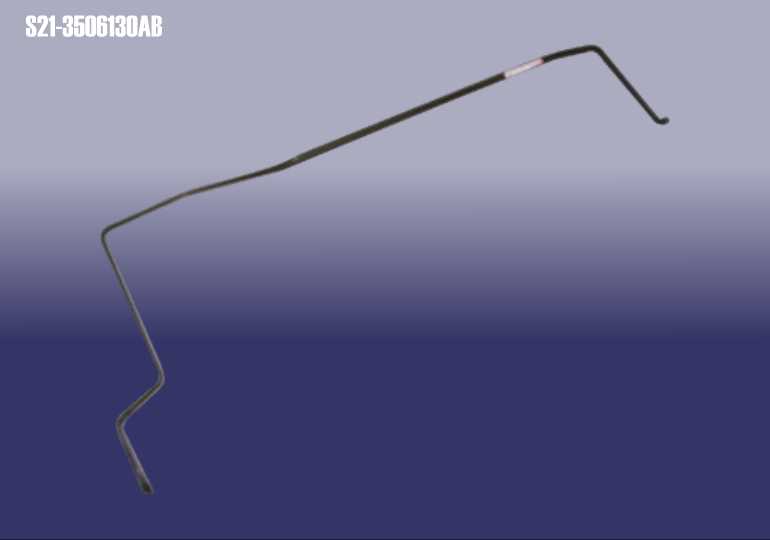

2	S21-3506130AB	PIPE - FRONT BRAKE	1
9	S21ZDGL-ZBHZDG	PIPE - REAR BRAKE	1
10	S21-3506030	PIPE - FRONT BRAKE LH	1
11	S21ZDGL-QYZDG	PIPE - FRONT BRAKE RH	1

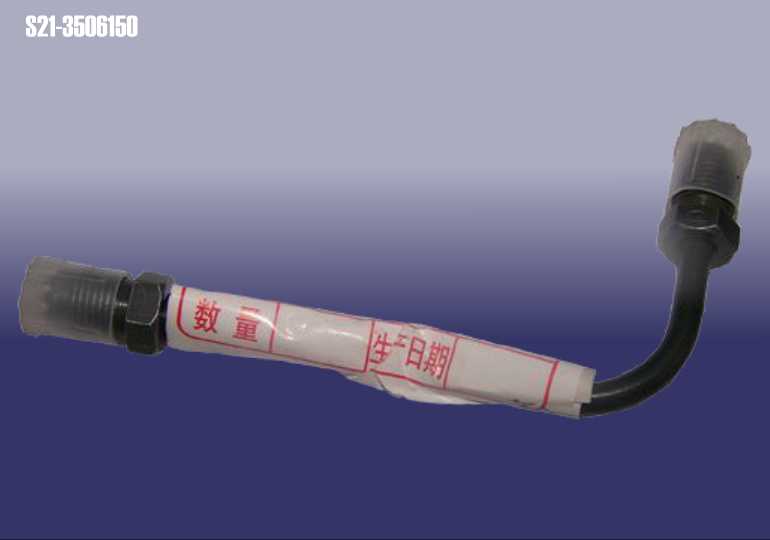

12	S21-3506150	TUBE ASSY - REAR BRAKE LH	1

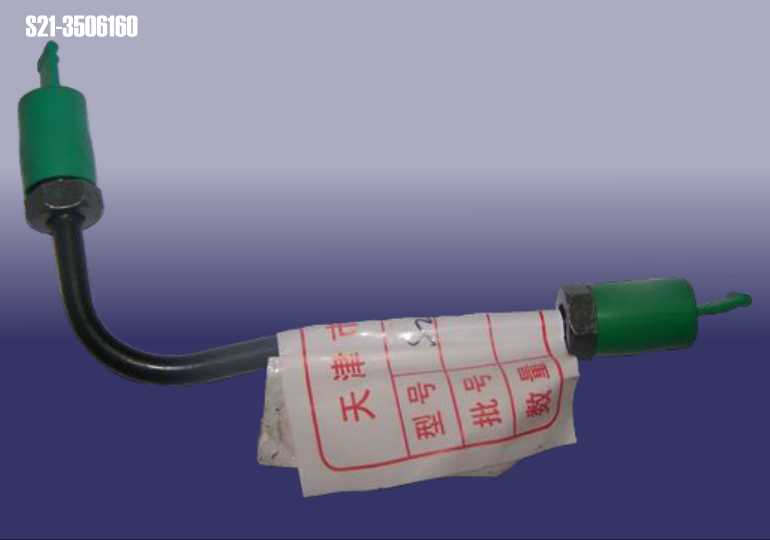

13	S21-3506160	TUBE ASSY - REAR BRAKE RH	1
14	S21ZDGL-HYZDG1	TUBE ASSY - REAR BRAKE RH	1
15	S21-3510610	PROPORTION VALVE ASSY	1

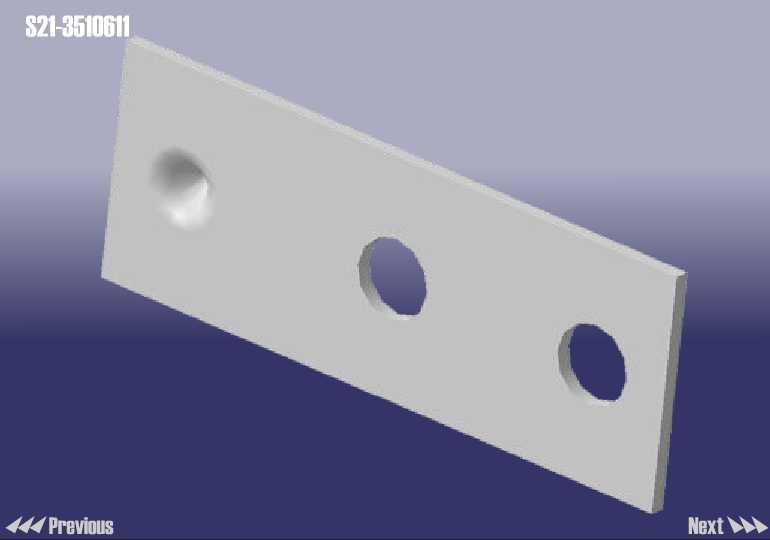

16	S21-3510611	BRACKET PROPORTION VALVE ASSY	1

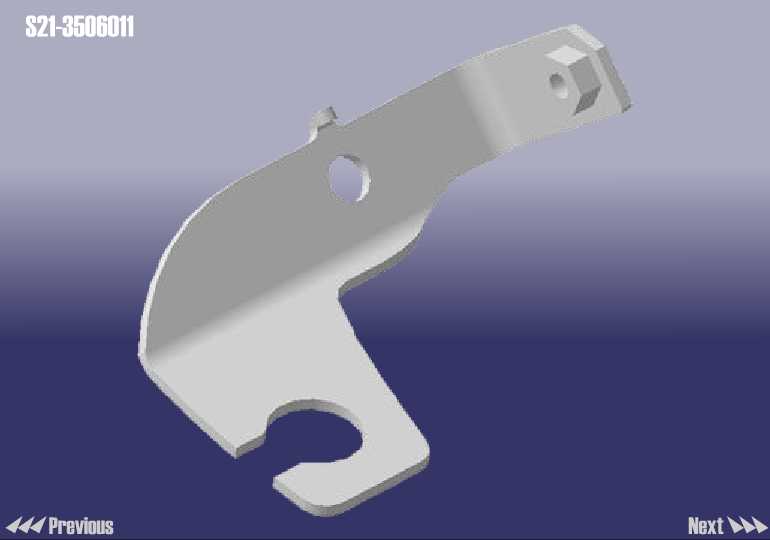

17	S21-3506011	BRACKET-HOSE FR LH	1

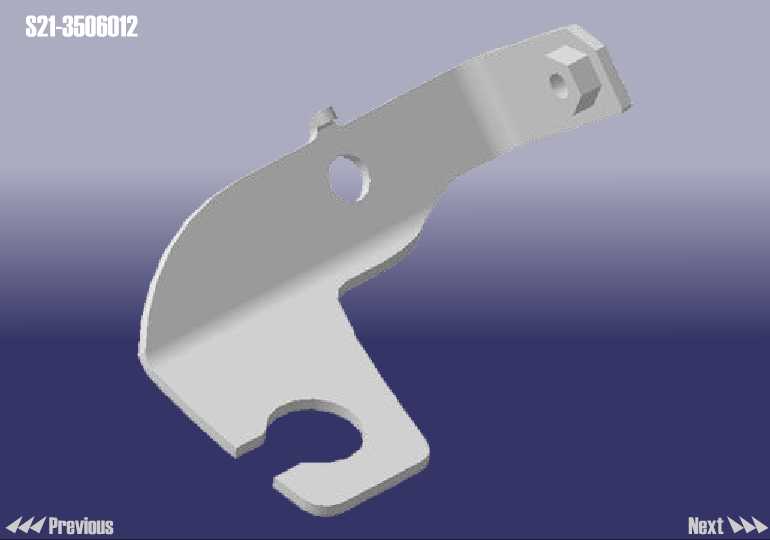

18	S21-3506012	BRACKET-HOSE FR RH	1

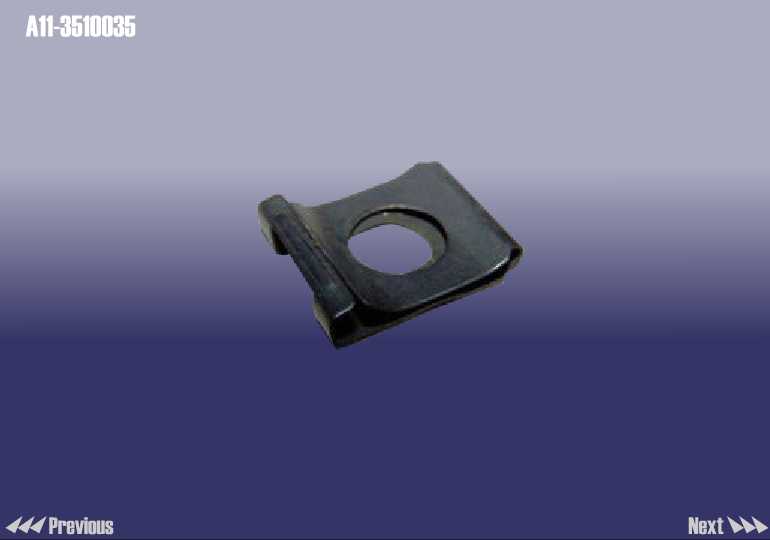

20	A11-3510035	RING	1

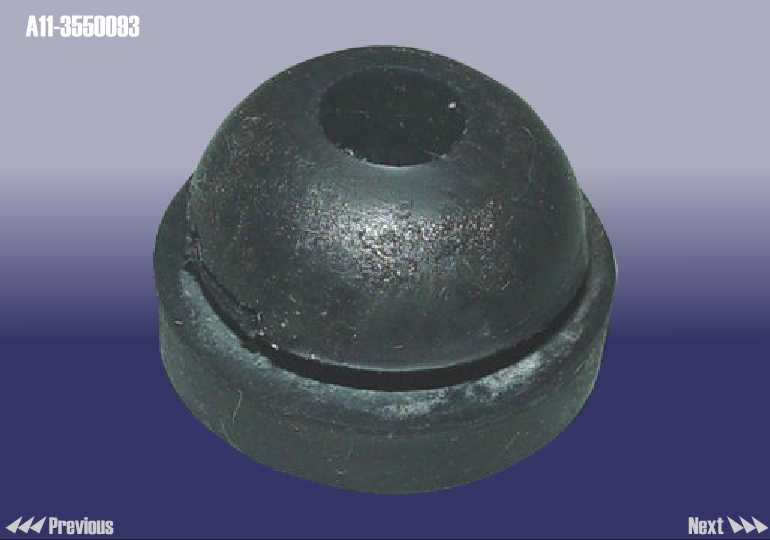

21	A11-3550093	ABSORBER-ABS	1

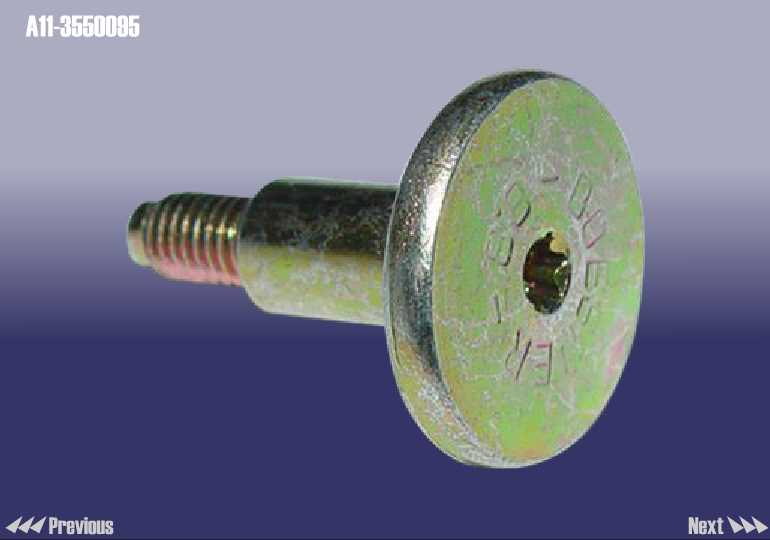

22	A11-3550095	BOLT	1

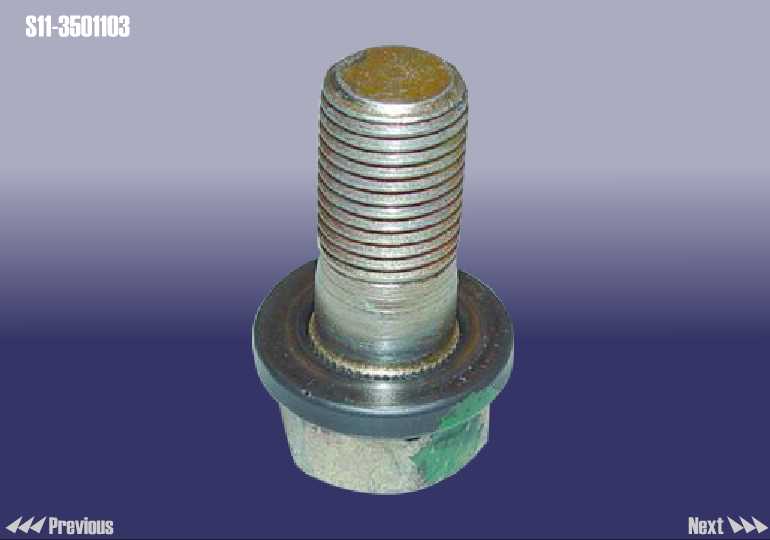

23	S11-3501103	BOLT-BRACKET	1

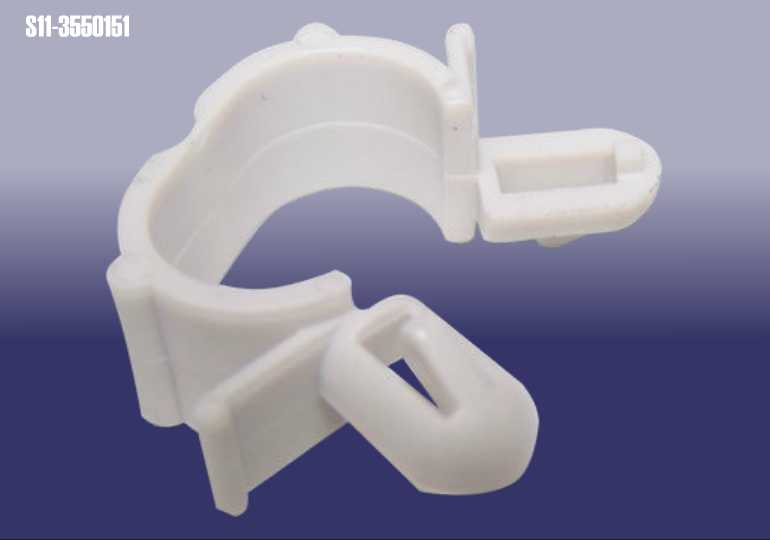

24	S11-3550151	CLAMP	1

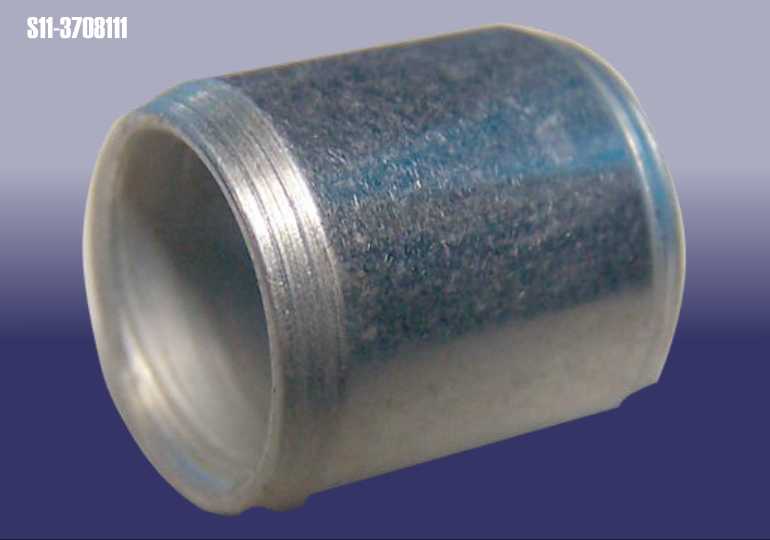

25	S11-3708111	STEEL SLEEVE	1

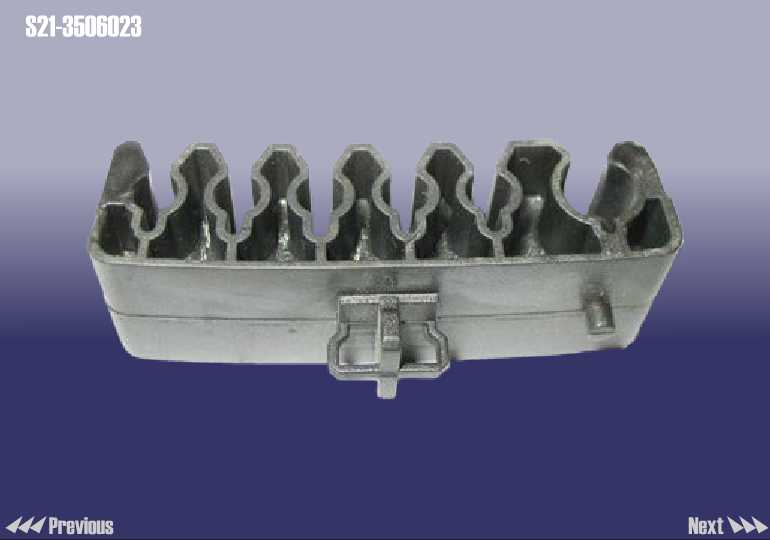

26	S21-3506023	CLAMP	1

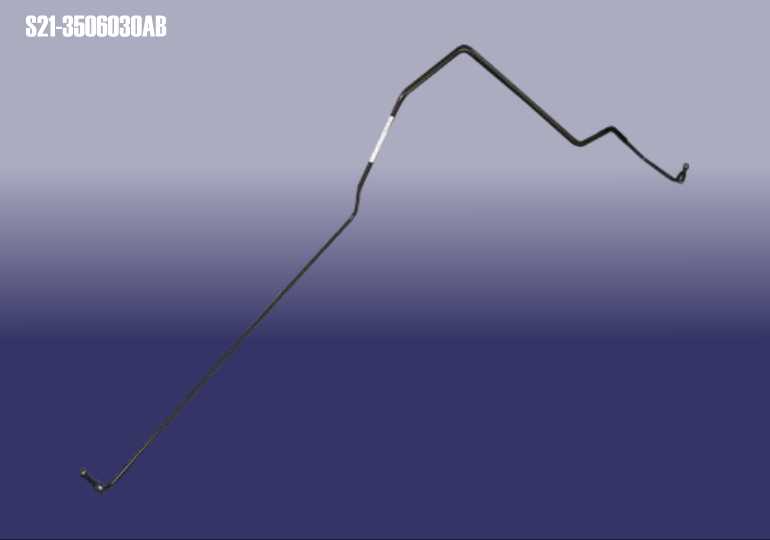

27	S21-3506030AB	BRAKING PIPE I-FR LH	1
28	S21-3506073	BRACKET- BRAKING PIPE RR RH	1
29	S21-3506170AB	BRAKING PIPE I-FR LH	1

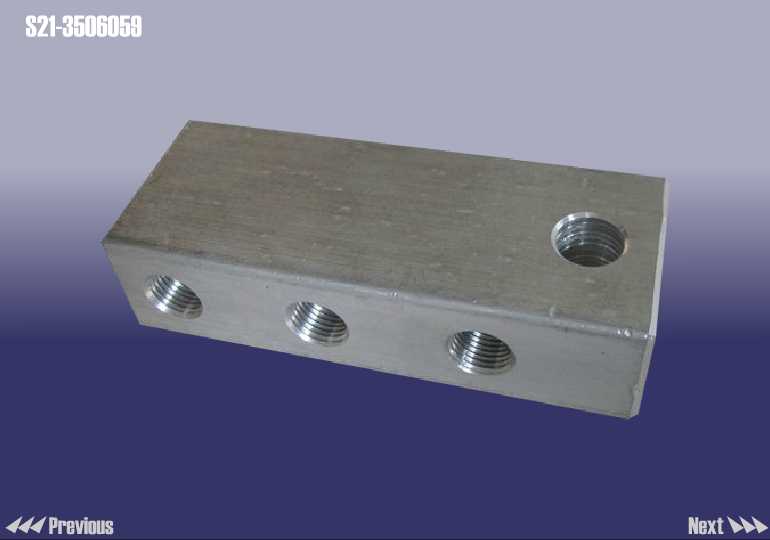

30	S21-3506059	CONNECTING HAED-THREE WAY PIPE	1
31	S21ZDGL-HZZDG1	BRAKING PIPE I-RR LH	1

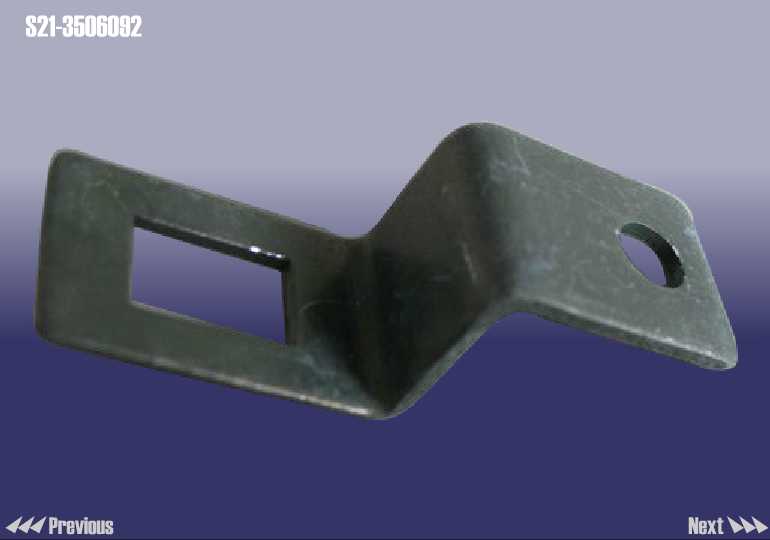

32	S21-3506092	BRACKET	1
33	S21-3506110AB	BRAKING PIPE II-RR LH	1
34	S21-3506120AB	BRAKING PIPE II-RR RH	1
35	S21-3506200	BRAKING PIPE III-RR RH	1

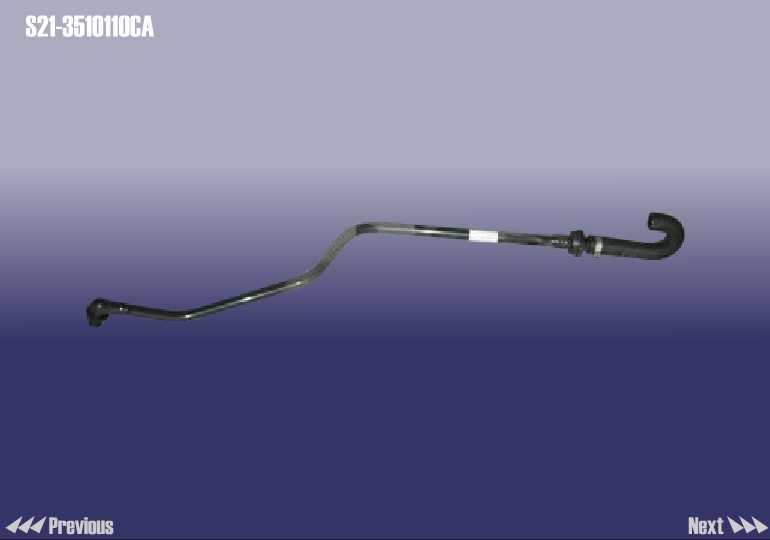

36	S21-3510110CA	VACUUM PIPE	1
