КАТАЛОГ: CHERY	МОДЕЛЬ: KIMO

---

Подбор авто запчастей на ЧЕРИ KIMO (КИМО)

Поз.	Номер	Наименование	Колличество

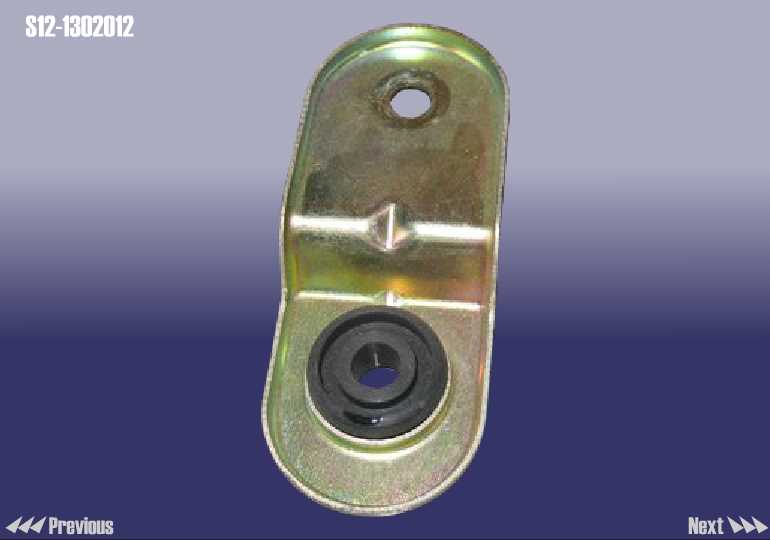

1	S12-1302012	PLATE - TENSION LH RADIATOR	1
2	S12-1302011	PLATE - TENSION RH RADIATOR	1
3	S21-1301110	RADIATOR ASSY	1
4	S12-1303111	PIPE-WATER INLET	1
5	S12-1303513	PIPE-AIR DISCHARGE II	1

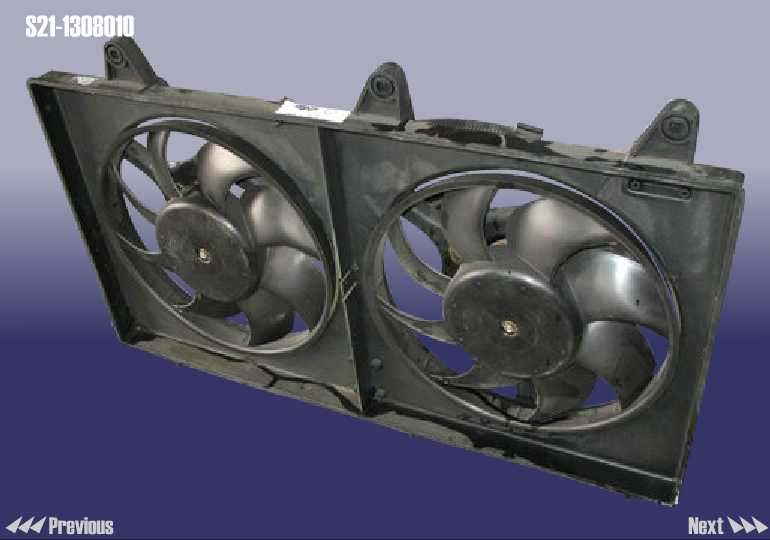

6	S21-1308010	COOLING FAN ASSY	1

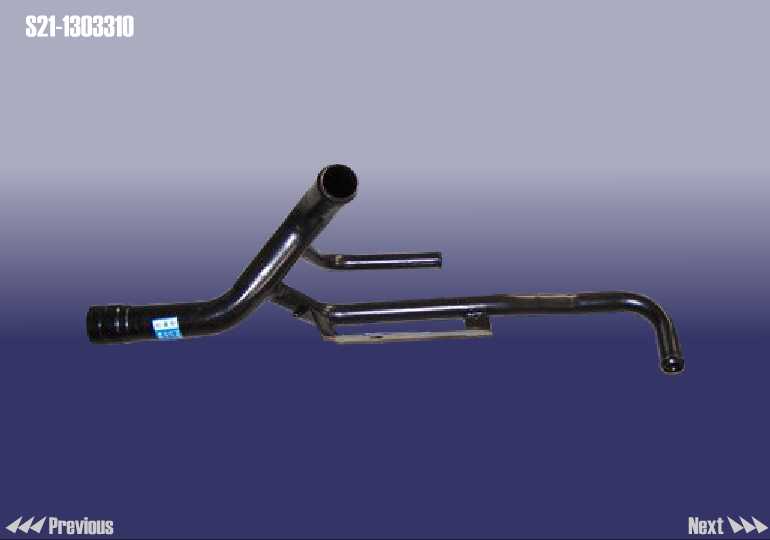

7	S21-1303310	PIPE WATER INLETASSY	1

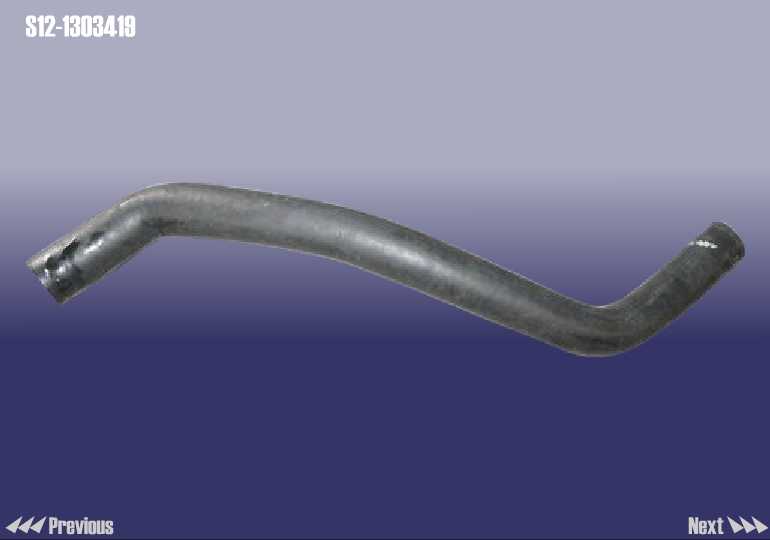

8	S12-1303419	OUTLET PIPEвЄ-HEATER	1
9	S21-1303711	PIPE-INNER CIRCULATION	1

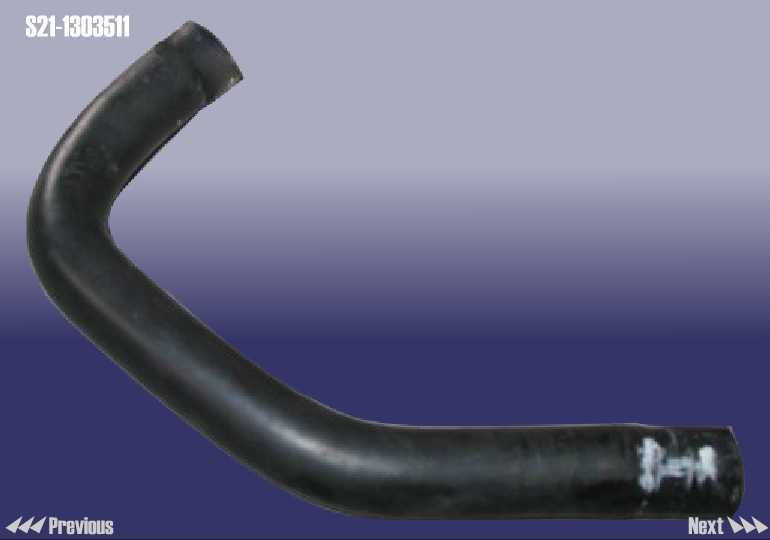

10	S21-1303511	PIPE-AIR DISCHARGE I	1
11	S21-1303416	HOSEI - WATER INLET HEATER	1
12-1	S21-1303813	OUTLET WATER PIPE-THROTTLE VALVE	1
12-2	S12-1303813	OUTLET WATER PIPE-THROTTLE VALVE	1
13	S21-1303811	HOSE - WATER INLET THROTTLE	1

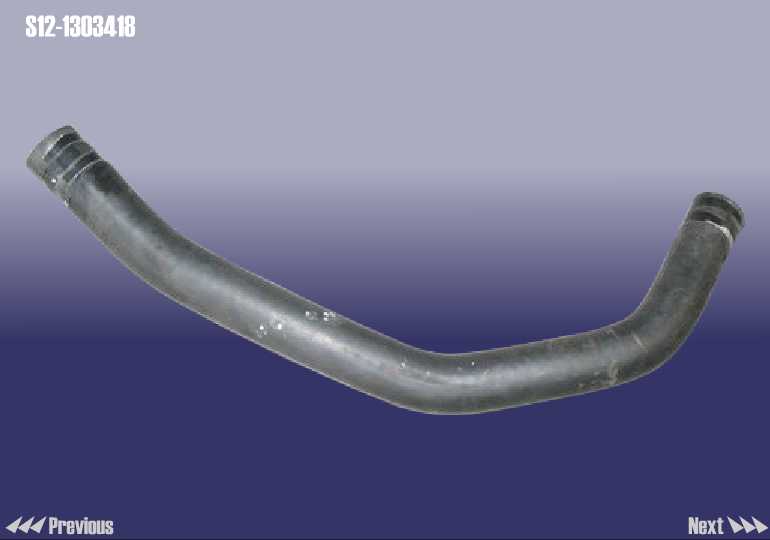

14	S12-1303418	HOSEI - WATER OUTLET HEATER	1

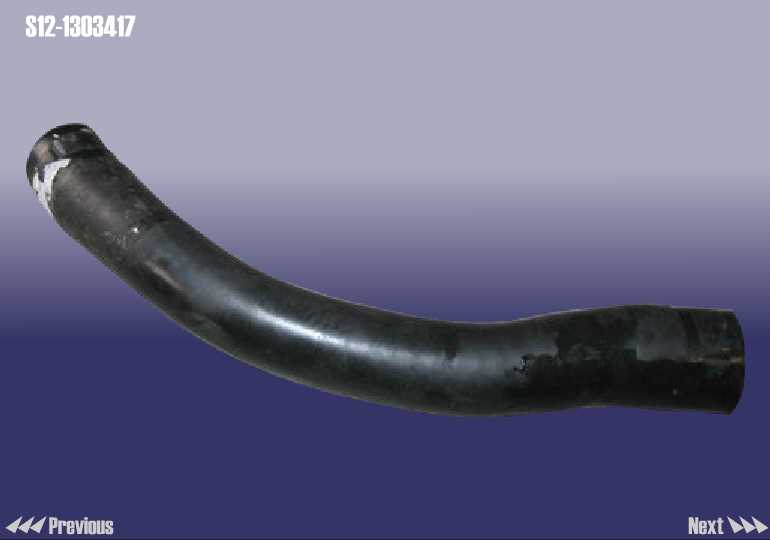

15	S12-1303417	HOSEII - WATER INLET HEATER	1
16	A11-1303615	THREE WAY PIPE	1

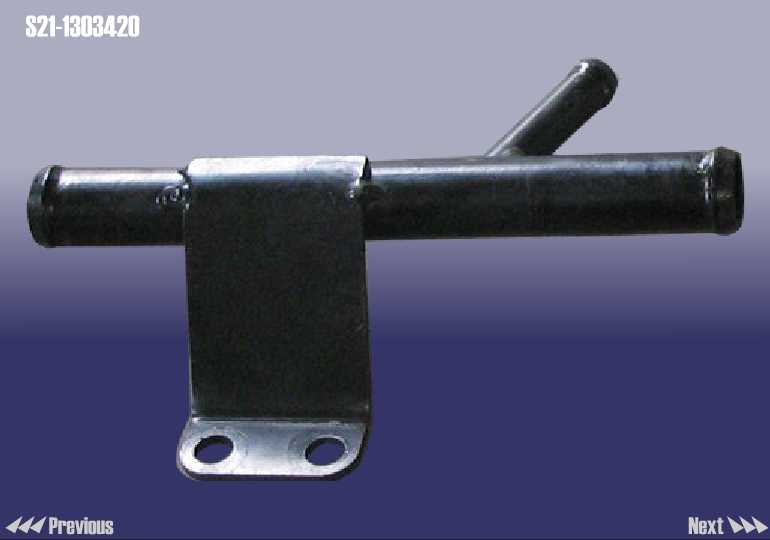

17	S21-1303420	THREE WAY PIPE-HEAT WIND	1

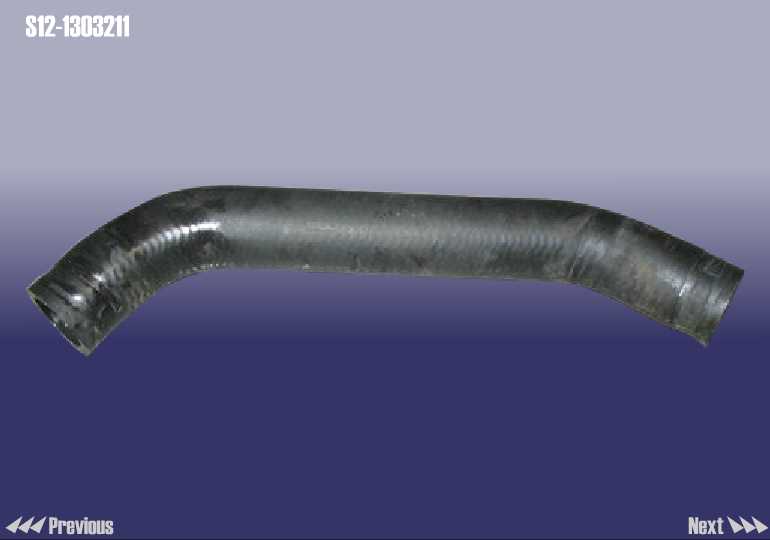

18	S12-1303211	OUTLET PIPE-WATER	1
19	S21-1303330	PIPE ASSY - WATER COOLING	1

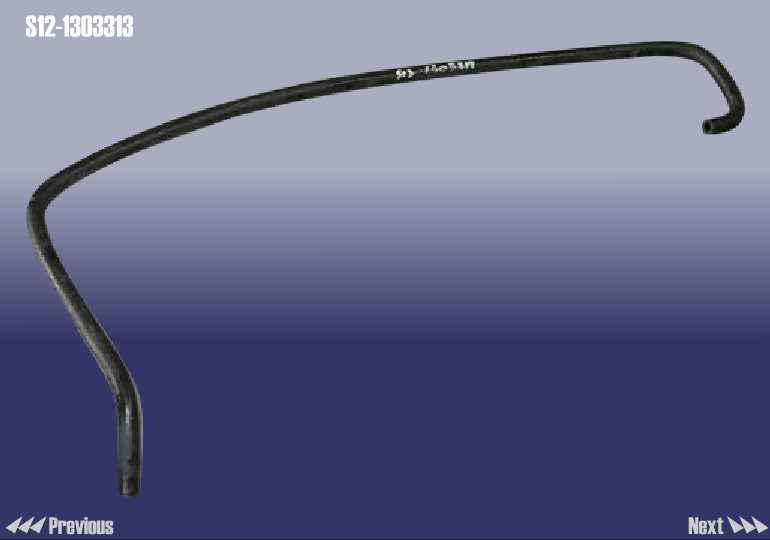

20	S12-1303313	PIPE-RADIATOR TO INFLATION BOX	1

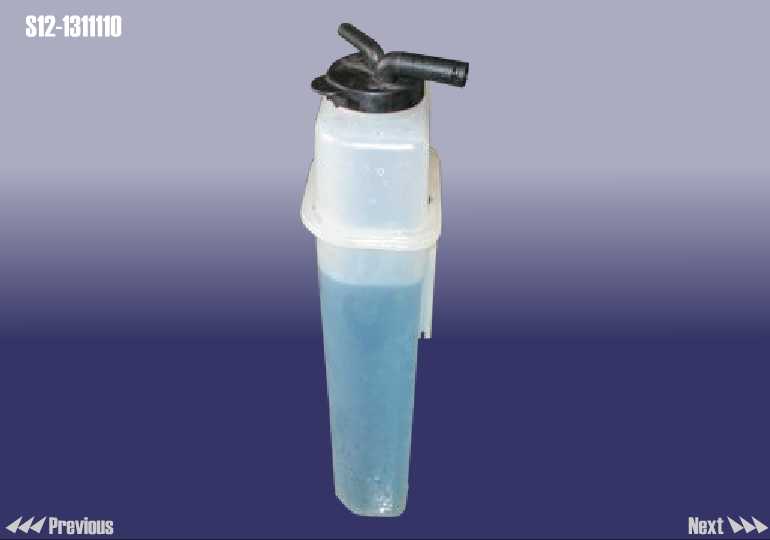

21	S12-1311110	INFLATION BOX ASSY	1
22	S12-1302001	WASHER-RADIATOR BRACKET UPR	1
23	S21-1302003	WASHER-RADIATOR BRACKET LWR	1

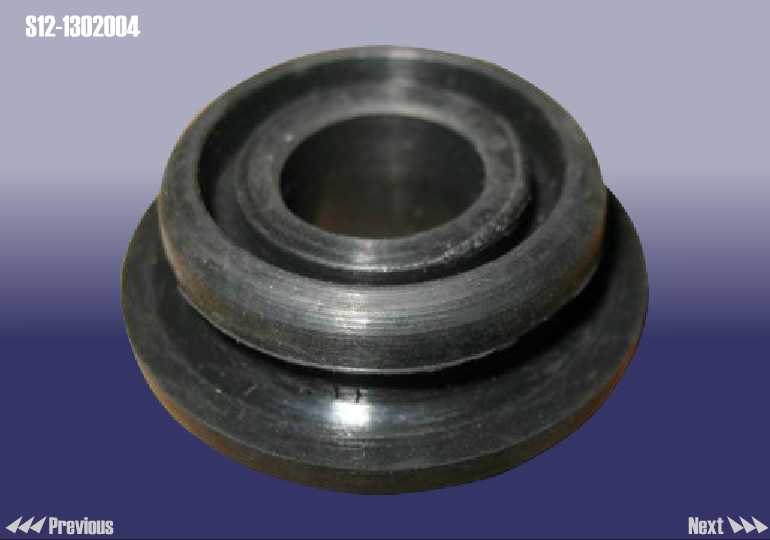

24	S12-1302004	WASHER-RADIATOR BRACKET LWR II	1
