КАТАЛОГ: CHERY	МОДЕЛЬ: KIMO

---

Подбор авто запчастей на ЧЕРИ KIMO (КИМО)

Поз.	Номер	Наименование	Колличество
1	S12-5205143	WIPER BLADE-AUXILIARY	1
2	Q33008	NUT	2

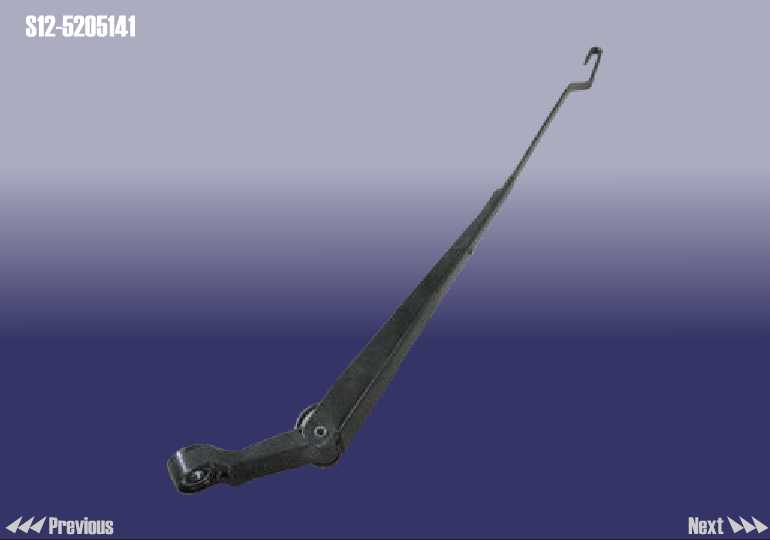

3	S12-5205141	WIPER ARM-VICE	1
4	Q32006	NUT	6

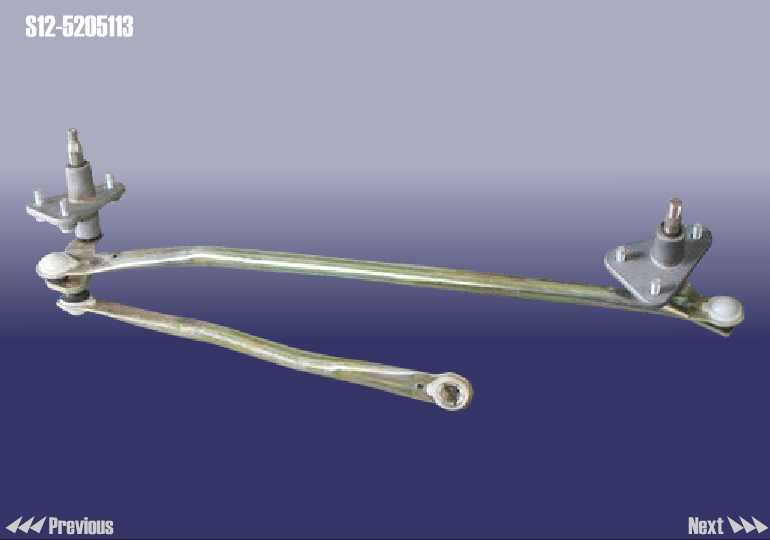

5	S12-5205113	CONTROLLER	1

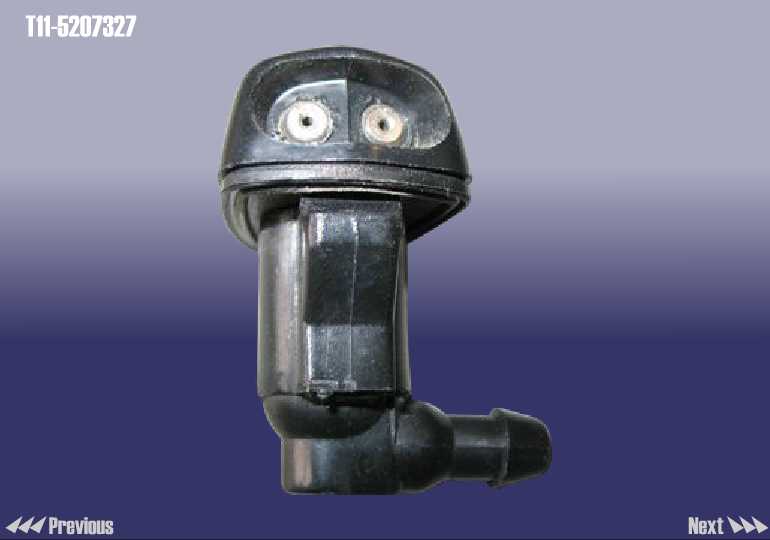

6	T11-5207327	NOZZLE-FR	2
7	S12-5611133	WIPER BLADE-RR	1

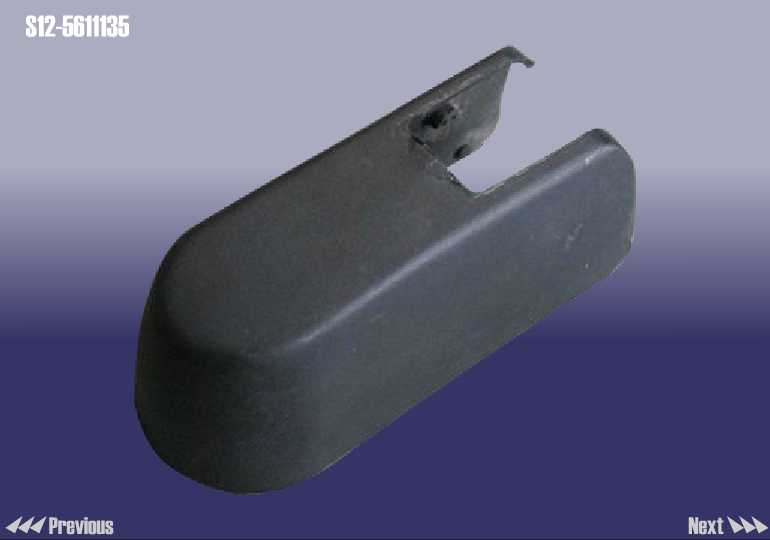

8	S12-5611135	TRIM CAP	1

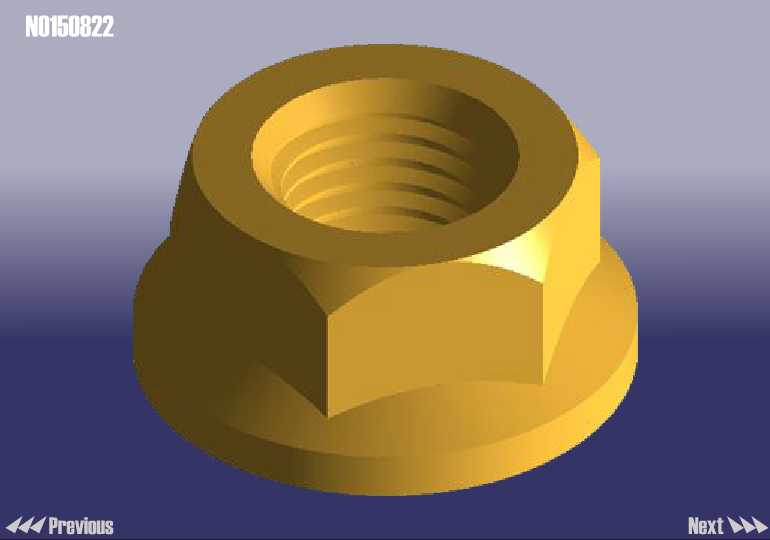

9	N0150822	NUT	1

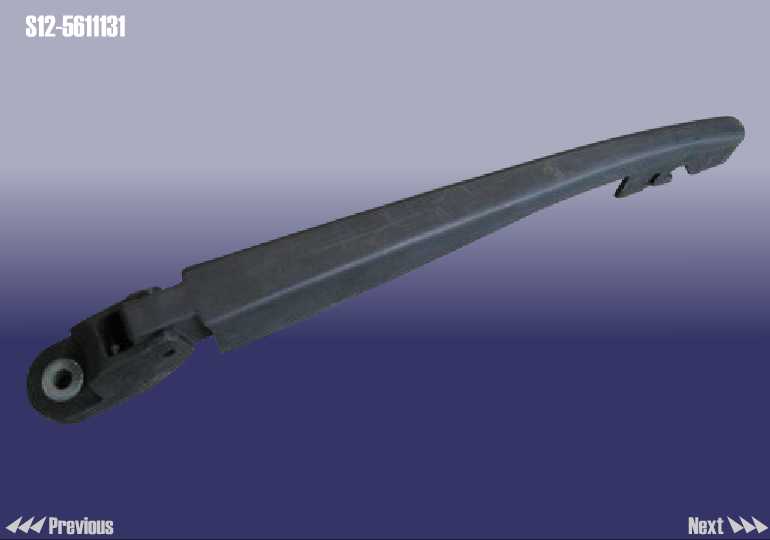

10	S12-5611131	WIPER ARM-RR	1
11	S12-5611151	RING -RUBBER	1
12	S12-5611110	MOTOR ASSY-WIPER RR	1
13	Q1400625	BOLT	3

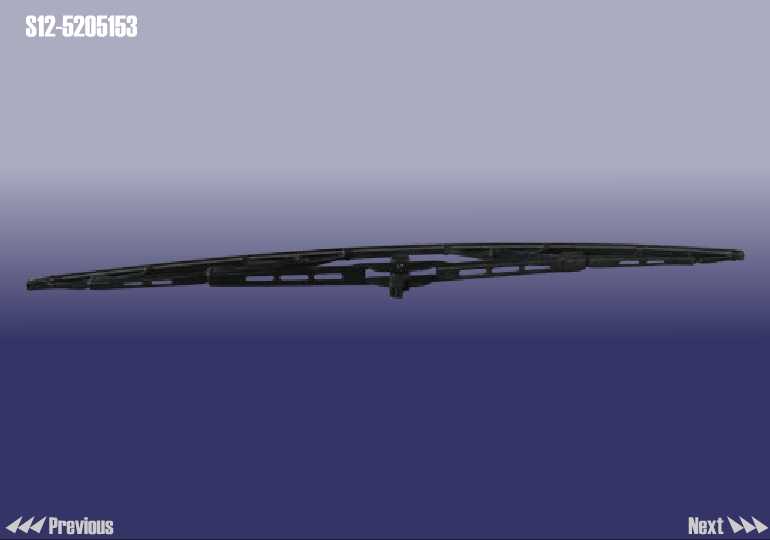

14	S12-5205153	MAIN WIPPER BLADE	1

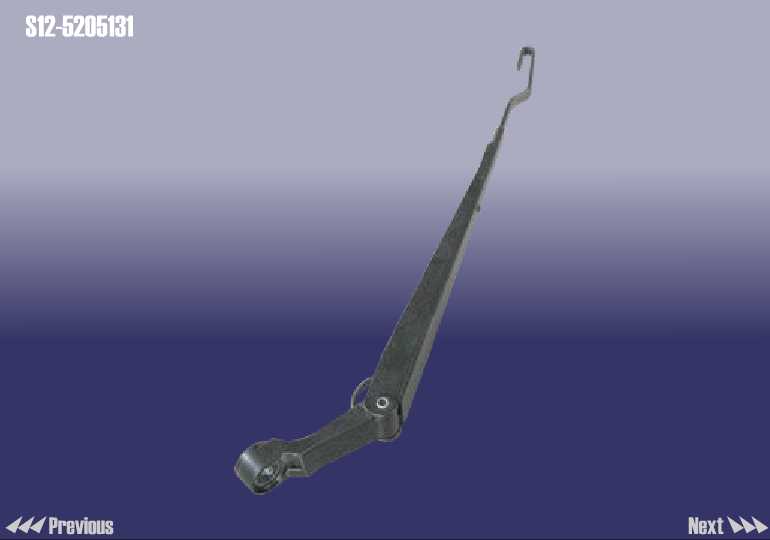

15	S12-5205131	MAIN WIPPER ARM	1

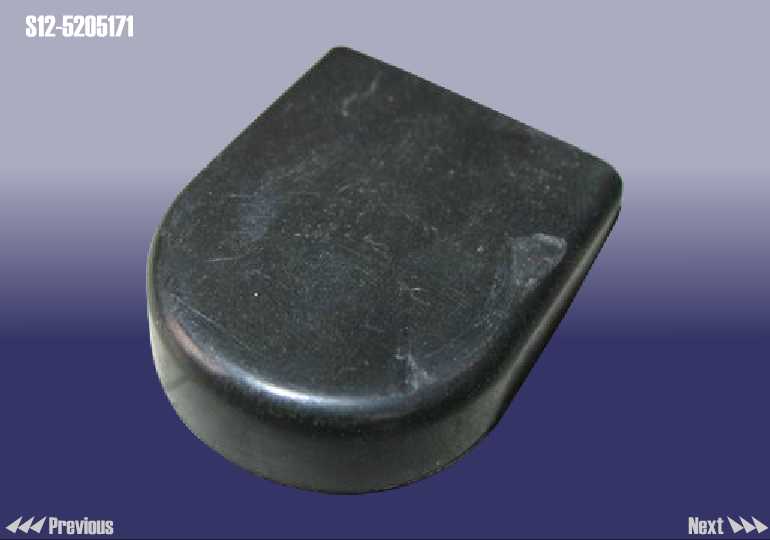

16	S12-5205171	TRIM CAP	3

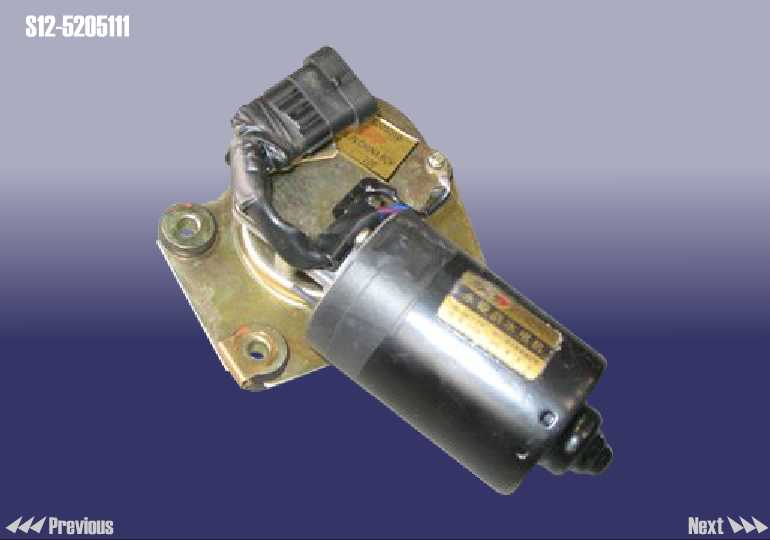

17	S12-5205111	WIPPER MOTOR	1

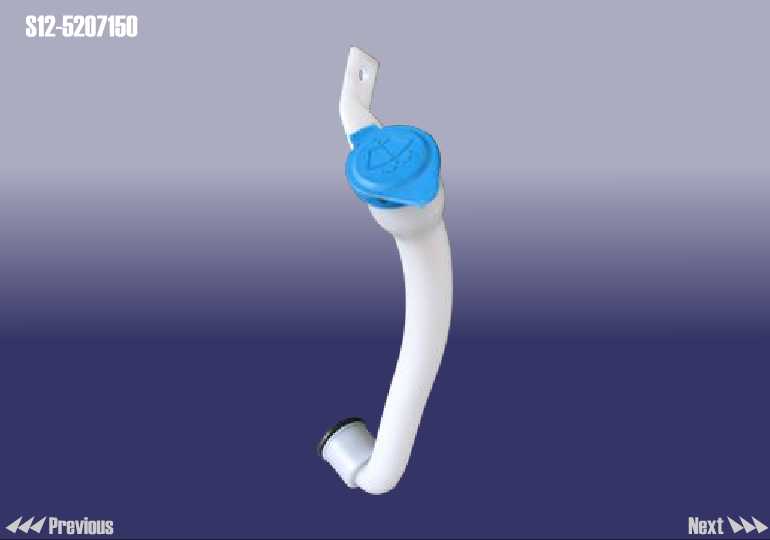

18	S12-5207150	GUIDE PIPE ASSY	1

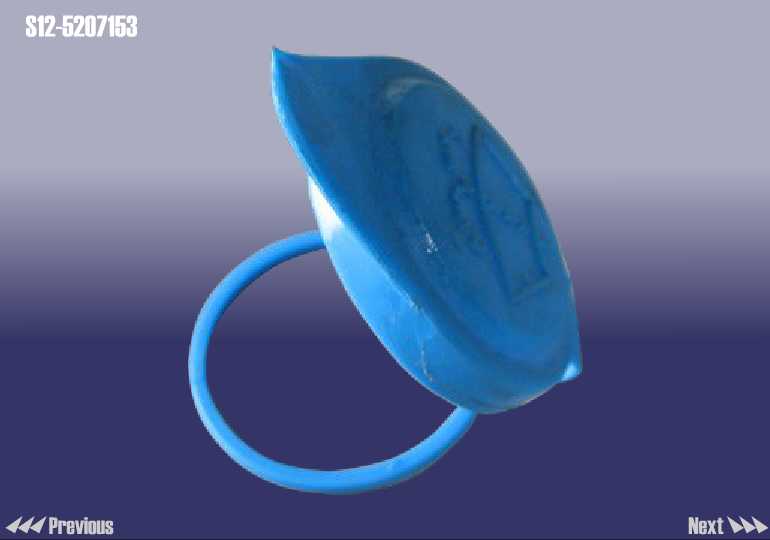

20	S12-5207153	COVER	1
21	S12-5207151	GUIDE PIPE	1

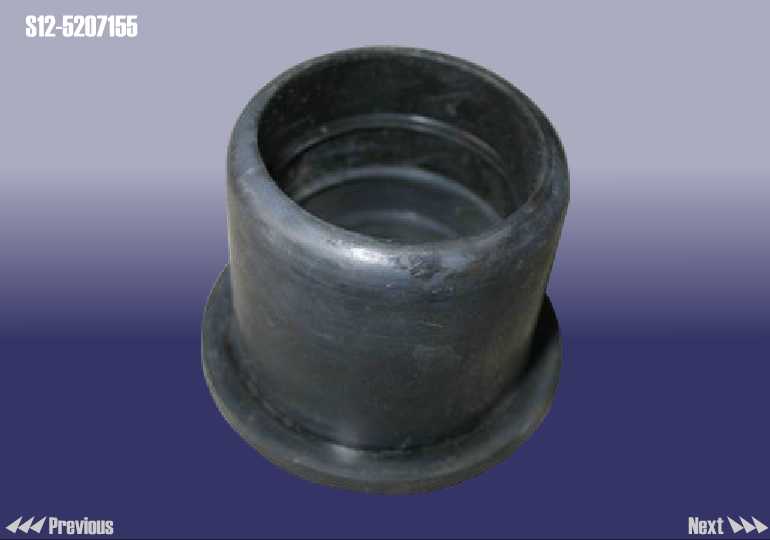

22	S12-5207155	SEAL RING	1

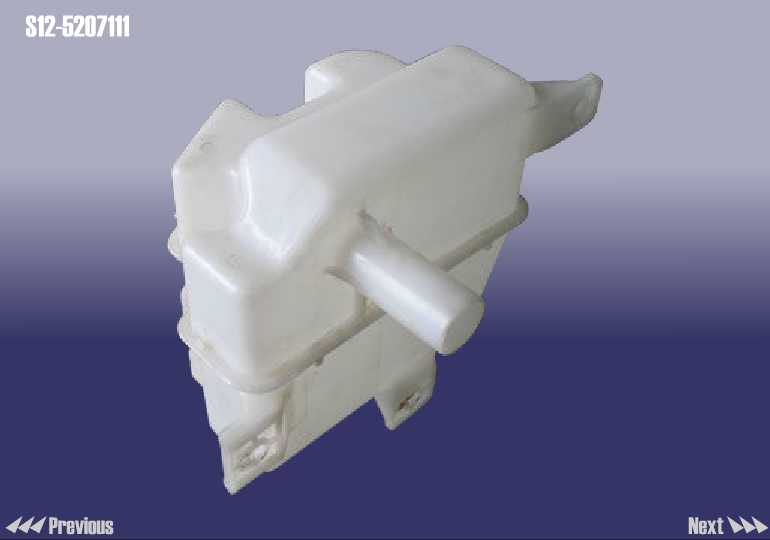

23	S12-5207111	WASHER RESERVOIR ASSY	1
24	A21-1200033	SEAL RING	2

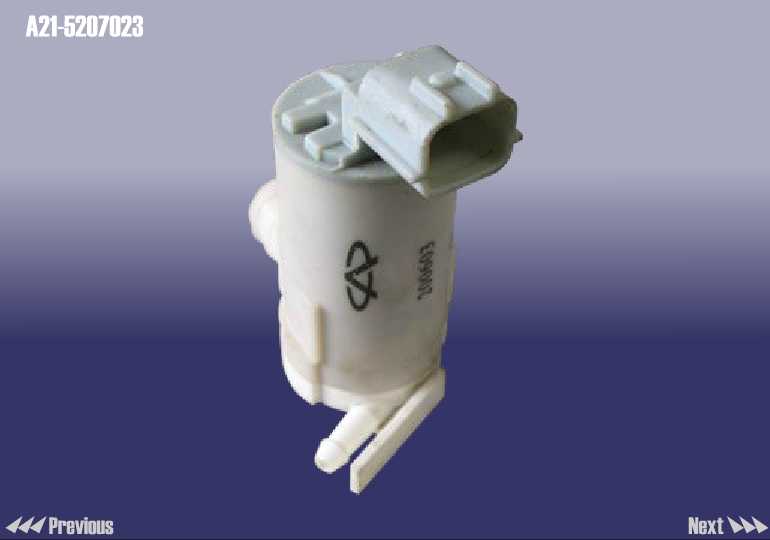

25	A21-5207023	WASHER MOTOR	2

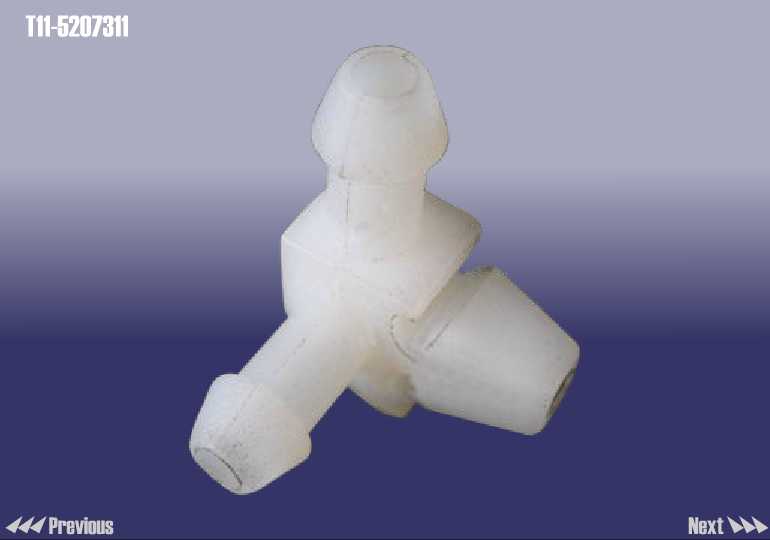

26	T11-5207311	CONNECTOR THREE WAY-L TYPE	2
27	T11-5207317	CONNECTOR THREE WAY- V TYPE	1

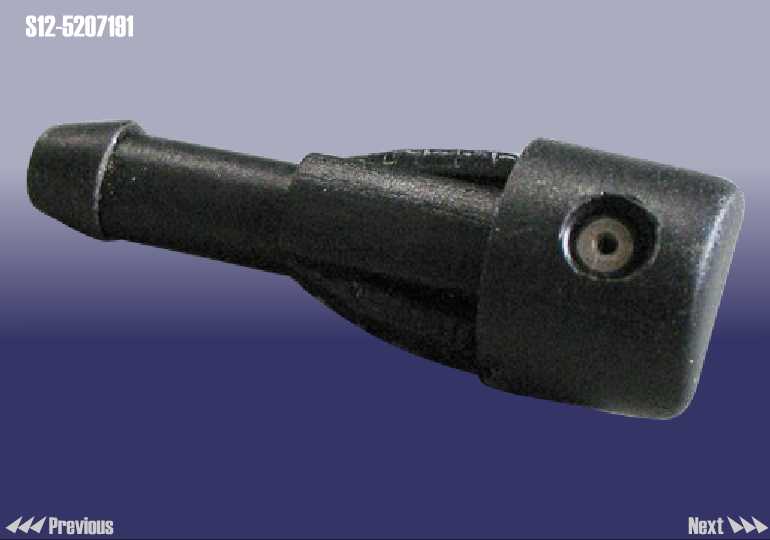

28	S12-5207191	NOZZLE-RR	1
29	S12-5207195	VALVE - ONE WAY	1
30	S12-5207193	PIPELINE	1

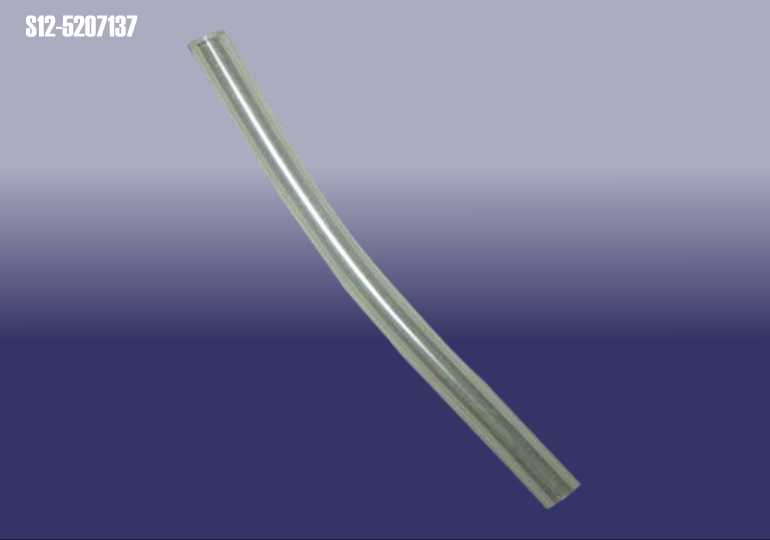

31-1	S12-5207137	PIPE 4	1

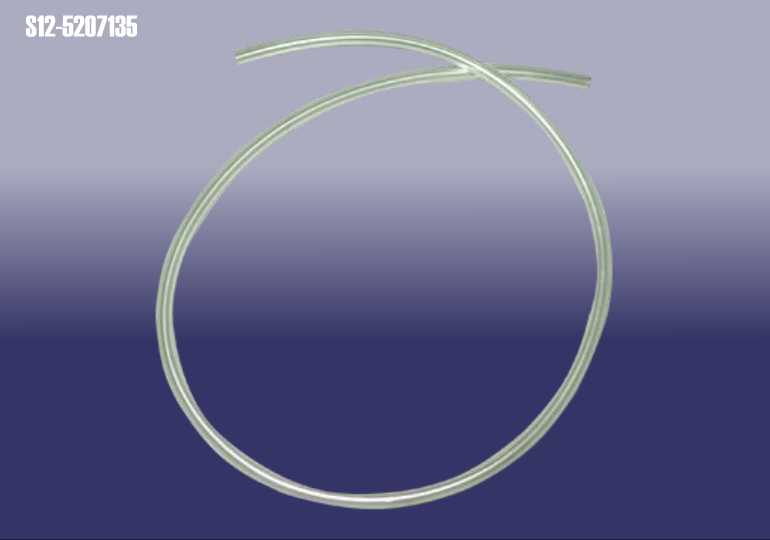

31-2	S12-5207135	PIPE 3	1

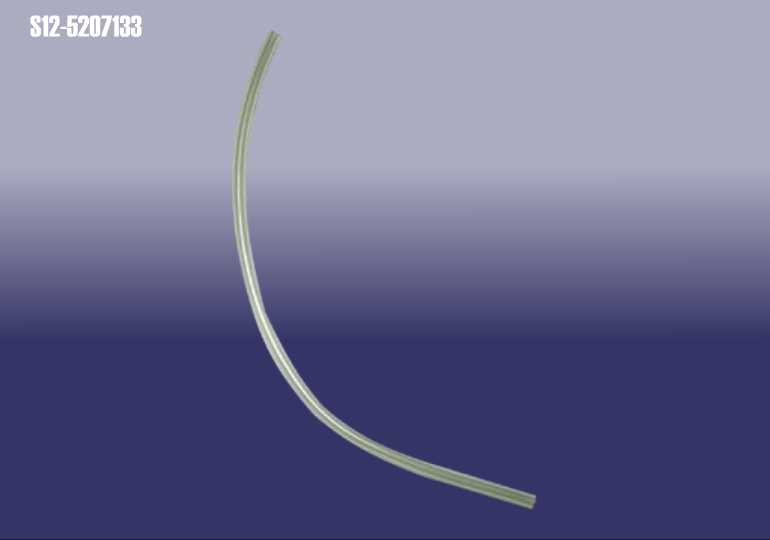

31-3	S12-5207133	PIPE 2	1
31-4	S12-5207131	PIPE 1	1

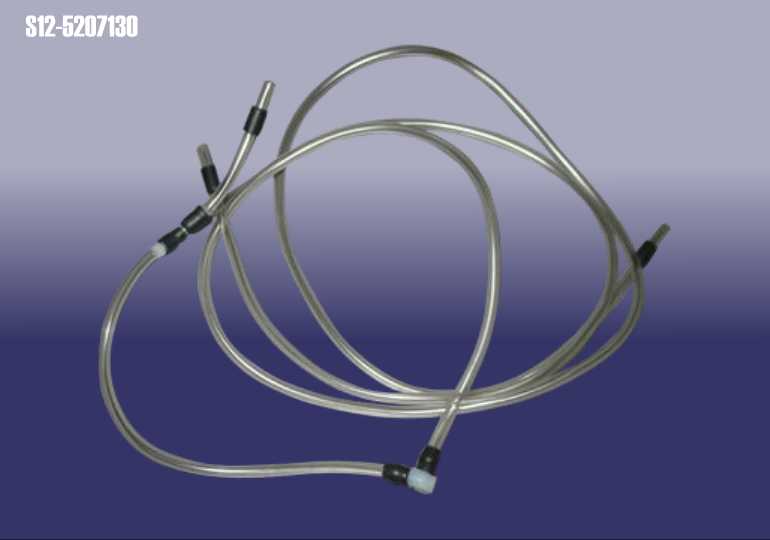

31-5	S12-5207130	PIPE ASSY	1
