КАТАЛОГ: CHERY	МОДЕЛЬ: SWEET

---

Подбор авто запчастей на ЧЕРИ SWEET (СВИТ)

Поз.	Номер	Наименование	Колличество
1	S11ABSZDGL-HYZDGвЄZC	BRAKE HOSE ASSY-RR RH	0
2	S11-3506090AB	BRAKE HOSE ASSY-RR LH	1
3	S11-3506110BA	PIPE II-BRAKE FR RH	1
4	S11-3510010AC	VACCUM BOOSTER ASSY-BRAKE MASTER CYLINDE	1
5	S11-3506059	VALVE - THREE WAY	1
6	S11ABSZDGL-ABSZJ	BRACKET ASSY - ABS	0
7	A11-3550093	DAMPING PAD	3
8	A11-3550095	SCREW	3
9	S11ABSZDGL-ZBHZDG	BRAKE PIPE-RR MASTER CYLINDER	0
10	S11ABSZDGL-QYZDG1ZC	PIPE I-BRAKE FR RH	0
11	S11ABSZDGL-HYZDG1ZC	BRAKE HOSE ASSYвё-RR RH	0
12	S11ABSZDGL-HZZDGL1	BRAKE HOSE ASSY-RR LH	0
13	S11ABSZDGL-ABSKZQZC	CONTROLLER ASSY - ABS	0
14	Q1840825	BOLT	2
15	Q32008	BOLT	1
16	S11ABSZDGL-ZBQZDGZC	PIPE - FR BRAKE	0
17	S11ABSZDGL-ZQZDGZC	PIPE - FR BRAKE LH	0
18	S11-3506010	HOSE ASSY - FR BRAKE	2
19	S11-3506212	WASHER	2
20	Q150B1010	CONNECTING BOLT	1
21	S11-3506021	STRAP - HOLDING	1
22	S11-3506023	PIPE CLIP	1
23	S11-3506070	RR BRAKE HOSE ASSY	2
24	S11-3506050	BRAKE HOSE ASSY - RR SHAFT LH	1
25	S11-3506060	BRAKE HOSE ASSY-RR SHAFT RH	1
26	S11-3506027	CLAMP - FLANGE	1
28	S11-3506032	CLAMP	1
29	S11-3550111	SENSOR - FR WHEEL	2
30	S11-3550133	GEAR RING-RR WHEEL SENSOR	2

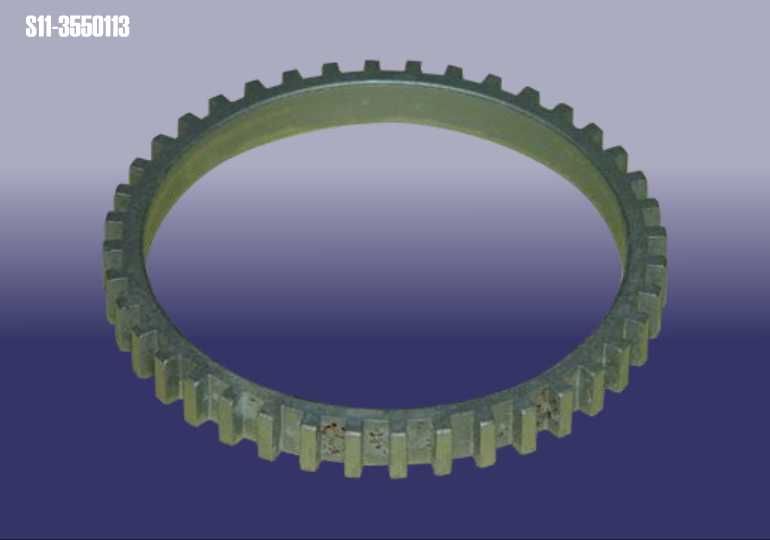

31	S11-3550113	ANNULUS - FR WHEEL SENSOR	2
32	S11-3550095	SCREW	0
33	S11-3550151	CLIP - WIRING CABLE	0

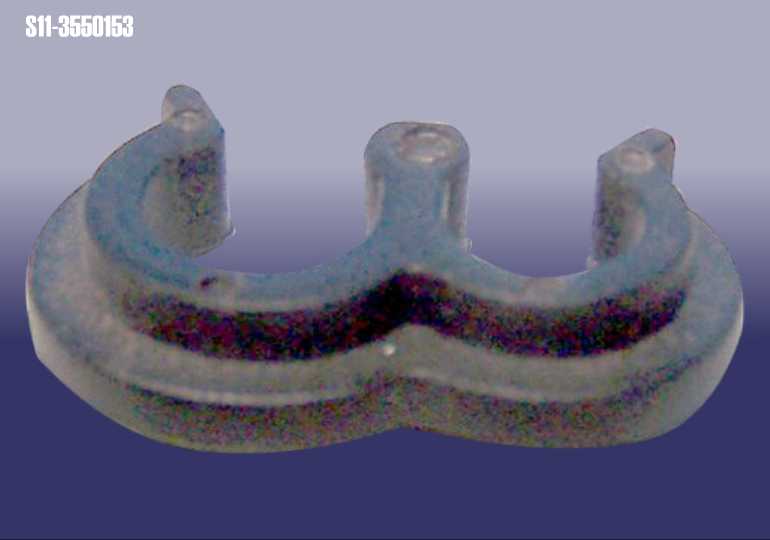

34	S11-3550153	CLIP	0
35	A11-3506019	CLIP - PIPE	0
