КАТАЛОГ: CHERY	МОДЕЛЬ: SWEET

---

Подбор авто запчастей на ЧЕРИ SWEET (СВИТ)

Поз.	Номер	Наименование	Колличество
1	S11ZFQ-ZFQZC	HVAC ASSY	0

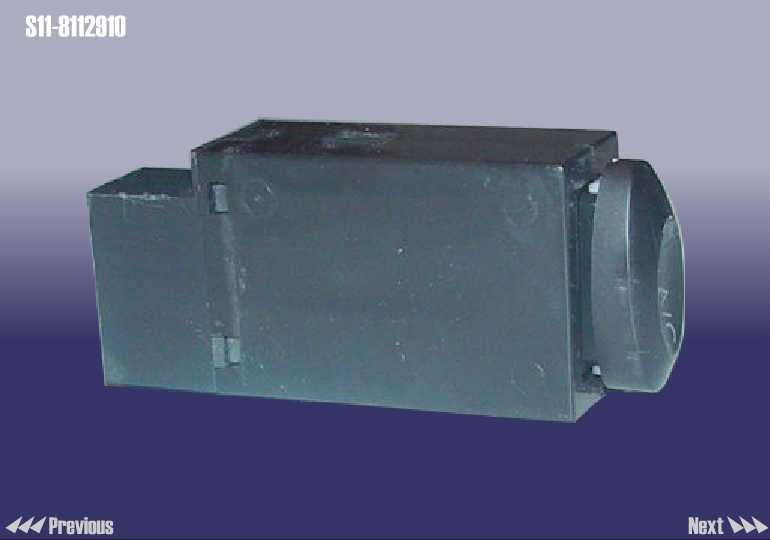

2	S11-8112910	A/C SWITCH ASSY	1
3	S11-8112121	MECHANISM -INR& OTR CIRCULATION CONTROL	1
4	S11KT-HFXCXKGZC	DEFROST SWITCH ASSY-RR WINDOW	0
5	S11-8112321	CONTROL MECHANISM - VENT	1
6	S11-8112521	CONTROL MECHANISM-AIRFLOW	1
7	S11-8112710	SWITCH - WIND REGULATER	1
8	S11KT-KTKZMB	CONTROL PANEL - AIR CONDITIONER	0
9	Q2714216	TAPPING SCREW	4

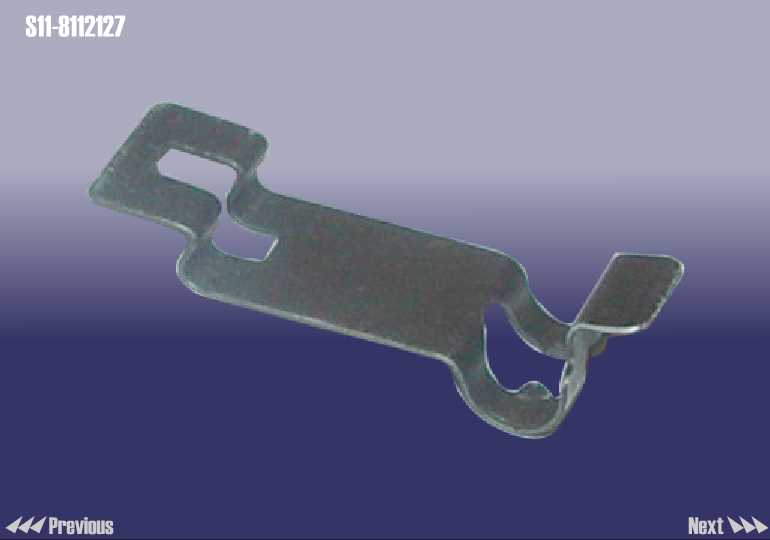

10	S11-8112127	POSITION CLIP - WIRE	3
11	S11-8112323	WIRE - CONTROL (BLACK)	1

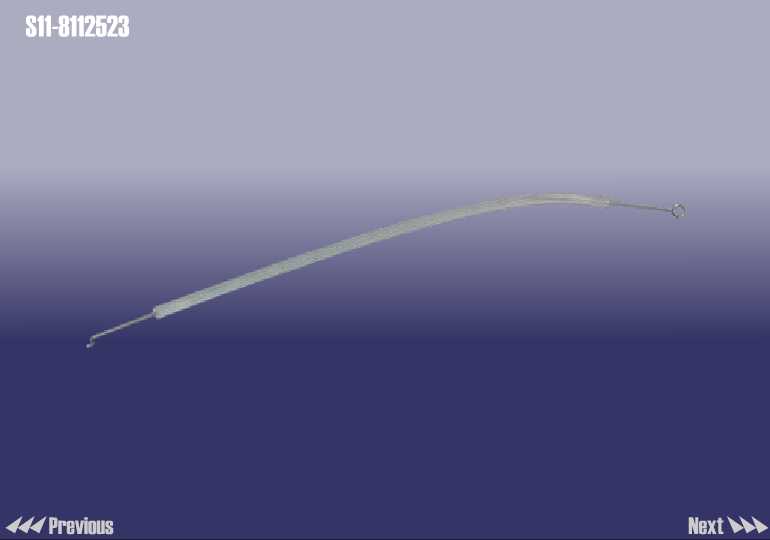

12	S11-8112523	WIRE - CONTROL (YELLOW)	1
13	S11-8112123	WIRE - CONTROL (WHITE)	1
14	S11-8107910	AIR FILTER CORE	1
15	S11ZFQ-ZFQKT	HOUSING-EVAPORATOR	1
16	S11ZFQ-KFKKT	VENT CASING ASSY	0
17	S11-8107013	CASING - VENT	1
18	Q32006	BOLT	7

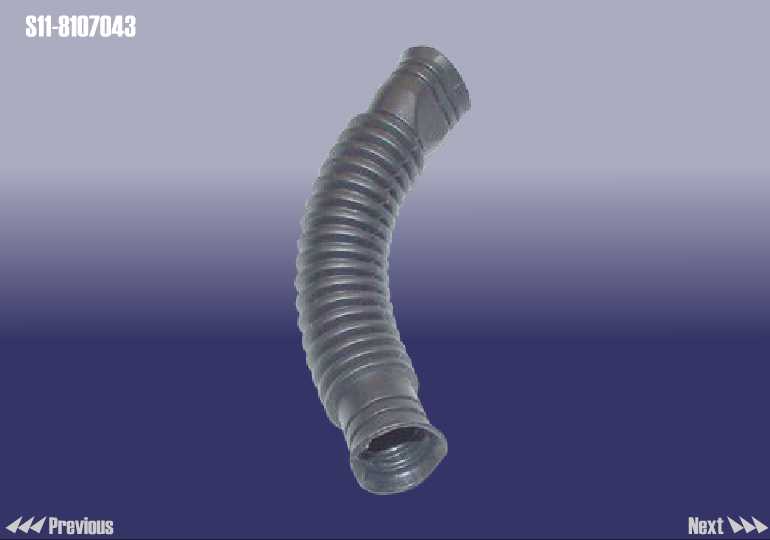

19	S11-8107043	PIPE ASSY - VENT	1
20	S11-8107110	GENERATOR FAN ASSY	1
21	S11ZFQ-KTDZ	RESISTORгмA/C	0

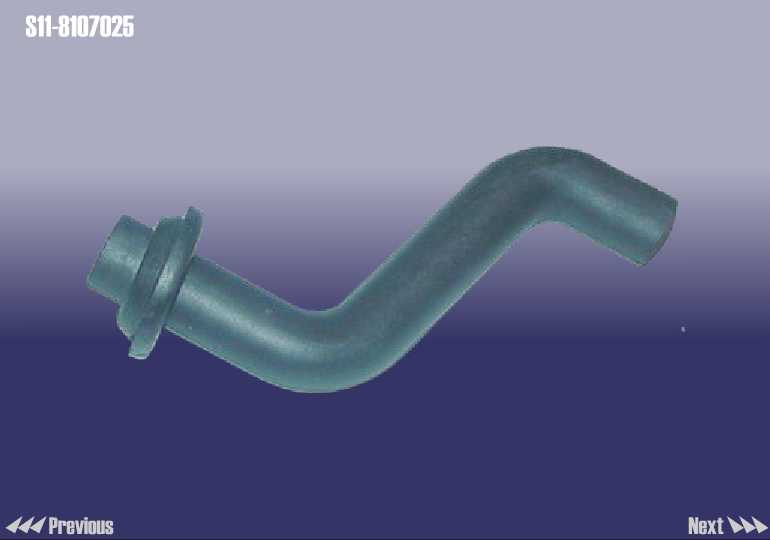

22	S11-8107025	PIPE-DRAIN	1
23	S11ZT-ZFQXZC	CORE ASSY - EVAPORATOR	0
24	S11ZFQ-WKKG	SWITCH -TEMPERATURE CONTROLLER(WITH WIRI	0
25	S11ZFQ-RLPZF	EXPANSION VALVEгмHEAT	0
26	S11KT-SRQXZC	CORE ASSY - RADIATOR	0
27	S11-8107017	SLEEVE- WARM WATER PIPE SLEEVE	2
28	S11-8112129	POSITION CLIP - WIRE	3
29	S11-8107913	VENT - UPR	0

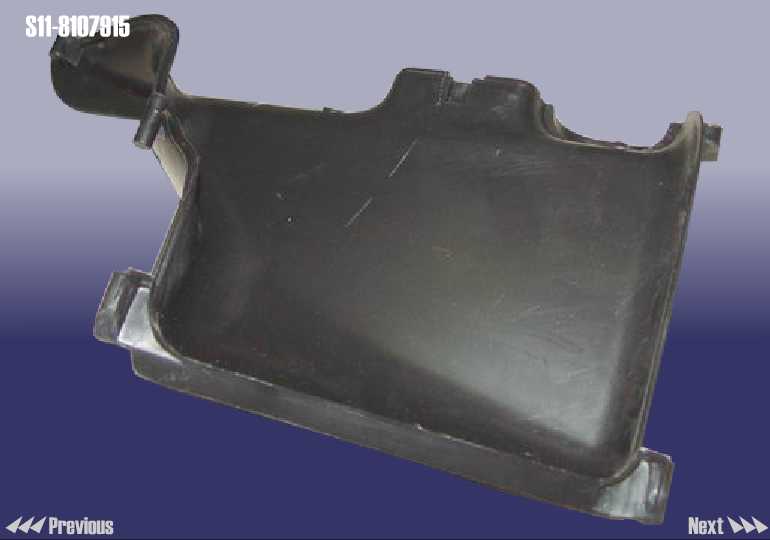

30	S11-8107915	VENT - LWR	1
31	S11-8107921	SPONGE STRIP	1
32	S11-8107923	SPONGE STRIP	0
33	S11-8112322	BUTTON-A/C CONTROL PANEL	0
34	S11-8107917	TAPPING SCREW	0

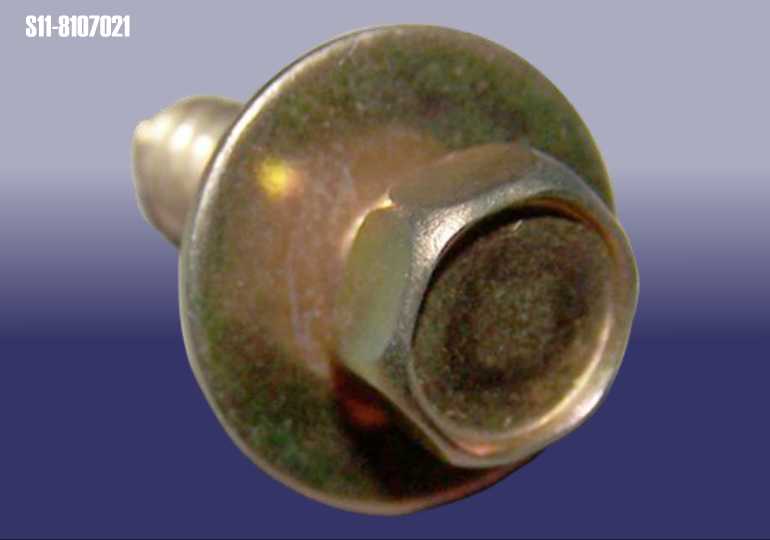

35	S11-8107021	TAPPING SCREW	0
36	S11KT-FFQKTZC	CASING - DISPENSER	0
37	S11-9EC8112121	CONTROL MECHANISM-INR&OTR RECYCLE	1
38	S11-9EC8112521	CONTROL MECHANISM-AIRFLOW	1
39	S11-9EC8112710	SWITCH ASSY-FAN	1
