КАТАЛОГ: CHERY	МОДЕЛЬ: SWEET

---

Подбор авто запчастей на ЧЕРИ SWEET (СВИТ)

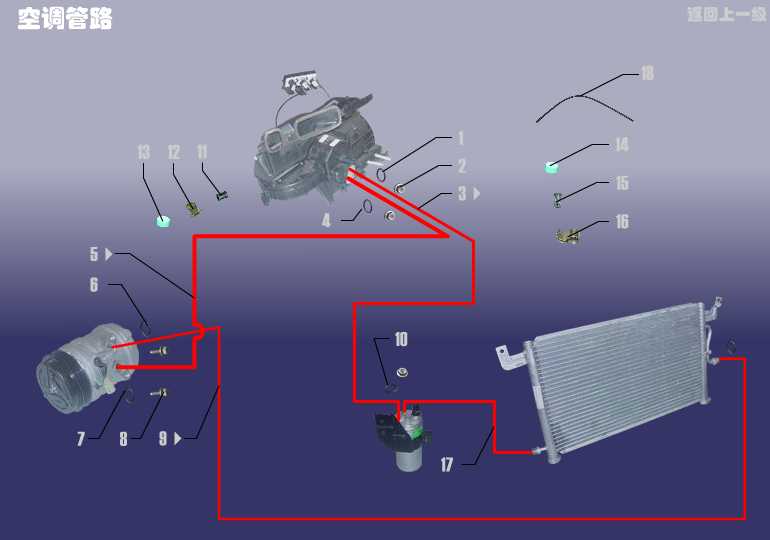

Поз.	Номер	Наименование	Колличество
1	S11-8108053	O RING - бщ10б+1.5	1
2	Q32006	BOLT	3
3	S11KTGL-GZGL	HOSE ASSY - DRIER TO EVAPORATOR	0
4	S11-8108015	O RING	1
5	S11KTGL-ZYGL	PIPELINE - EVPORATOR & COMPRESSOR	0

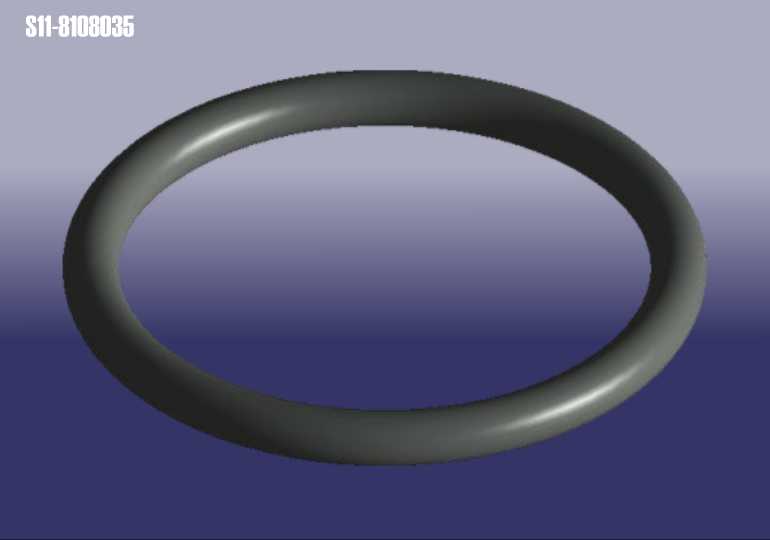

6	S11-8108035	O RING - бщ10б+2.5	2
7	S11-8108019	O RING	1
8	Q1840825	BOLT	2
9	S11KTGL-YLGL	HOSE ASSY-COMPRESSOR TO CONDENSER	0
10	S11-8108055	O RING - бщ8б+2	1

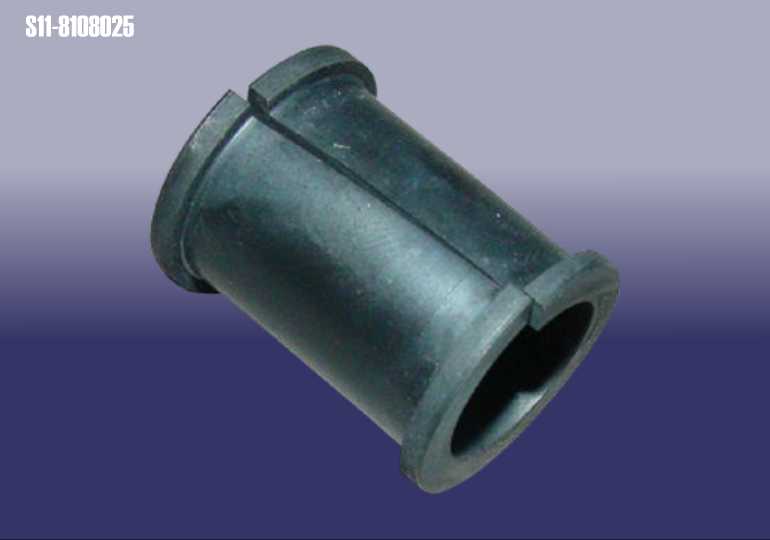

11	S11-8108025	GASKET - RUBBER	1
12	S11-8108027	BRACKET	1
13	S11-8108011	CAP - FILLER	1

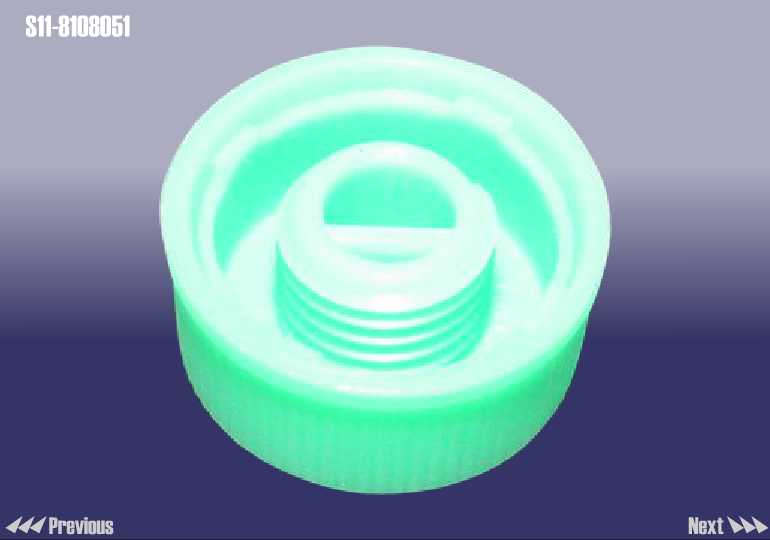

14	S11-8108051	CAP - FILLER	1

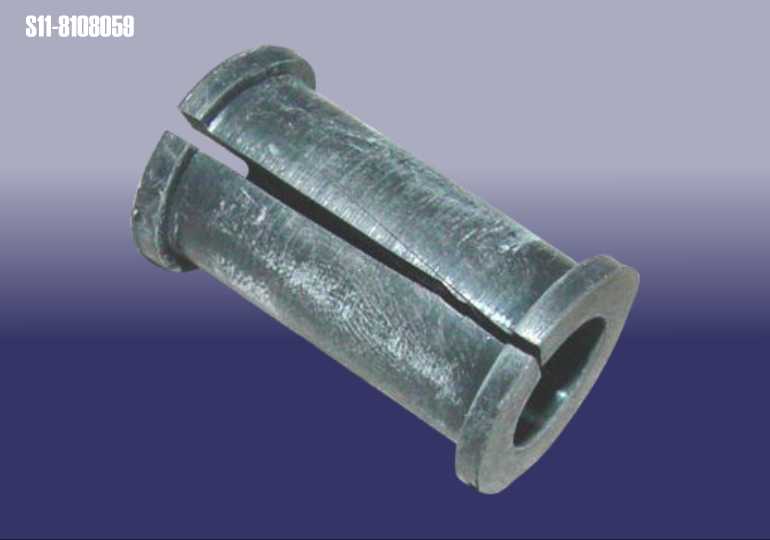

15	S11-8108059	GASKET - RUBBER	1

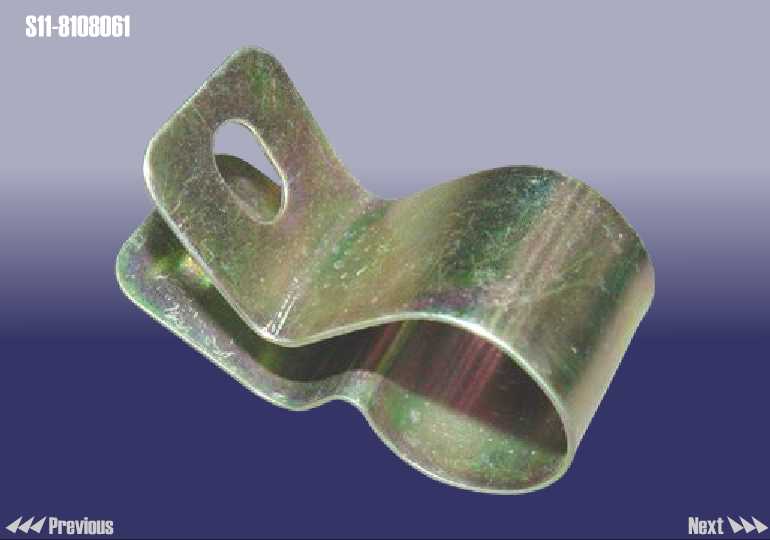

16	S11-8108061	BRACKET	1

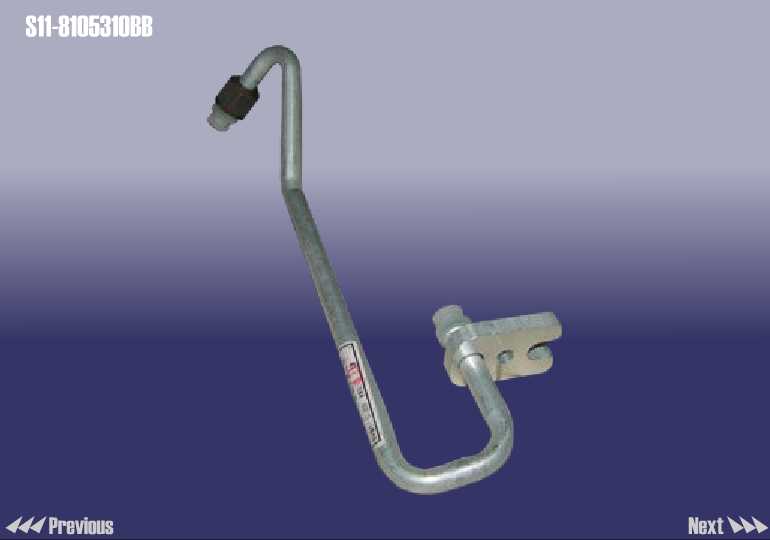

17	S11-8105310BB	PIPELINE ASSY - CONDENSER TO DRIER	1

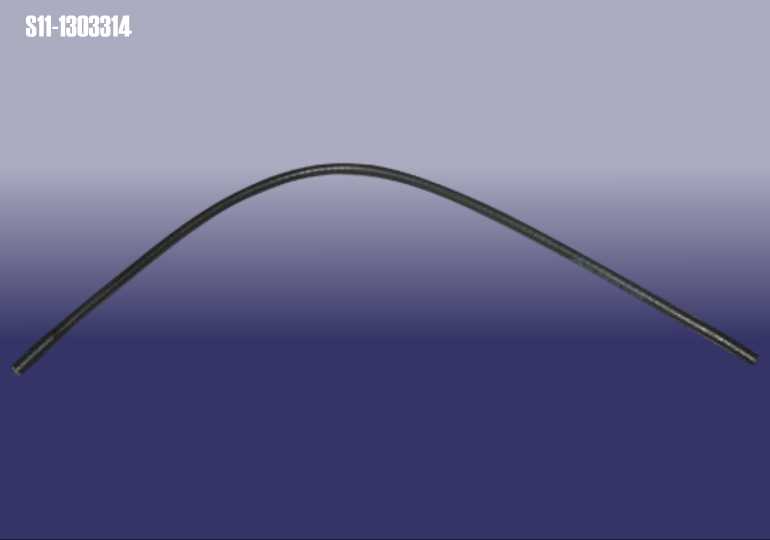

18	S11-1303314	HOSE-AIR EXHAUST-ENGINE TO INFLATION BOX	0
