КАТАЛОГ: CHERY	МОДЕЛЬ: SWEET

---

Подбор авто запчастей на ЧЕРИ SWEET (СВИТ)

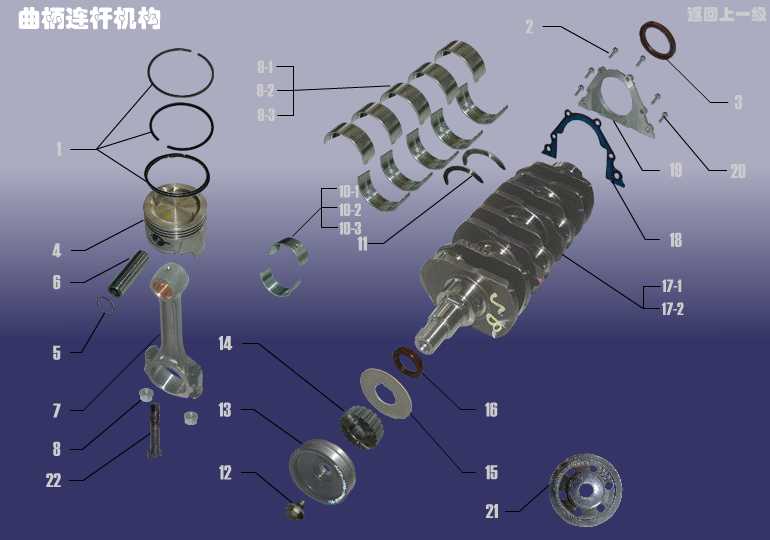

Поз.	Номер	Наименование	Колличество
1	465Q-10040903-01	RING - PISTON	1
2	462-1002202	SCREW	1
3	462-1005901-A	SEAL-CRANKSHAFT RR	1
4	465Q-1004008-01	PISTON	1

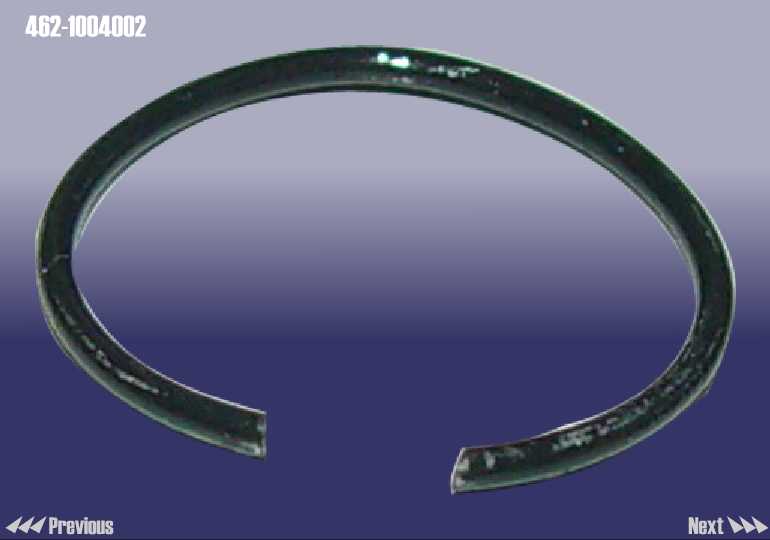

5	462-1004002	LOCK RING - PISTON PIN	1
6	465Q-1004001-01	PISTON PIN	1
7	465Q-1A-1004900-01	CONNECTING ROD ASSY	1
8	462-1004201-01	BOLT	1
9-1	462-1002006	BEARING-CRANKSHAFTгиONE SETгй	1
9-2	462-1002006-25	BEARING-CRANKSHAFTгиONE SETгй+0.25	1
9-3	462-1002006-50	BEARING-CRANKSHAFTгиONE SETгй+0.50	1
10-1	462-1004004-50	BEARING-CONNECTION ROD(OVER SIZE 0.50)	1
10-2	462-1004004-25	BEARING-CONNECTION ROD(OVER SIZE 0.25)	1
10-3	462-1004004	BEARING - CONNECTING ROD	1

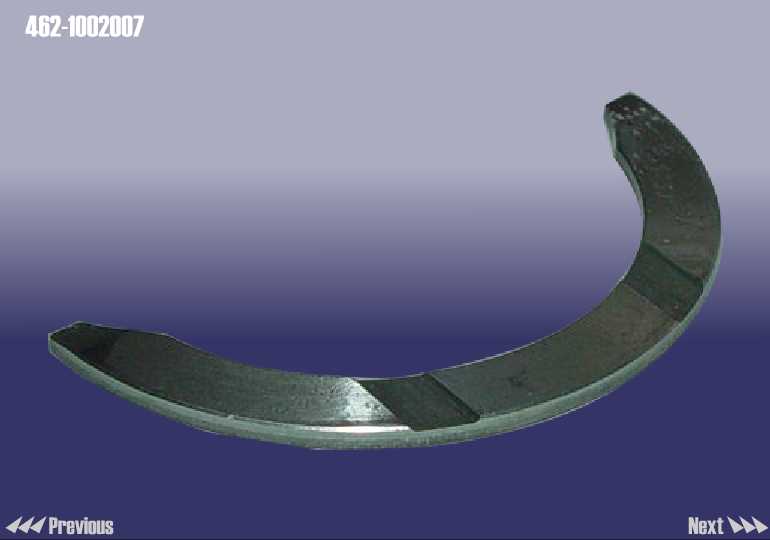

11	462-1002007	METAL ASSY - THRUST	1
12	462-1000227	BOLT	1
13	465Q1A2D1000038-02	PULLEY - CRANKSHAFT	1
14	465Q-1000034	SPROCKET - CRANKSHAFT	1
15	462-1000033	RETAINING RING - DOORIVE SYNCHONOUS GEAR	1
16	462-1006900-A	SEAL-CRANKSHAFT FR	1
17-1	465Q-1A2-D-1005001	CRANKSHAFT	1
17-2	465Q-1A2D-1005001	CRANKSHAFT	1
18	462-1002016-01	WASHER	1
19	465Q-1A2D-1002015	CASE - CRANKSHAFT RR OIL SEAL	1
20	462-1000221	SCREW	1
21	465Q1A2D1000038-03	PULLEY - CRANKSHAFT	1
22	462-1004003	BOLT - CONNECTING ROD	1
