Подбор авто запчастей на ЧЕРИ SWEET (СВИТ) |

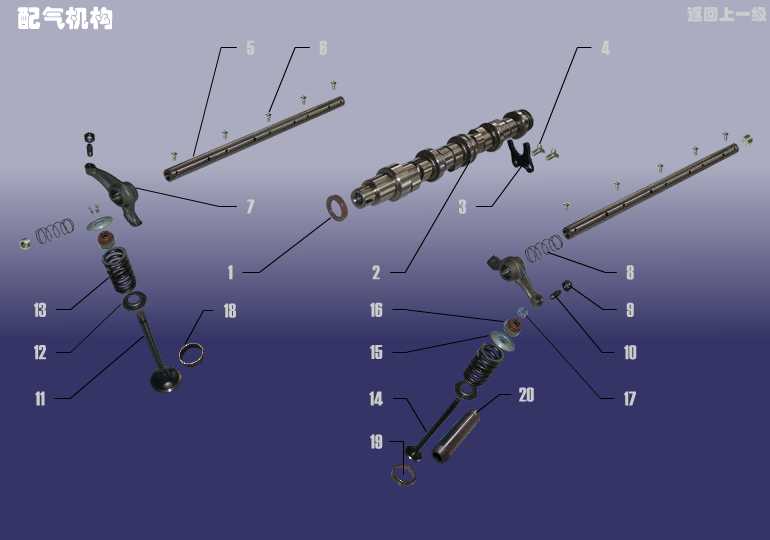

| Поз. | Номер | Наименование | Колличество |
| 1 | 462-1006900-A |
SEAL-CRANKSHAFT FR |
1 |
| 2 | 465Q-1A2D-1006001 |
CAMSHAFT |
1 |
| 3 | 462-1003013 |
BAFFLE - CAMSHALFT STOPPER |
1 |

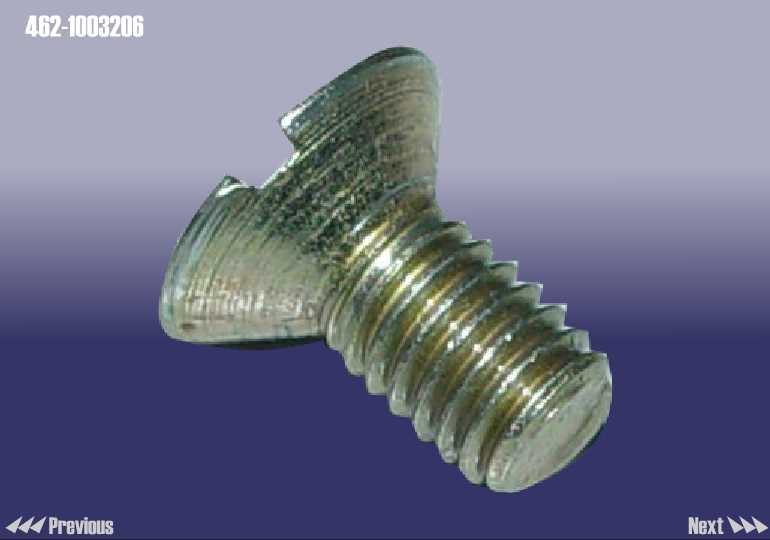

| 4 | 462-1003206 |
SCREW - COUNTERSUNK HEAD |
1 |
| 5 | 462-1007901 |
SHAFT ASSY - ROCKER ARM |
1 |
| 6 | 462-1003205 |
SCREW - COUNTERSUNK HEAD |
1 |

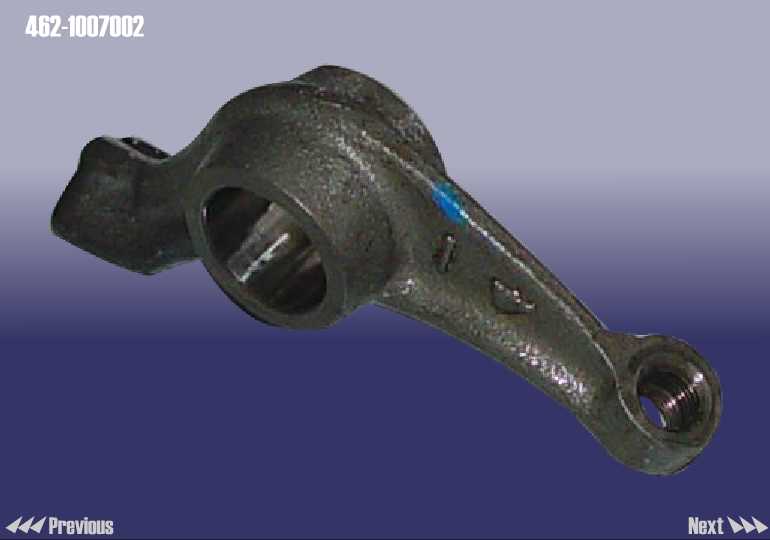

| 7 | 462-1007002 |
ARM - ROCKER |
1 |
| 8 | 462-1007008 |
SPRING - ROCKER ARM SHAFT |
1 |

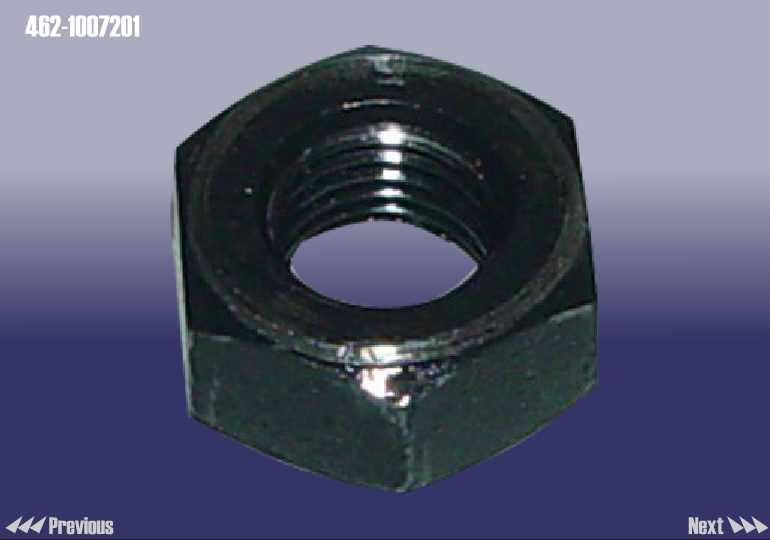

| 9 | 462-1007201 |
BOLT |
1 |
| 10 | 462-1007001 |
SCREW - TAPPET ADJUST |
1 |
| 11 | 462-1007009 |
VALVE - INTAKE |
1 |

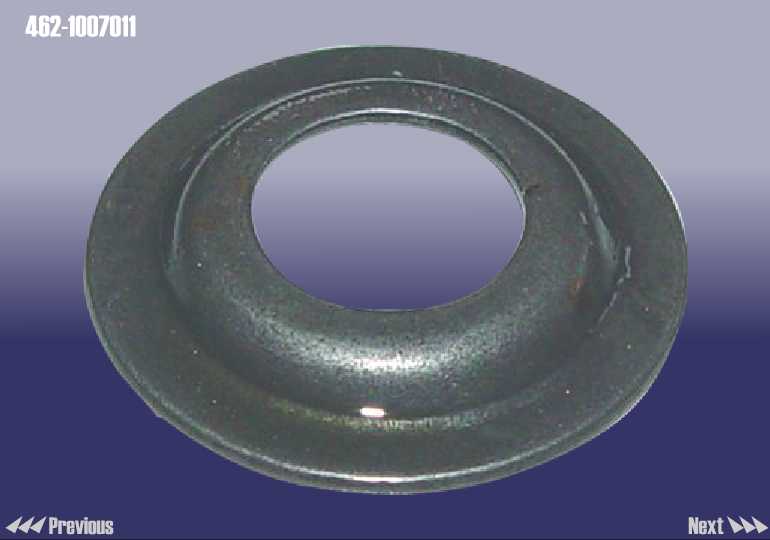

| 12 | 462-1007011 |
WASHER - VALVE SPRING |
1 |

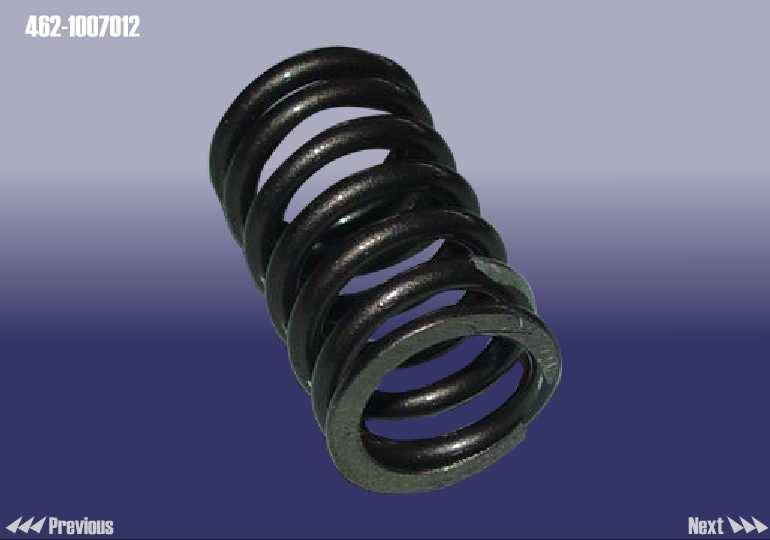

| 13 | 462-1007012 |
SPRING - VALVE |
1 |

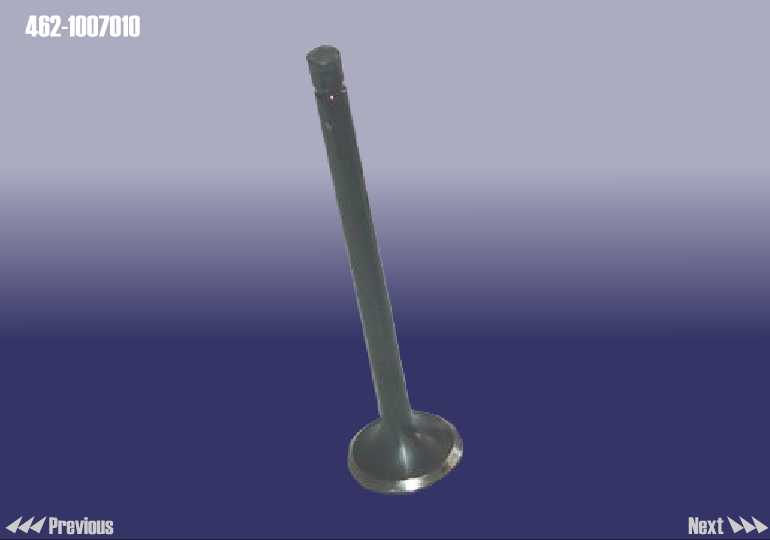

| 14 | 462-1007010 |
VALVE - EXHAUST |
1 |

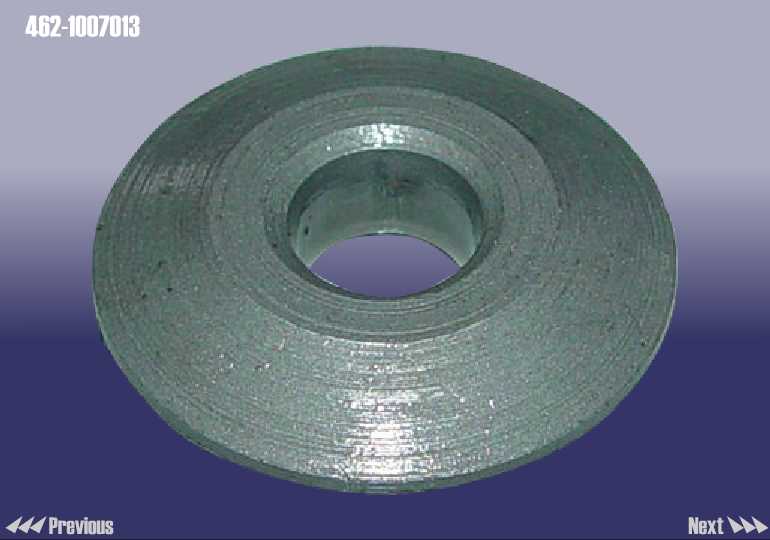

| 15 | 462-1007013 |
RETAINER - VALVE SPRING |
1 |
| 16 | 462-1007902-01 |
OIL SEAL ASSY |
1 |

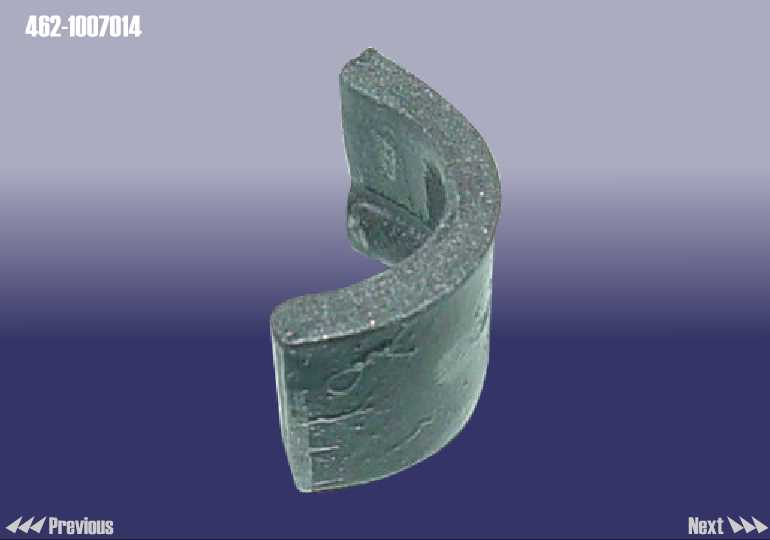

| 17 | 462-1007014 |
LOCK - VALVE SPRING RETAINER |
1 |
| 18 | 465Q-1A-1003004 |
SEAT - AIR INTAKE VALVE |
1 |
| 19 | 462-1003005 |
SEAT - EXAUST VALVE |
1 |
| 20 | 462-1003002-01 |
GUIDE SLEEVE - VALVE |
1 |
