Подбор авто запчастей на ЧЕРИ M11 (М11) |
| Поз. | Номер | Наименование | Колличество |

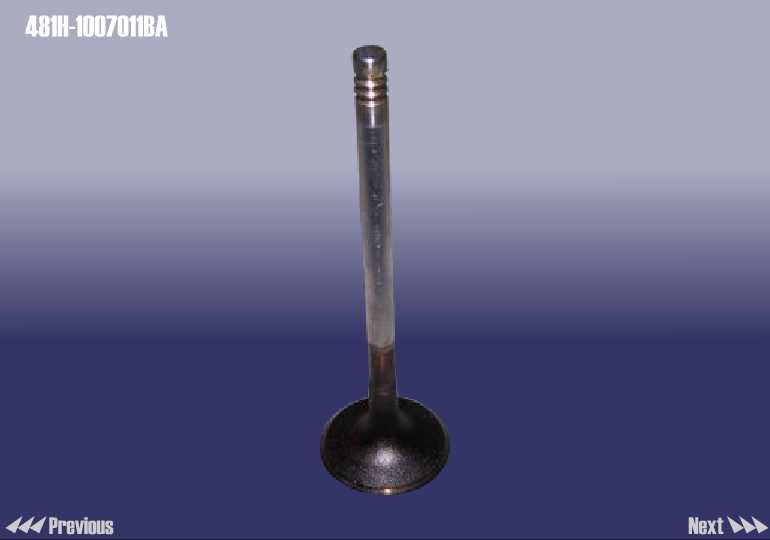

| 1 | 481H-1007011BA |
VALVE - INTAKE |
1 |

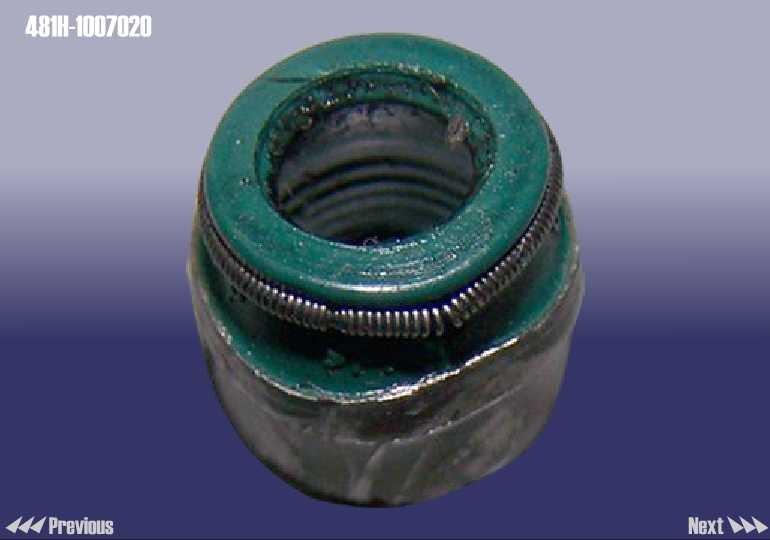

| 2 | 481H-1007020 |
SEAL - OIL |
1 |
| 3 | 473H-1007013 |
SEAT - VALVE SPRING LWR |
1 |

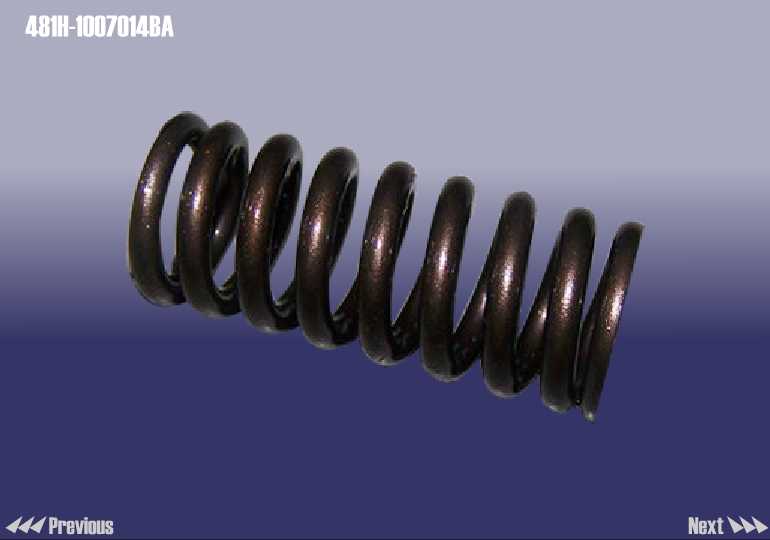

| 4 | 481H-1007014BA |
SPRING - VALVE |
1 |

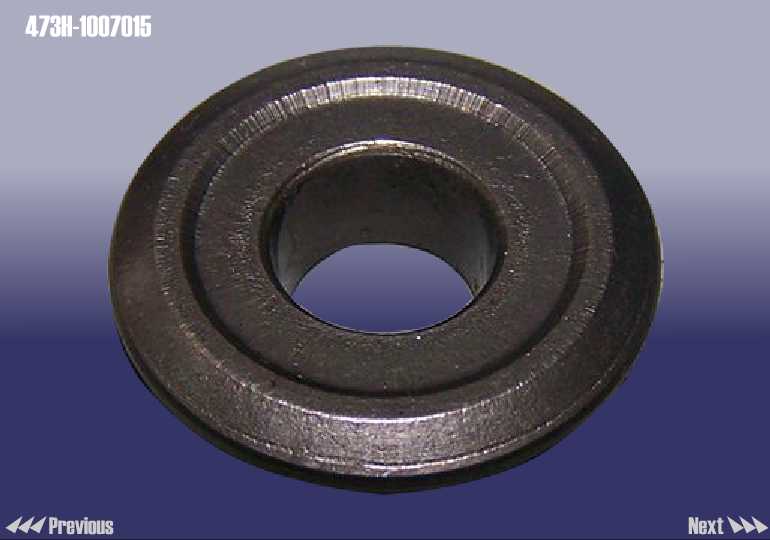

| 5 | 473H-1007015 |
SEAT - VALVE SPRING UPR |
1 |

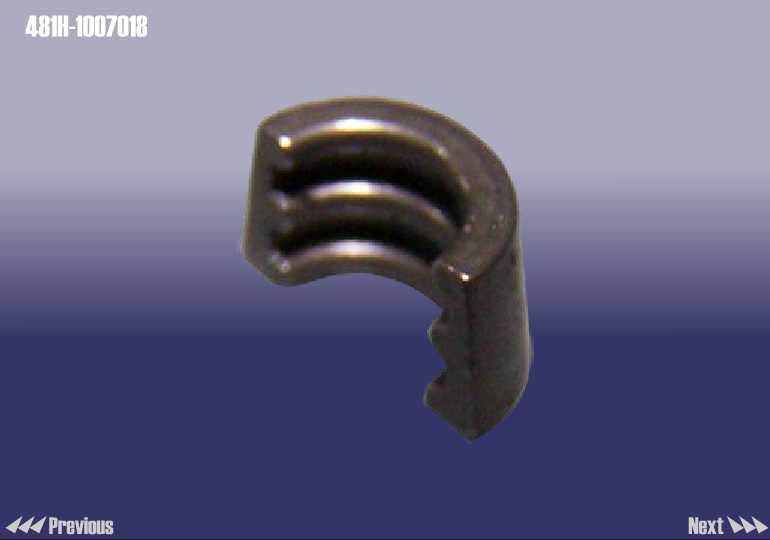

| 6 | 481H-1007018 |
BLOCK - LOCK (VALVE) |
1 |

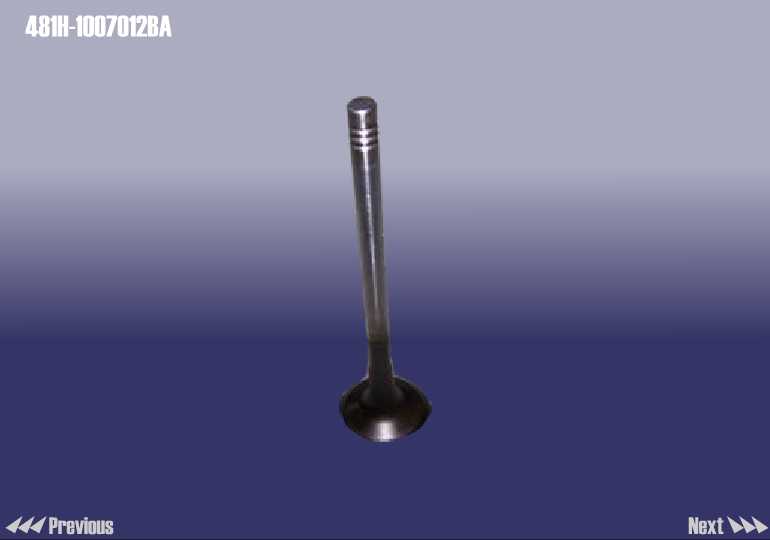

| 7 | 481H-1007012BA |
VALVE - EXHAUST |
1 |

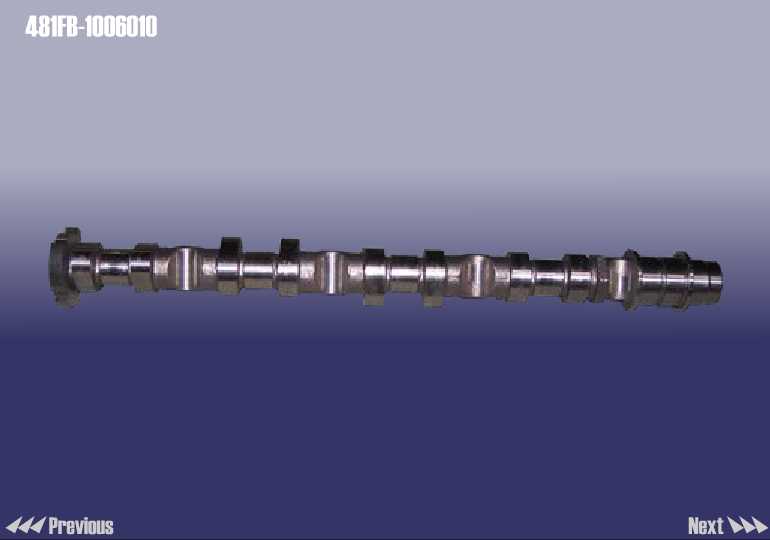

| 8 | 481FB-1006010 |
CAMSHAFT - AIR INTAKE |
1 |

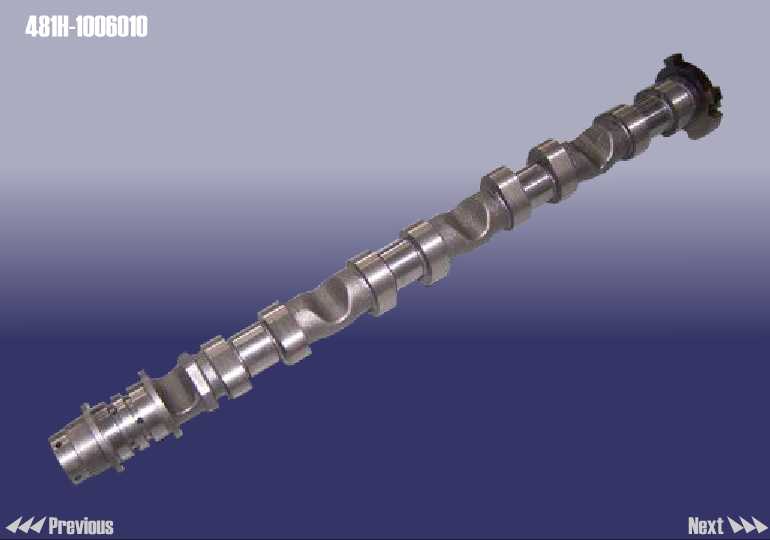

| 8 | 481H-1006010 |
CAMSHAFT - AIR INTAKE |
1 |
| 8 | 481F-1006010 |
CAMSHAFT - AIR INTAKE |
1 |
| 9 | 481H-1003019BB |
COVER ASSY- (2-5)BEARING |
1 |
| 10 | 481H-1007030 |
ROCKER ARM ASSY |
1 |

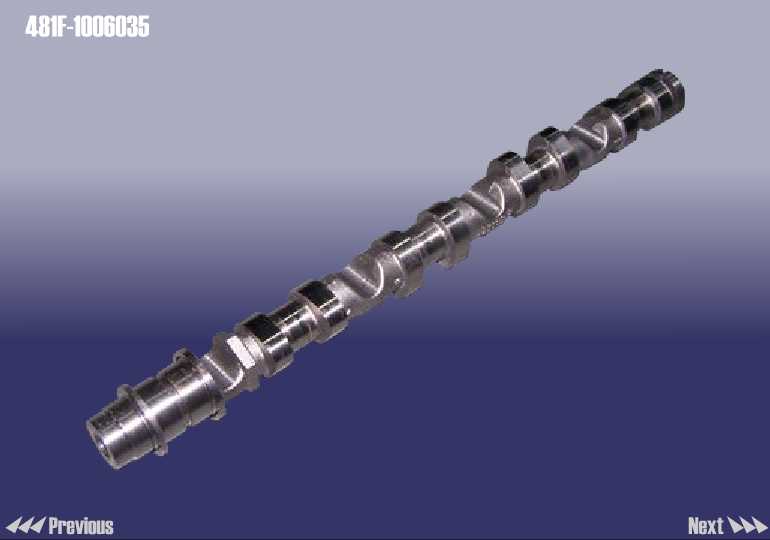

| 11 | 481F-1006035 |
CAMSHAFT - EXHAUST |
1 |

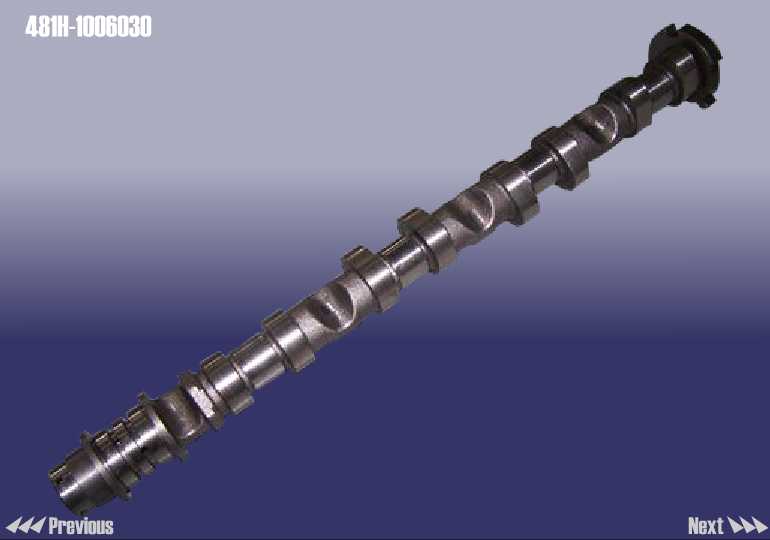

| 11 | 481H-1006030 |
CAMSHAFT ASSY - EXHAUST |
1 |

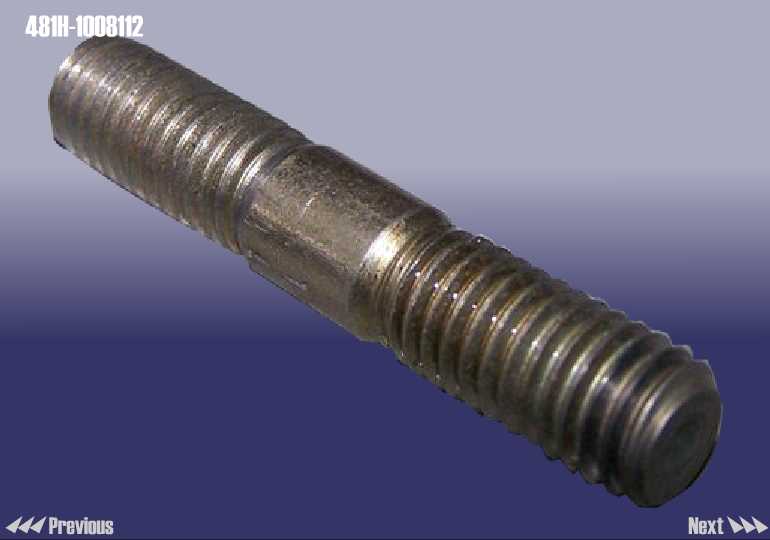

| 12 | 481H-1008112 |
STUD |
1 |

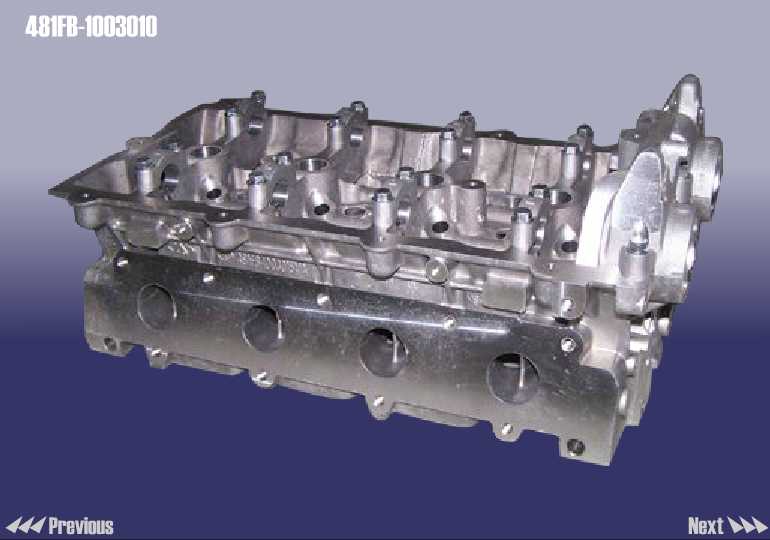

| 13 | 481FB-1003010 |
CYLINDER HEAD ASSY |
1 |

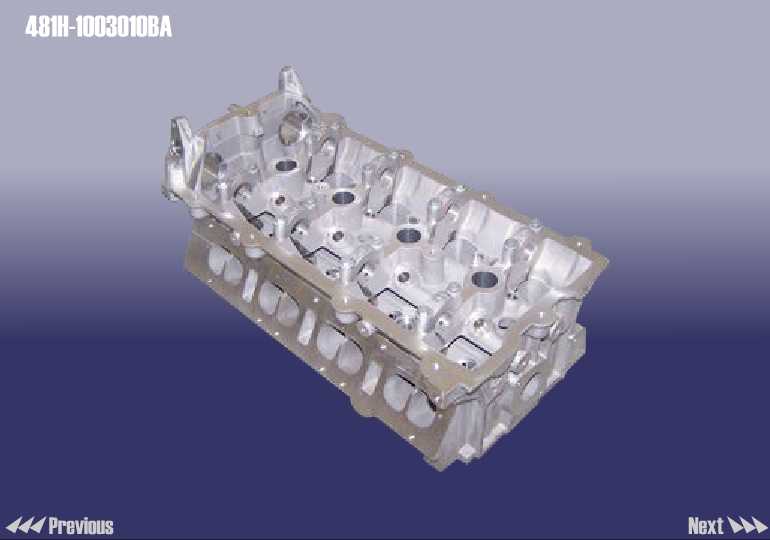

| 13 | 481H-1003010BA |
CBR CYLINDER HEAD ASSY |
1 |
| 13 | 481FD-1003010 |
CYLINDER HEAD ASSY |
1 |

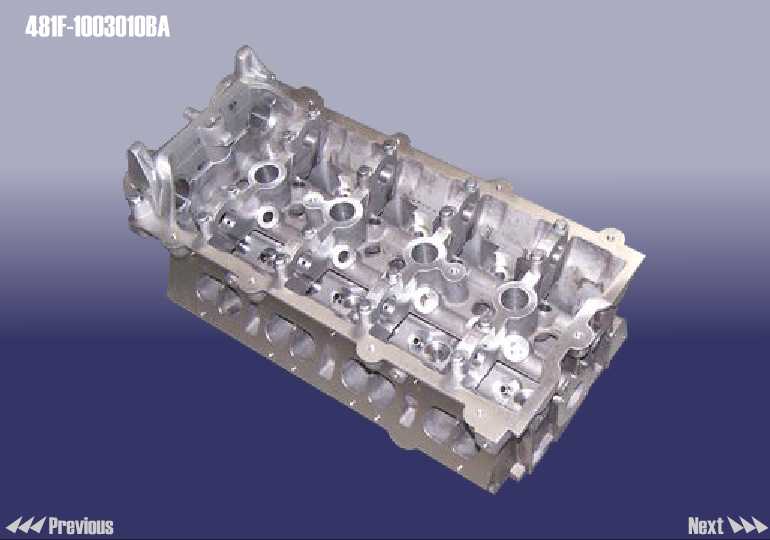

| 13 | 481F-1003010BA |
MPI CYLINDER HEAD ASSY |
1 |

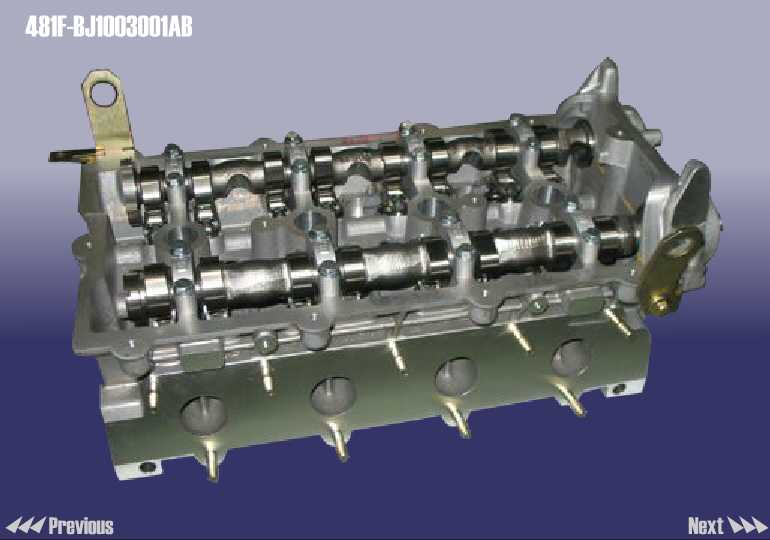

| 13 | 481F-BJ1003001AB |
SUB ASSY - CYLINDER HEAD |
1 |
| 13 | 481F-BJ1003001AA |
SUB ASSY - CYLINDER HEAD |
1 |
| 13 | 481FB-BJ1003001AB |
SUB ASSY - CYLINDER HEAD |
1 |
| 13 | 481FB-BJ1003001AA |
SUB ASSY - CYLINDER HEAD |
1 |
| 14 | 481H-1003082 |
BOLT - CYLINDER HEADгиM10x1.5гй |
1 |

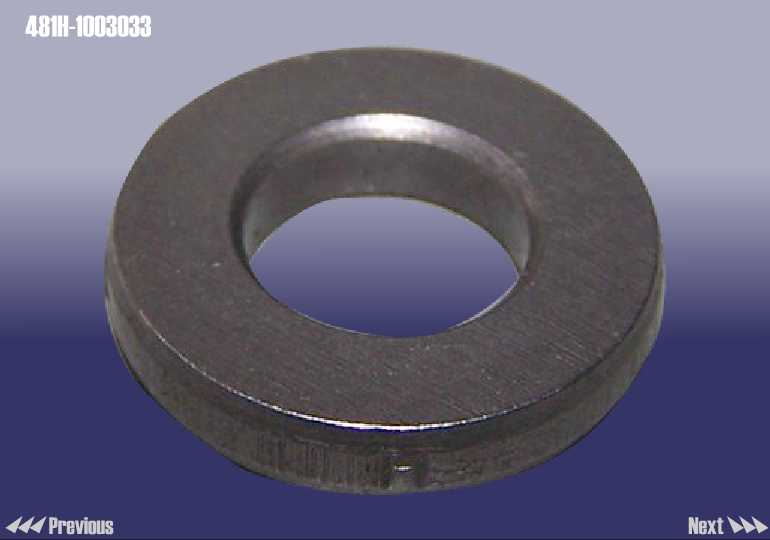

| 15 | 481H-1003033 |
WASHER - CYLINDER HEAD BOLT |
1 |
| 16 | GG-QGD | GASKET - CYLINDER | 1 |

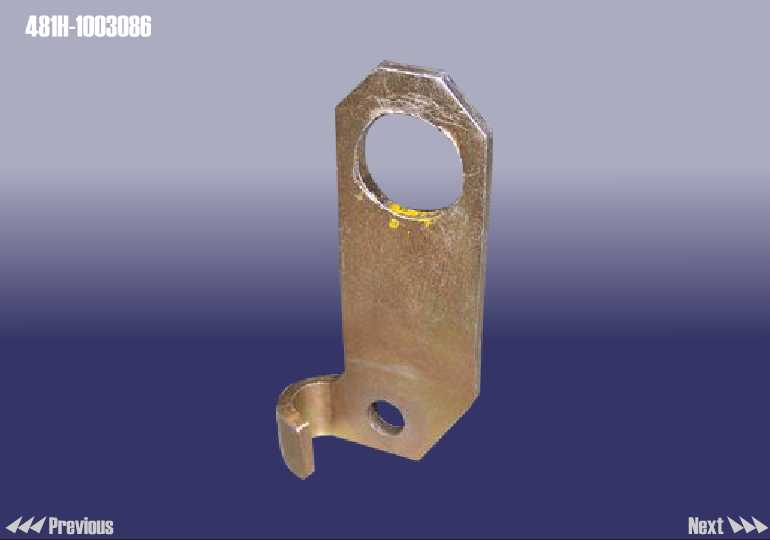

| 17 | 481H-1003086 |
HANGER |
1 |

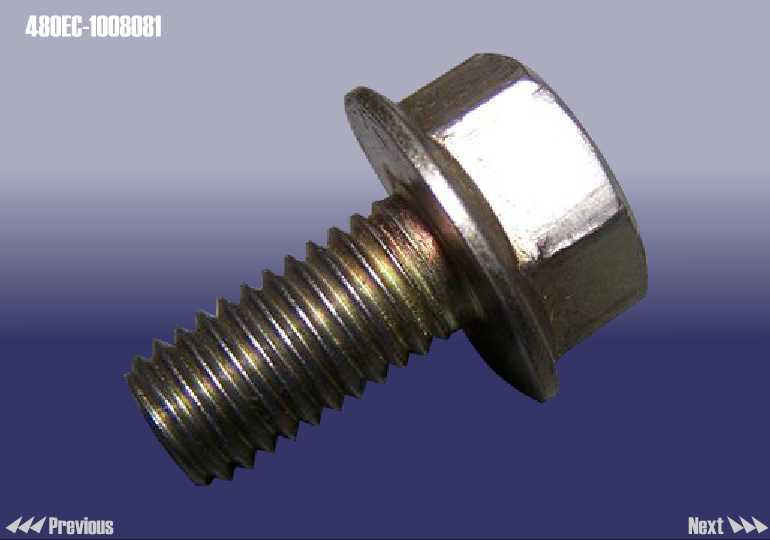

| 18 | 480EC-1008081 |
BOLT - HEXAGON FLANGE |
1 |
| 19 | A11-3617011 |
SENSOR - WATER TEMPERATURE |
1 |
| 20 | 481H-1008032 |
STUD - M6x20 |
1 |

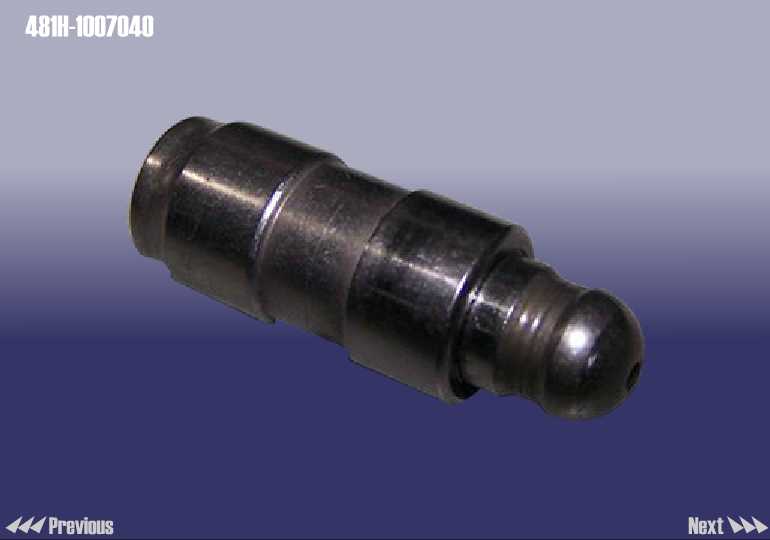

| 21 | 481H-1007040 |
TAPPET ASSY - HYDRAULIC |
1 |

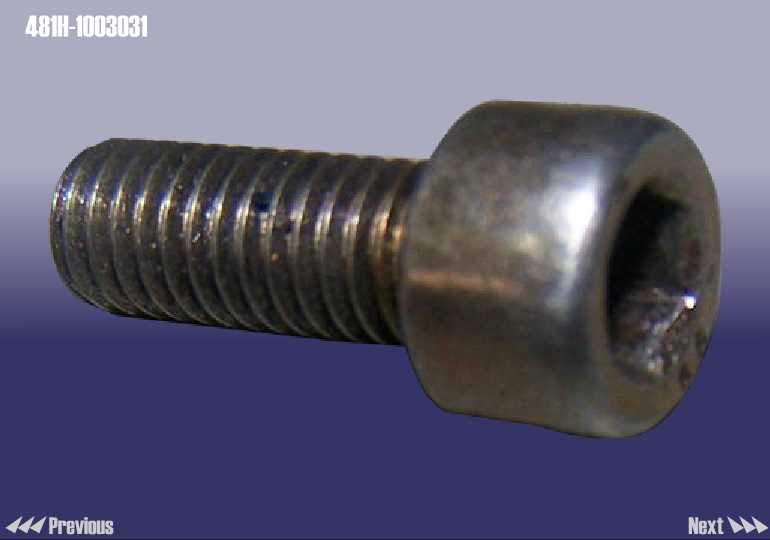

| 22 | 481H-1003031 |
BOLT - THROTTLE |
1 |
| 23 | B11-1157031 |
CONTROL VALVE - CRANKSHAFT POSITION SENSOR |
1 |
| 24 | 481H-1003040AB |
COVER ASSY- (1)BEARING |
1 |

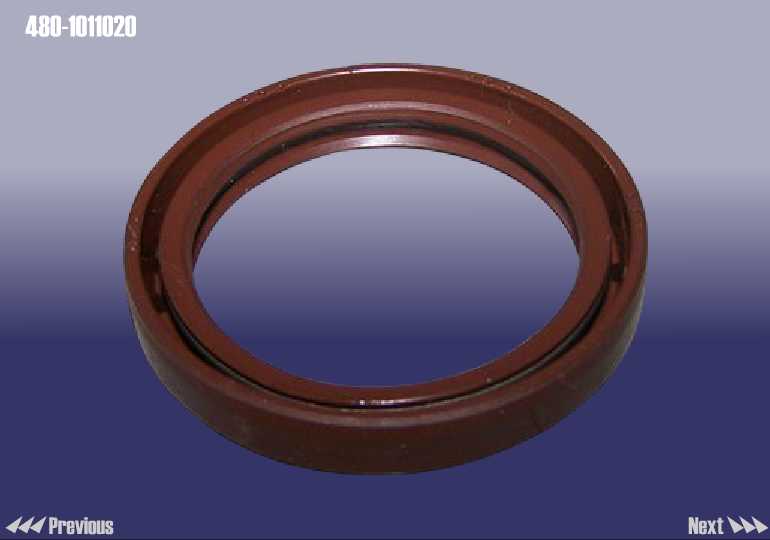

| 25 | 480-1011020 |
SEAL - CRANKSHAFT FR |
1 |

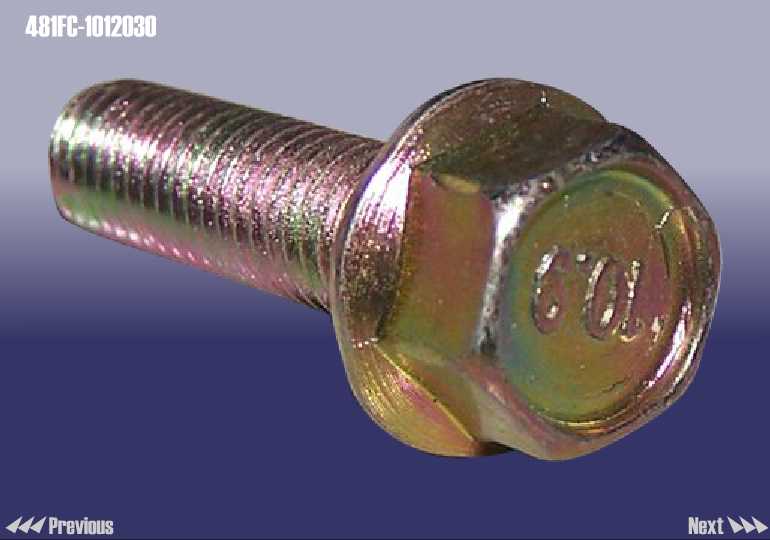

| 26 | 481FC-1012030 |
BOLT - HEXAGON FLANGE |
1 |
| 26 | 473F-1009026 |
BOLT - HEXAGON FLANGE |
1 |

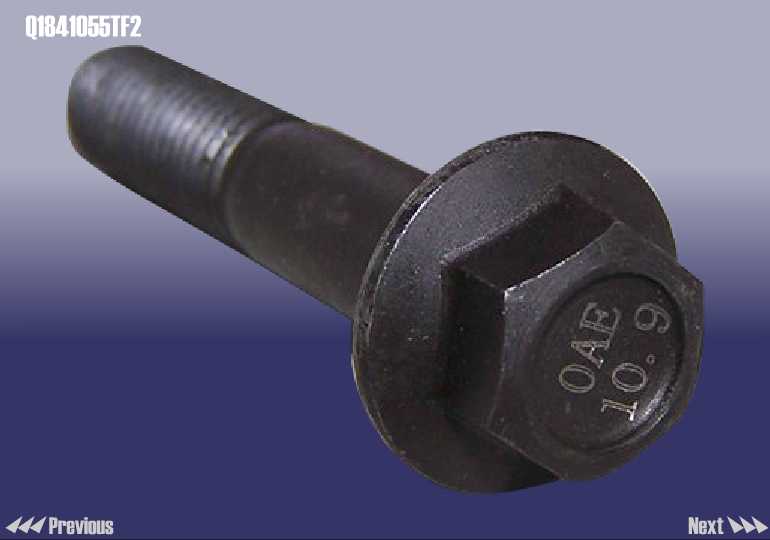

| 26 | Q1841055TF2 |
BOLT(M10x55) |
1 |

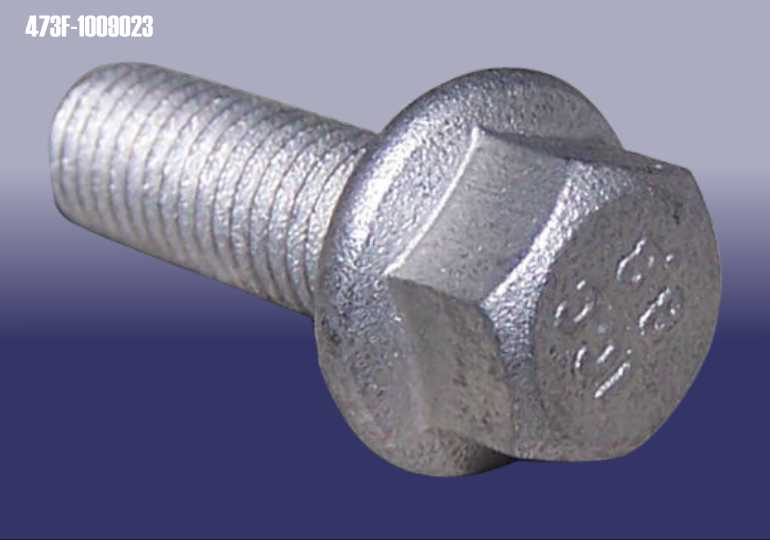

| 26 | 473F-1009023 |
BOLT - HEXAGON FLANGEM7X20 |
1 |

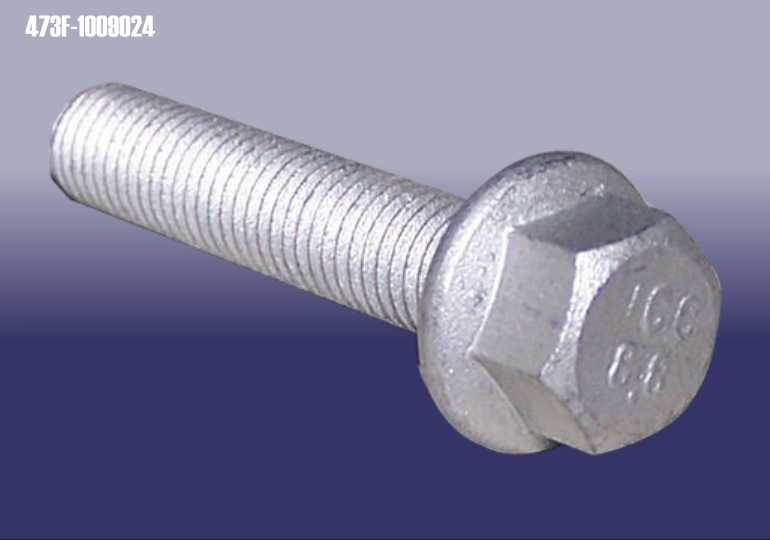

| 26 | 473F-1009024 |
BOLT - HEXAGON FLANGEM7X35 |
1 |
| 26 | 481H-1003062 |
BOLT - HEXAGON FLANGE (M6x30) |
1 |
| 26 | Q1841045TF2 |
BOLT(M10x45) |
1 |
| 26 | Q218B0630 |
BOLT - INR HEXGON HEAD |
1 |

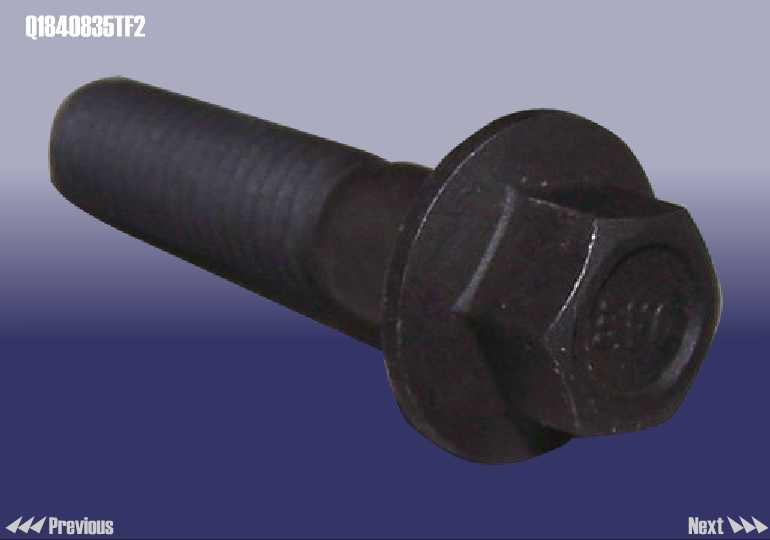

| 26 | Q1840835TF2 |
BOLT - M8x35(10.9) |
1 |
| 26 | 481H-1009024 |
BOLT - HEXAGON FLANGE (M7б+40) |
1 |

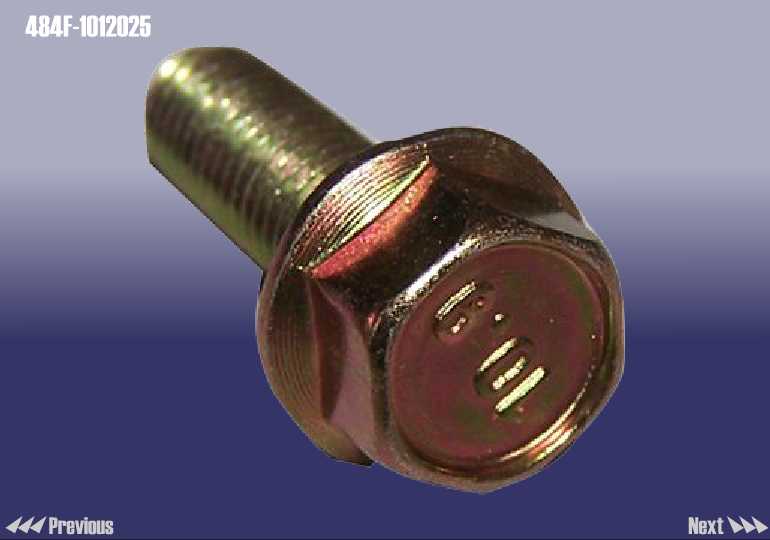

| 26 | 484F-1012025 |
BOLT - HEXAGON FLANGE |
1 |

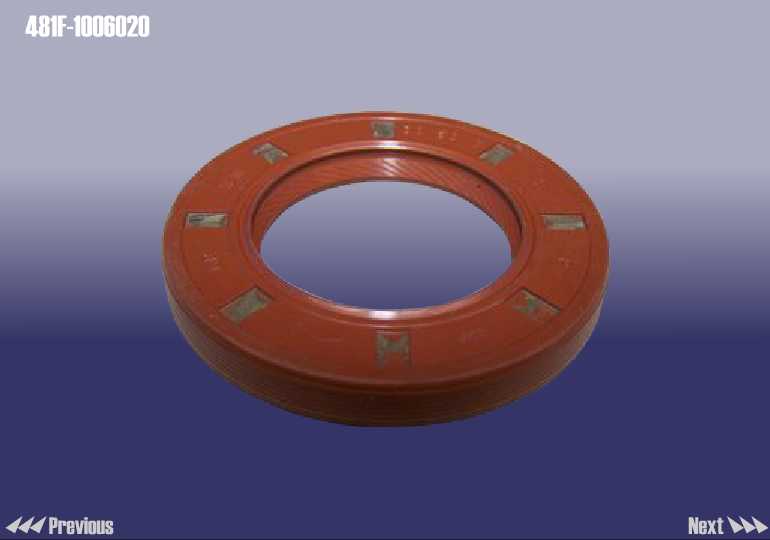

| 27 | 481F-1006020 |
SEAL - CAMSHAFT |
1 |
| 28 | 481H-1003021 |
SEAT - INTAKE VALVE |
1 |

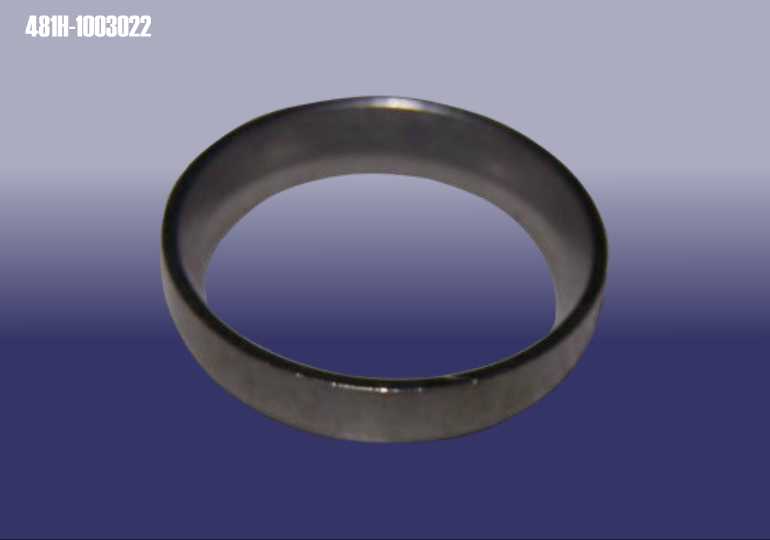

| 29 | 481H-1003022 |
RING - EXHAUST VALVE SEAT |
1 |

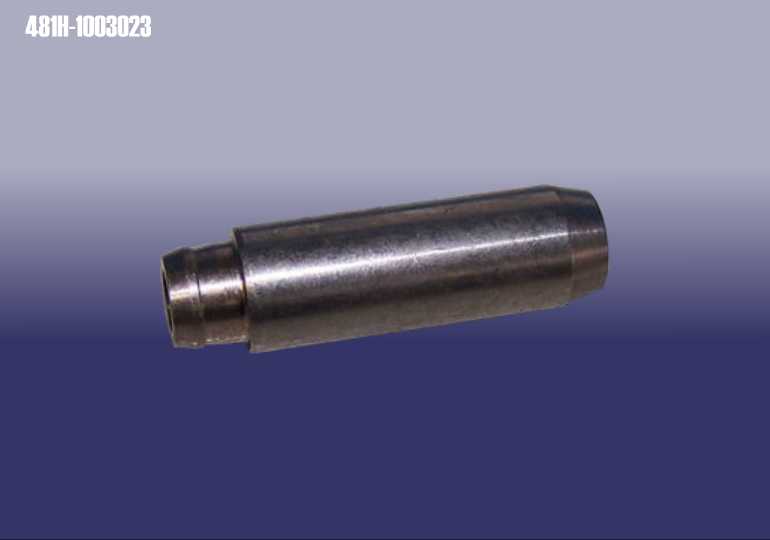

| 30 | 481H-1003023 |
GUIDE - VALVE |
1 |

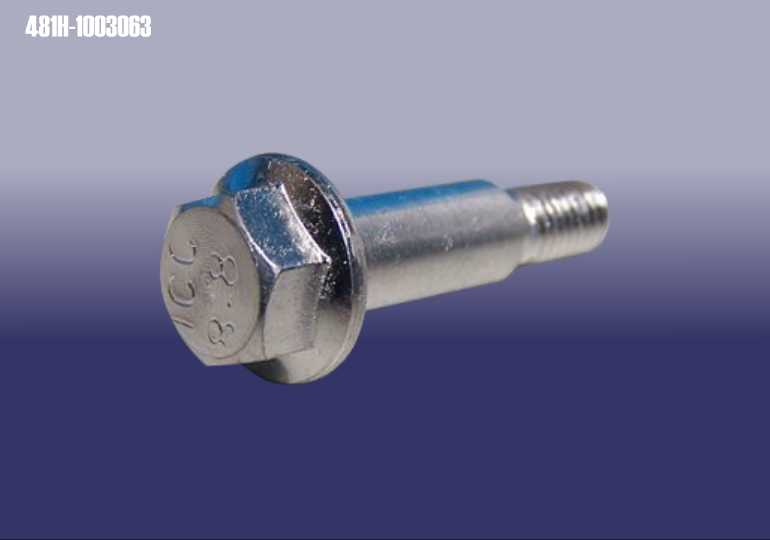

| 31 | 481H-1003063 |
BOLT |
1 |
| 32 | 481H-1003085 |
HANGER |
1 |
| 33 | 481H-1003087 |
STUD |
1 |
| 34 | 481H-1006019 |
WHEEL - SIGNAL |
1 |

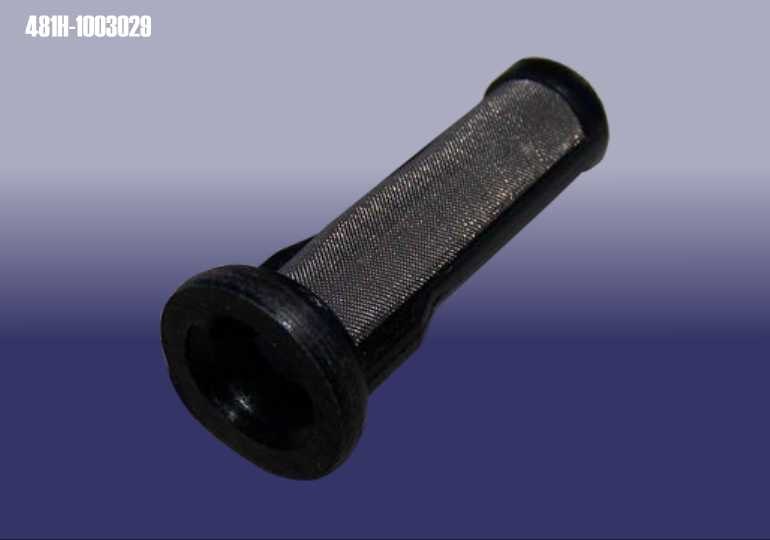

| 35 | 481H-1003029 |
STRAINER - CAMSHAFT PHASIC EQUIPMENT |
1 |

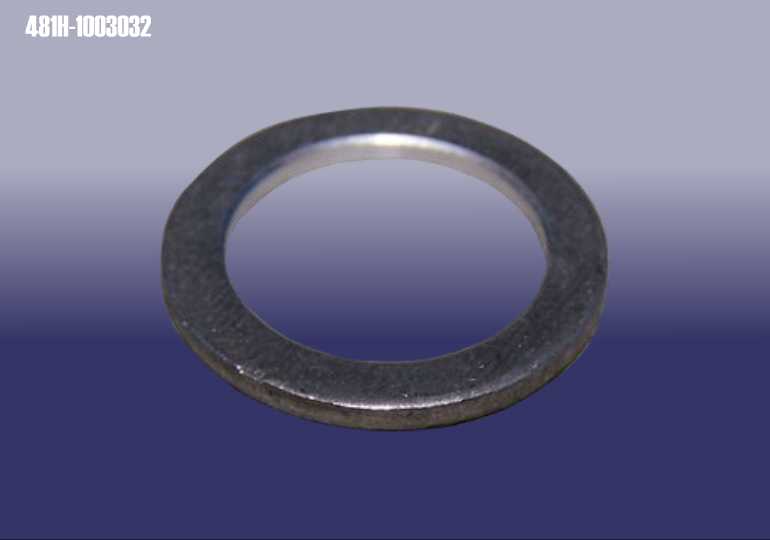

| 36 | 481H-1003032 |
WASHER |
1 |

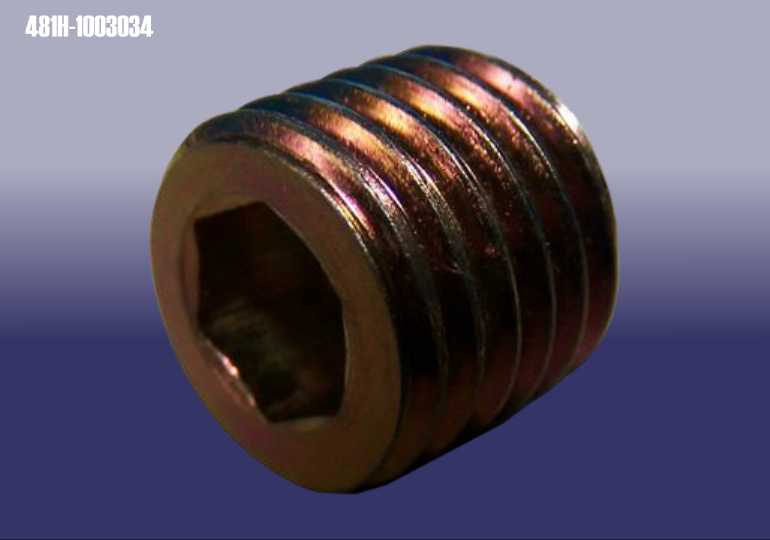

| 37 | 481H-1003034 |
PLUG |
1 |

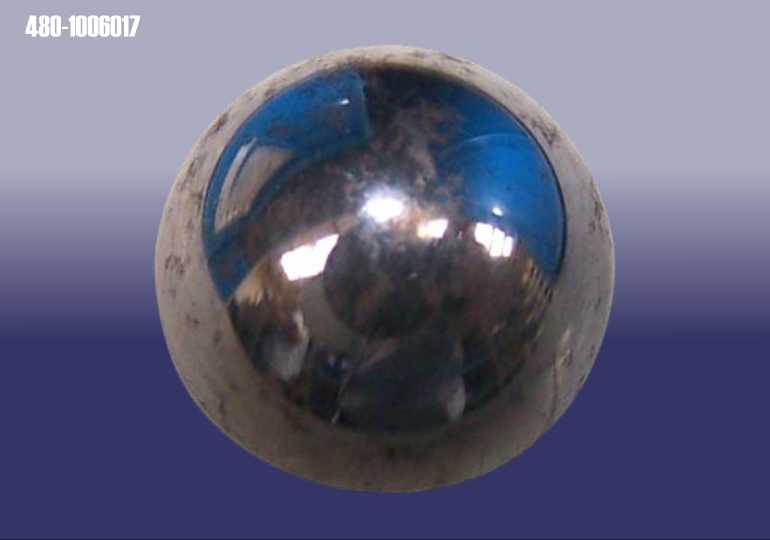

| 38 | 480-1006017 |
STEEL BALL |
1 |
| 39 | 481F-1003034 |
PLUG |
1 |
