КАТАЛОГ: CHERY	МОДЕЛЬ: CROSS EASTAR

---

Подбор авто запчастей на ЧЕРИ CROSS EASTAR (КРОСС ЕАСТАР)

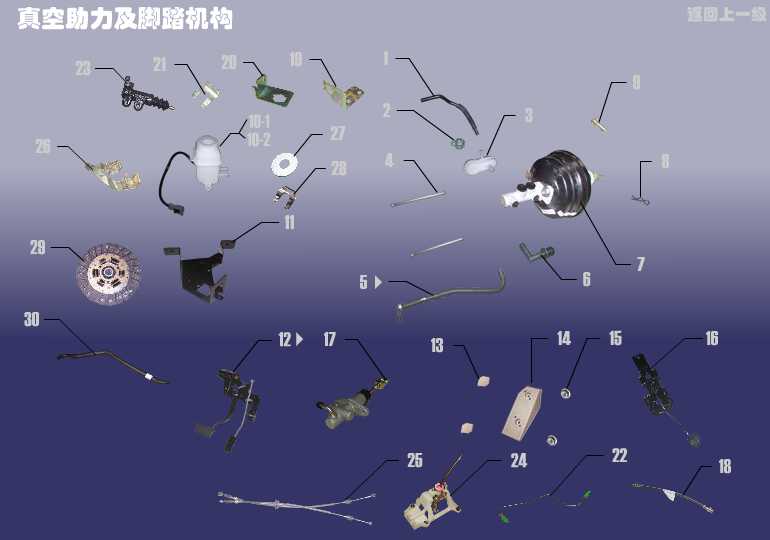

Поз.	Номер	Наименование	Колличество

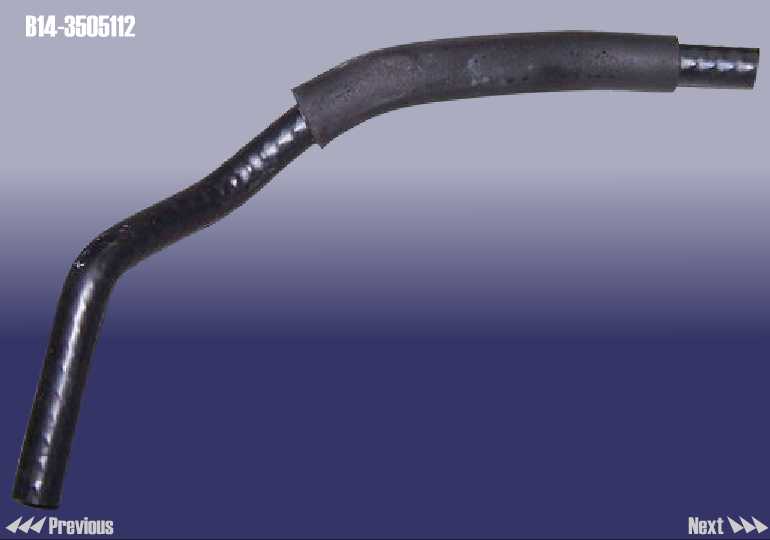

	B14-3505112	CONNECTION HOSE-RESERVOIR	1

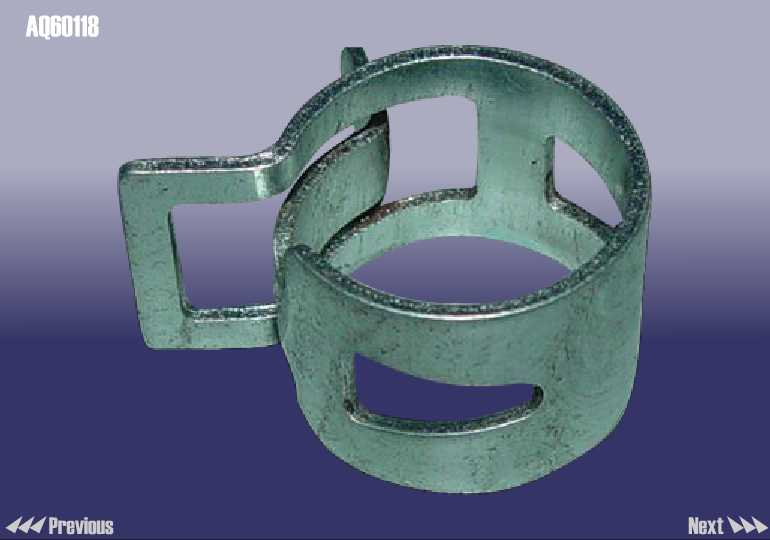

	AQ60118	CLAMP - ELASTIC	1

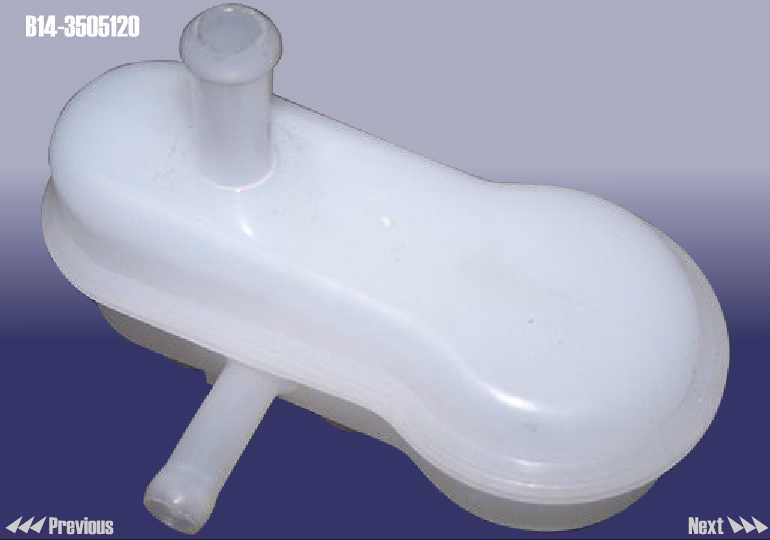

	B14-3505120	TANK(SMALL) ASSY - RESERVE	1
	B11-3510039	BOLT - LONG	2
	ZKGZC-ZKGZC	PIPE - VACUUM	1
	B11-3510115	CONNECTOR - VACUUM PIPE	1
	B14-3510010	VACCUM BOOSTER ASSY-BRAKE MASTER CYLINDER	1
	Q50108	PIN - LOCK	1
	B11-3510035	PIN	1

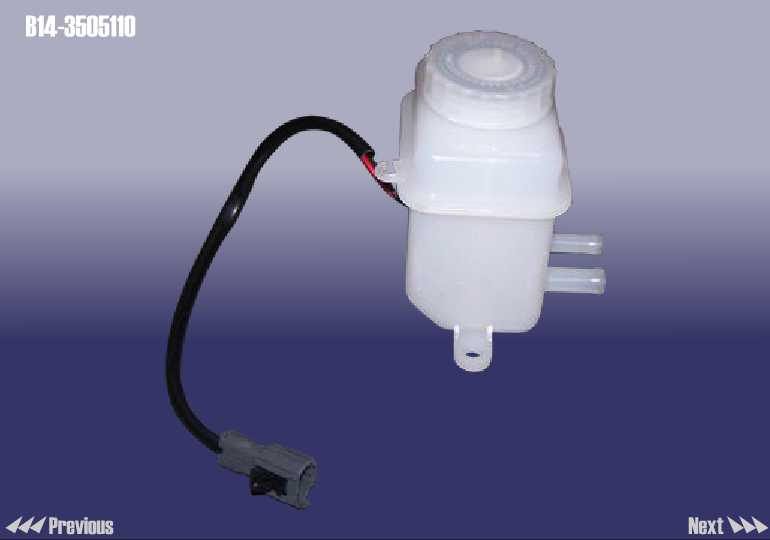

10-1	B14-3505110	RESERVOIR ASSY	1
10-2	B14-3505110BA	RESERVOIR ASSY	1
	B14-3505111	BRACKET-RESERVOIR	1
	JTBJGZC-JTBJGZC	PEDAL MECHANISM ASSY	1

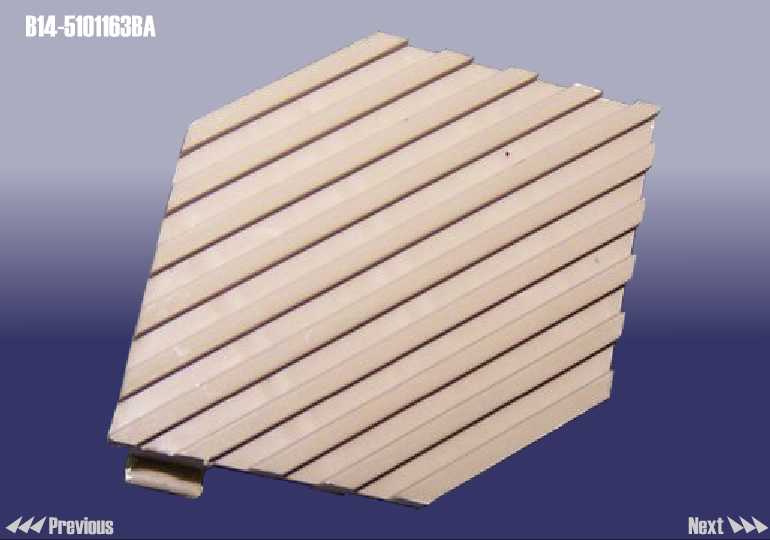

	B14-5101163BA	BUSH - NUT	2

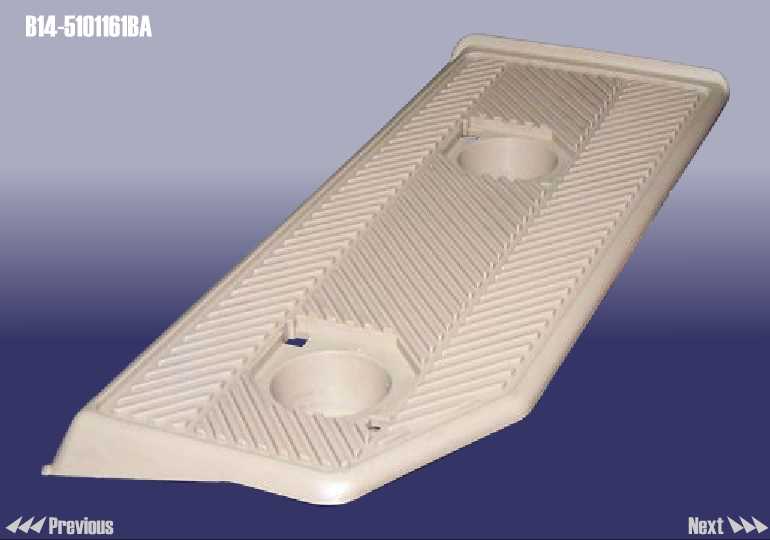

	B14-5101161BA	PEDAL	1
	Q32206L	NUT	2

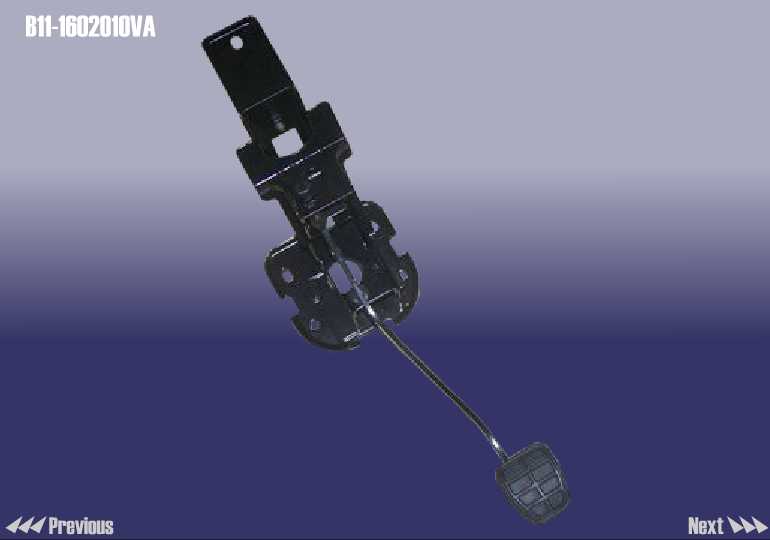

16	B11-1602010VA	CLUTCH PEDAL ASSY	0
17	B11-1602020	MASTER CYLINDER ASSY- CLUTCH	0
18	B11-1602040	HOSE - OIL (CLUTCH)	0

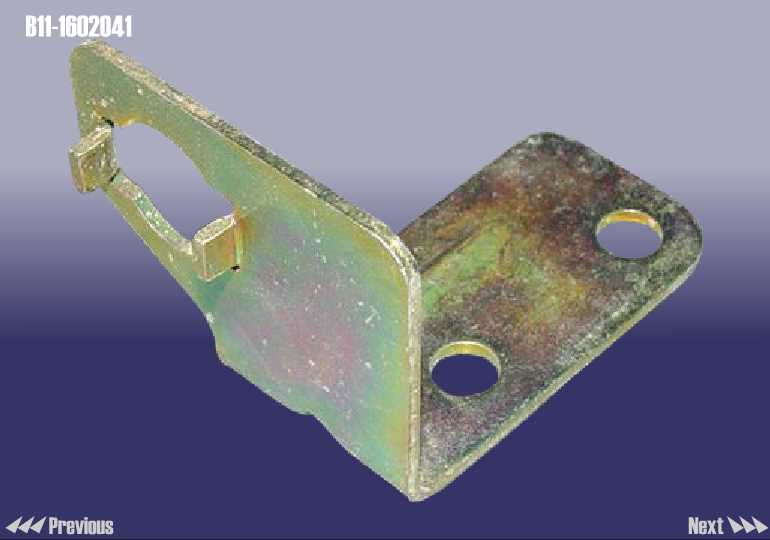

19	B11-1602041	BRACKET I	0
20	B11-1602043	BRACKET II	0

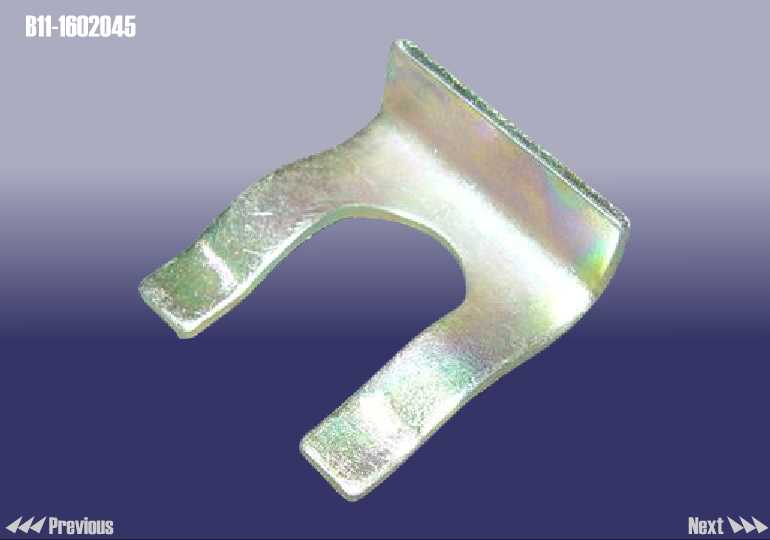

21	B11-1602045	CLAMP	0
22	B11-1602050	PIPE ASSY I - OUTLET	0
23	B11-1602070BA	CYLINDER - CLUTCH RELEASE	0

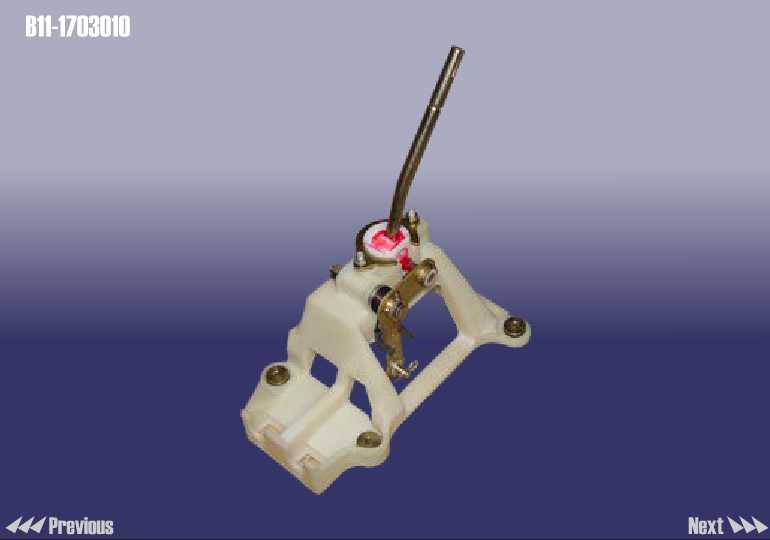

24	B11-1703010	SHIFT LEVER ASSY	0

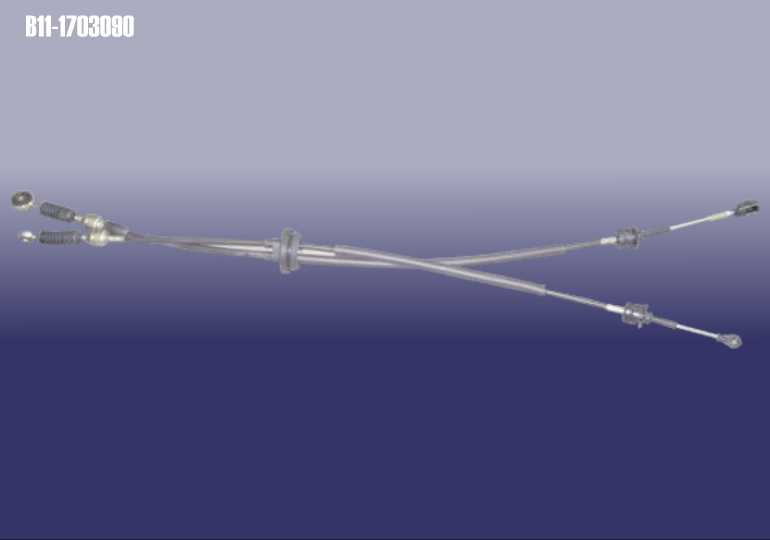

25	B11-1703090	WIRE ASSY - SHIFT GEAR	0
26	B11-1703211	BRACKET - FLEXIBLE SHAFT	0

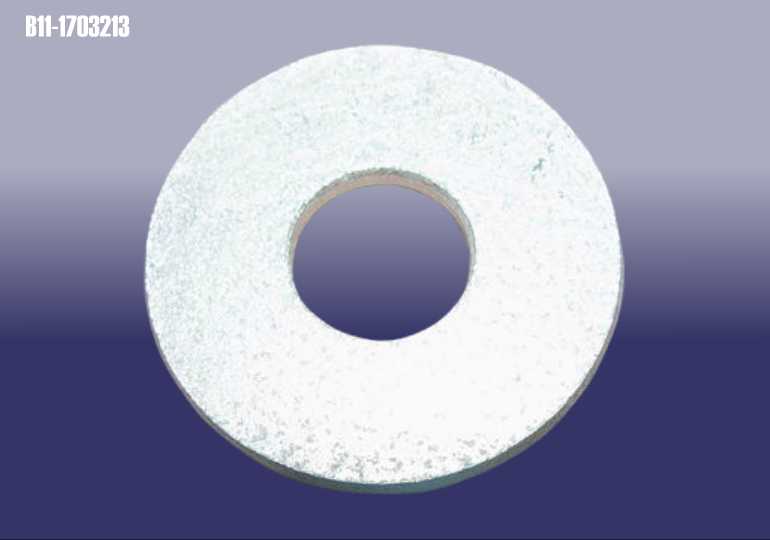

27	B11-1703213	GASKET	0

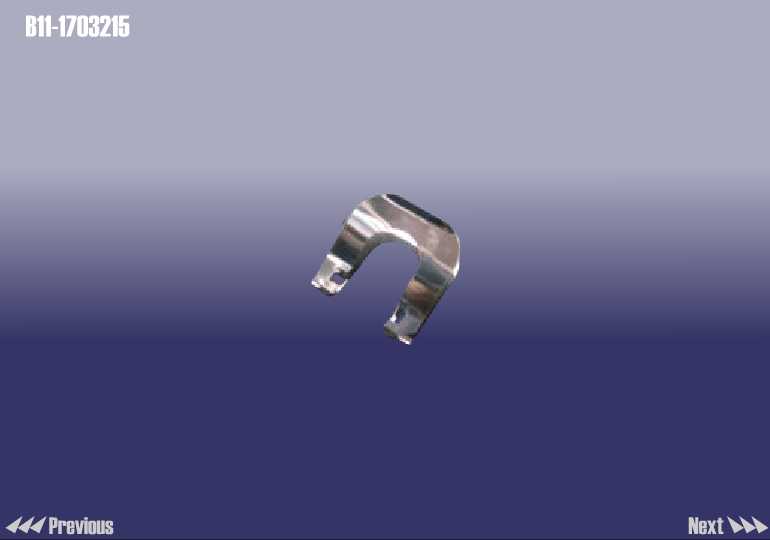

28	B11-1703215	CLAMP - FLEXIBLE SHAFT	0
29	T11-1601030BA	PLATE ASSY - CLUTCH DRIVEN	0

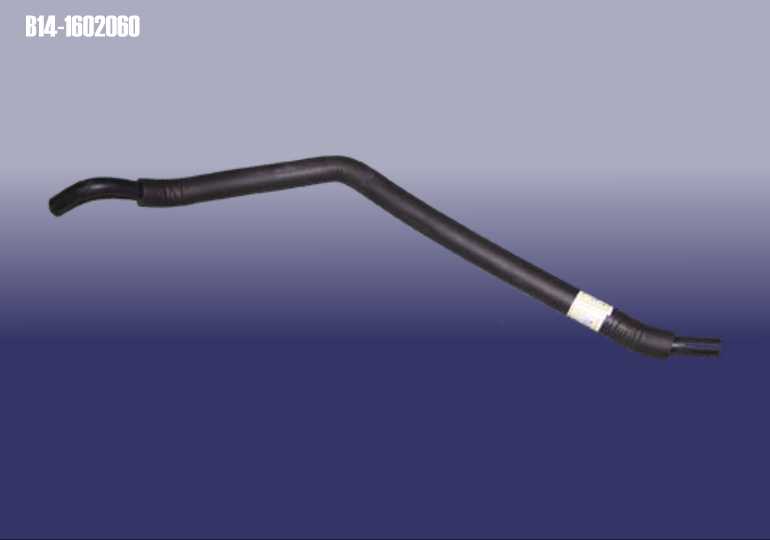

30	B14-1602060	HOSE - CLUTCH MASTER CYLINDER	0
31	B11-8108010	HOSE ASSY - EVAPORATOR TO COMPRESSOR	0
32	B14-3502210	BRAKE SHOE - RR(ONE SET)	0
