КАТАЛОГ: CHERY	МОДЕЛЬ: CROSS EASTAR

---

Подбор авто запчастей на ЧЕРИ CROSS EASTAR (КРОСС ЕАСТАР)

Поз.	Номер	Наименование	Колличество
	B14-1100015	FIXING BELT-FUEL TANK вё	1

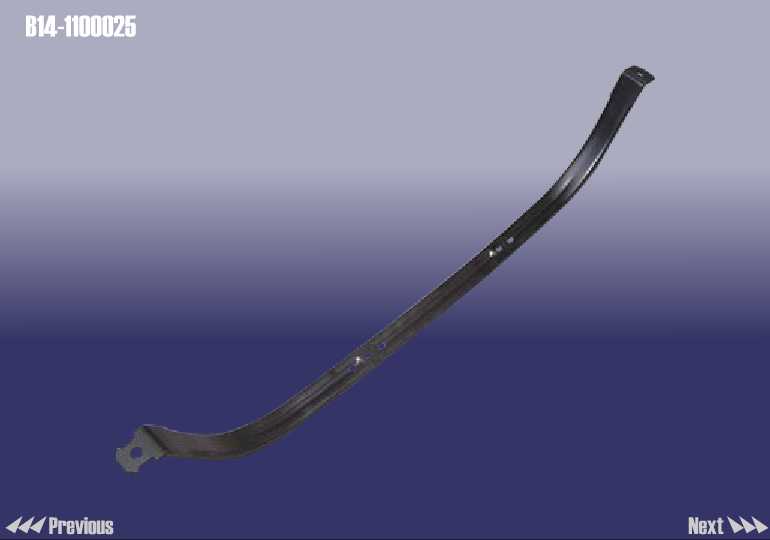

	B14-1100025	FIXING BELT-FUEL TANK вЄ	1

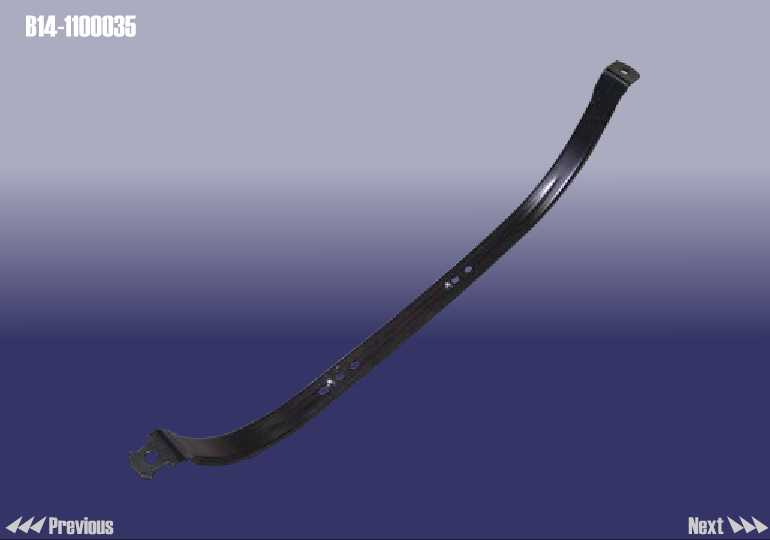

	B14-1100035	FIXING BELT-FUEL TANK вє	1

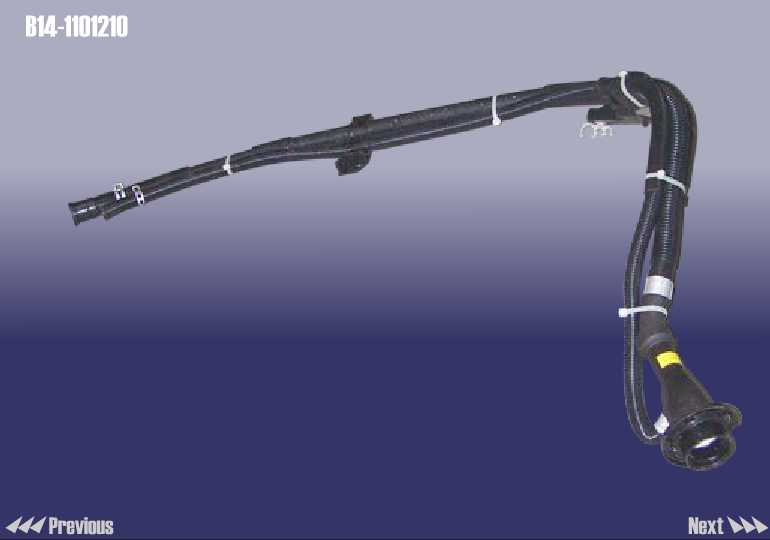

	B14-1101210	FUEL FILLING PIPE ASSY	1

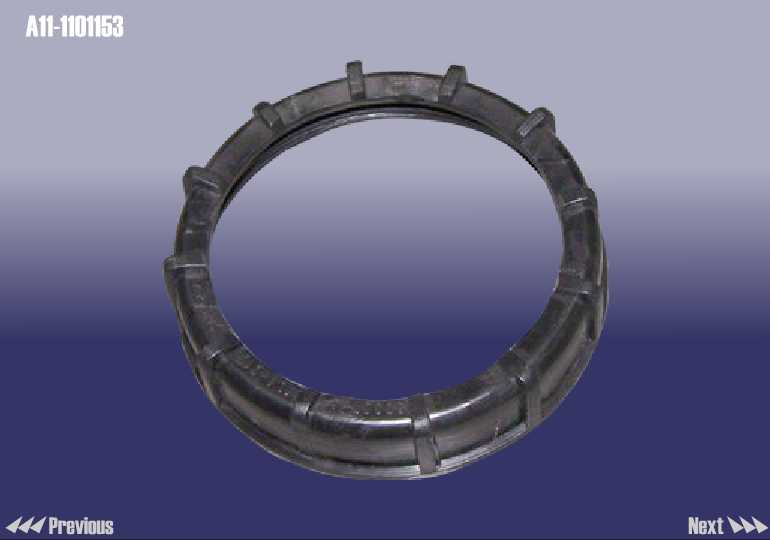

	A11-1101153	CAP - PRESSURE (FUEL PUMP)	1
	DDRYB-DDRYB	ELECTRIC FUEL PUMP	1
	B14-1101110	FUEL TANK ASSY	1

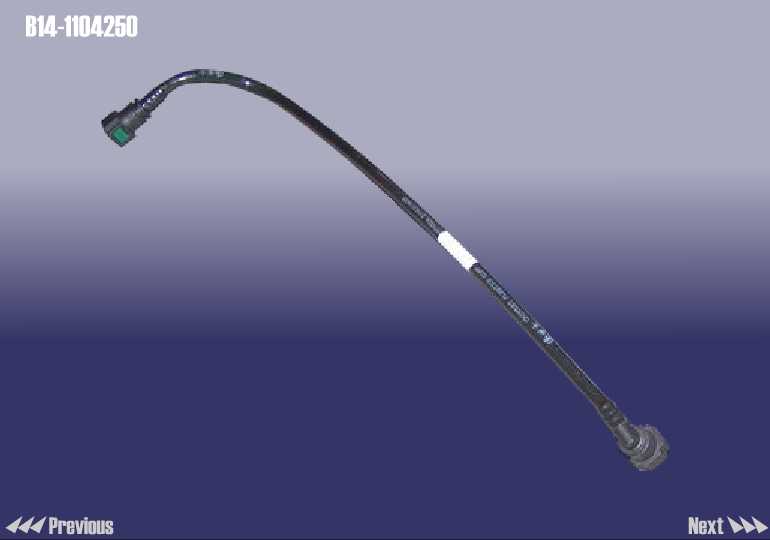

	B14-1104250	HOSE вє ASSY- RETURN OIL	1

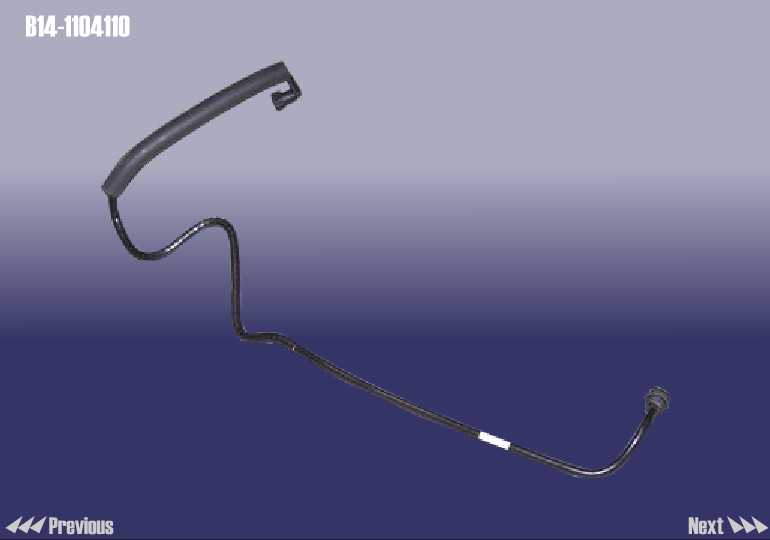

	B14-1104110	PIPE I-INLET	1

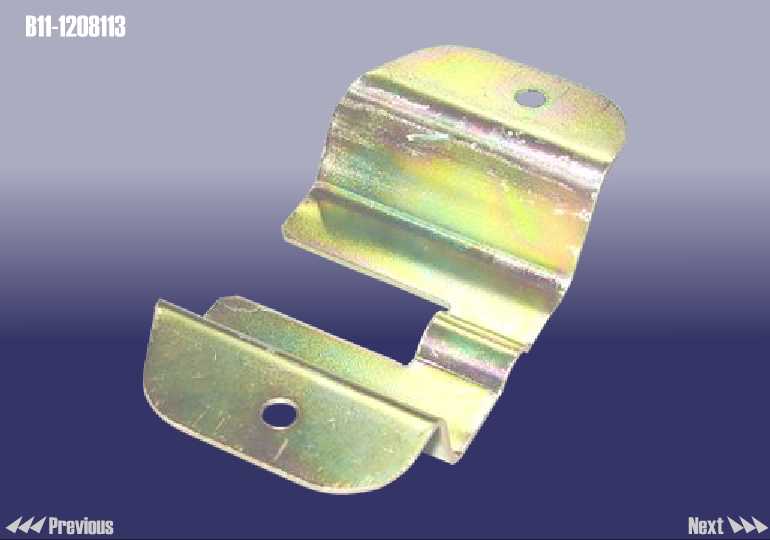

	B11-1208113	BRACKET - ACTIVE CARBON CANISTER	1
	Q1460620	HEXAGON NUT	12
	HXTGZC-HXTGZC	ACTIVE CARBON CANISTER ASSY	1

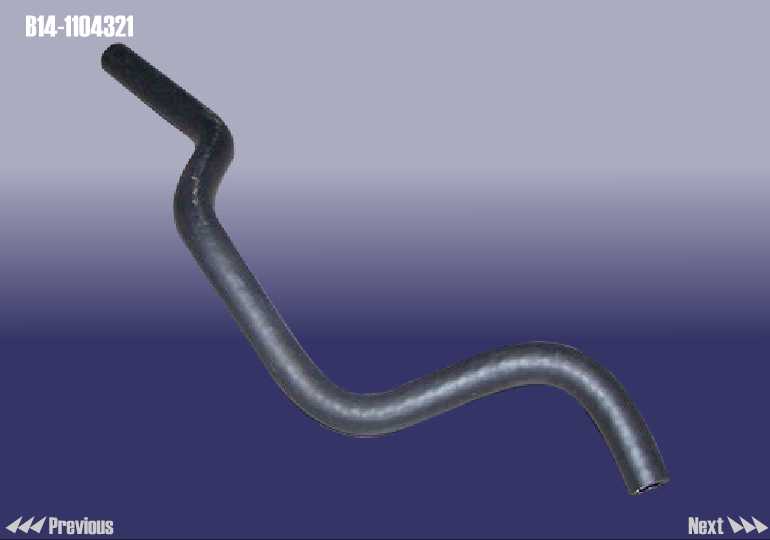

	B14-1104321	PIPE ASSYвё-FUEL STEAM	1
	B14-1104341	PIPE ASSYвЄ-FUEL STEAM	1
	B11-1208213	PIPE - BREATHER	1

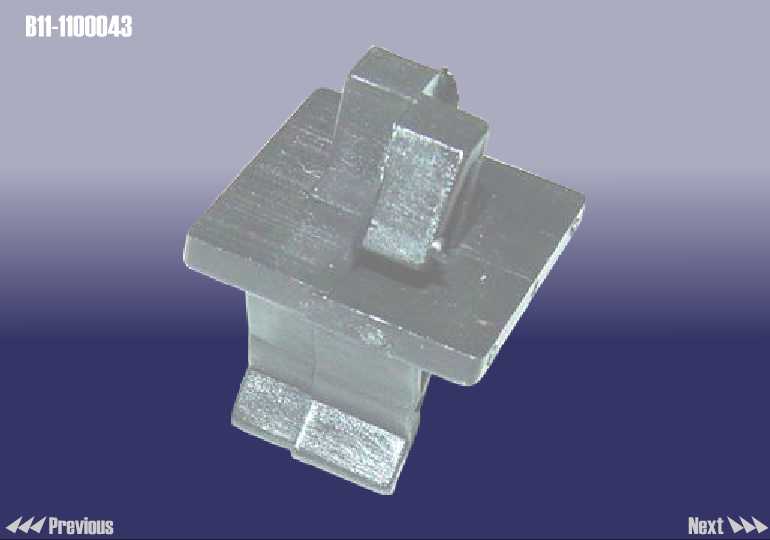

	B11-1100043	PIPE CLAMP	2

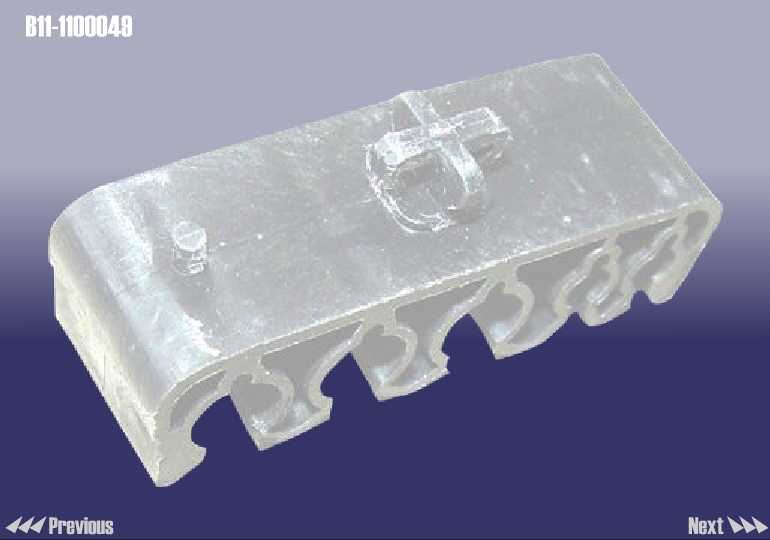

	B11-1100049	CLAMP - PIPE	5

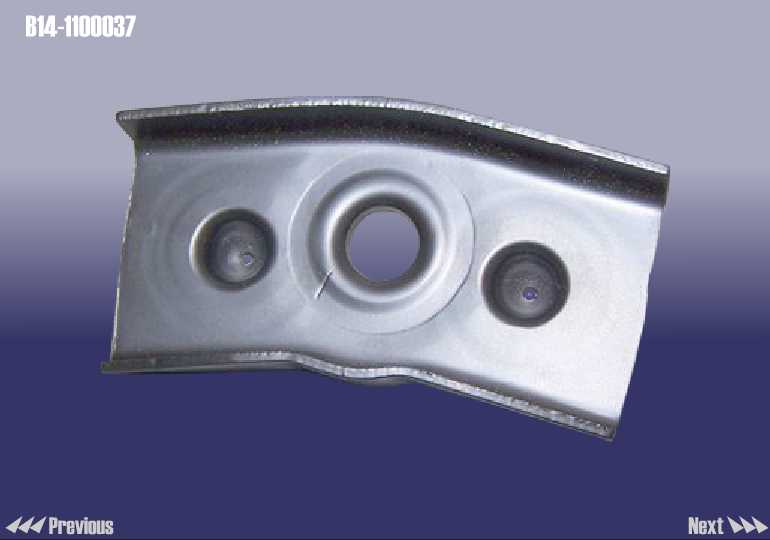

	B14-1100037	SUPPORT BOARD-TANK FIXED BELT	1

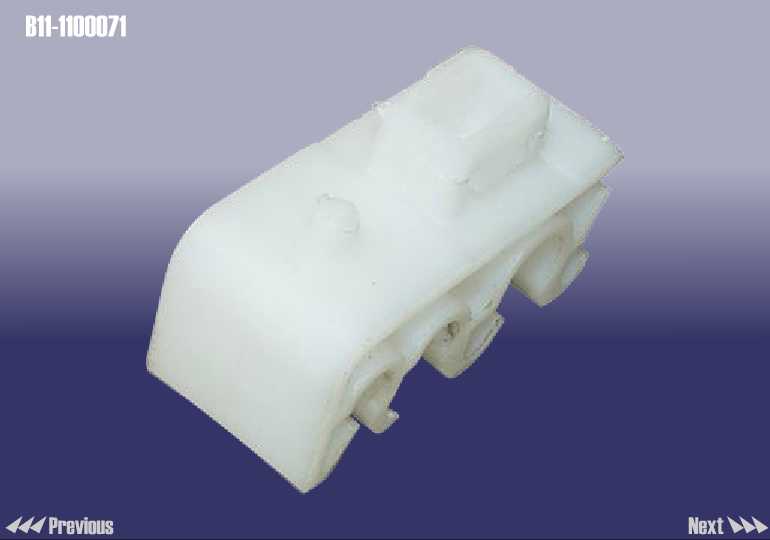

	B11-1100071	CLAMP-FIXING	1
	B14-1104351	PIPE ASSYвЄ-FUEL STEAM	1
	B14-1104231	HOSE вЄ- RETURN OIL	1
22-1	B14-1104130	HOSE II ASSY - FUEL INTAKE	1

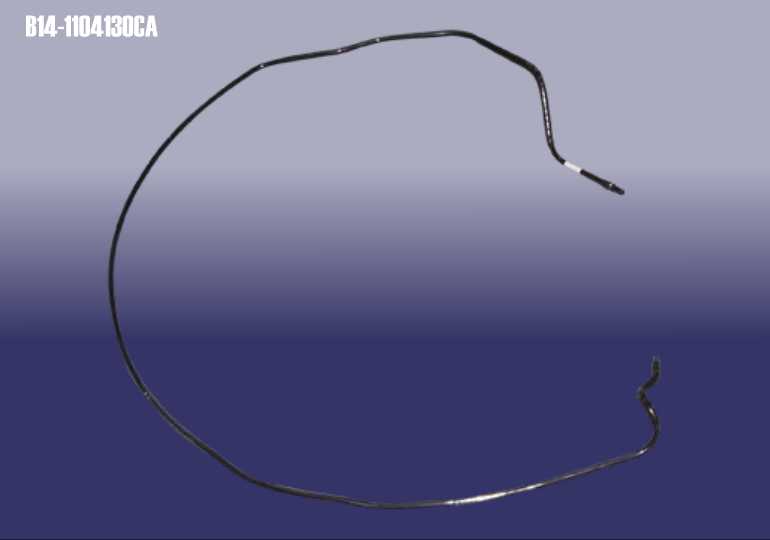

22-2	B14-1104130CA	HOSE II ASSY - FUEL INTAKE	1

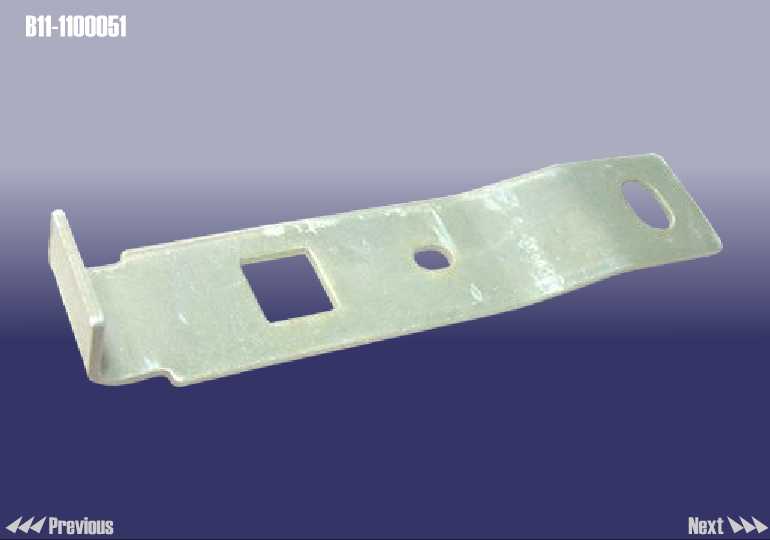

	B11-1100051	BRACKET I - PIPE CLAMP	1

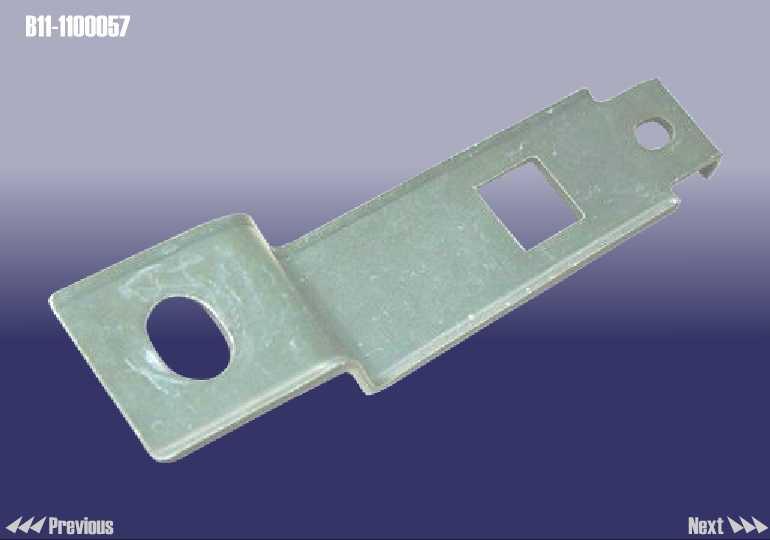

	B11-1100057	BRACKET III - PIPE CLAMP	1

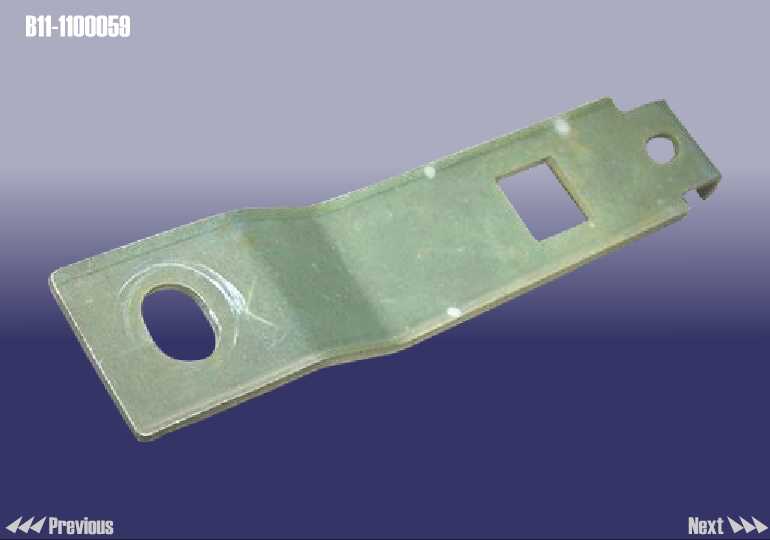

	B11-1100059	BRACKET IV - PIPE CLAMP	1

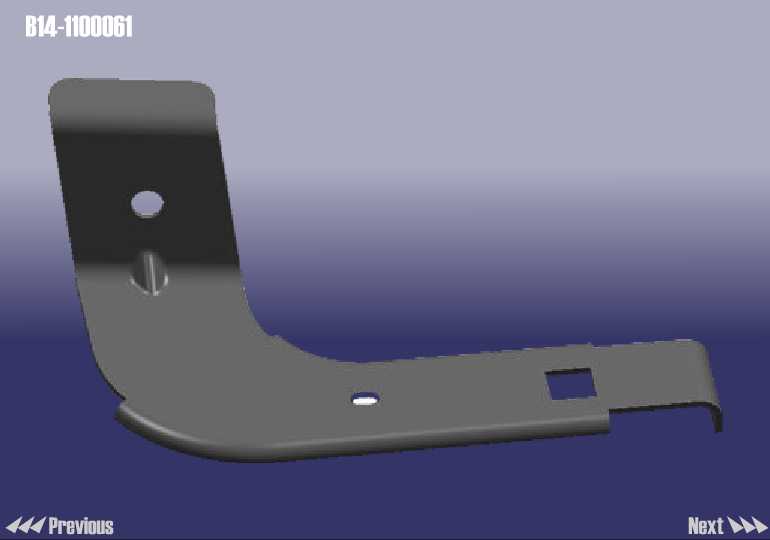

	B14-1100061	BRACKET V - PIPE CLAMP	1
	B11-1100073	BRACKET - PIPE CLAMP	1

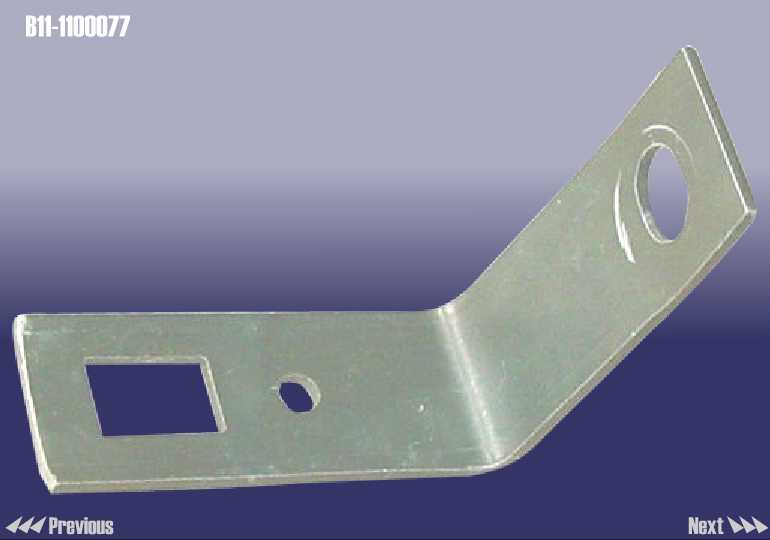

	B11-1100077	BRACKET - PIPE CLAMP	1

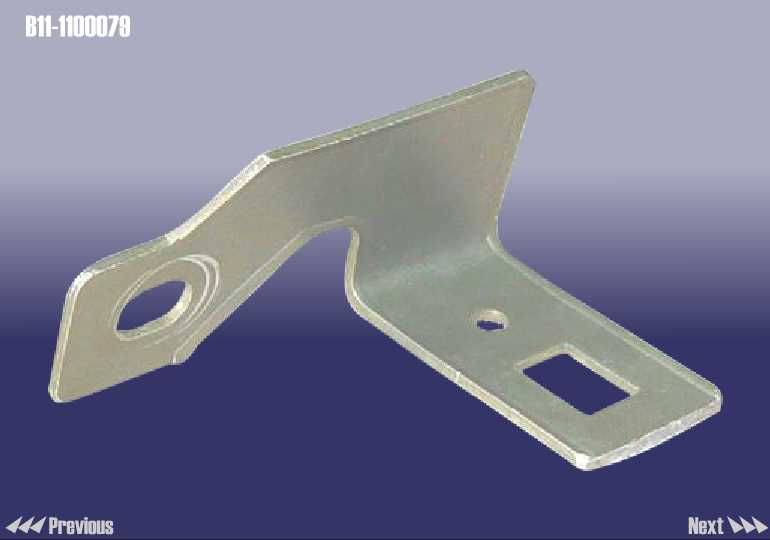

	B11-1100079	BRACKET - PIPE CLAMP	1
	JYG3-JYG3	PIPE вє-INLET	1

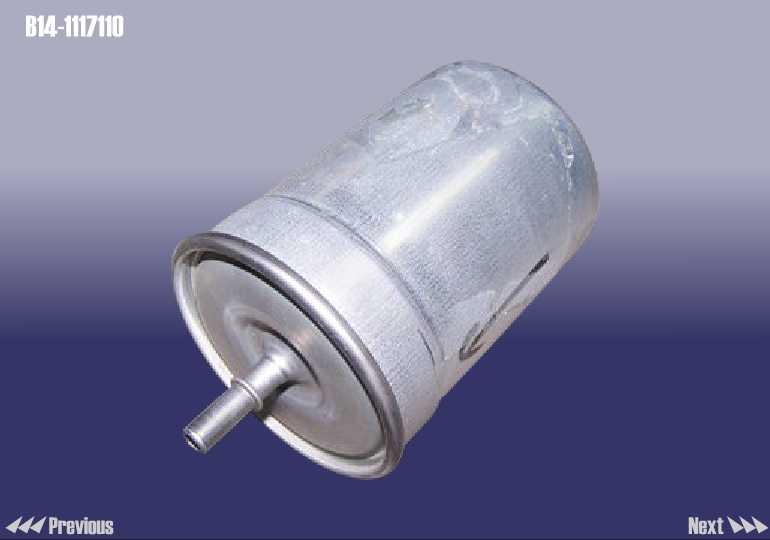

	B14-1117110	FUEL FILTER	1
	B14-1117210	BRACKET - FUEL FILTER	1

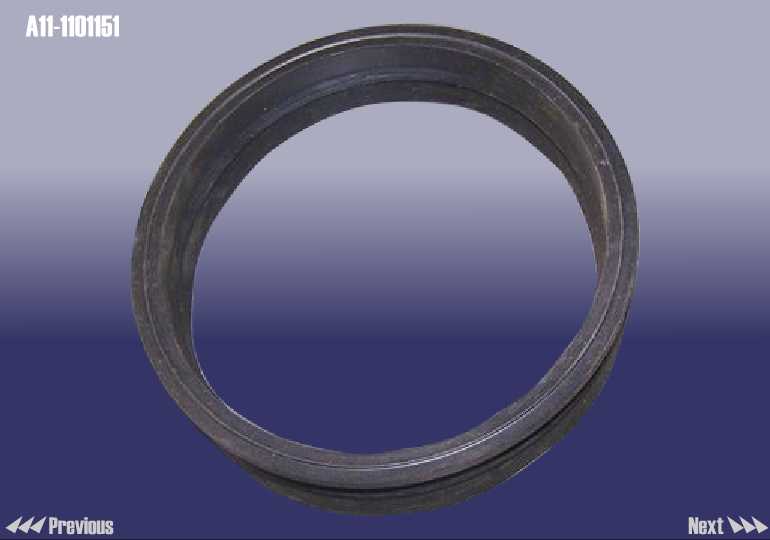

	A11-1101151	RING - SEAL-FUEL TANK	1
	JYGKZC-JYGKZC	CILP	1
	B11-1104250	PIPE I ASSY- FUEL RETURN	1

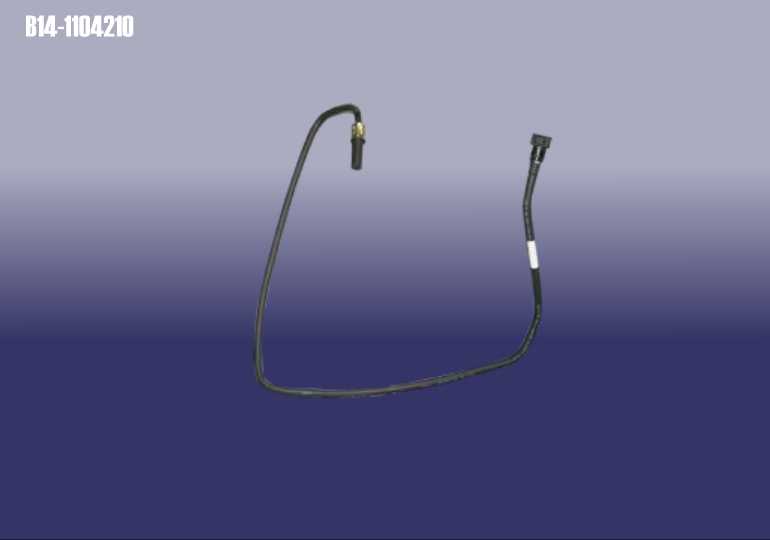

	B14-1104210	PIPE I ASSY- FUEL RETURN	0
	RYZQG3-RYZQG3	PIPE ASSY вє-FUEL STEAM	1
	B14-1101121	PROTECTOR - FUEL TANK	1

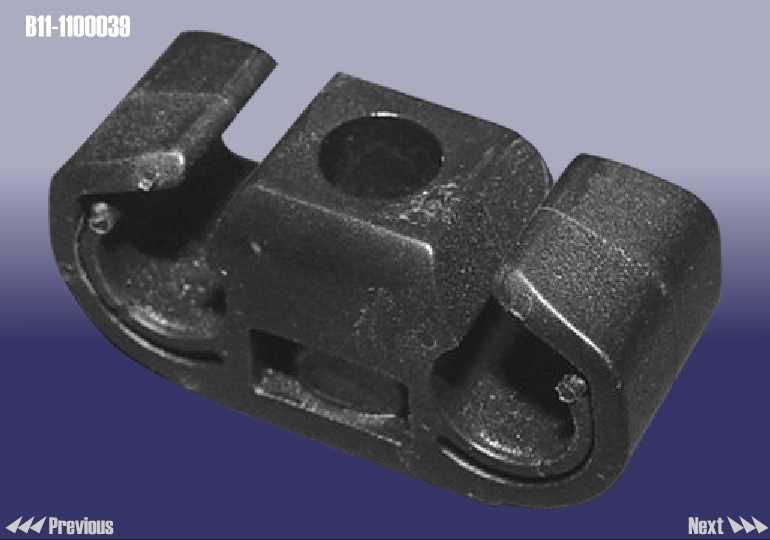

	B11-1100039	CLIP - FIXING	1

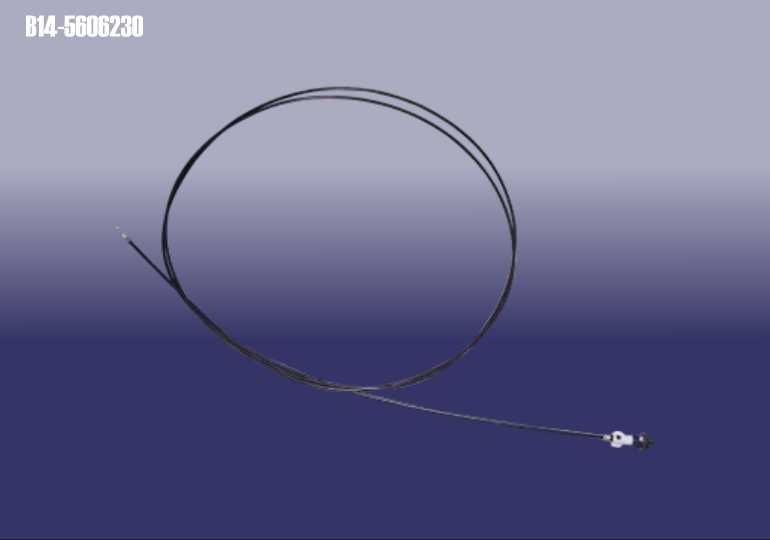

	B14-5606230	WIRE-FUEL TANK CAP	1
	B11-1100053	BRACKET II - PIPE CLAMP	1
	B11-1100069	CLIP - TWO SLOP	1

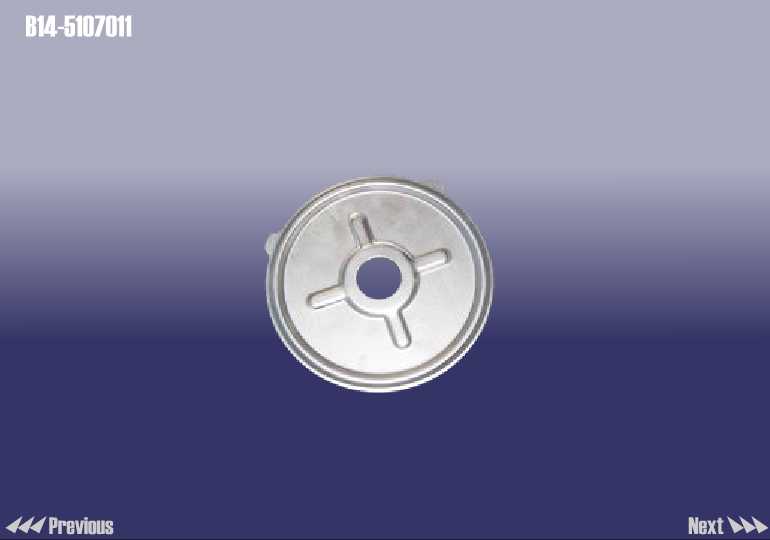

	B14-5107011	VIEW COVER - FUEL TANK	0
45	B14-1104210CA	RETURN OIL HOSE ASSY	0

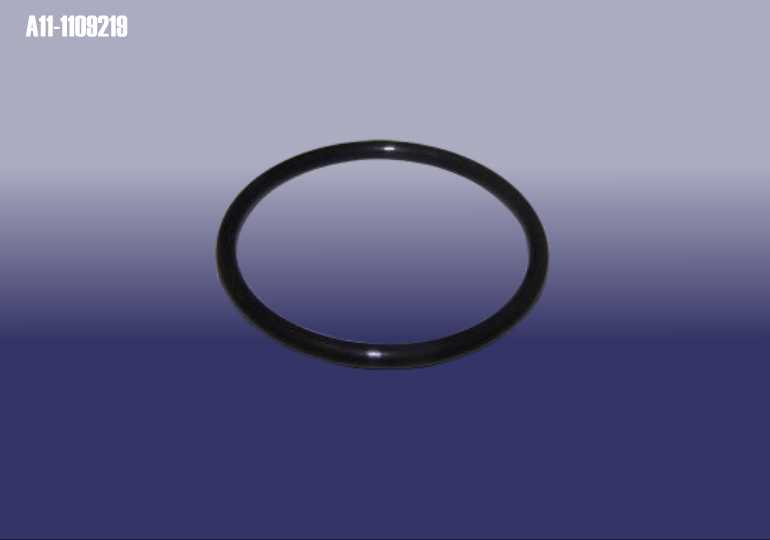

46	A11-1109219	O RING	0

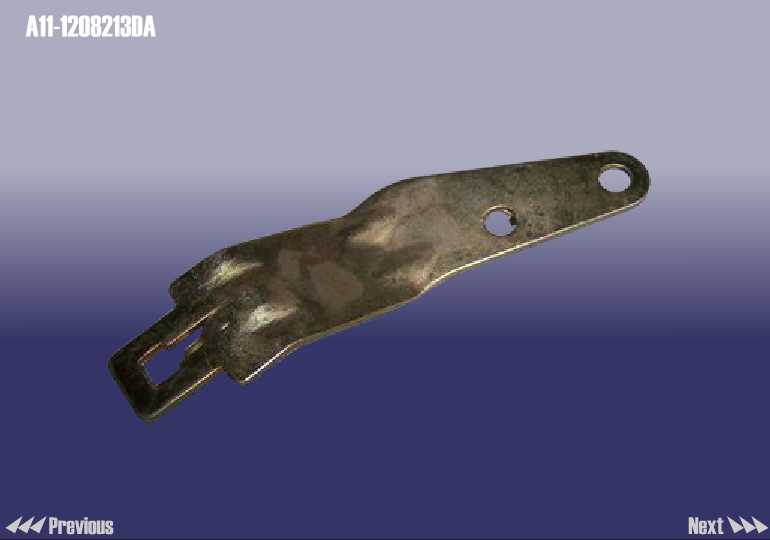

47	A11-1208213DA	BRAKET-CARBON BOX ELECTROMAGNETIC VAVLE	0
48	A21-1208219	EVAPORATION PIPE 5	0
49	S11-1008111	CLAMP	0

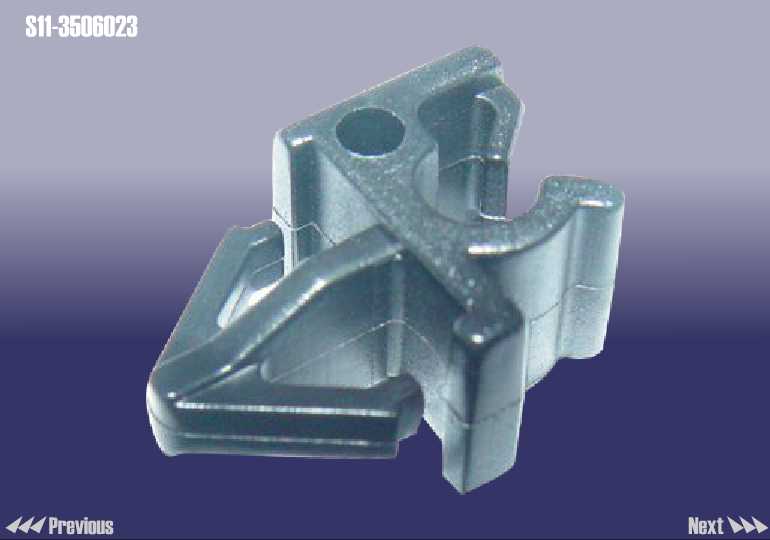

50	S11-3506023	PIPE CLIP	0
