КАТАЛОГ: CHERY	МОДЕЛЬ: CROSS EASTAR

---

Подбор авто запчастей на ЧЕРИ CROSS EASTAR (КРОСС ЕАСТАР)

Поз.	Номер	Наименование	Колличество

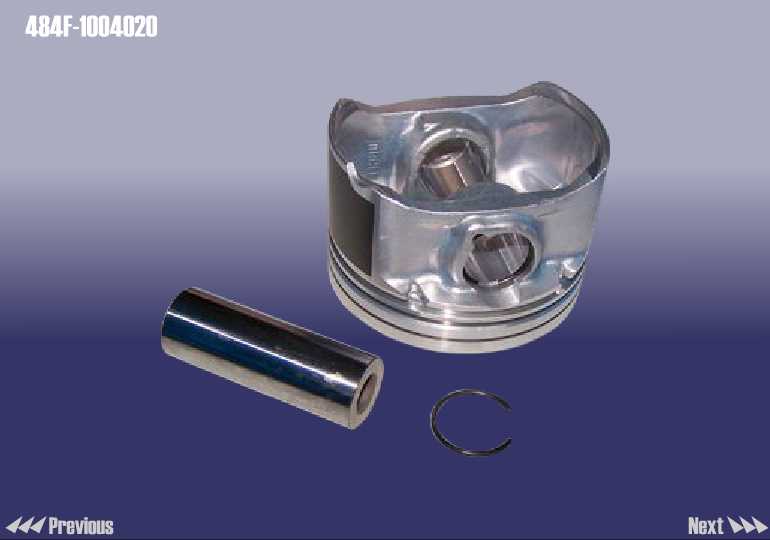

1	484F-1004020	PISTON ASSY(WITH PIN &RING)	4
2-1	481H-1004117	SLEEVE - CONNECTING ROD	4
2-2	481H-1004117BA	SLEEVE - CONNECTING ROD	4
3	481H-1004110	CONNECTING ROD ASSY	4
4	481H-1004115	BOLT - CONNECTING ROD	8
9	481H-1005015	PLATE - THRUST(CRANKSHAFT)	2

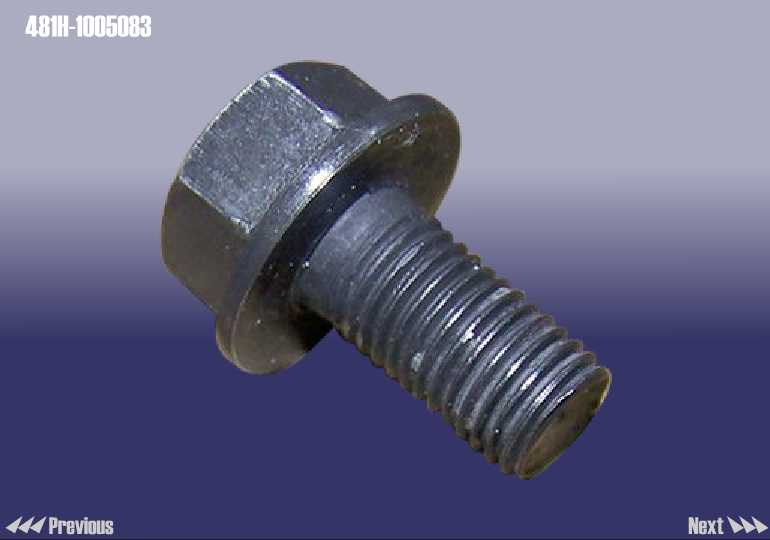

10	481H-1005083	BOLT - HEXAGON FLANGE (M8x1x16)	6
11	481H-1005051	TIMING GEAR-CRANKSHAFT	1

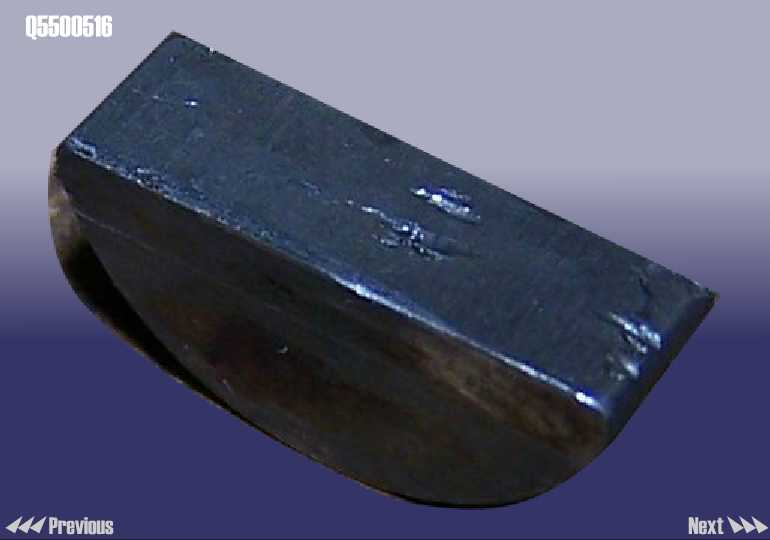

12	Q5500516	KEY - WOODRUFF	1
13	484J-1005011	CRANKSHAFT	1
14	481H-1005030	OIL SEAL-CRANKSHAFT RR	1
15	481H-1005114	WHEEL - SIGNAL	1
16	484F-1005110	FLY WHEEL ASSY	1
17	481H-1005115	RING - FLY WHEEL	1
18	481H-1005071	FRICTION DISC - FRICTION	1
19-1	481H-BJ1004121	BEARING - CONNECTING ROD	1
19-2	481H-BJ1004121BA	BEARING - CONNECTING ROD	1
20-1	481H-BJ1005013	BEARING-CRANKSHAFTгиONE SETгй	1
20-2	481H-BJ1005013BA	BEARING-CRANKSHAFTгиONE SETгй	1
21-1	484J-1004030	PISTON RING ASSY (ONE SET)	1
21-2	484J-1004030BA	RING ASSY - PISTON (OVER SIZE 0.25)	1
21-3	484J-1004030CA	RING ASSY - PISTON (OVER SIZE 0.50)	1
22	A21-1601020	COVER ASSY - CLUTCH	1
23-1	A21-1601030	DRIVEN DISK ASSY	1
23-2	T11-1601030BA	DRIVEN DISK ASSY	1
24	A21-1700011	DUST BUFFER	5

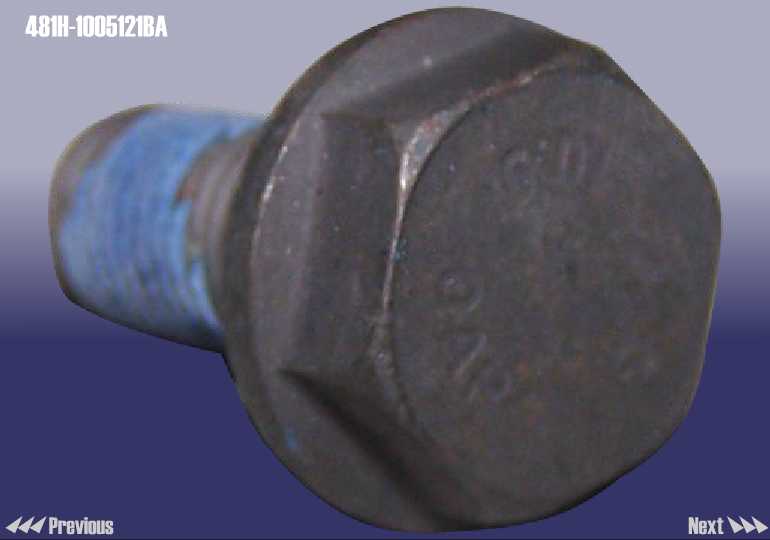

25	481H-1005121BA	FLYWHEEL BOLT M10x1.25x1.25	5
