КАТАЛОГ: CHERY	МОДЕЛЬ: EASTAR

---

Подбор авто запчастей на ЧЕРИ EASTAR (ЕАСТАР)

Поз.	Номер	Наименование	Колличество

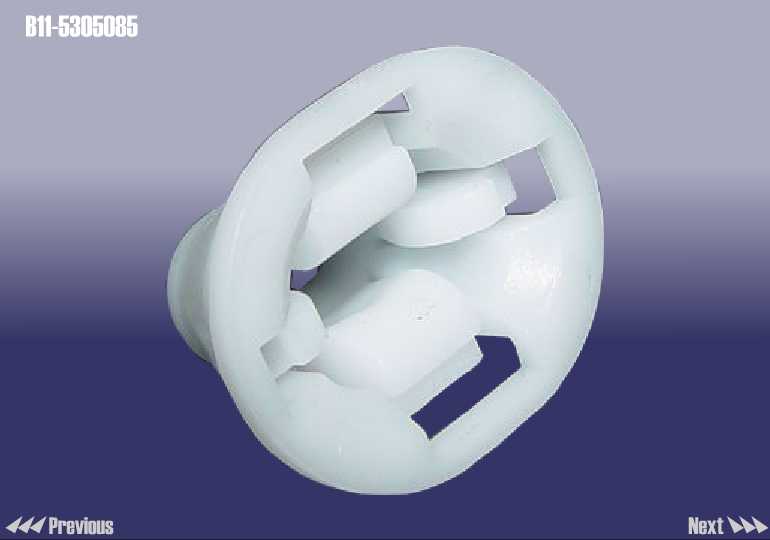

1	B11-5305085	CLIP - PLASTIC	3

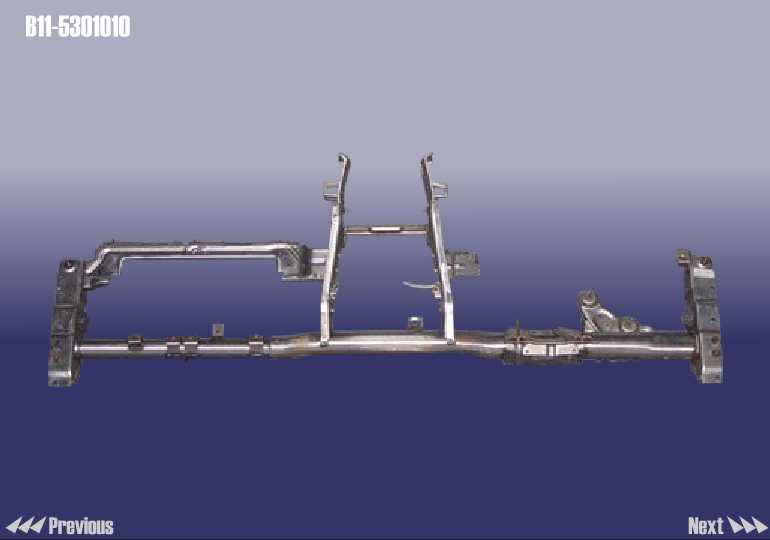

2	B11-5301010	CROSSMEMBER ASSY - DRIVERбоS CAB	1

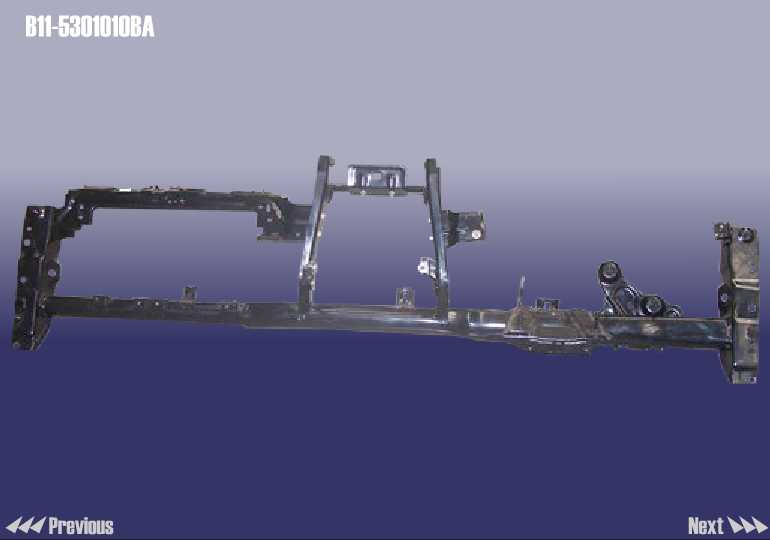

2	B11-5301010BA	CROSSMEMBER ASSY - DRIVERбоS CAB	1

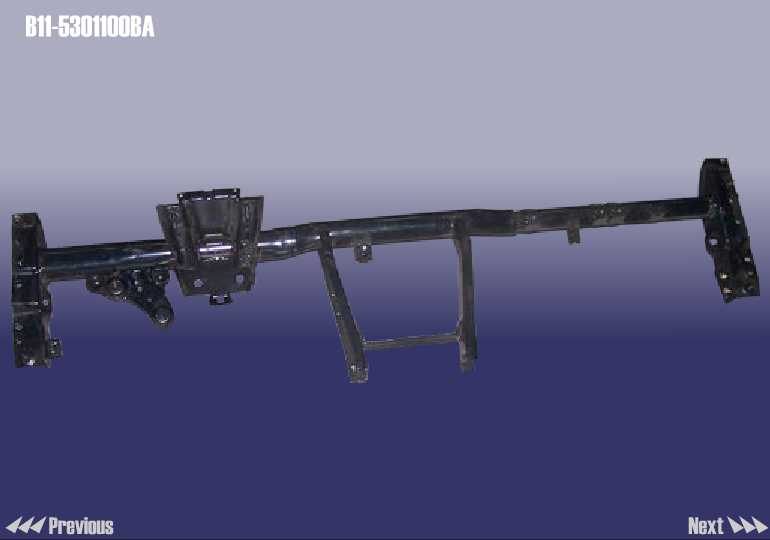

2	B11-5301100BA	CROSSMEMBER ASSY - DRIVERбоS CAB	1
3	Q150B0620	BOLT (WITH WASHER)	4

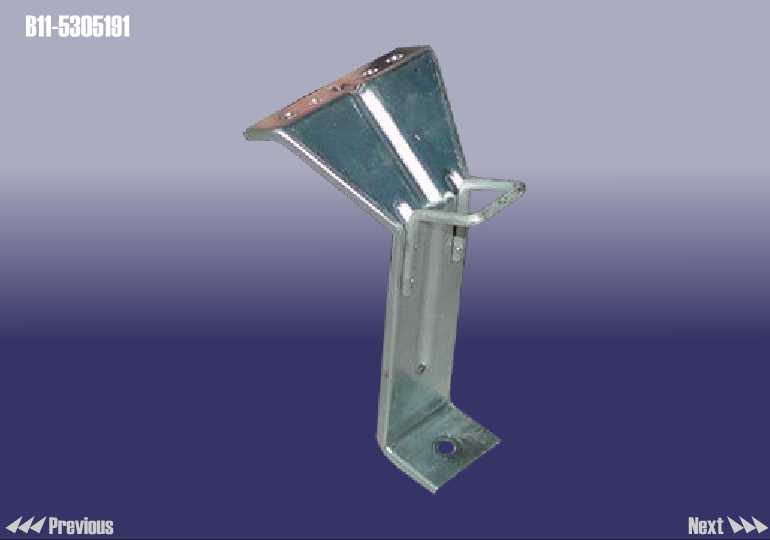

4	B11-5305191	BRACKET -GLOVE BOX INSTALL	1

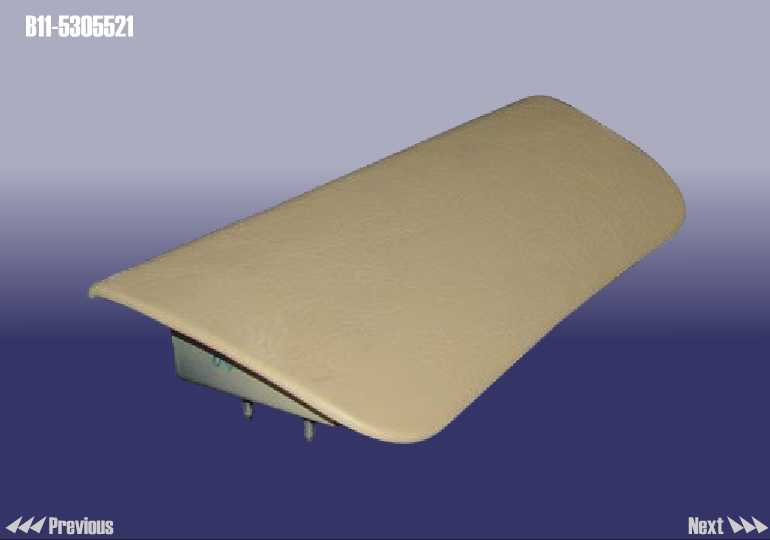

5	B11-5305521	CAP - PASSENGER AIR BAG	1
6	B11-5305373	CLAMP - METAL	4
7	YBYDG-YBYDG	COVER - DASHBOARD RH	1

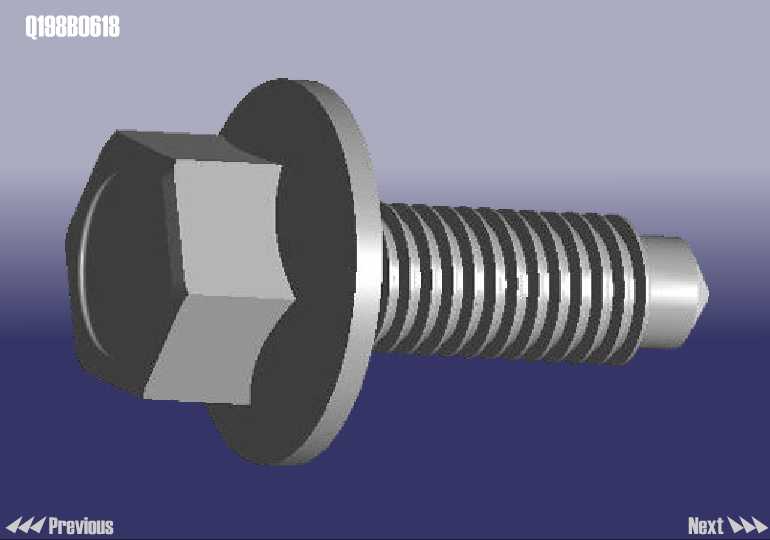

8	Q198B0618	BOLT - WELDED	2
9	B11-5305510	PANEL - ASSISTANT DASHBOARD	1
9	B11-5305510MB	PANEL - ASSISTANT DASHBOARD	1
9	B11-5305020	DASHBOARD BODY	1

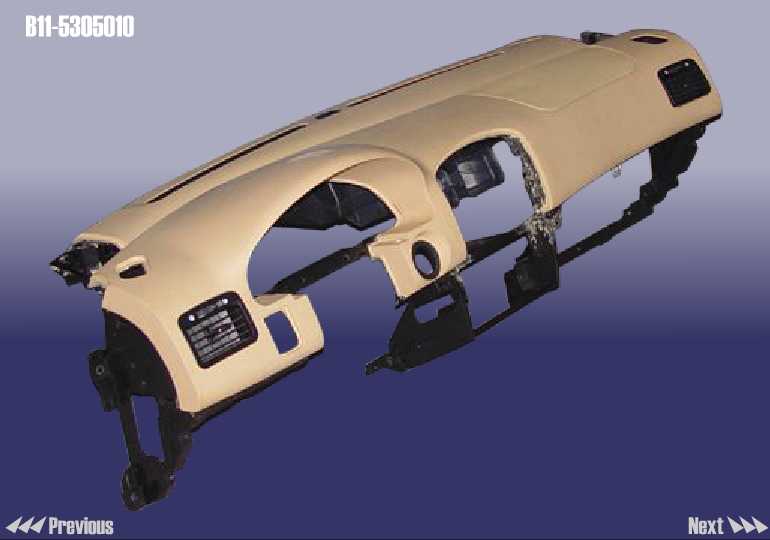

9	B11-5305010	DASHBOARD BODY	1

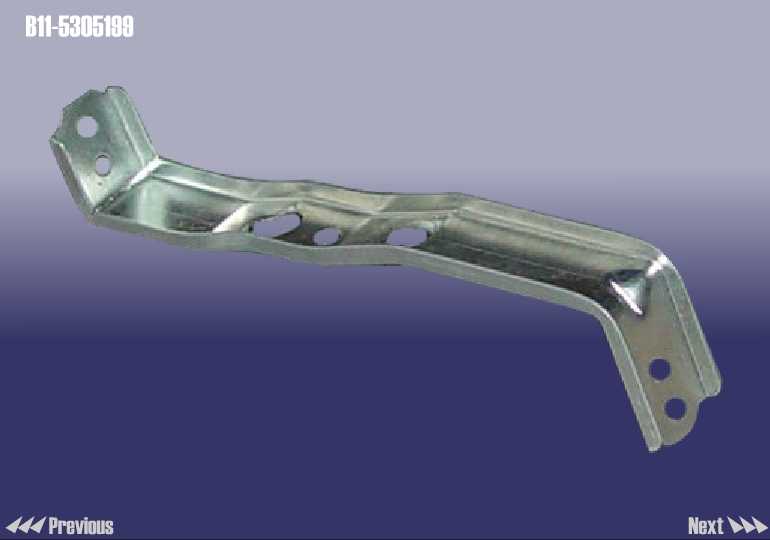

10	B11-5305199	BRACKET - AIRBAG	2

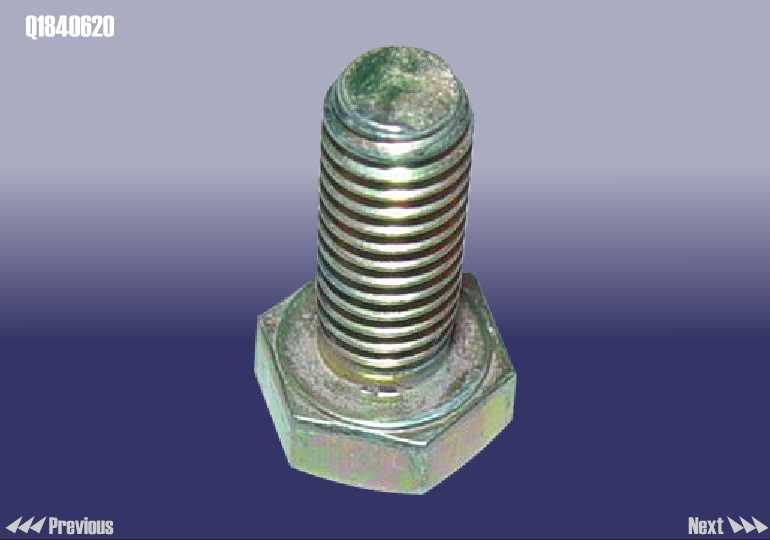

11	Q1840620	BOLT - HEXAGON FLANGE	2
12	YBZDG-YBZDG	COVER- LH	1

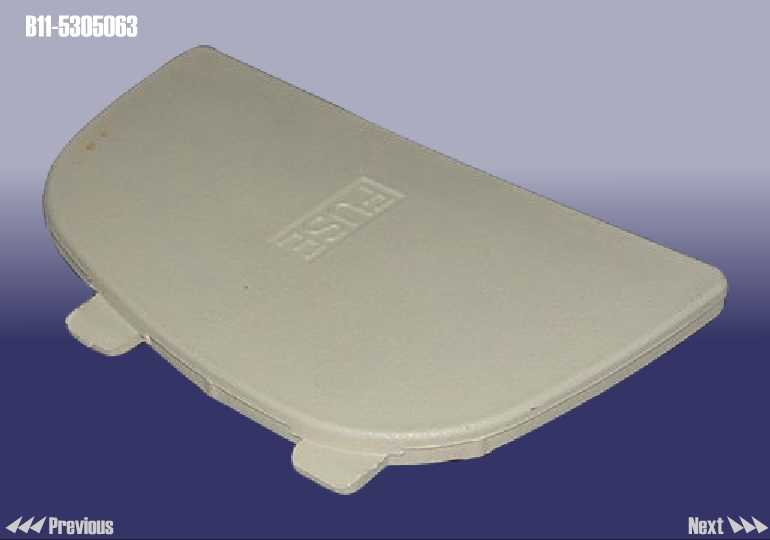

13	B11-5305063	COVER - FUSE BOX	1
14-1	B11-5305430	PLATE - LWR DASHBOARD LH	1
14-2	B11-5305430MA	PLATE - LWR DASHBOARD LH	0

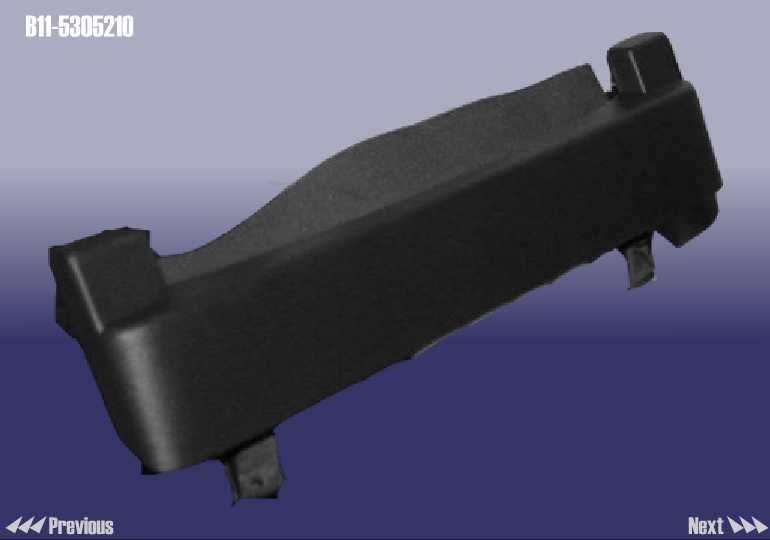

16-1	B11-5305210	BAFFLE ASSY -DASHBOARD	1
16-2	B11-5305211	BAFFLE ASSY -DASHBOARD	1

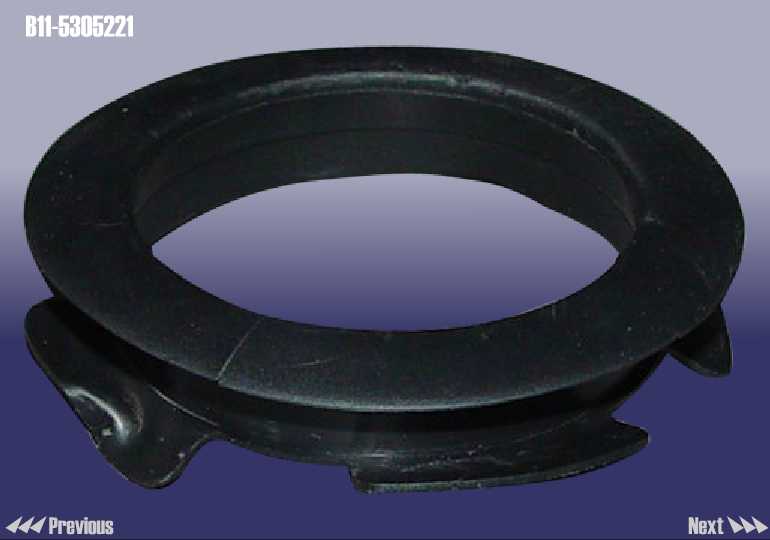

17	B11-5305221	PLUG-IGNITION KEY	1
17	B11-5305221MA	PLUG-IGNITION KEY	1

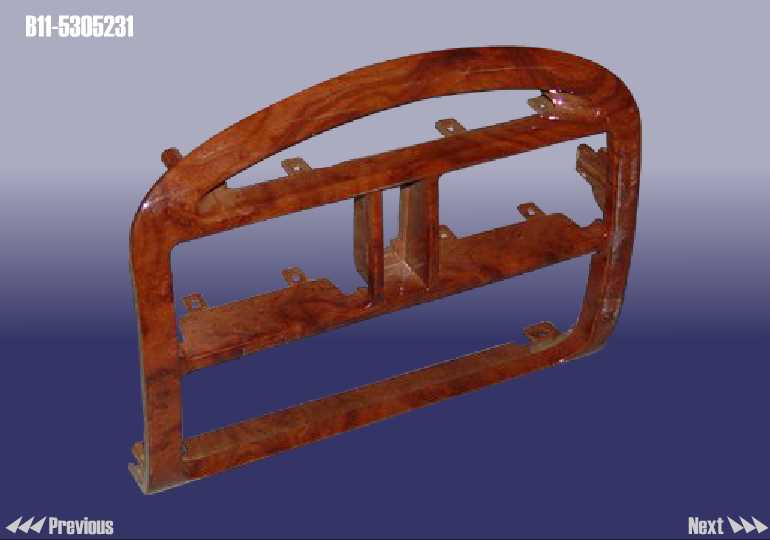

18	B11-5305231	PANEL - CENTER	1
19	N0150822	NUT(WITH WASHER)	4
20	B11-5305043	CLAMP	3
21	B11-5305410MA	GLOVE BOX ASSY.	1
21	B11-5305410	GLOVE BOX ASSY.	1
23	B11-5305440	SWITCH ASSY - ENGINE HOOD	1
24	B11-5305450MA	BOX - SUNDRIES	1

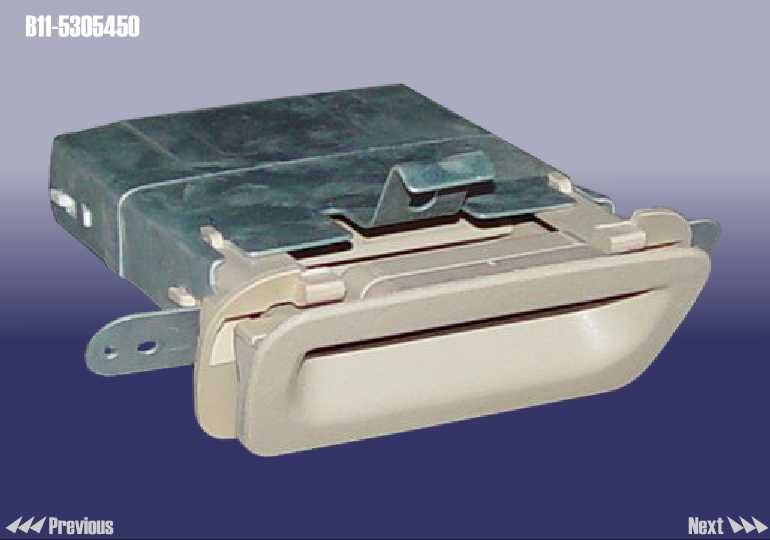

24	B11-5305450	BOX - SUNDRIES	1
25-1	B11-5305491	SHEET - MIDDLE GUARD LH	1

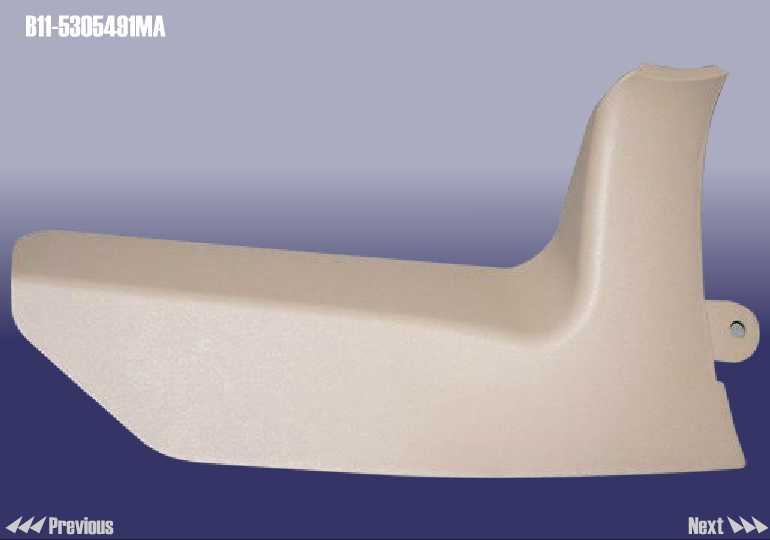

25-2	B11-5305491MA	SHEET - MIDDLE GUARD LH	0

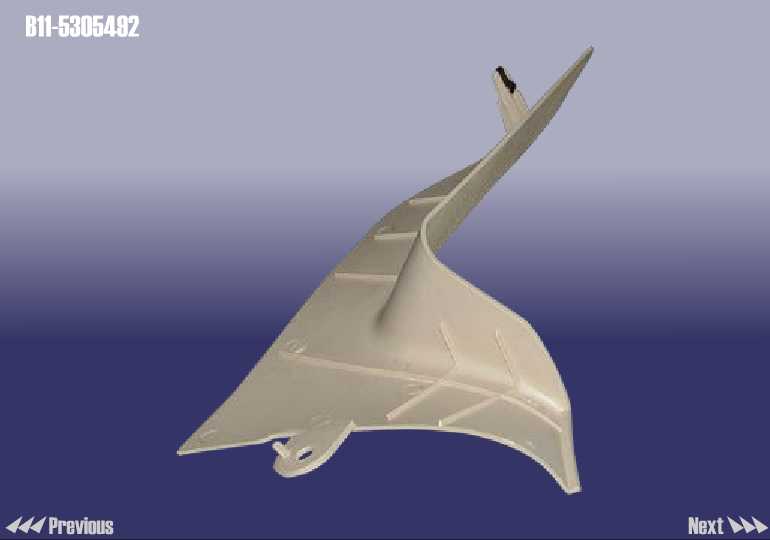

26-1	B11-5305492	SHEET - MIDDLE GUARD RH	1
26-2	B11-5305492MA	SHEET - MIDDLE GUARD RH	0
27	B11-8CB5305750MA	LOCK-GLOVE BOX	1
27	B11-8CB5305750	LOCK-GLOVE BOX	1
28-1	B11-5305820	AIR BAG ASSY- PASSENGER	1

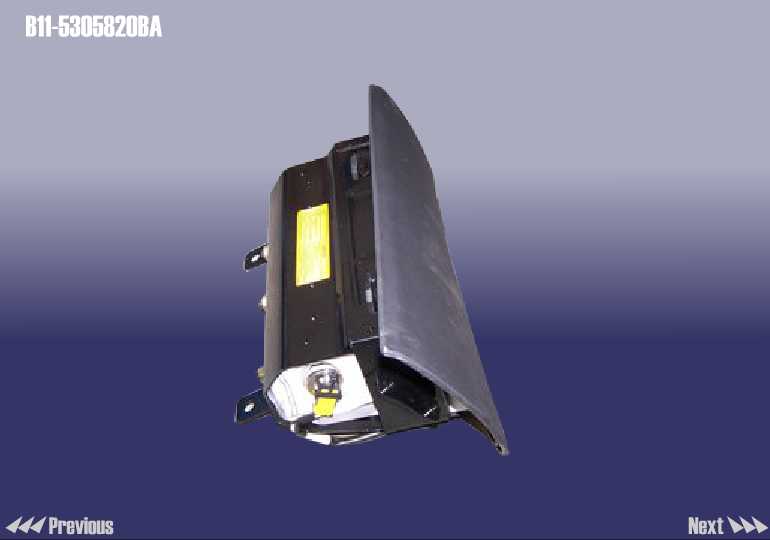

28-2	B11-5305820BA	AIRBAG - PASSENGER	1

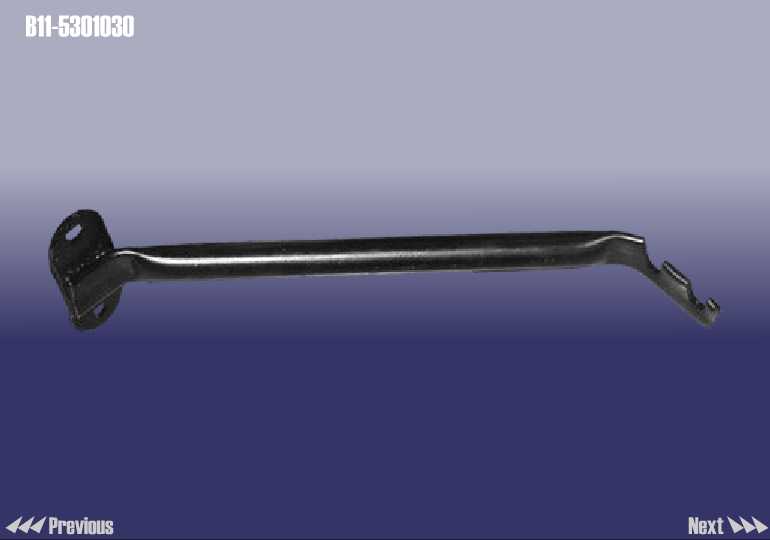

29	B11-5301030	LINK - LH	1

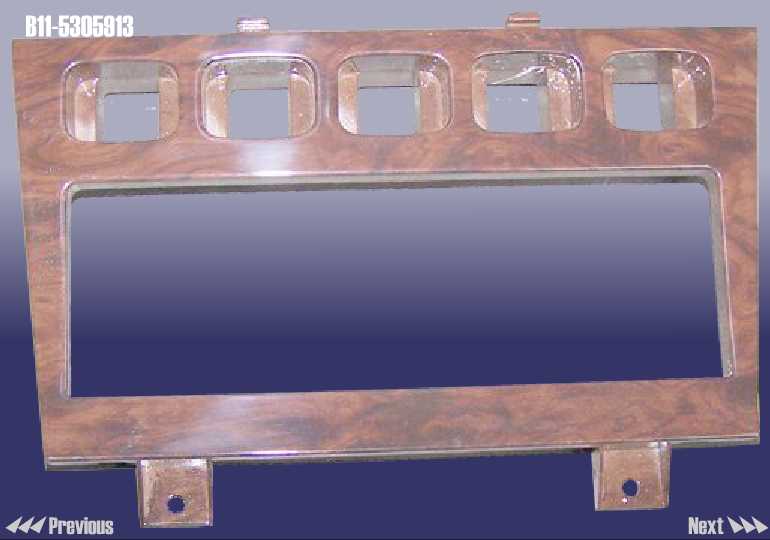

30	B11-5305913	FRAME -RADIO & RECORDER	1
31	B11-5305350	COVER ASSY - PAB	1

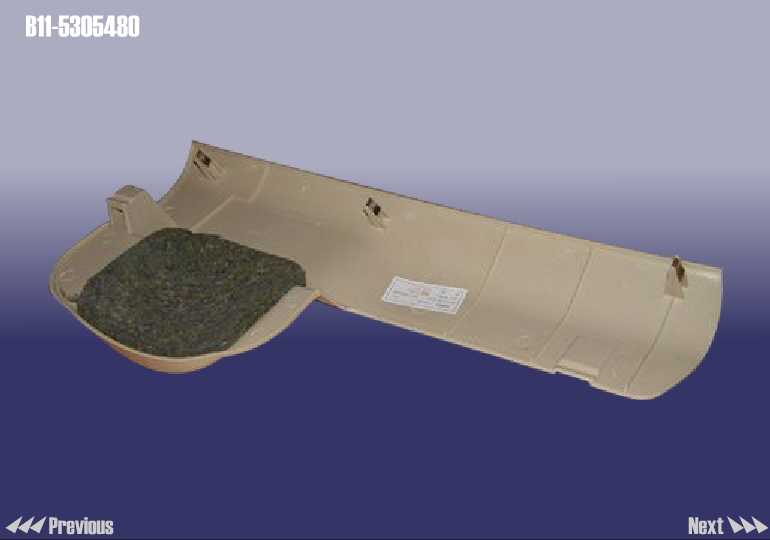

32-1	B11-5305480	PLATE - LWR DASHBOARD RH	1

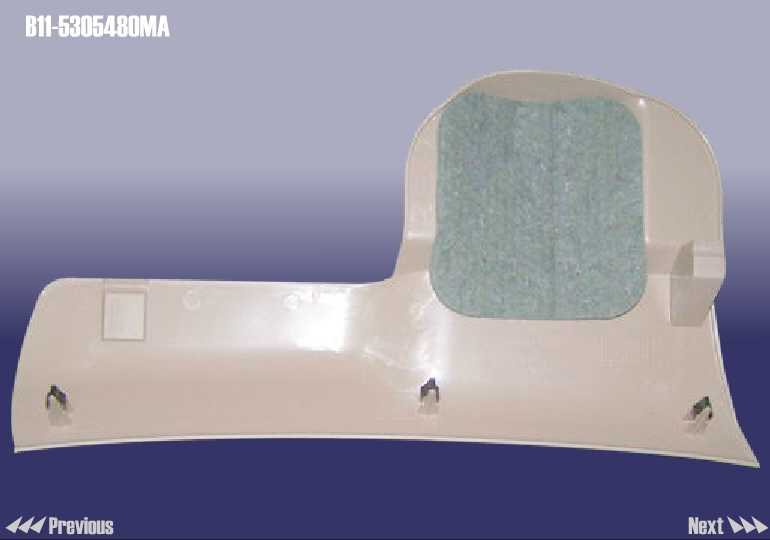

32-2	B11-5305480MA	PLATE - LWR DASHBOARD RH	0
33	YBDBZC-YBDBZC	BAFFLE ASSY -DASHBOARD	0
34	B11-5305041	NUT	0

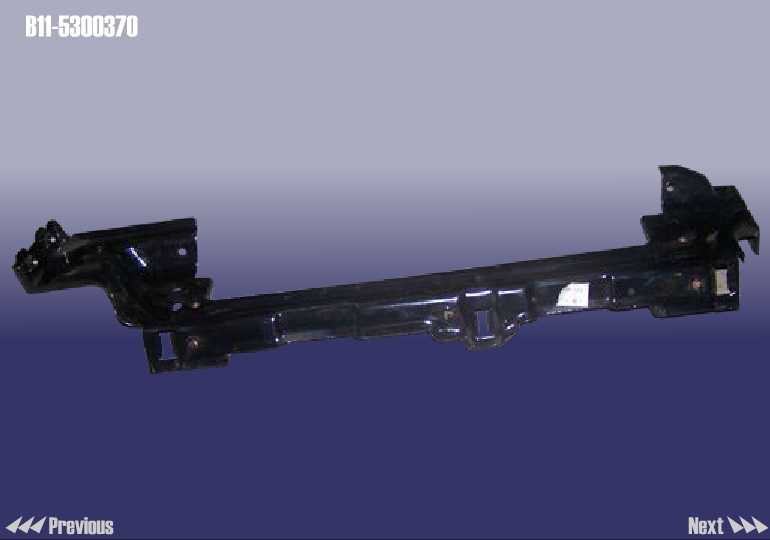

35	B11-5300370	LWR INSTALLATION PANEL LH	0
36	B11-5301530	LWR INSTALLATION PANEL-GLOVE BOX	0
