КАТАЛОГ: CHERY	МОДЕЛЬ: EASTAR

---

Подбор авто запчастей на ЧЕРИ EASTAR (ЕАСТАР)

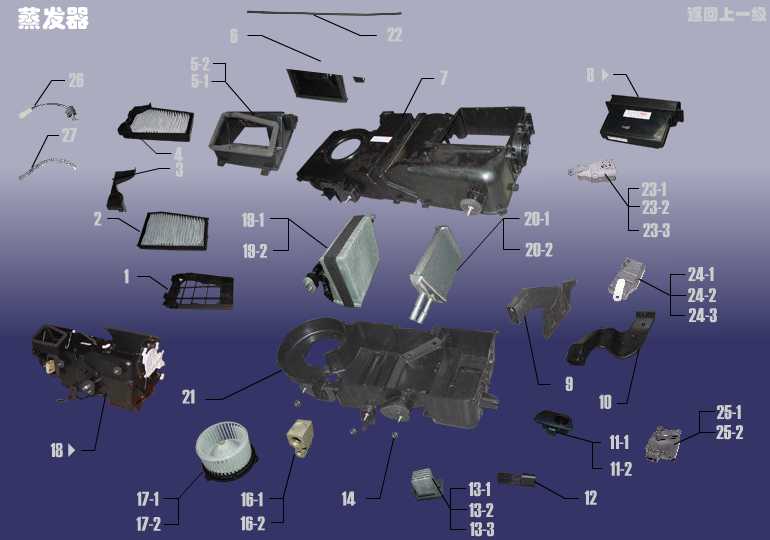

Поз.	Номер	Наименование	Колличество
1	B11-8107913	BRAKET - AIR FILTER	1

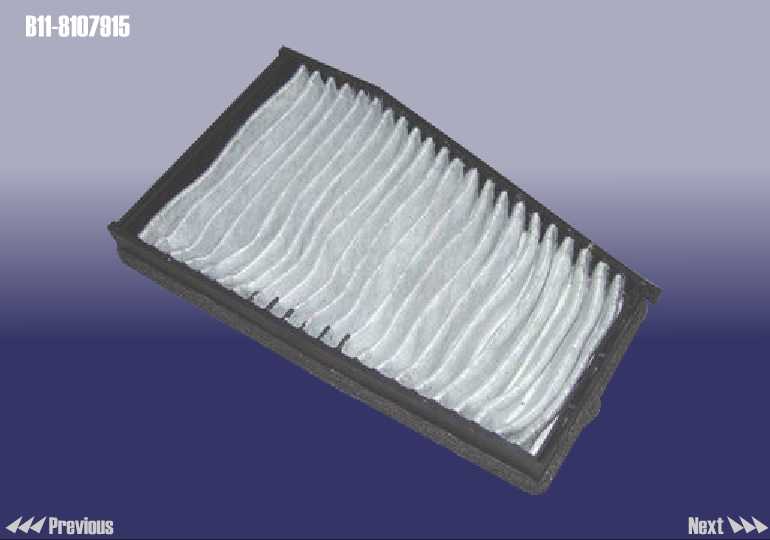

2	B11-8107915	FILTER CORE	1

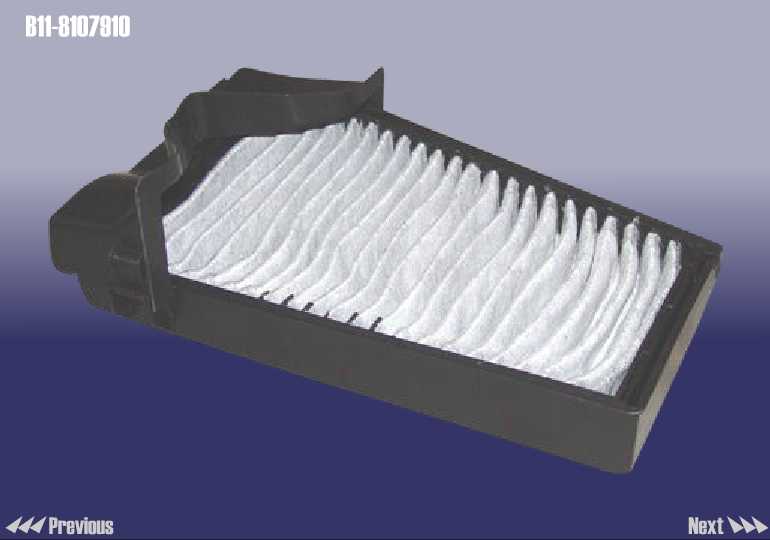

2	B11-8107910	AIR FILTER CORE	1

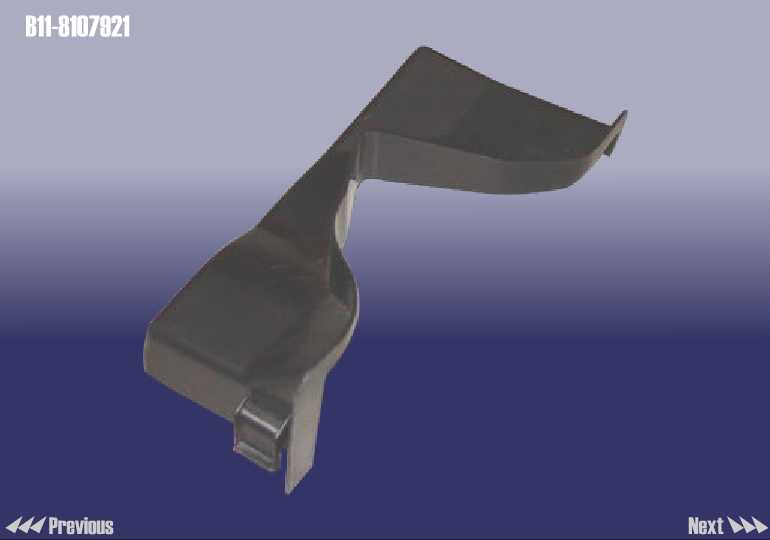

3	B11-8107921	COVER PLATE - FIXING	1
4	B11-9EC8107087	VENT ASSY-FACE	1
5	B11-8107015	VENT CASING ASSY	1
5	B11-8107015BA	VENT CASING ASSY	0
5	B11-9EC8107015	VENT CASING ASSY	0
6	B11-8107710	ADJUSTMENT-INR CIRCULATION CONTROL	1

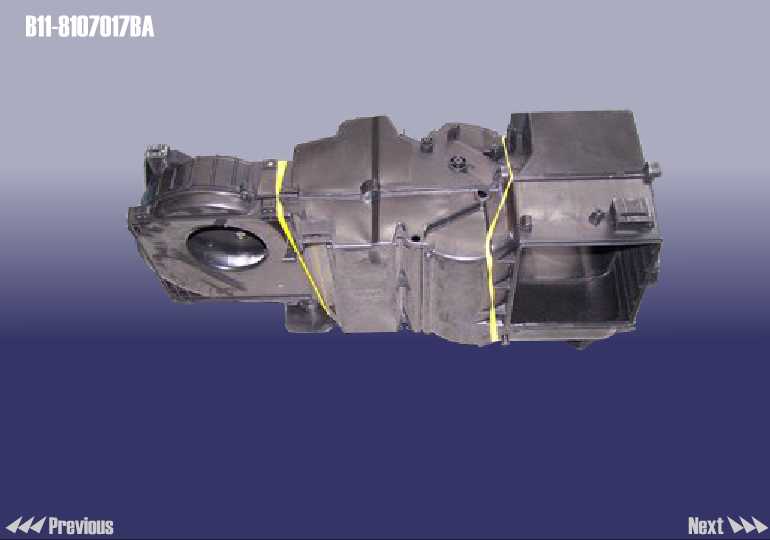

7	B11-8107017BA	HOUSING - EVAPORATOR UPR	1
7	B11-8107017	HOUSING-EVAPORATOR UPR	1
7	B11-9EC8107017	HOUSING-EVAPORATOR UPR	1
8	B11ZFQ-KTKZMB	PANEL - A/C CONTROL	1

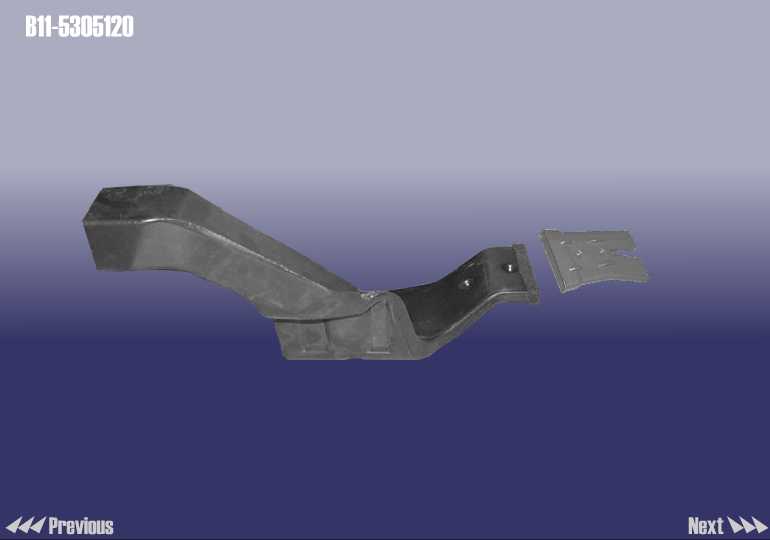

9	B11-5305120	VENT-DASHBOARD RH	1
10	B11-5305110	VENT-DASHBOARD LH	1
11	YGCGQ-YGCGQ	SWITCH ASSY - SUN SENSOR	0

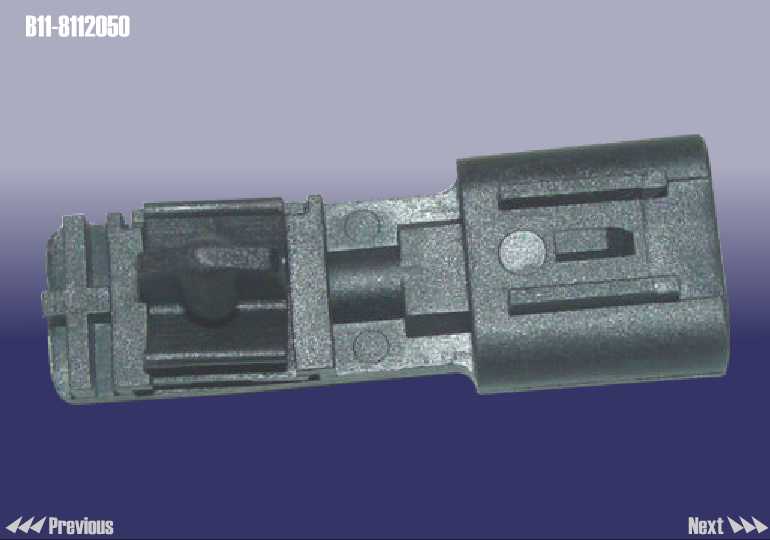

12	B11-8112050	SENSOR-TEMPERATURE O/S	1

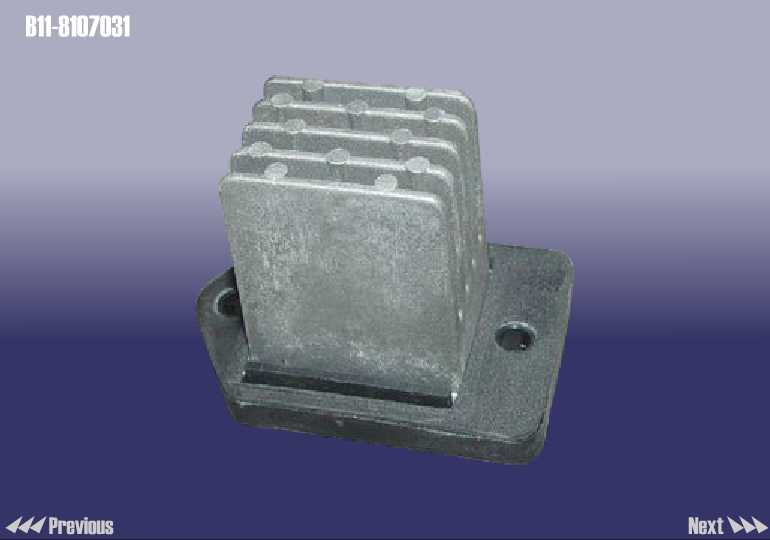

13-1	B11-8107031	ELECTRIC SPEED REGULATION MODULE	1

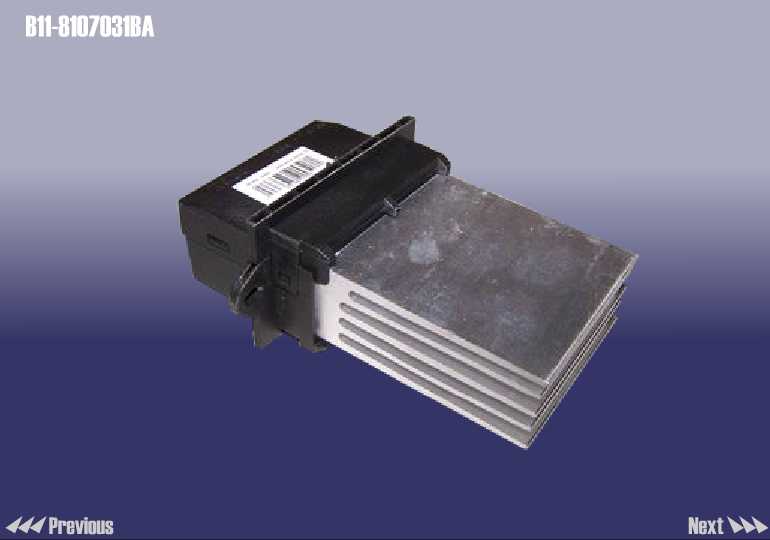

13-2	B11-8107031BA	ELECTRIC SPEED REGULATION MODULE	0
13-3	B11-9EC8107031	ELECTRIC SPEED REGULATION MODULE	0

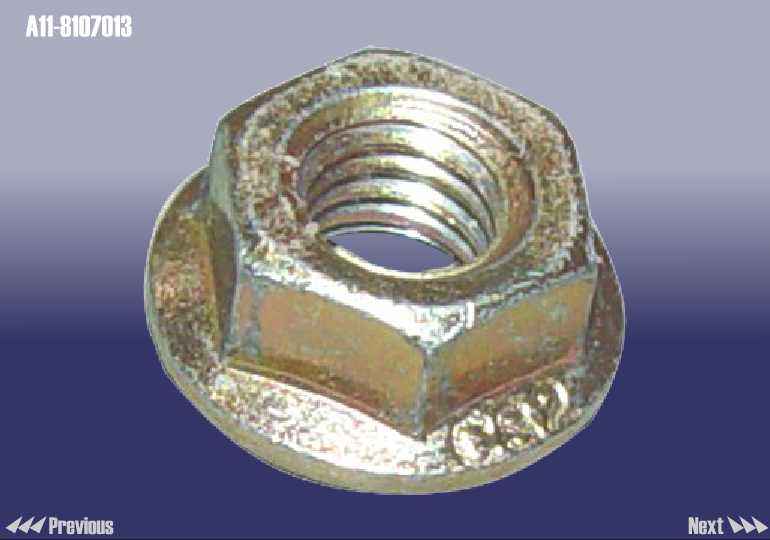

14	A11-8107013	NUT	5
16	A11-9EC8107710	EXPANSION VALVE - H SHAPE	1

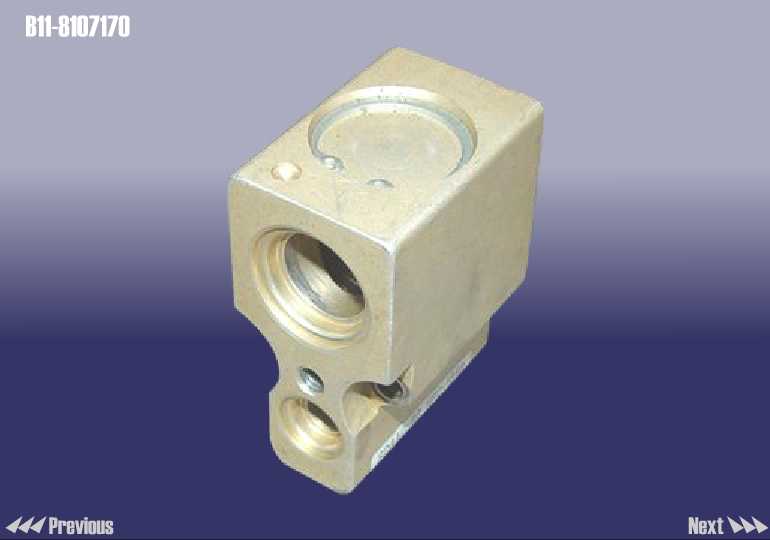

16	B11-8107170	EXPANSION VALVE - H SHAPE	1
16	B11-8107170BA	EXPANSION VALVE - H SHAPE	0

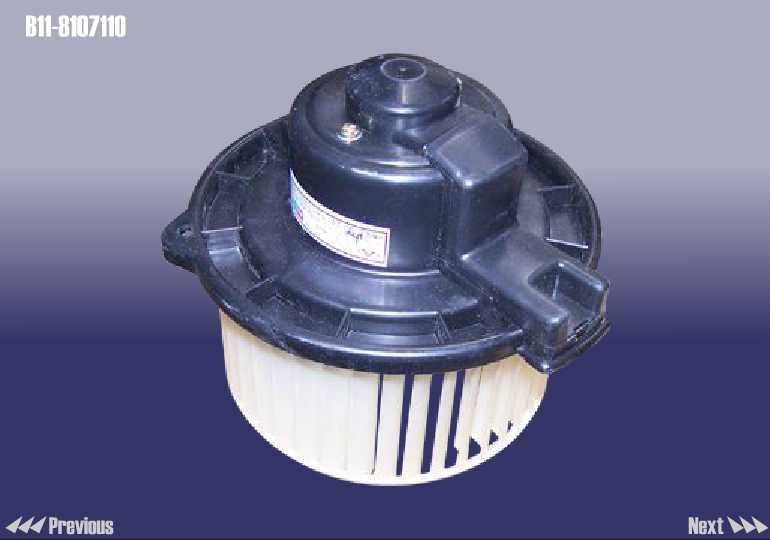

17	B11-8107110	GENERATOR FAN ASSY	0

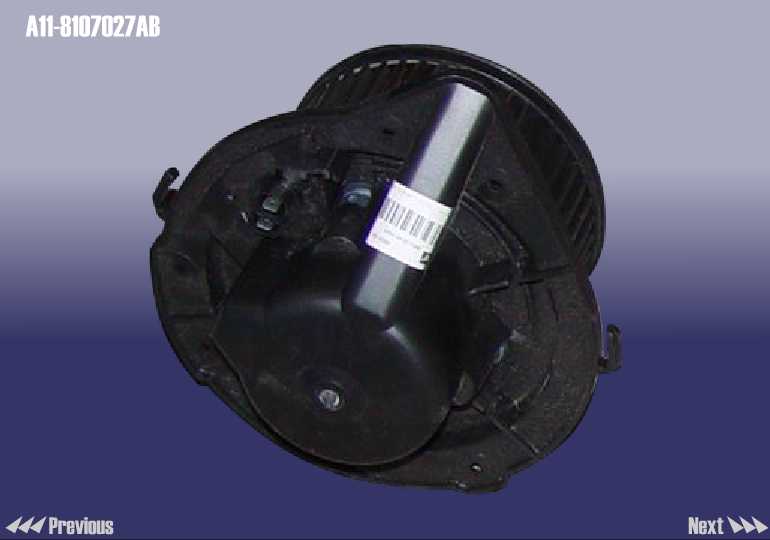

17	A11-8107027AB	GENERATOR FAN ASSY	1
17	A11-8107027BA	GENERATOR FAN ASSY	0
18	B11ZFQ-ZFQZC	HVAC ASSY	0
19-1	B11-9EC8107150	EVAPORATOR CORE ASSY	1

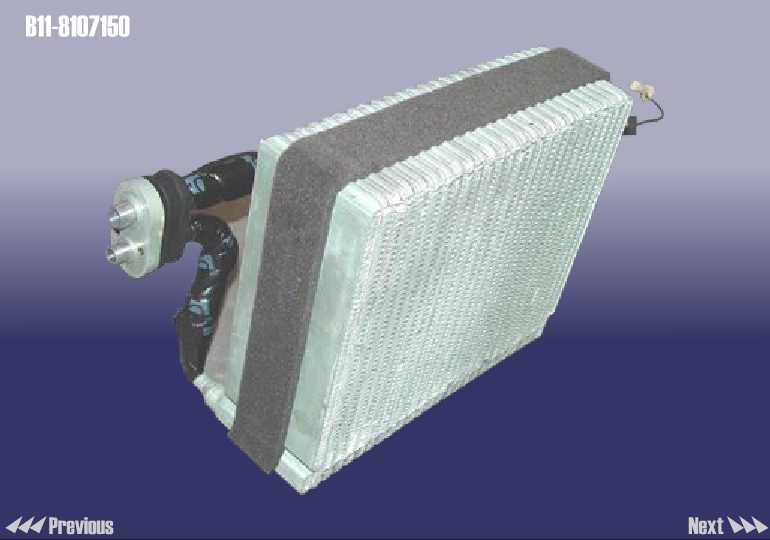

19-2	B11-8107150	EVAPORATOR CORE ASSY	1

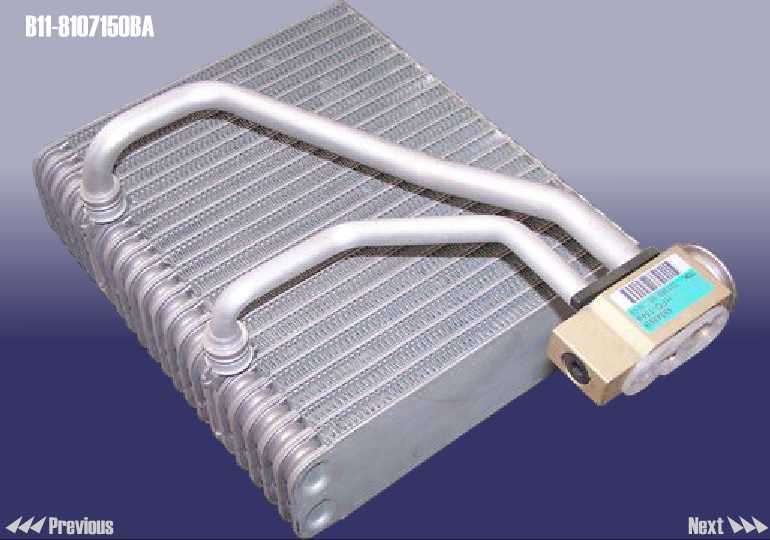

19-3	B11-8107150BA	EVAPORATOR CORE ASSY	0
20-1	B11-8107130	CORE ASSY-HEATER	1
20-2	B11-8107130BA	CORE ASSY-HEATER	0

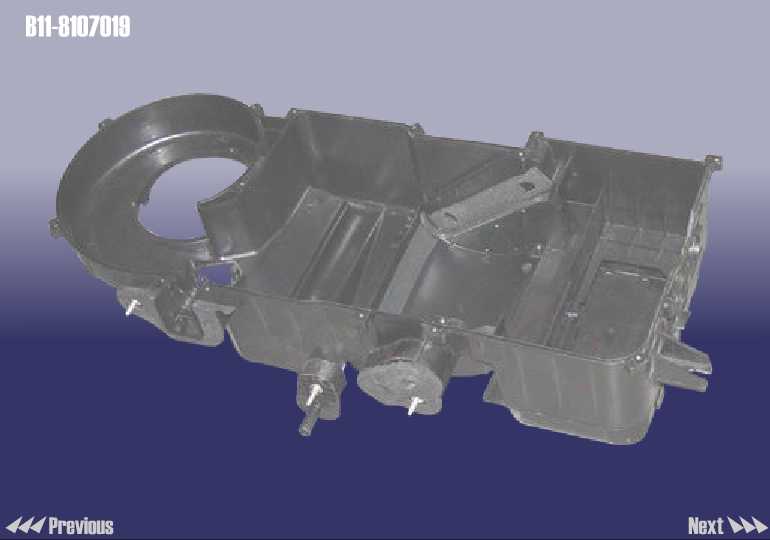

21	B11-8107019	HOUSING-EVAPORATOR LWR	1
21	B11-9EC8107019	HOUSING-EVAPORATOR LWR	1
21	B11-8107019BA	HOUSING-EVAPORATOR LWR	1
22	B11-8107917	SPONGE STRIP	1

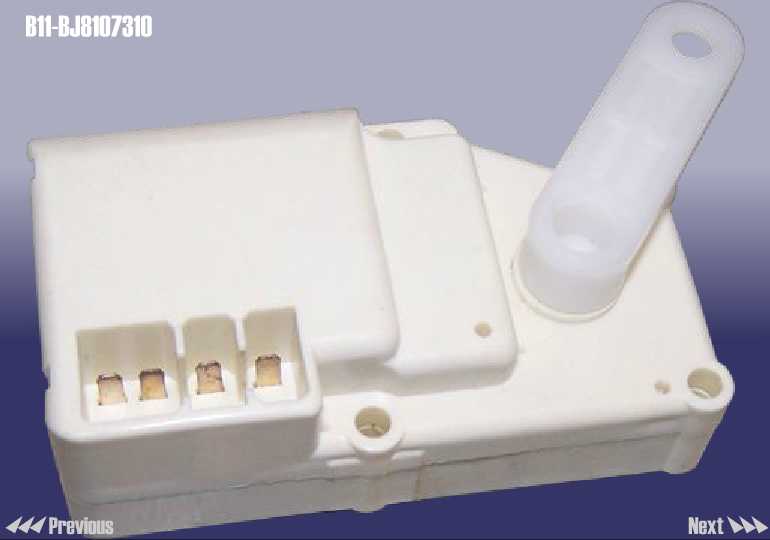

23	B11-BJ8107310	CONTROL MECHANISM-AIRFLOW	0

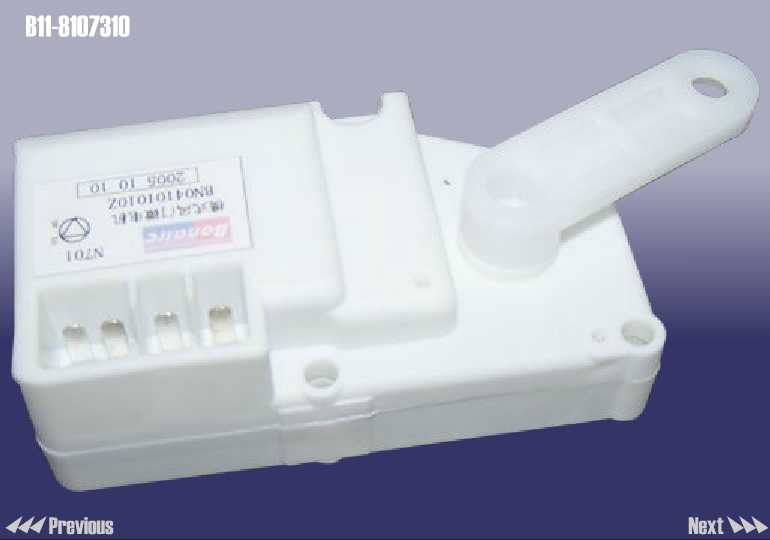

23	B11-8107310	CONTROL MECHANISM-AIRFLOW	0

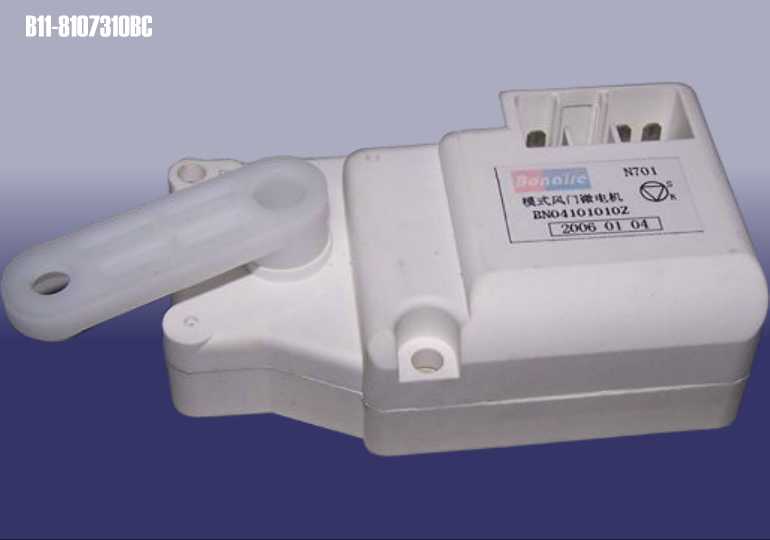

23	B11-8107310BC	CONTROL MECHANISM-AIRFLOW	0
23	B11-9EC8107310	CONTROL MECHANISM-AIRFLOW	0

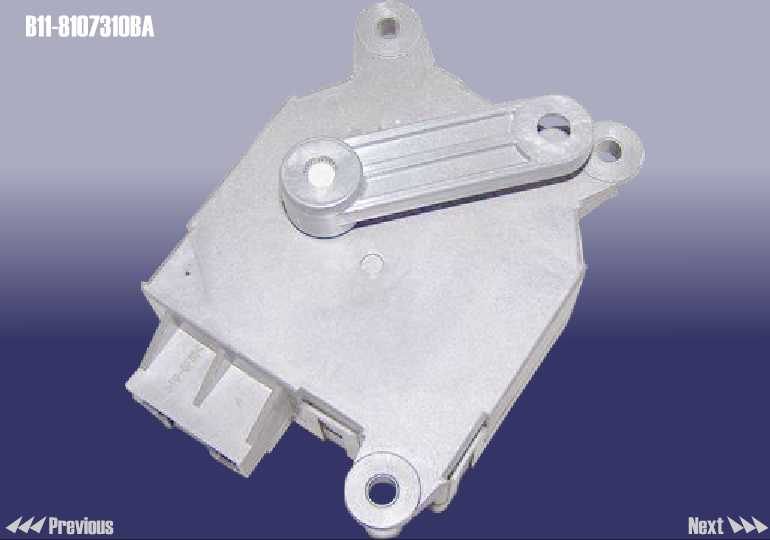

23	B11-8107310BA	CONTROL MECHANISM-AIRFLOW	0

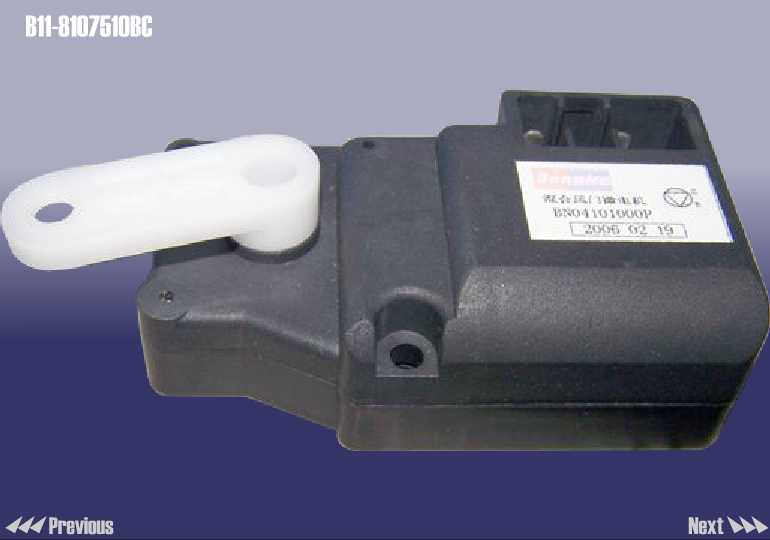

24	B11-8107510BC	TEMPERATURE CONTROL	0

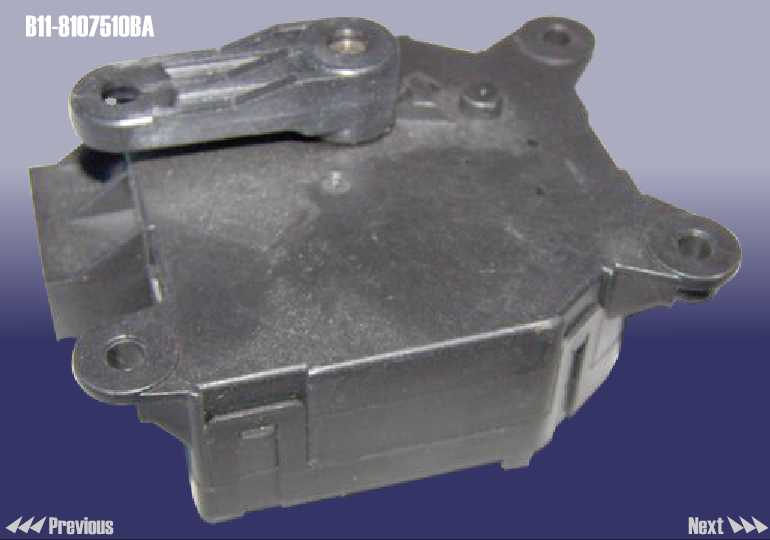

24	B11-8107510BA	TEMPERATURE CONTROL	0

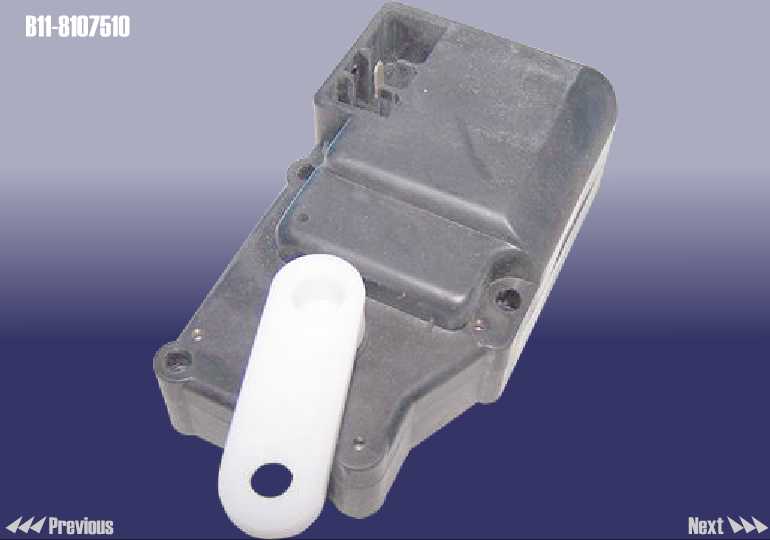

24	B11-8107510	TEMPERATURE CONTROL	0

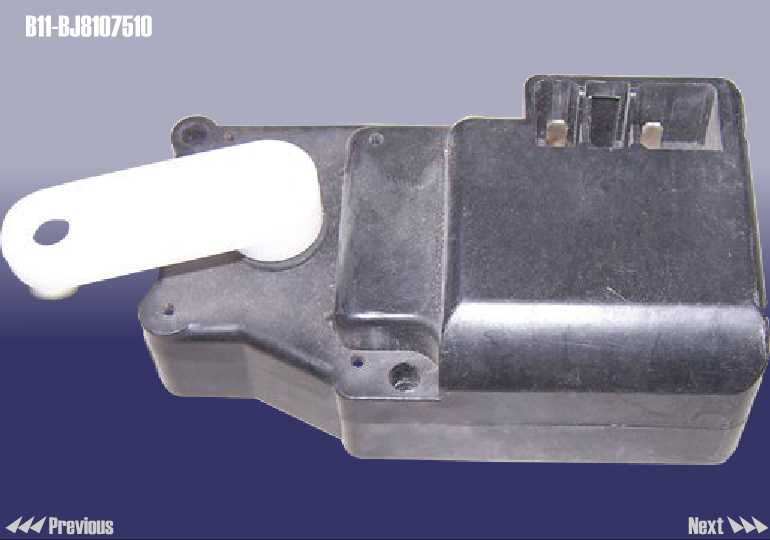

24	B11-BJ8107510	TEMPERATURE CONTROL	0

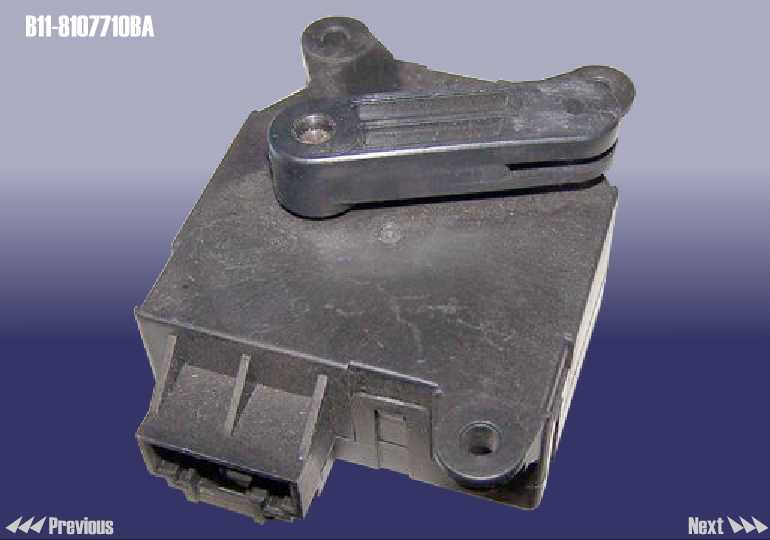

25	B11-8107710BA	ADJUSTMENT-INR CIRCULATION CONTROL	0
25	B11-8107710BC	ADJUSTMENT-INR CIRCULATION CONTROL	0

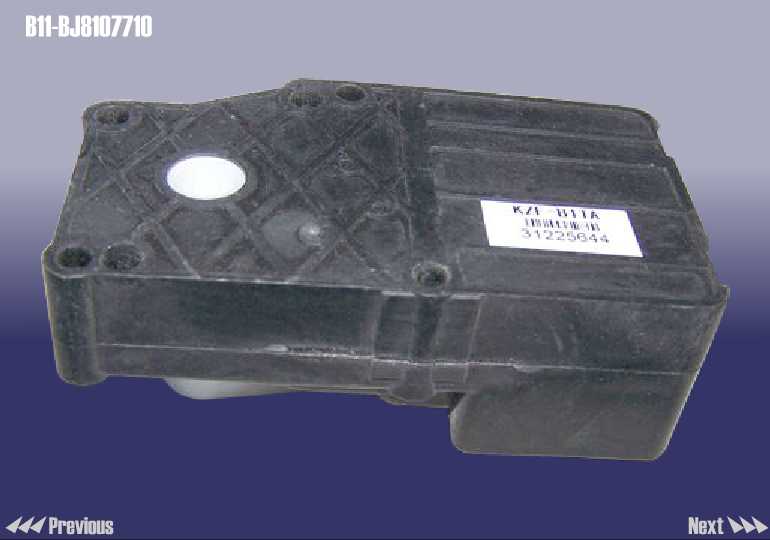

25	B11-BJ8107710	ADJUSTMENT-INR CIRCULATION CONTROL	0
26	B11-8107041	WAVE PIPE-RESISTOR	0

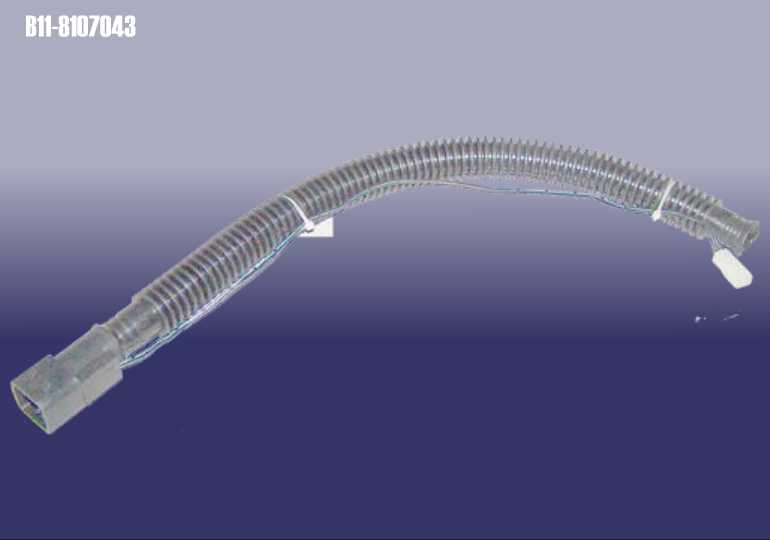

27	B11-8107043	SENSOR - AIR INLET	0

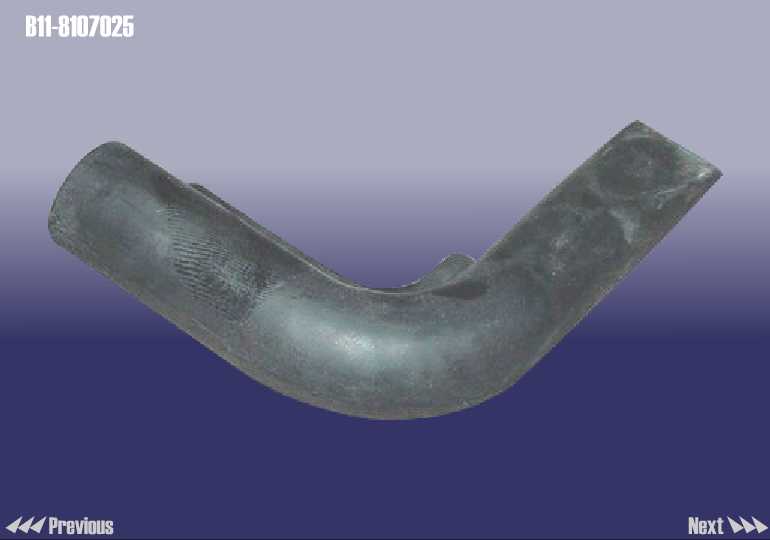

28	B11-8107025	PIPE-DRAIN	0
29	B11-8110131BD	BUTTON-AIR CONDITIONER CONTROL PANEL	0
30	B11-9EC8107082	VENT ASSY-ALL	0
31	B11-9EC8107083	BIG VENT ASSY-ALL	0
32	B11-9EC8107086	VENT ASSY-FOOT	0
33	B11-9EC8107512	CLIP-EXECUTING MECHANISM	0
34	B11-9EC8107085	VENT - DEFROST	0
35	A11-8111030	TANK ASSY - VACUUM	0
