КАТАЛОГ: CHERY	МОДЕЛЬ: EASTAR

---

Подбор авто запчастей на ЧЕРИ EASTAR (ЕАСТАР)

Поз.	Номер	Наименование	Колличество

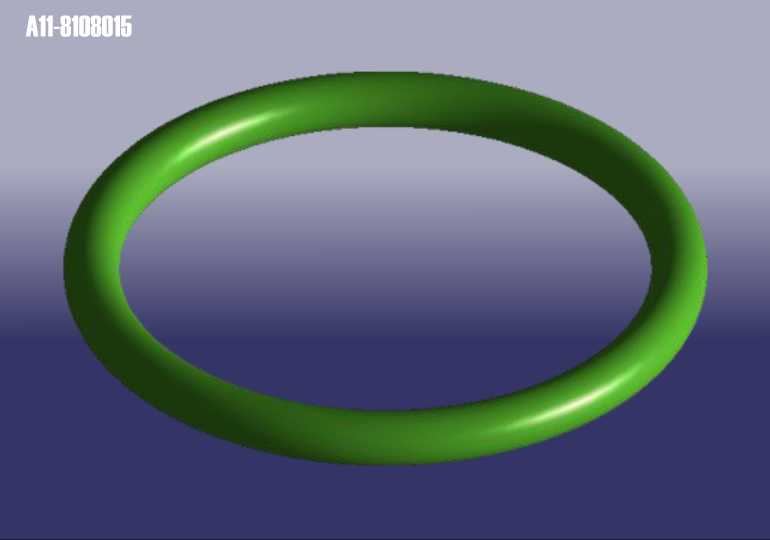

1	A11-8108015	O RING	1
2	N10227803	BOLT - INNER HEXGON HEAD	2

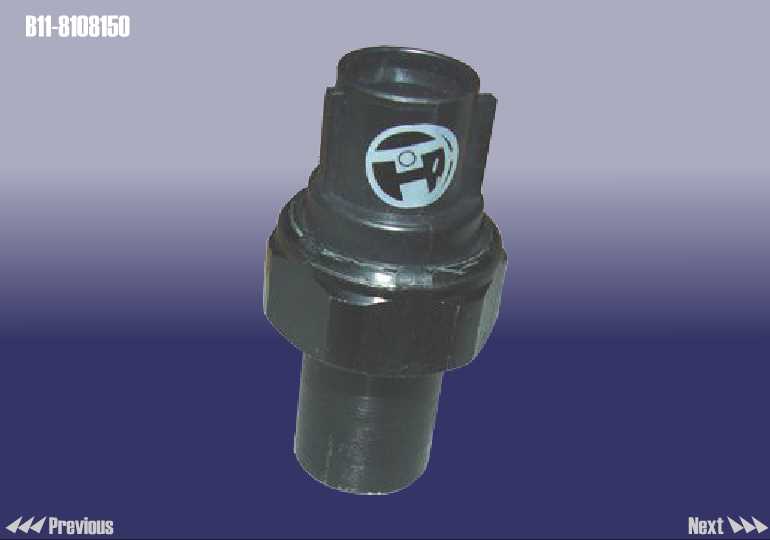

3	B11-8108150	REFRIGERANT PRESSURE SWITCH	1

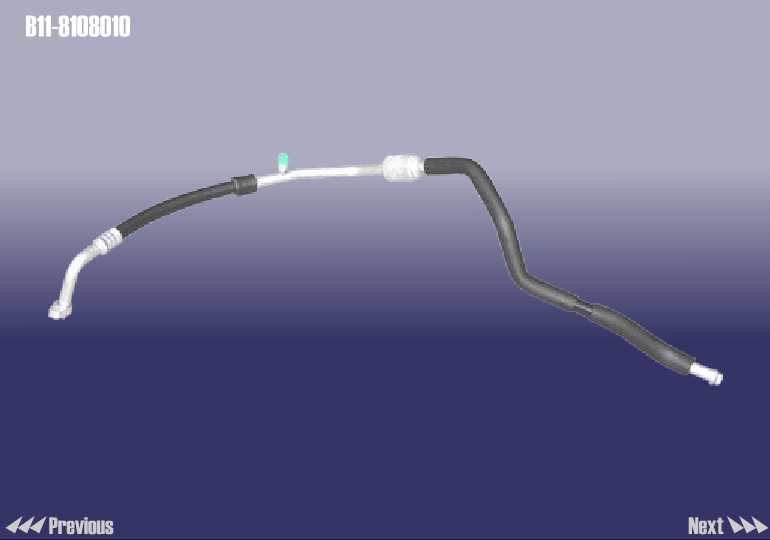

4	B11-8108010	HOSE ASSY-EVAPORATOR TO COMPRESSOR	1

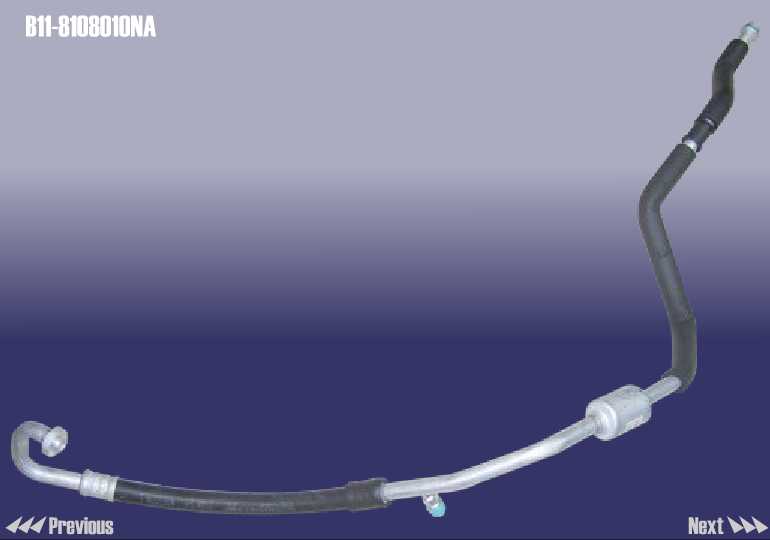

4	B11-8108010NA	HOSE ASSY - EVAPORATOR TO COMPRESSOR	1
5	A11-8108055	O RING	1

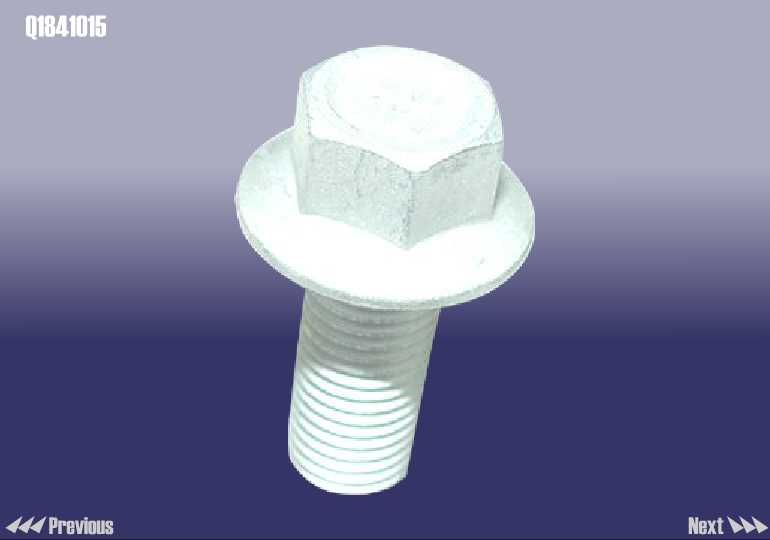

6	Q1841015	BOLT - HEXAGON FLANGE	2

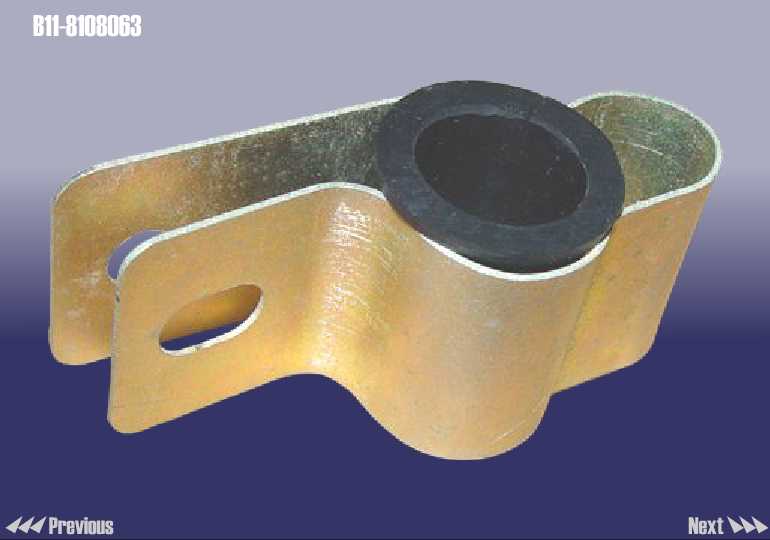

7	B11-8108063	CLAM	2

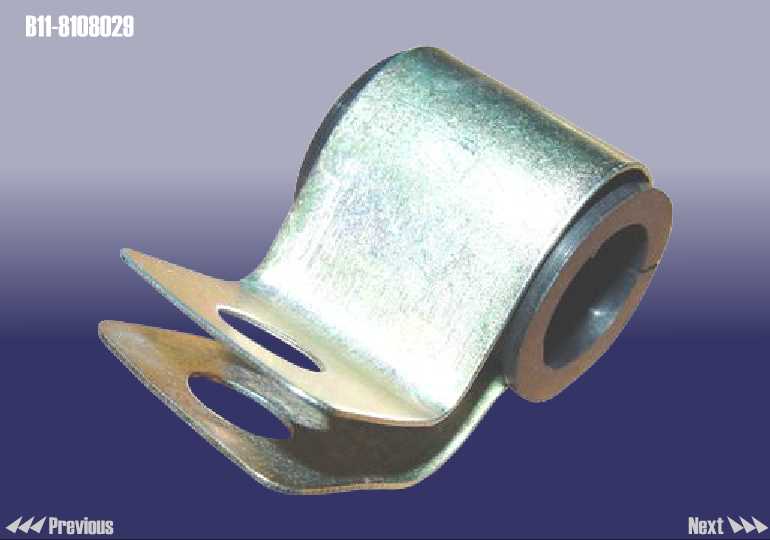

8	B11-8108029	PIPE CLAMP	1

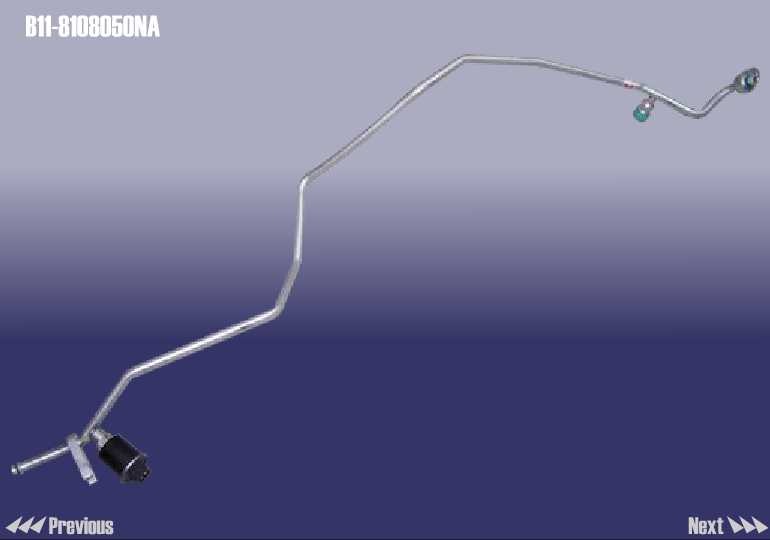

9	B11-8108050NA	HOSE ASSY - DRIER TO EVAPORATOR	1

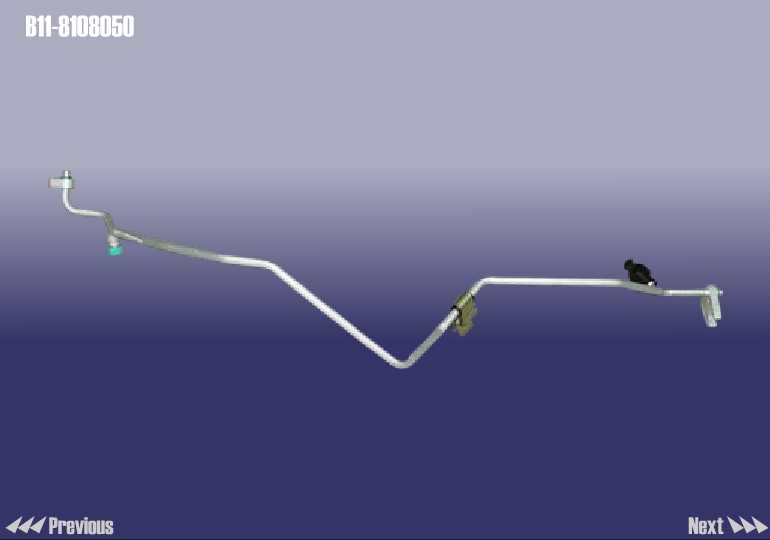

9	B11-8108050	HOSE ASSY - DRIER TO EVAPORATOR	1

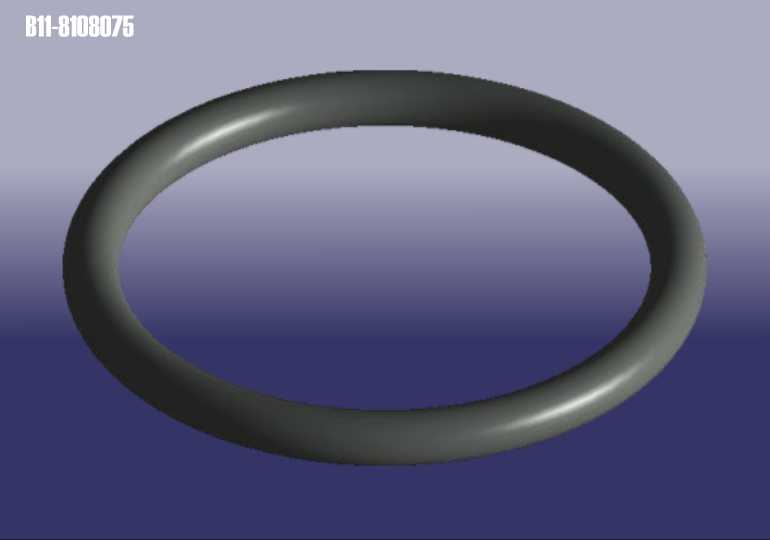

11	B11-8108075	O RING	1
12	A11-8108035	O RING	3

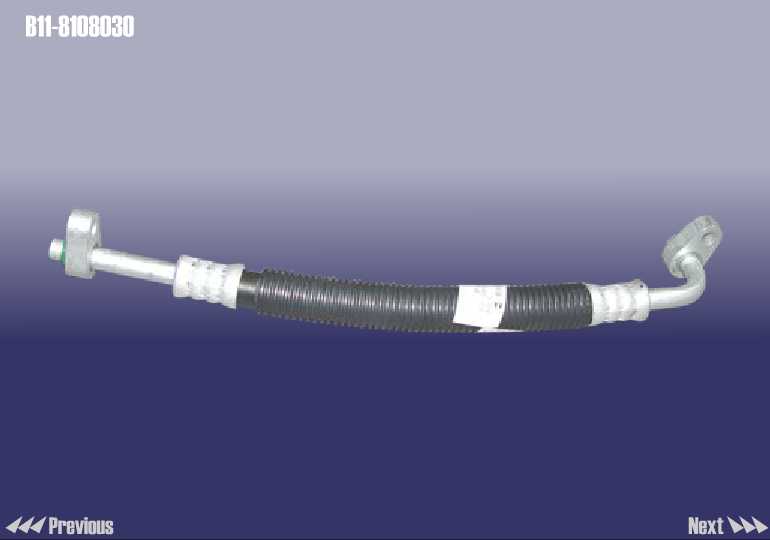

13	B11-8108030	HOSE ASSY-COMPRESSOR TO CONDENSER	1

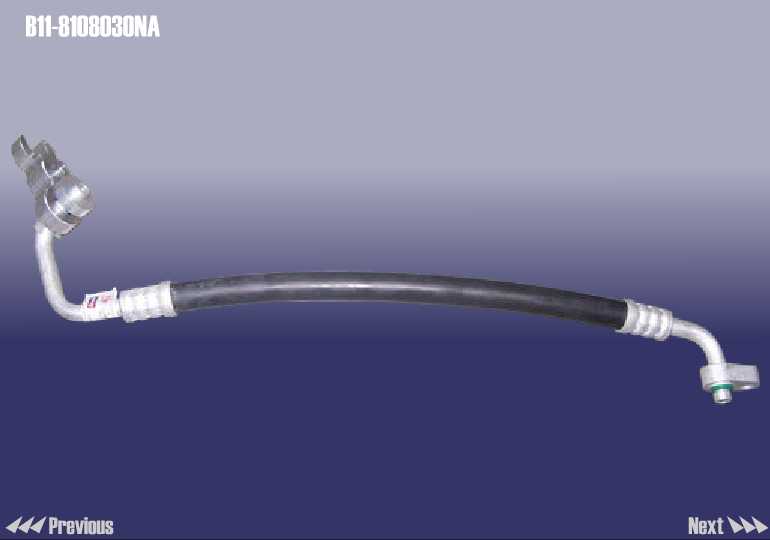

13	B11-8108030NA	HOSE ASSY-COMPRESSOR TO CONDENSER	1

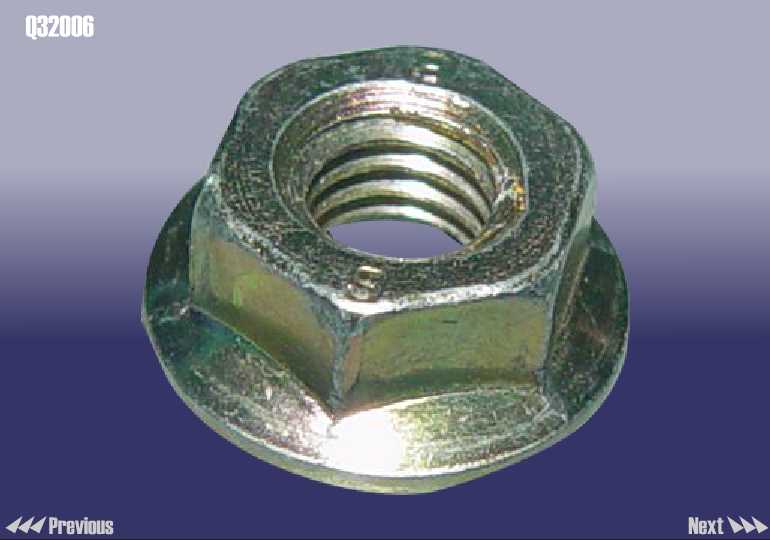

14	Q32006	NUT	1
15	B11-8108061	CLIP - PLASTIC	1

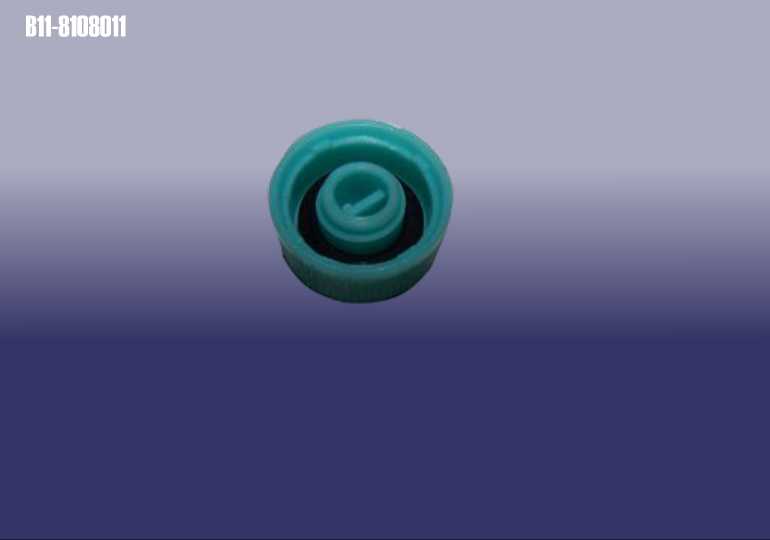

16	B11-8108011	CAP - FILLER	1
17	B11-8108051	CAP - FILLER	1

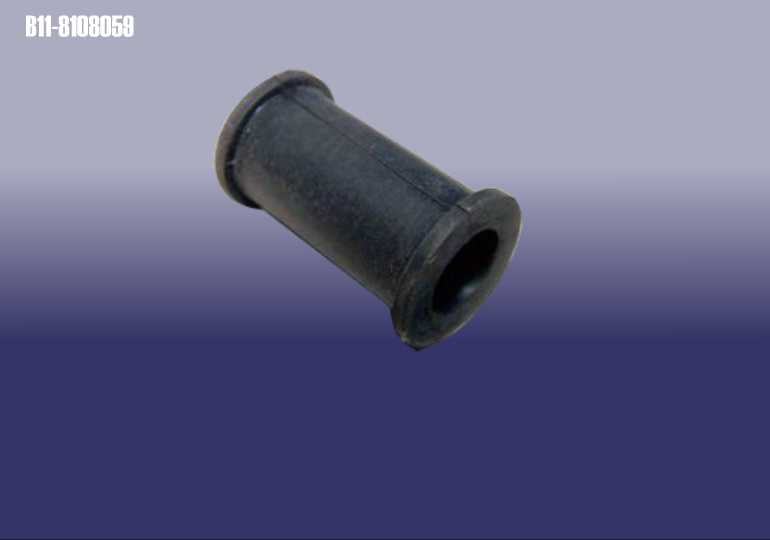

18	B11-8108059	CUSHION - RUBBER	0
19	SMD030764	RING - WATER/HOSE боOбп	0
20	T11-8107170	EXPANSION VALVE	0
21	Q218B0830	BOLT - INR HEXGON HEAD	0
22	A21-9EC8105112	CUSHION - CONDENSER	0

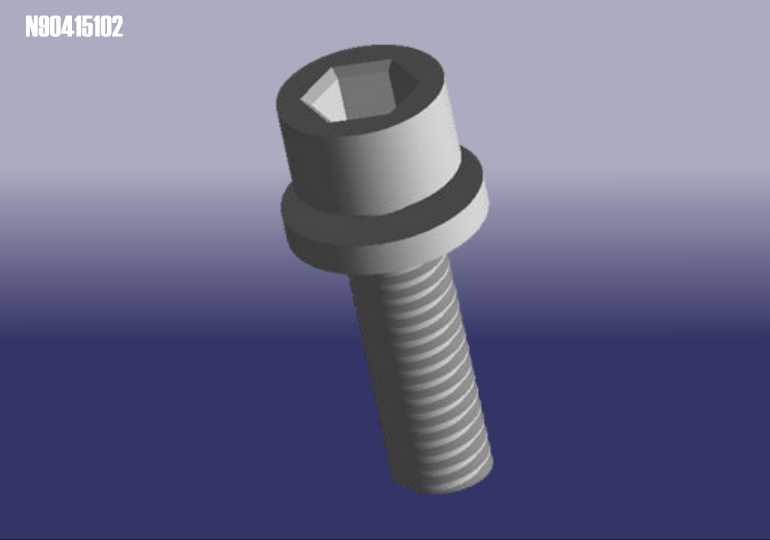

23	N90415102	BOLT - INR HEXGON HEAD	0

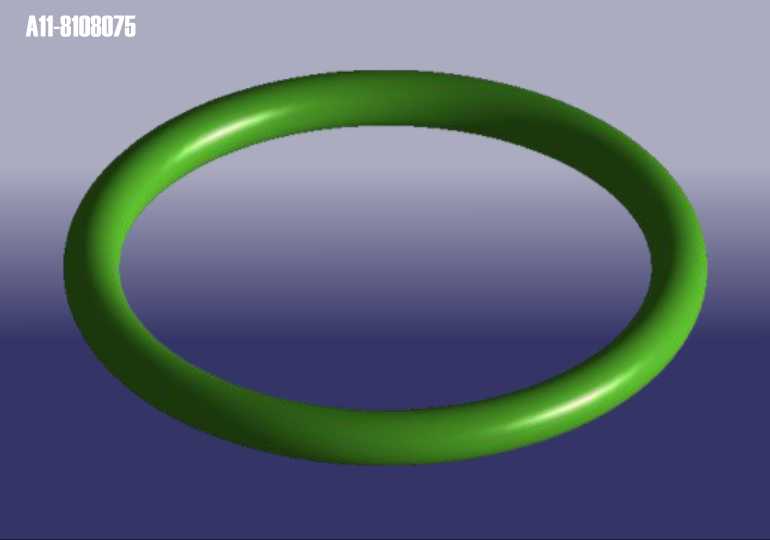

24	A11-8108075	O RING	0
