КАТАЛОГ: CHERY	МОДЕЛЬ: EASTAR

---

Подбор авто запчастей на ЧЕРИ EASTAR (ЕАСТАР)

Поз.	Номер	Наименование	Колличество
1	B11-1100015	FIXING BELT-FUEL TANK вё	1

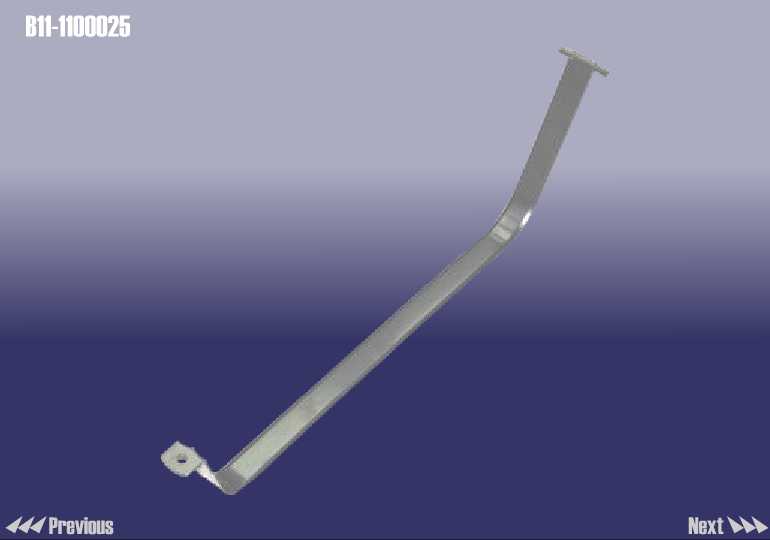

2	B11-1100025	FIXING BELT-FUEL TANK вЄ	1
3	B11-1100035	FIXING BELT-FUEL TANK вє	1
4	B11-1101210	FUEL FILLING PIPE ASSY	1
5	B11-1104310	PIPE ASSYвё-FUEL STEAM	1
6	B11RYGJXT-YB	FUEL PUMP	1
7	B11-1101110	FUEL TANK ASSY	1
8	B11-1104290	HOSE вє ASSY- RETURN OIL	1

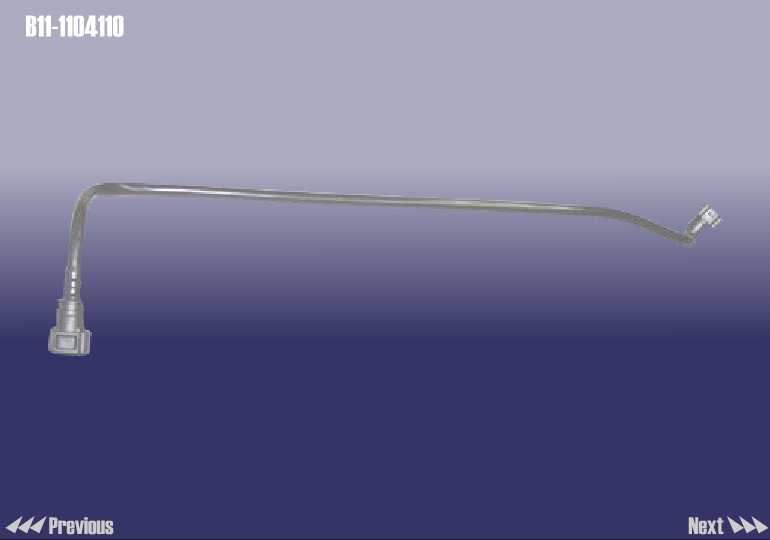

9	B11-1104110	HOSE I ASSY - FUEL INLET	1

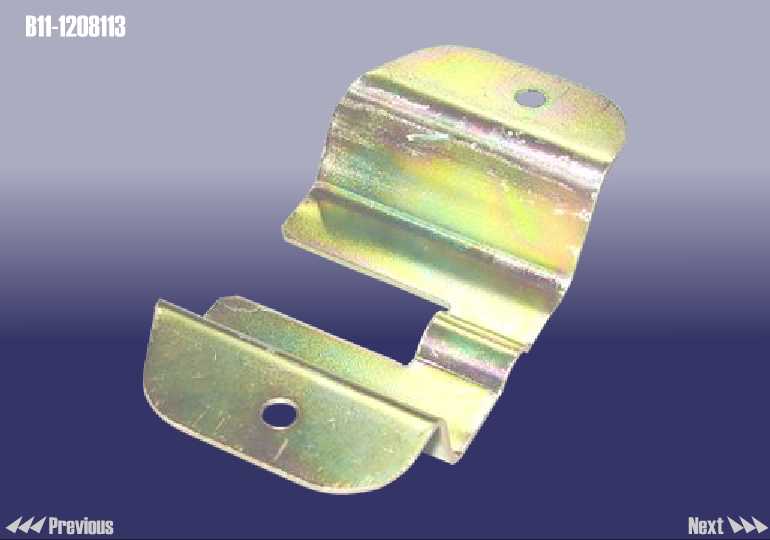

10	B11-1208113	BRACKET - ACTIVE CARBON CANISTER	1
11	Q1460620	HEXAGON NUT	12
12	B11RYGJXT-TG	ACTIVE CARBON CANISTER ASSY	1

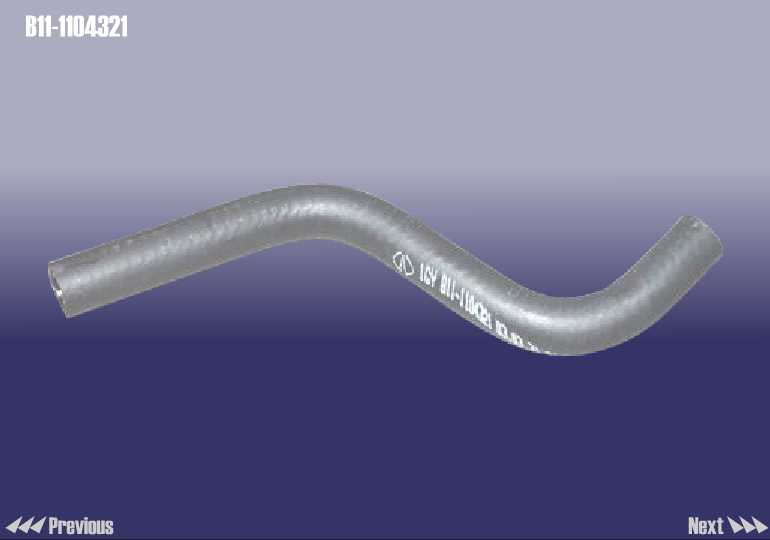

13	B11-1104321	PIPE ASSYвё-FUEL STEAM	1
14	B11-1104341	PIPE ASSYвЄ-FUEL STEAM	1
15	B11-1208213	PIPE - BREATHER	1
16	B11-1100043	PIPE CLAMP	2

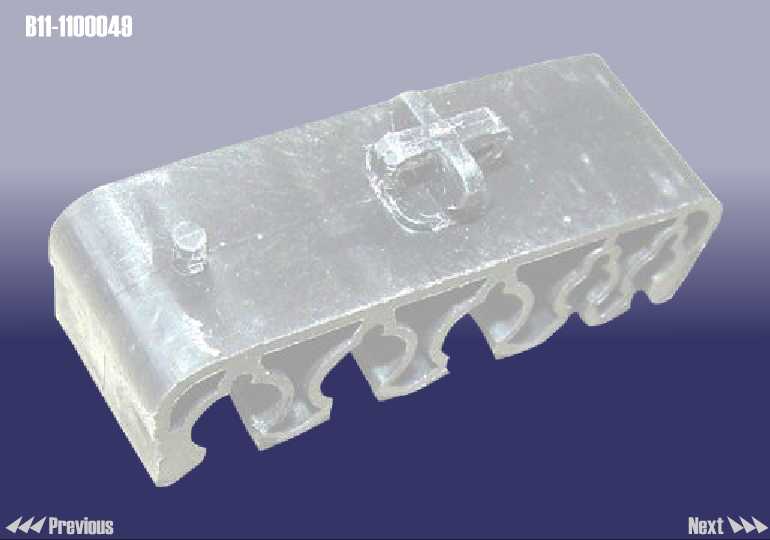

17	B11-1100049	CLAMP - PIPE	5

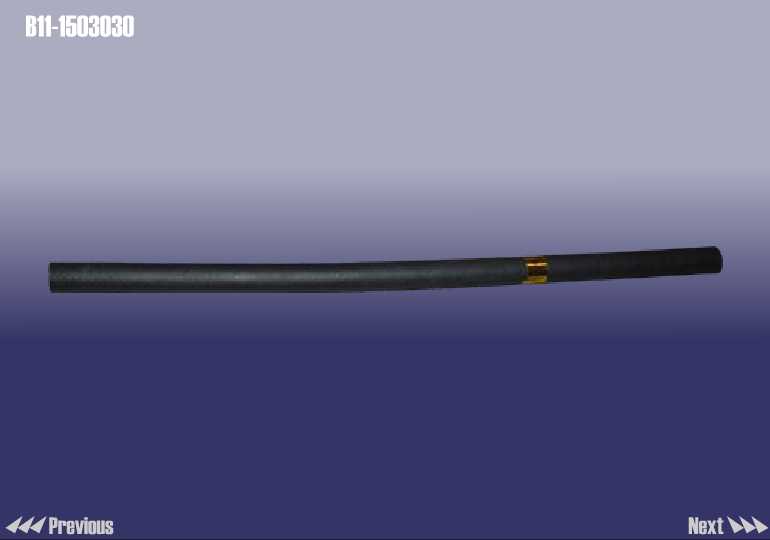

18	B11-1503030	OIL IMPORT PIPE	5
19	B11-1100071	CLAMP-FIXING	1
20	B11-1104330	PIPE ASSYвЄ-FUEL STEAM	1
20	B14-1104351CA	PIPE ASSYвЄ-FUEL STEAM	1
21	HYG2-HYG2	HOSE вЄ- RETURN OIL	1
22	JYG-JYG	HOSE вЄ- RETURN OIL	1

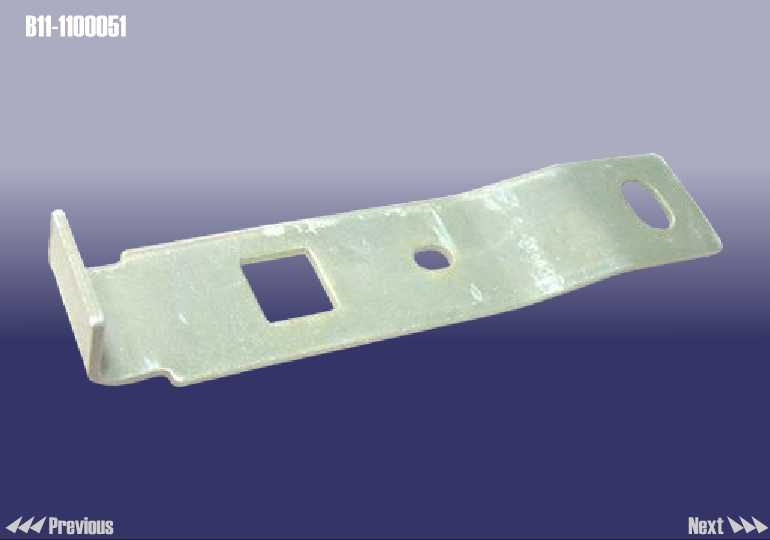

23	B11-1100051	BRACKET I - PIPE CLAMP	1

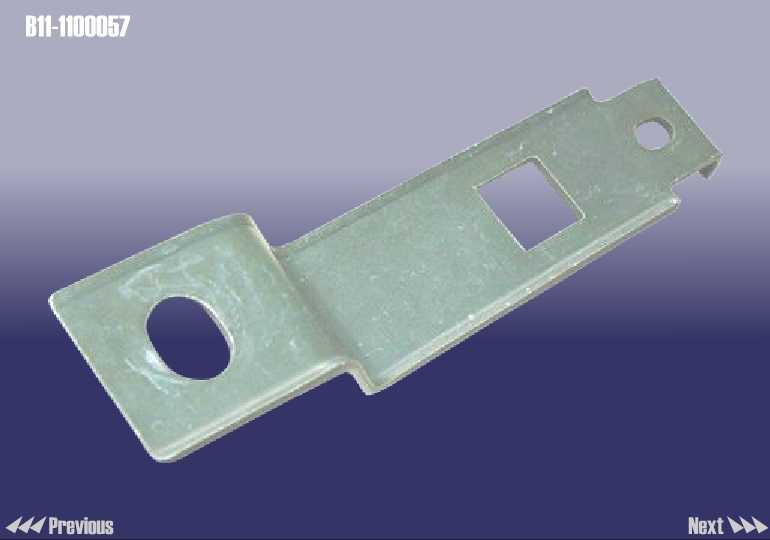

24	B11-1100057	BRACKET III - PIPE CLAMP	1

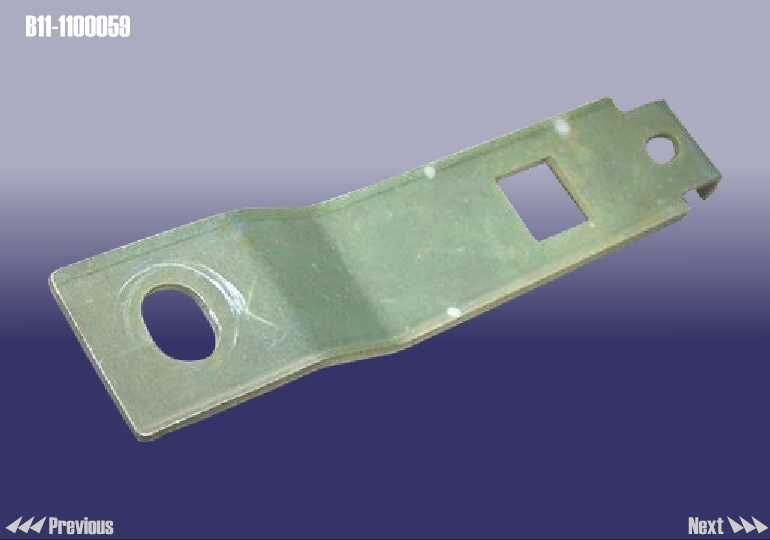

25	B11-1100059	BRACKET IV - PIPE CLAMP	1

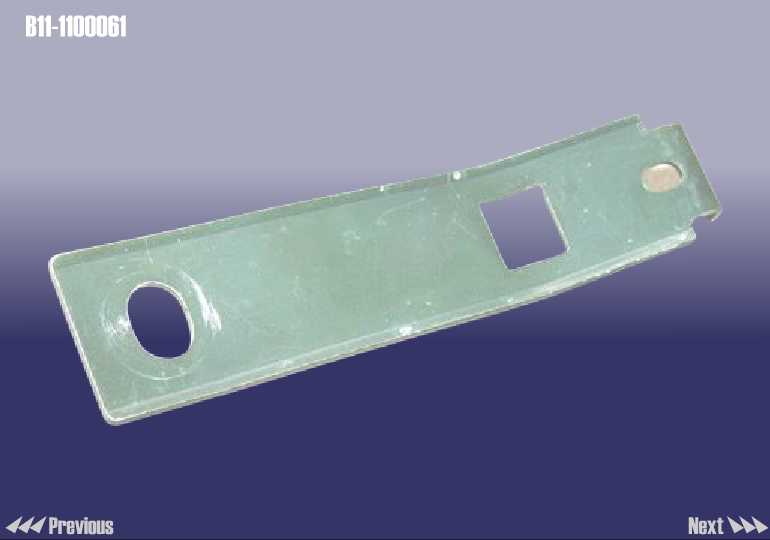

26	B11-1100061	BRACKET V - PIPE CLAMP	1

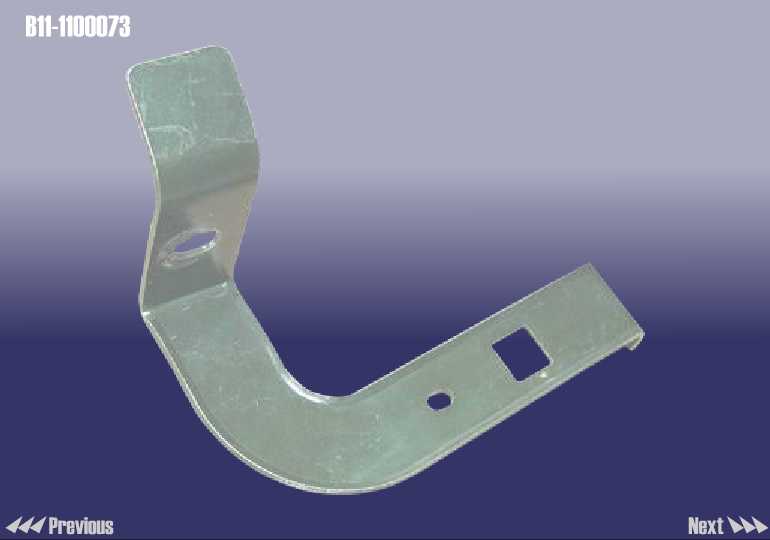

27	B11-1100073	BRACKET - PIPE CLAMP	1

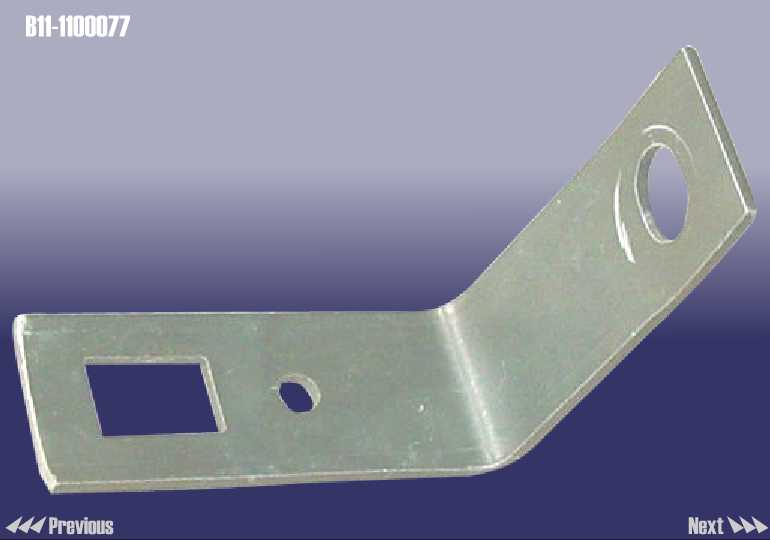

28	B11-1100077	BRACKET - PIPE CLAMP	1
29	B11-1100079	BRACKET - PIPE CLAMP	1
30	JYG3-JYG3	HOSE вє ASSY - FUEL INLET	1

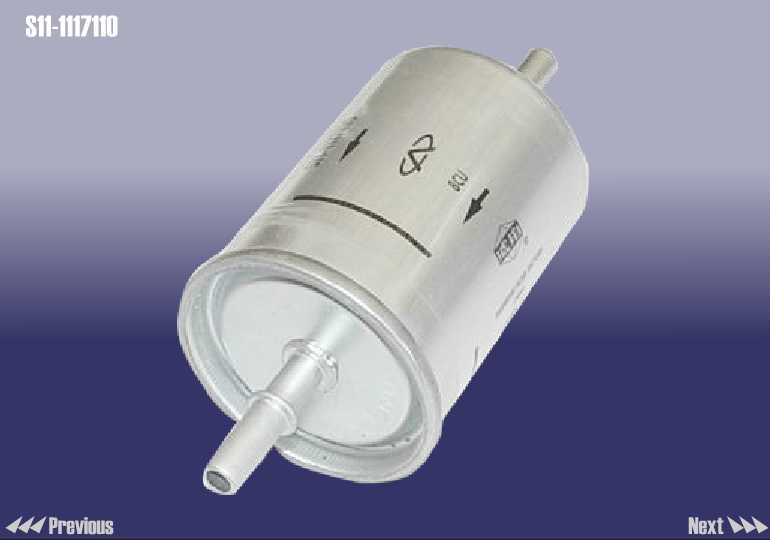

31	S11-1117110	FUEL FILTER	1
32	B11-1117113	BRACKET - FUEL FILTER	1
33	Q32006	NUT	1

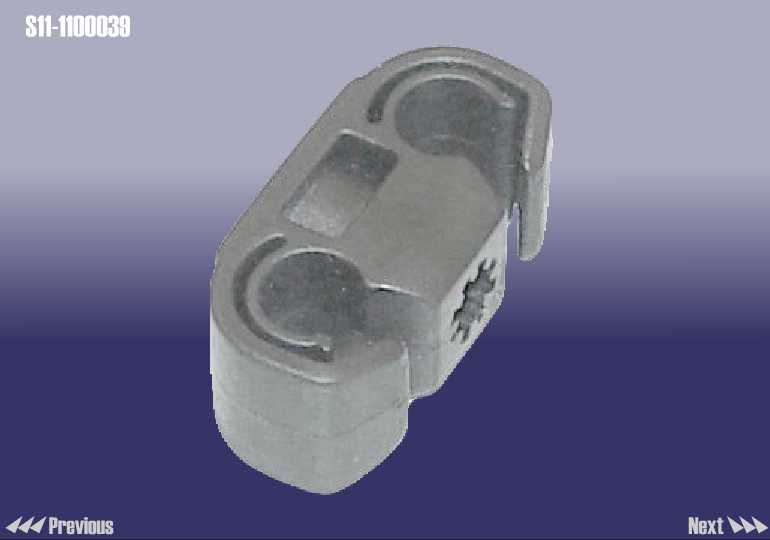

34	S11-1100039	CLIP - FIXING	3
35	B11-1104170	PIPE вЇ ASSY - FUEL INLET	1

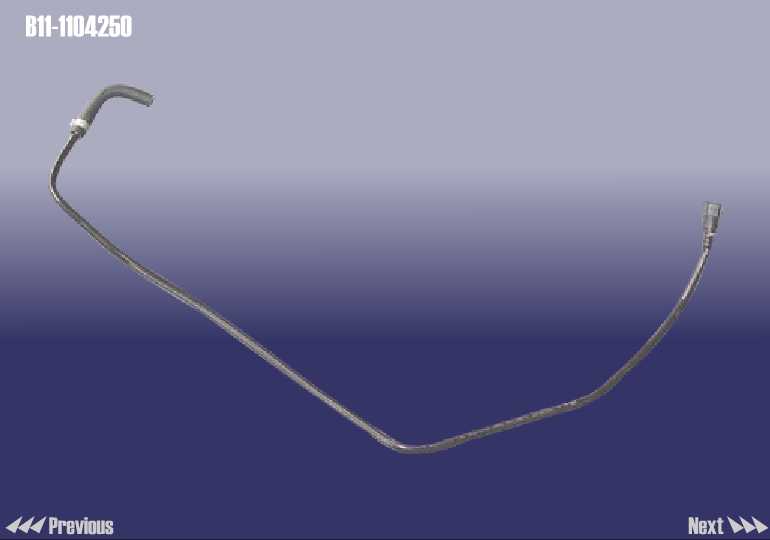

36	B11-1104250	HOSE вёASSY- RETURN OIL	1
37	B11-1104351	PIPE ASSY вє-FUEL STEAM	1
38	B11-1104361	PIPE ASSY вє-FUEL STEAM	1
39	B11-1101121	PROTECTOR - FUEL TANK	1
40	B11-1100039	CLIP - FIXING	1
41	B11-1106615	SENSOR-FUEL POSITION	1

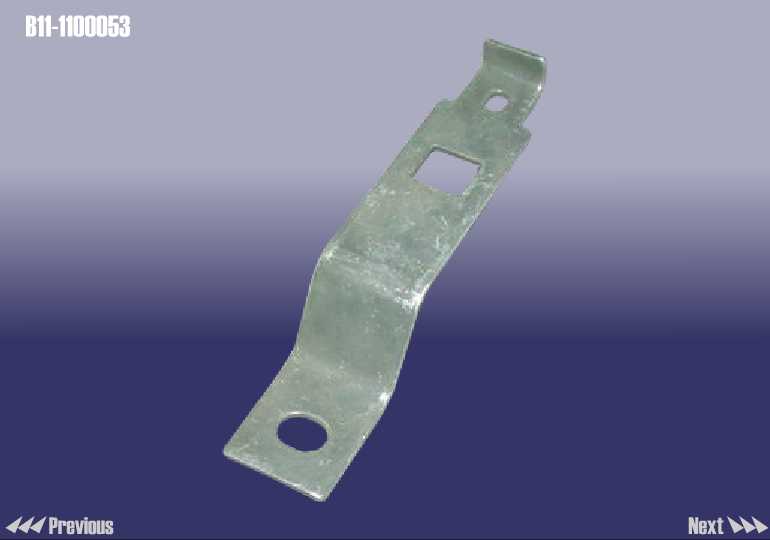

42	B11-1100053	BRACKET II - PIPE CLAMP	1
43	B11-1100069	CLIP - TWO SLOP	1
44	B11-1104361BA	PIPE ASSY вє-FUEL STEAM	1
45	B11-1104210	HOSE ASSY - FUEL INLET AND RETURN	1

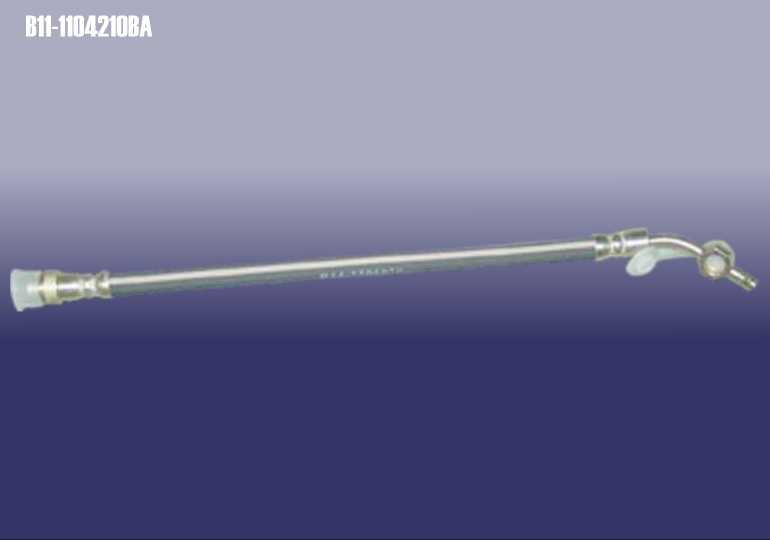

45	B11-1104210BA	HOSE ASSY - FUEL INLET AND RETURN	1
46	A11-1101151	RING - SEAL-FUEL TANK	1
47	A11-1101153	CAP - PRESSURE (FUEL PUMP)	1
48	S11-1100041	CLAMP-FIXING	0
49	S11-1103010	CAP ASSY - FUEL TANK	0
50	S11-3506027	CLAMP - FLANGE	0

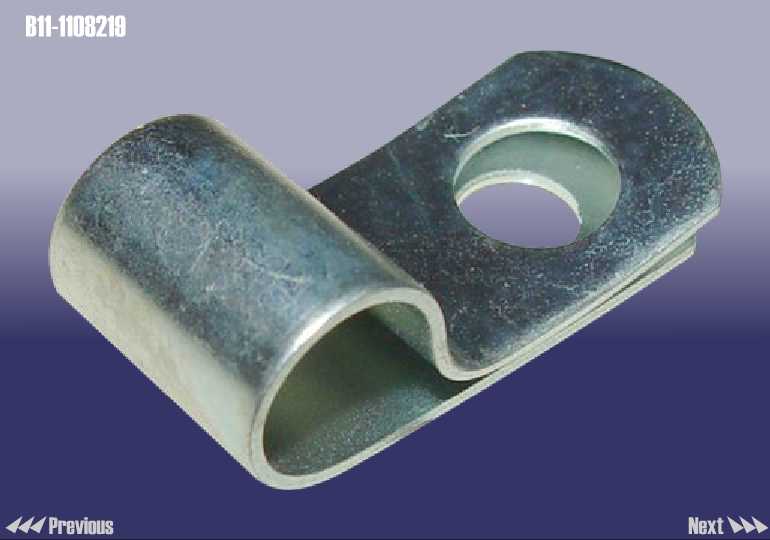

51	B11-1108219	PIPE CLIP	0
52	B11-1104180	CONNECTOR ASSY - PIPE	0
53	B11-1104231	OIL RETURN HOSE	0
54	A21-1208219	EVAPORATION PIPE 5	0
55	S11-1104291	CLIP - FUEL STEAM PIPE	0
