КАТАЛОГ: CHERY	МОДЕЛЬ: EASTAR

---

Подбор авто запчастей на ЧЕРИ EASTAR (ЕАСТАР)

Поз.	Номер	Наименование	Колличество
1	B11KQLQQ-KQLQQZC	CLEANER - AIR	1
2	Q1840830	BOLT - HEXAGON FLANGE	2

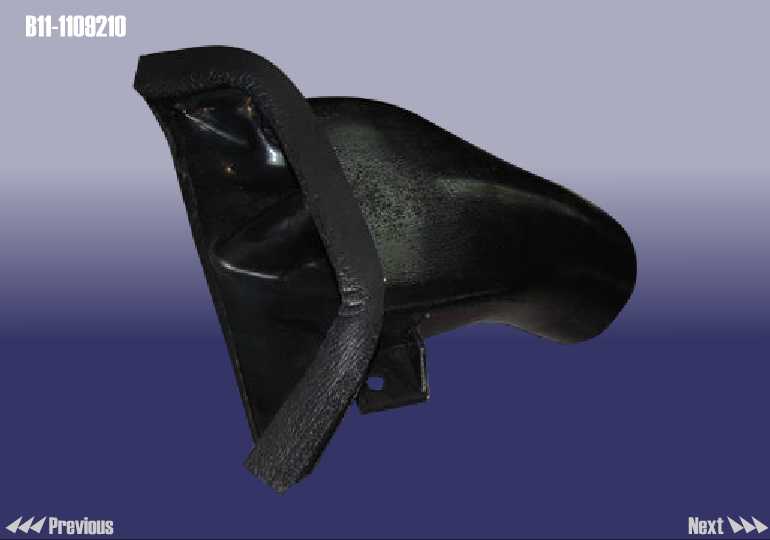

3	B11-1109210	PIPE I - AIR INTAKE	1
5	B11KQLQQ-JQG2	PIPE II - AIR INTAKE	1
6	B11-1109111	AIR FILTER CORE	1
7	B11KQLQQ-KQLLJ	AIR FLOW SENSOR ASSY	1
8	CQ67690	CLAMP - WORM	1
9	B11-1109410	HOSE - AIR INLET	1
9	A21-1109210BA	HOSE - AIR INLET	1
10	AQ60114	CLAMP - ELASTIC	2

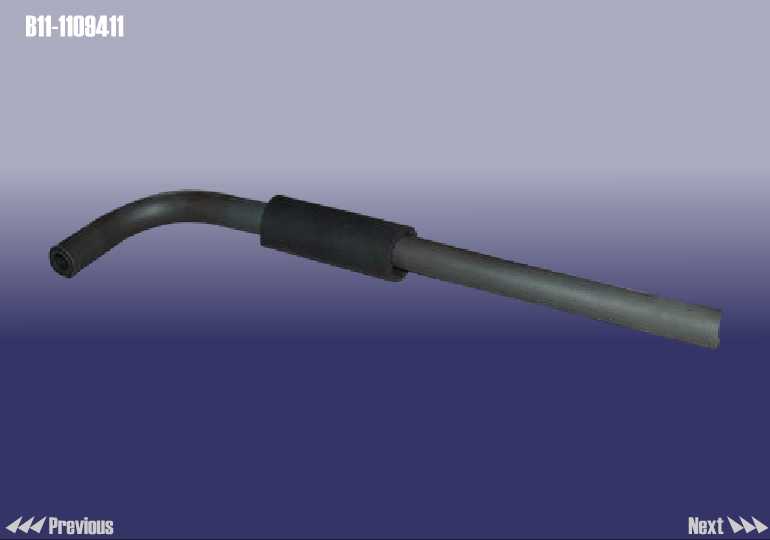

11	B11-1109411	PIPE - CRANKCASE VENTILATION	1

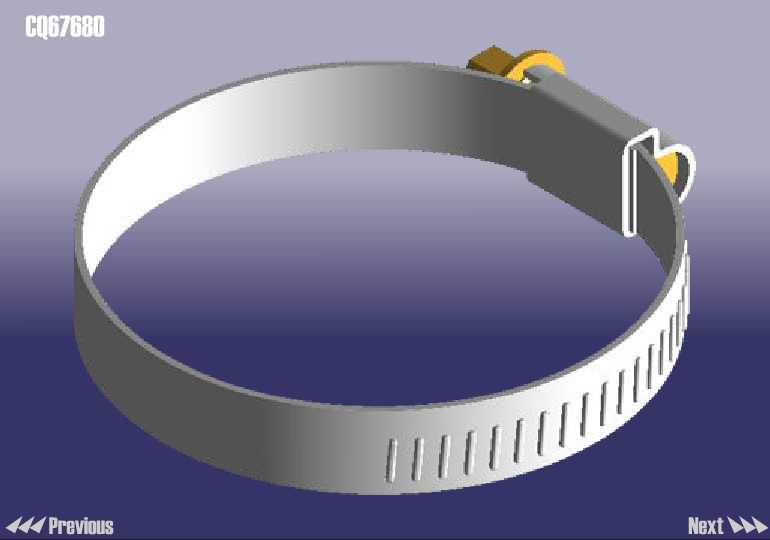

12	CQ67680	CLAMP - WORM	1

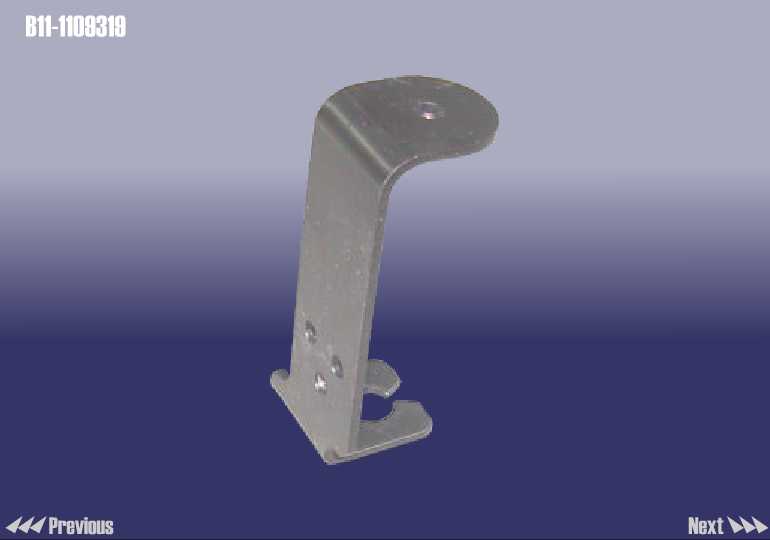

13	B11-1109319	BRACKET - FIXING (INTAKE PIPE)	1
14	B11-1109163	RING - RUBBER DAMPING	1

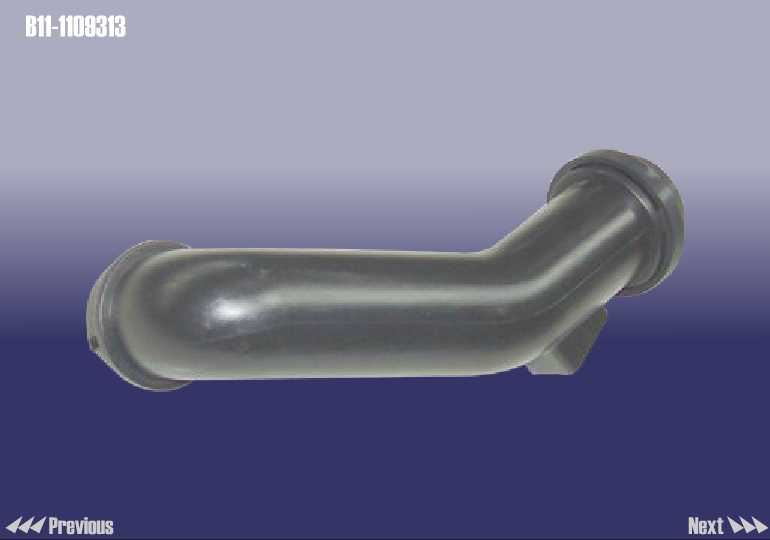

15	B11-1109313	PIPE - INTAKE (RESONANCE BOX)	1
16	B11-1109310	BOX ASSY - RESONANCE	1

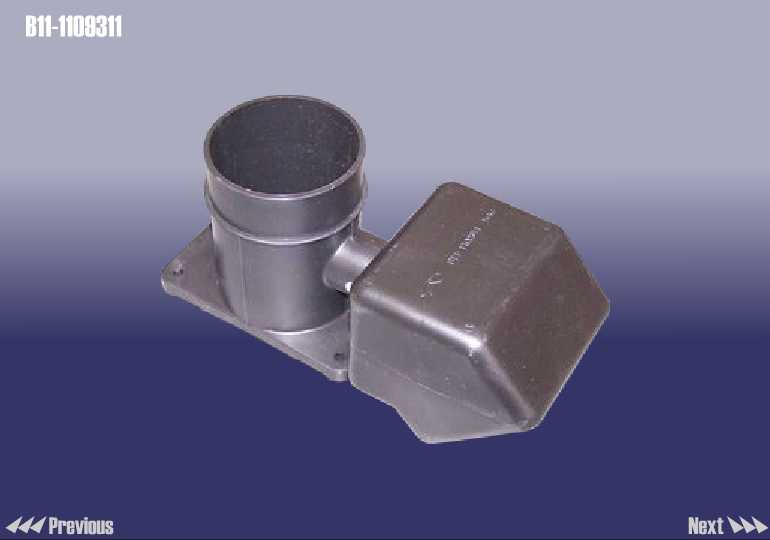

17	B11-1109311	CONNECTING PIPE	1

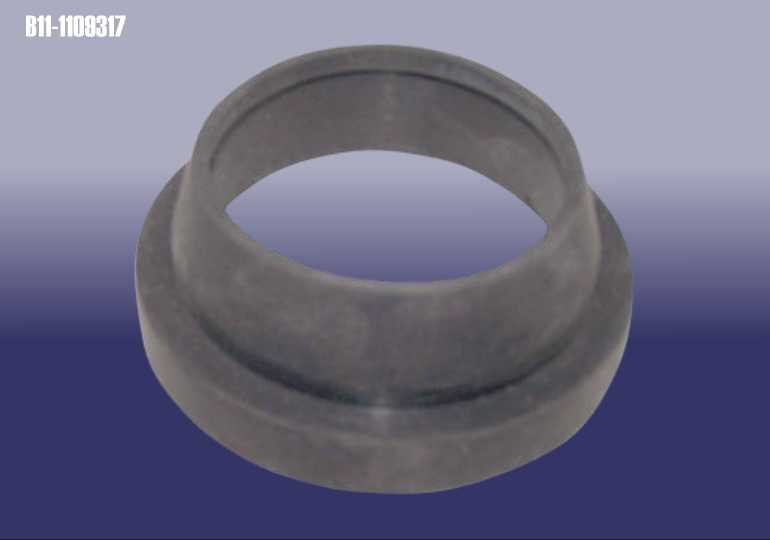

18	B11-1109317	RING - RUBBER	1
19	MB113038	CLAMP	1
20	B11-1109161	RING - RUBBER	0

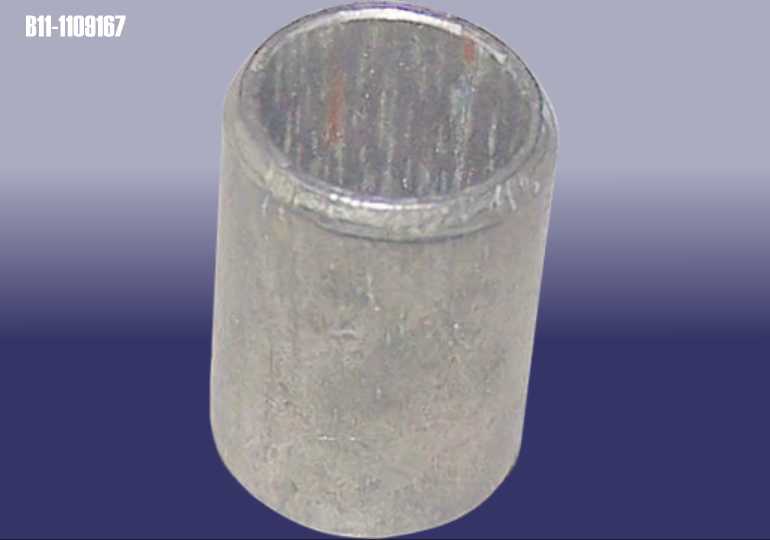

21	B11-1109167	SLEEVE - RUBBER	0

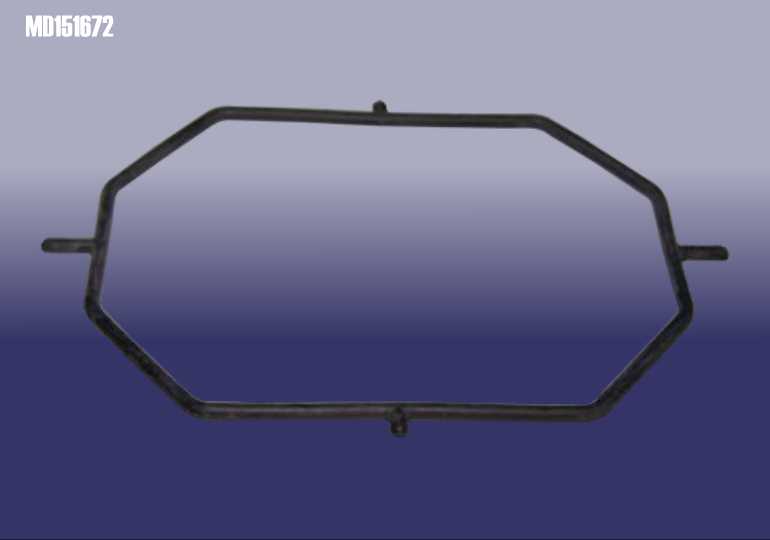

22	MD151672	WASHER - AIR FLOW SENSOR	0

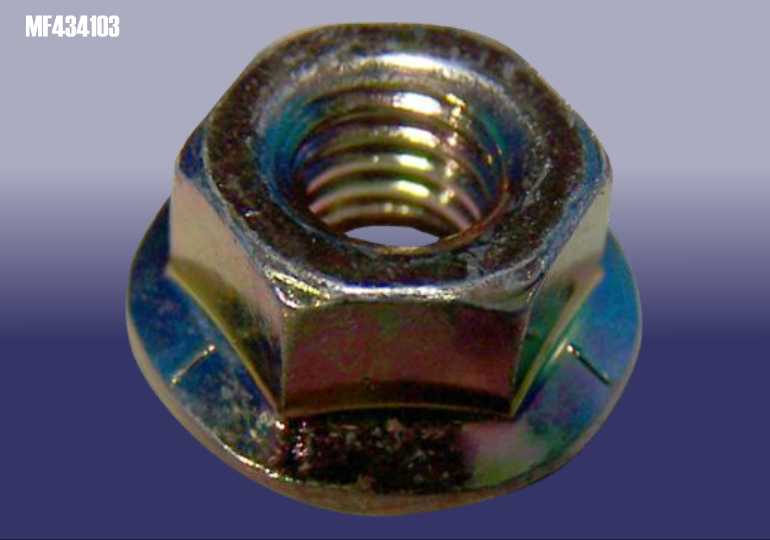

23	MF434103	NUT - FLANGE	0
24	A21-1109817	CONNECTING TUBE	0
25	B11-1109219	CLIP SLEEVE	0
