КАТАЛОГ: CHERY	МОДЕЛЬ: EASTAR

---

Подбор авто запчастей на ЧЕРИ EASTAR (ЕАСТАР)

Поз.	Номер	Наименование	Колличество
1	SG-SG	PIPE - WATER	1
2	B11-1311110	INFLATION BOX	1
3	B11-1311120	CAP-INFLATION BOX	1

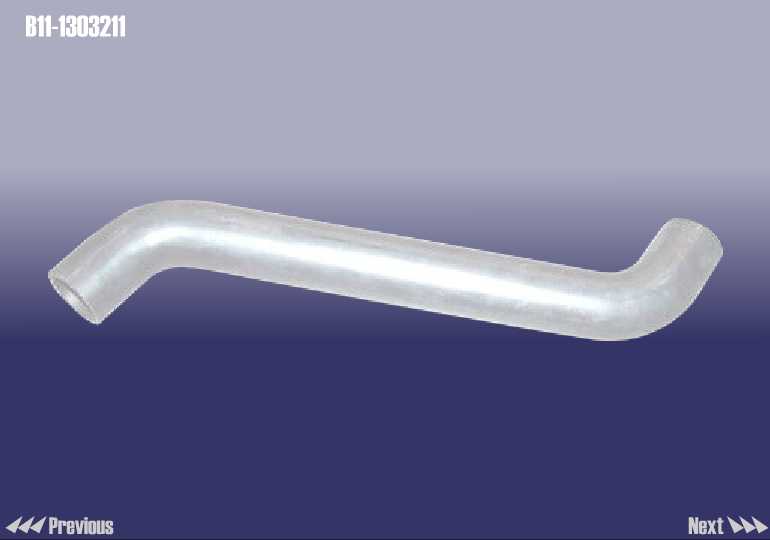

4	B11-1303211	HOSE - RADIATOR OUTLET	1

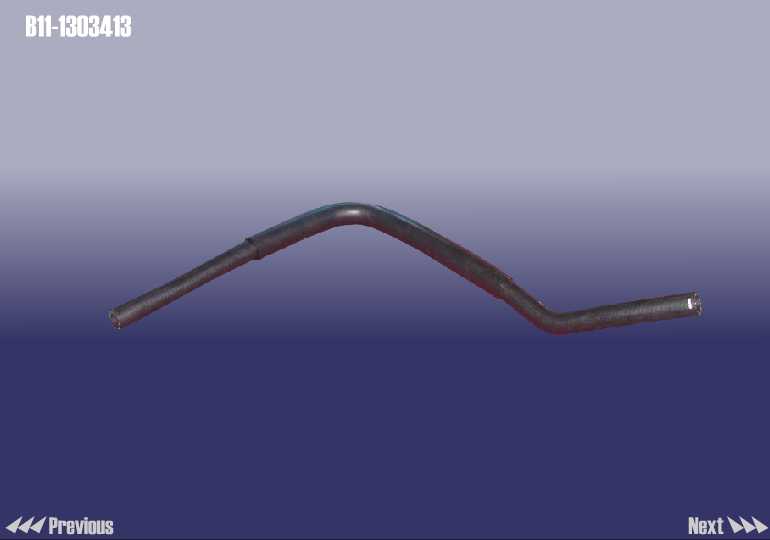

5	B11-1303413	OUTLET PIPE-INFLATION BOX	1
6	AQ60125	CLAMP - ELASTIC	8
7	Q1420616	HEXAGON HEAD BOLT & SPRING GASKET ASSY	8

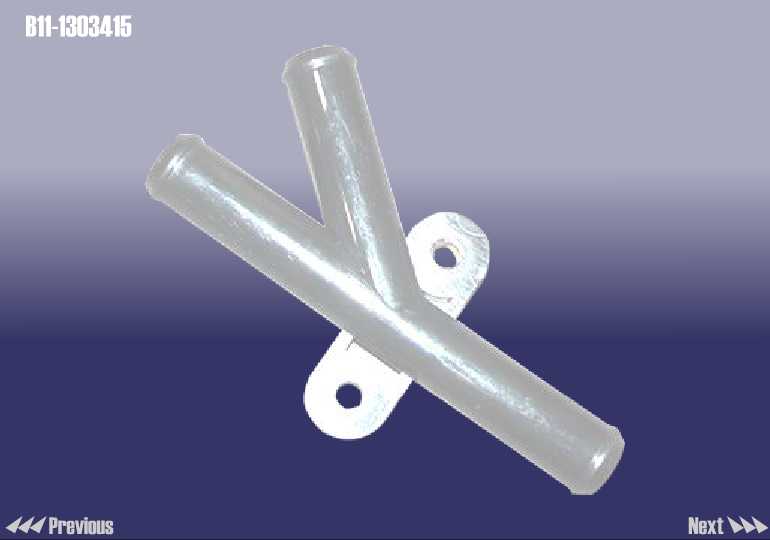

8	B11-1303415	PIPE ASSY - TEE	1

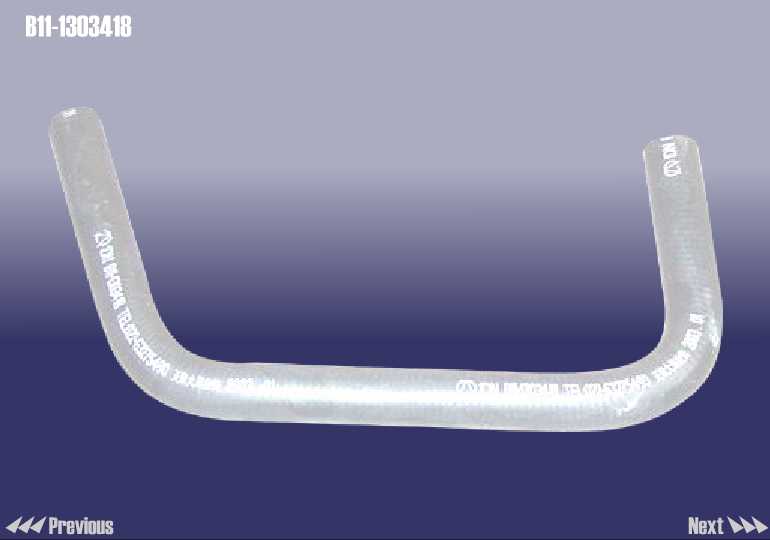

9	B11-1303418	PIPE - WATER	1

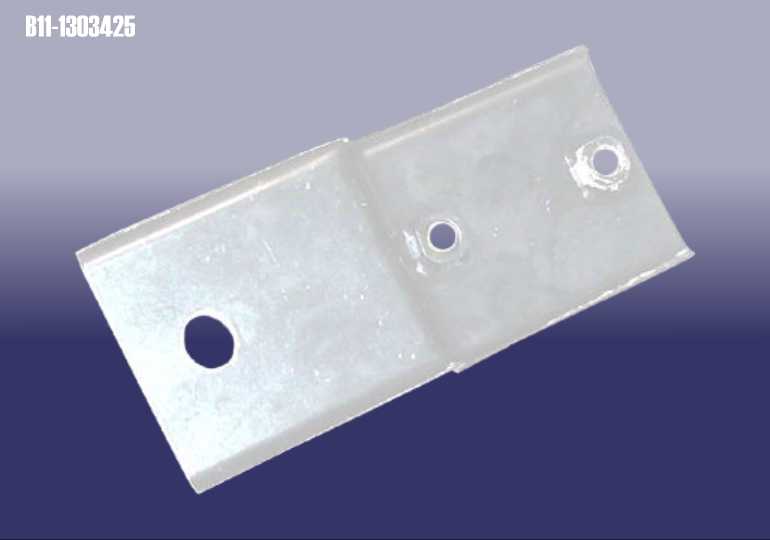

10	B11-1303425	BRACKET ASSY - TEE PIPE	1
11	B11-1303419	OUTLET PIPE-HEATER	1

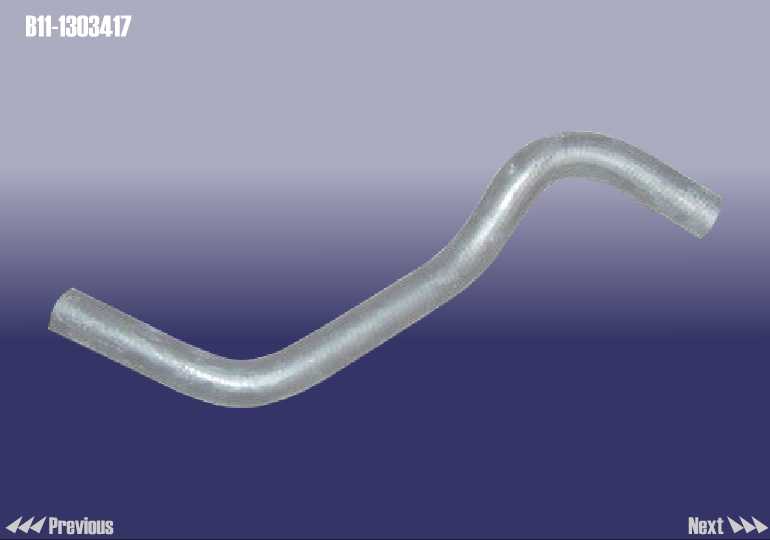

12	B11-1303417	INLET PIPE-HEATER	1

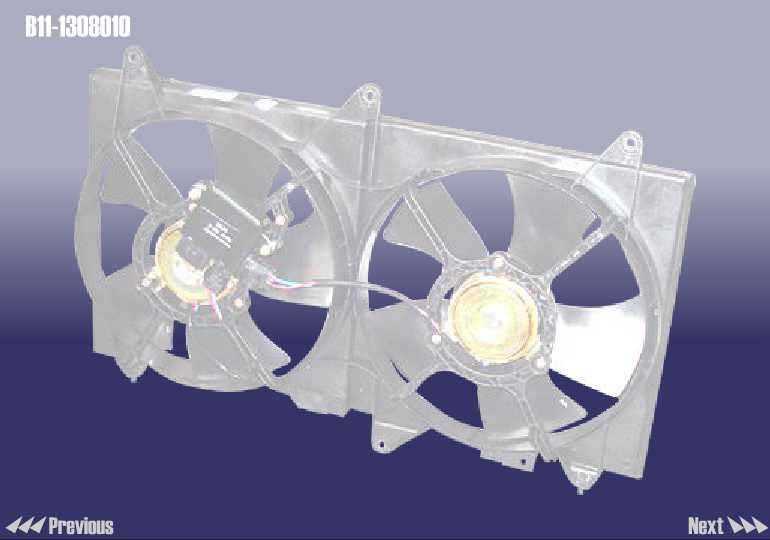

13	B11-1308010	RADIATOR FAN	1

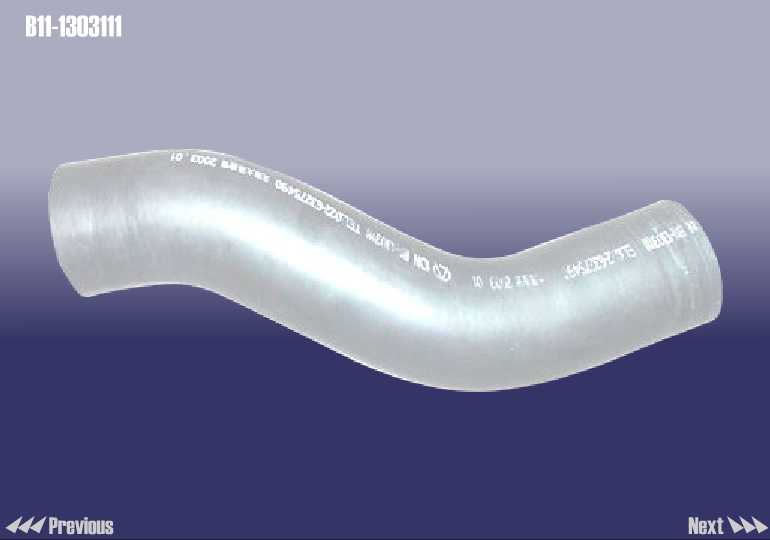

14	B11-1303111	PIPE I - WATER INLET	1
15	AQ60114	CLAMP - ELASTIC	2
16	B11LQX-SRQZC	RADIATOR	1

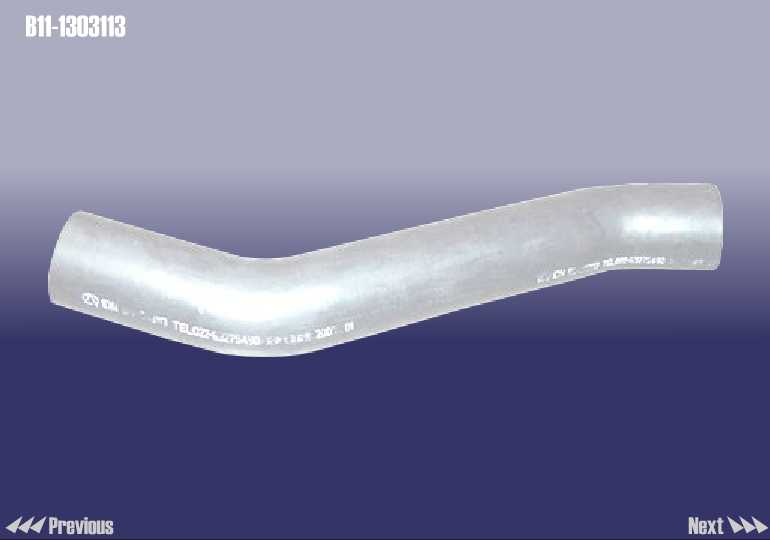

17	B11-1303113	PIPE I - WATER INLET	1

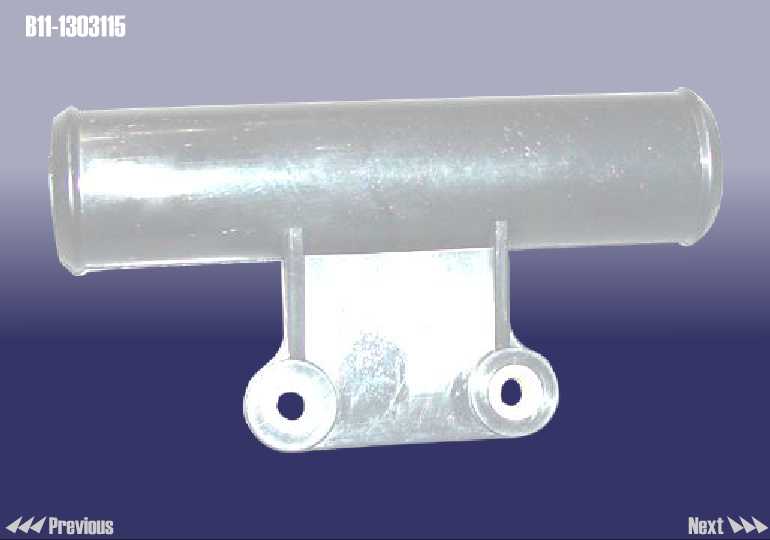

18	B11-1303115	PIPE ASSY - WATER (PLASTIC)	1
19	SRQZJB-SRQZJB	PLATE - TENSION (RADIATOR)	2
20	B11-1301313	SLEEVE - RUBBER	2
21	AQ60145	CLAMP - ELASTIC	6

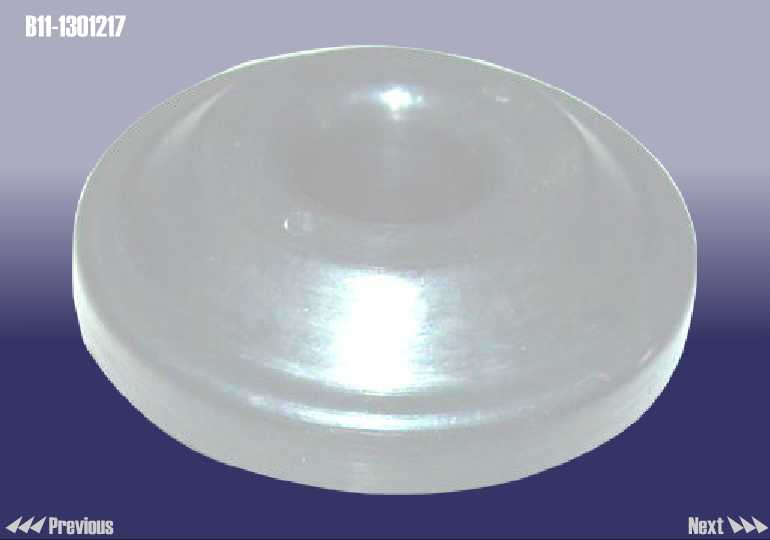

22	B11-1301217	GASKET - RUBBER	2

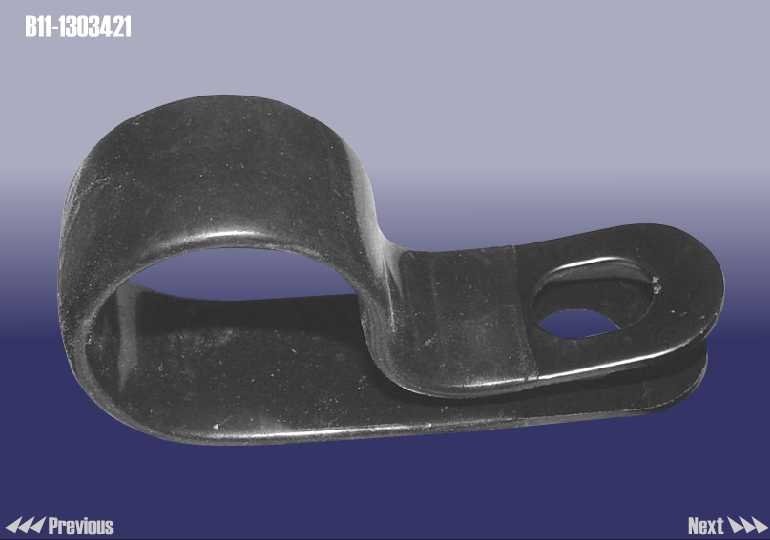

23	B11-1303421	CLIP - PIPE	1
24	B11-1303416	BRACKET-WARM PIPE	0
25	B11-1303703	PIPE-ENGINE TO EXPANSION	0

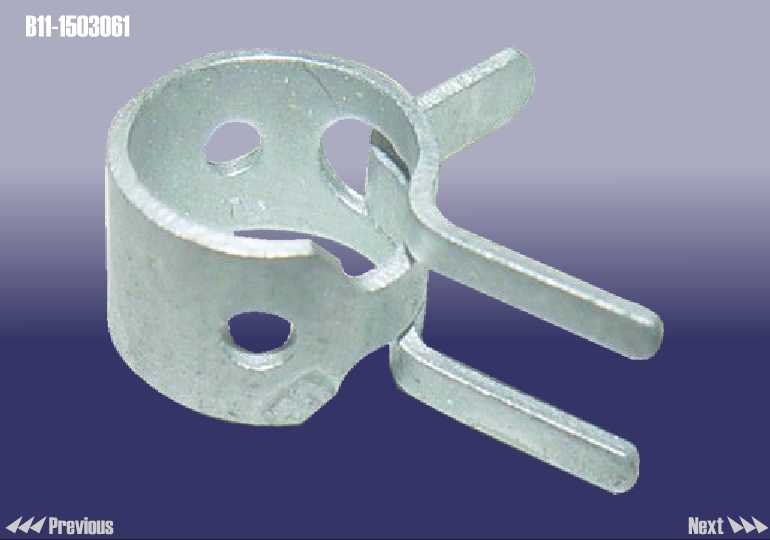

26	B11-1503061	CLAMP	0

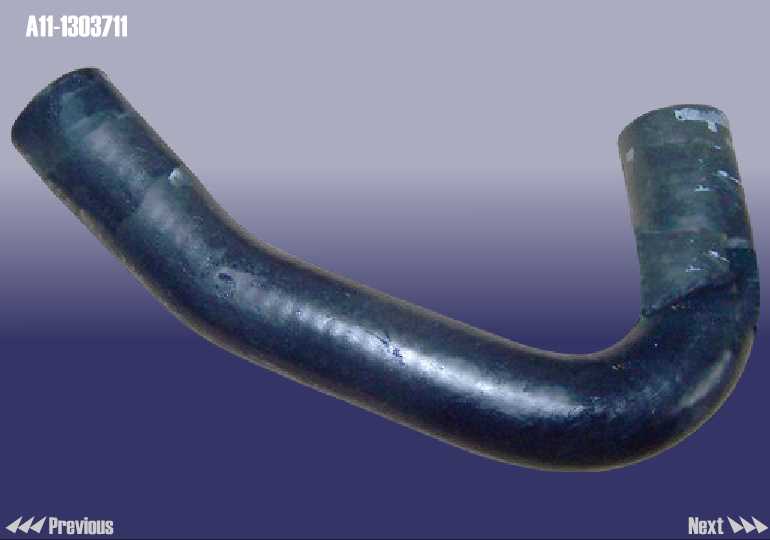

27	A11-1303711	HOSE - WATER OUTLET	0
28	AQ60112	CLAMP - ELASTIC	0

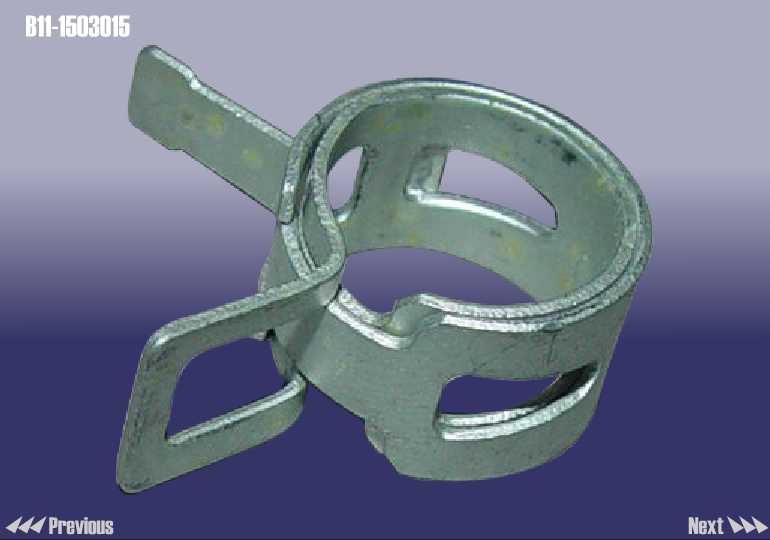

29	B11-1503015	CLAMP	0
30	A21-1303701	PIPE - ENGINE TO EXPANSION TANK	0
31	B11-1503151	INTAKE PIPE 1-ENGINE	0
32	B11-1503153	INTAKE PIPE 2-ENGINE	0
33	B11-1503130	COOLING PIPE-TRANSMISSION	0
