КАТАЛОГ: CHERY	МОДЕЛЬ: EASTAR

---

Подбор авто запчастей на ЧЕРИ EASTAR (ЕАСТАР)

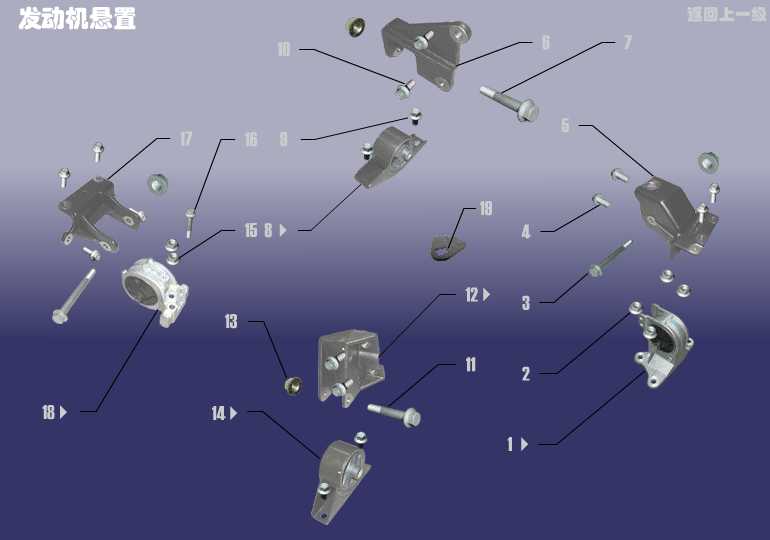

Поз.	Номер	Наименование	Колличество
1	B11FDJXZ-ZXZRD	CUSHION ASSY - MOUNTING LH	1
2	Q320B12	NUT(M12б+1.25)	6

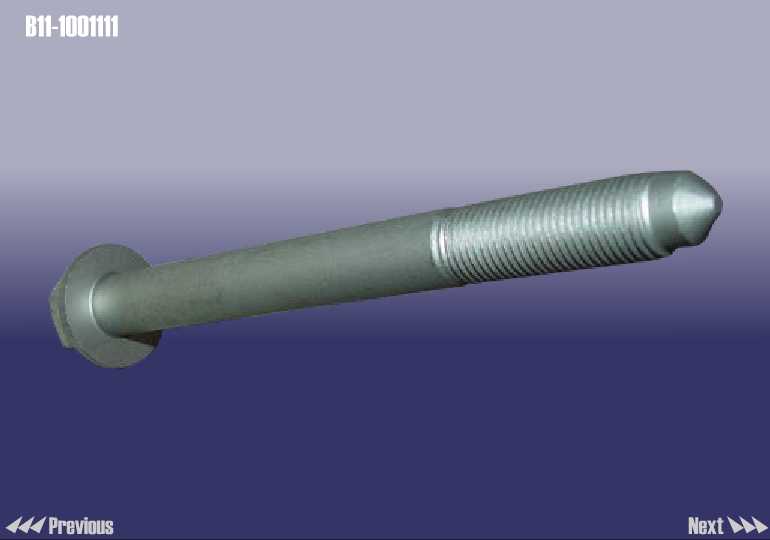

3	B11-1001111	BOLT	2

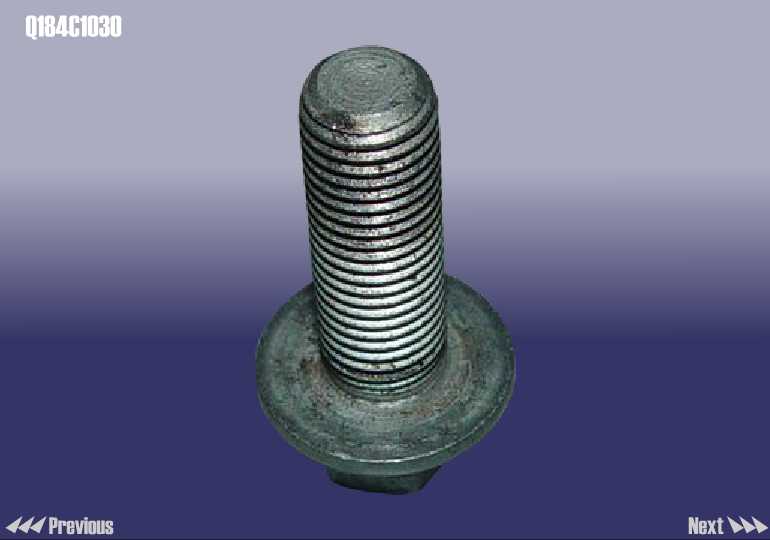

4	Q184C1030	BOLT	8
5	ZXZZJ-ZXZZJ	BRAKET-MOUNTING LH	1

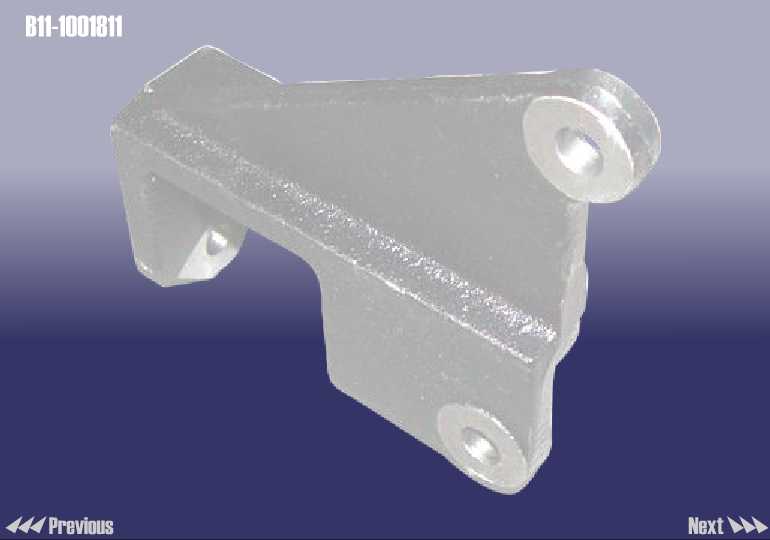

6	B11-1001811	BRACKET ASSY - RR SUSPENSION	1
6	B11-1001811BA	BRACKET - RR SUSPENSION	1

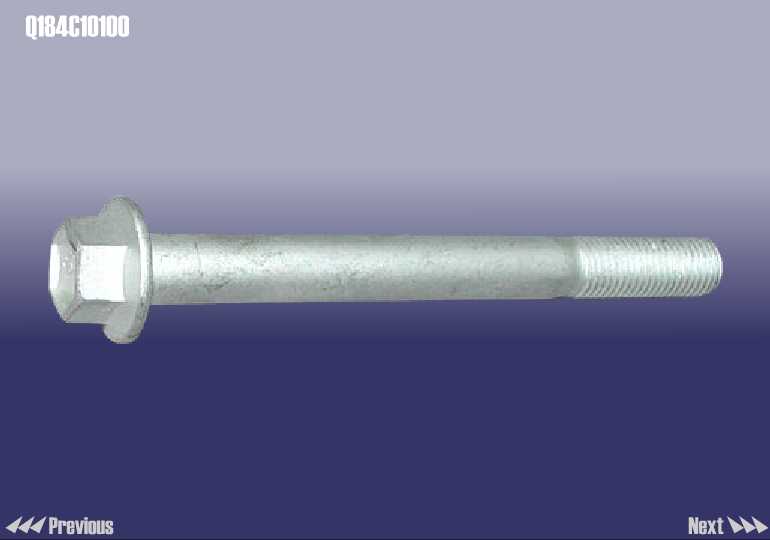

7	Q184C10100	BOLT	1
8	B11FDJXZ-HXZRD	MOUNTING - ENGINE RR	1
9	Q184C1020	BOLT	4

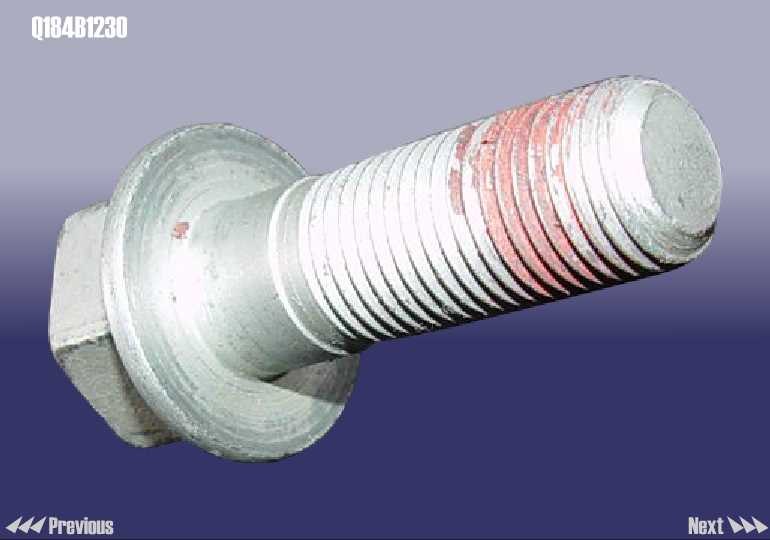

10	Q184B1230	BOLT	4
11	Q184B16100	BOLT	1
12	B11FDJXZ-QXZZJ	BRACKET ASSY - FRONT MOUNTING	1
13	Q320B16	NUT(M16б+1.5)	1
14	B11FDJXZ-QXZRD	WASHTER-MOUNTING FR	1
15	Q320C10	NUT(M10б+1.25)	2
16	Q184C1060	BOLT	1
17	YXZZJ-YXZZJ	BRAKET-MOUNTING RH	1
18	B11FDJXZ-YXZRD	WASHER-MOUNTING RH	1
19	B11-BJ1001311	WASHER - FLANGE	0
20	B11-1001311	BLOT - HEXAGON FLANGE	1
21	Q1841045TF2	BOLT(M10x45)	1
22	Q2734819MA	SCREW 2	1
23	QR2010516	BOLT - WELDED	1

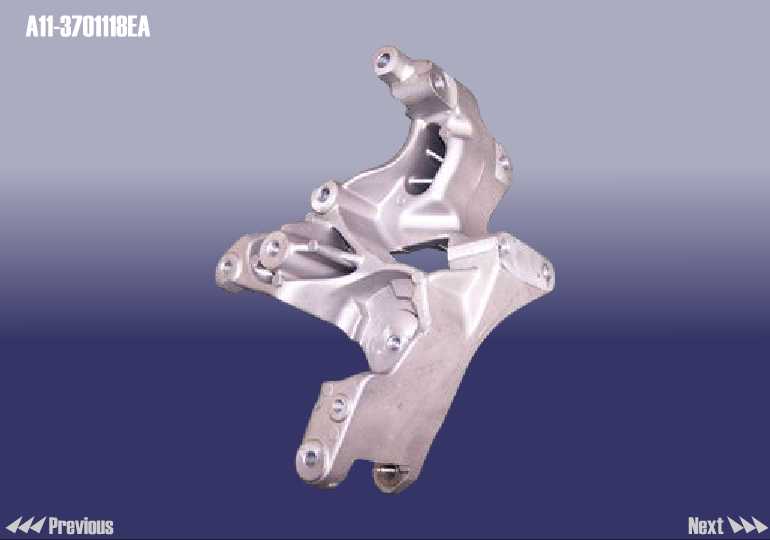

24	A11-3701118EA	BRACKET - GENERATOR	1
