КАТАЛОГ: CHERY	МОДЕЛЬ: EASTAR

---

Подбор авто запчастей на ЧЕРИ EASTAR (ЕАСТАР)

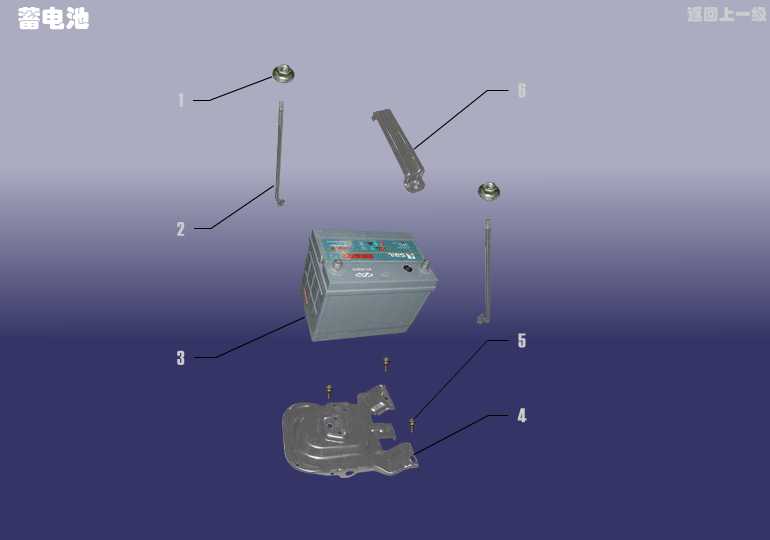

Поз.	Номер	Наименование	Колличество
1	A11-5305011	NUT (WITH WASHER)	2

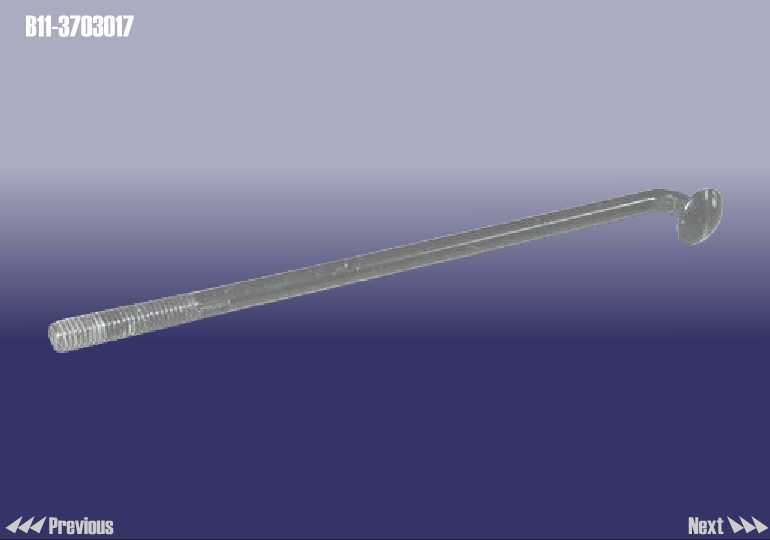

2	B11-3703017	CONNECTING ROD	2
3	B11-3703010AB	BATTERY	1

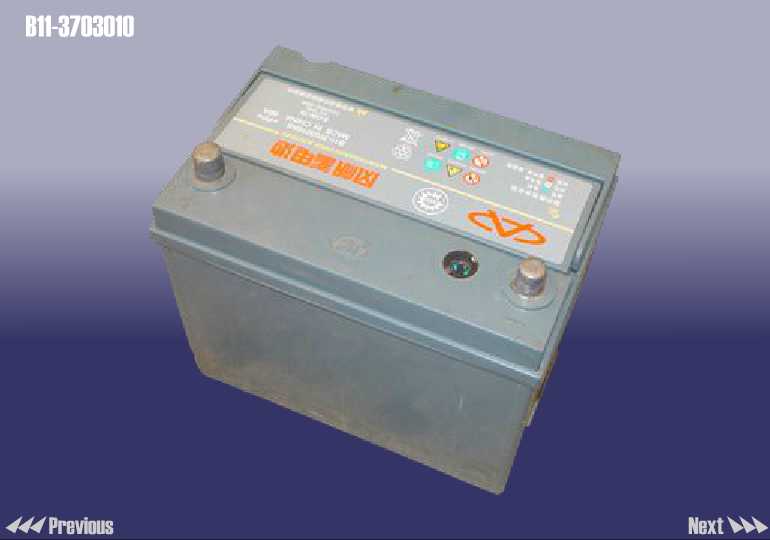

3	B11-3703010	BATTERY	1

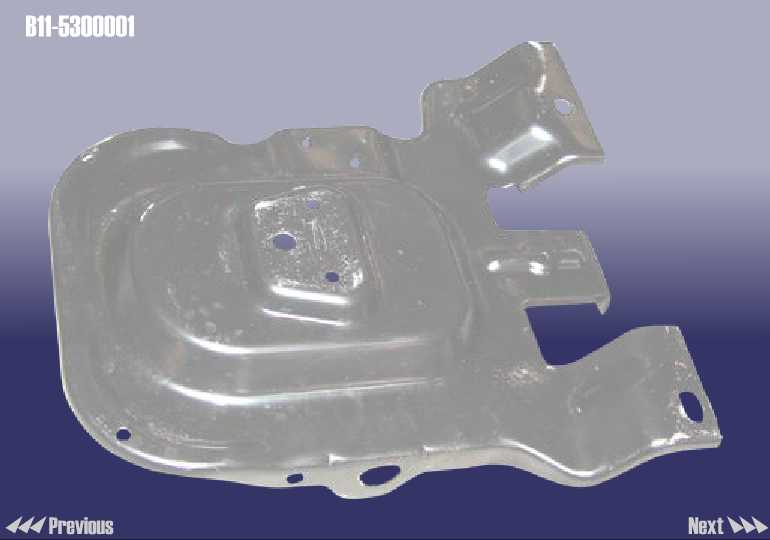

4	B11-5300001	BATTERY TRAY	1

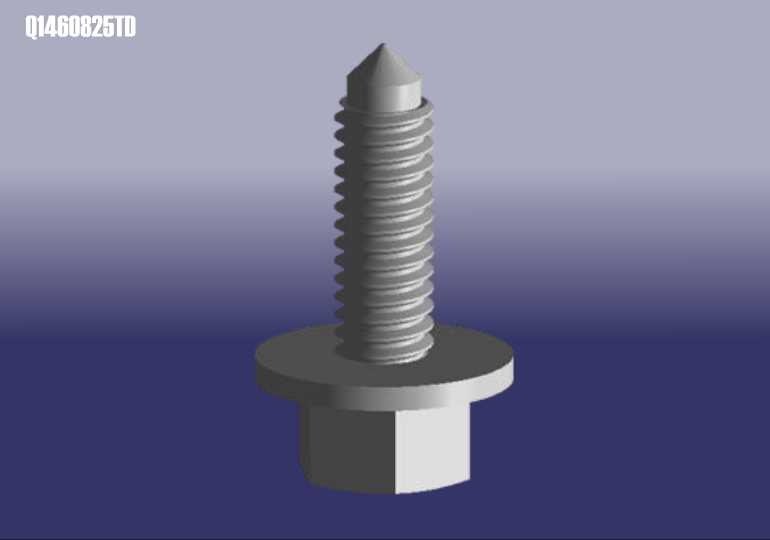

5	Q1460825TD	BOLT - HEXAGON HEAD	1

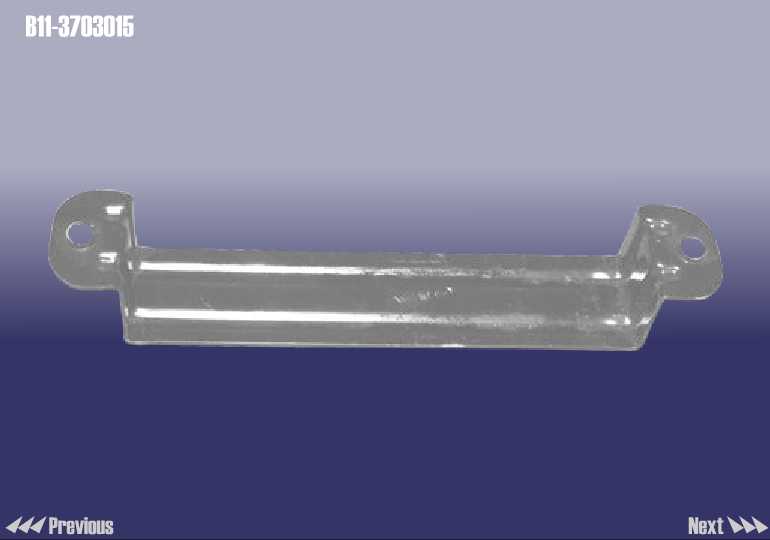

6	B11-3703015	PLATE - PRESSURE	1
7	Q2204213	SCREW	1
8	Q2204819BA	SCREW	1
8	Q2204819MA	SCREW 1	1
9	Q2300408	TAPPING SCREW	1
10	Q2630412	SCREW	1
11	Q2714895	SCREW	1
12	Q2723516	TAPPING SCREW	1
13	Q2734819BA	SCREW	1
14	Q322B12	BOLT	1
15	Q33212T13F2	BOLT	1
16	Q40306	WASHER - SPRING	1
17	Q40314	WASHER - ELASTIC	1
18	Q43062	SNAP RIGN	1
19	Q43110	RING - SHAFT SPRING	1
20	Q43130	SNAP RIGN	1
21	Q5002736	BOLT	1
22	Q68620F4	PIPE CLAMP	1
23	Q900B	VALVE	1
24	QR369C14	SEAT - BOLT	1
25	QR35509	SEAT - BOLT	1
26	AQ60127	CLAMP - INTAKE PIPE	1
27	AQ60136	CLAMP - ELASTIC	1
28	B14-3550093	DAMPING RUBBER PAD	1
29	B14-3550095	SLEEVE	1
30	B14-3550097	DAMPING RUBBER PAD	1

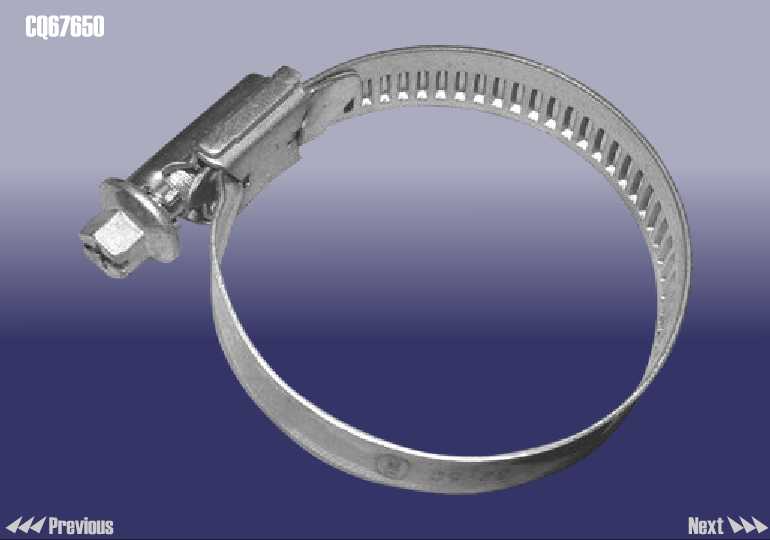

31	CQ67650	CLAMP - WORM	1
32	Q1291265TF6	STUD	1
33	Q1460625	BOLT - HEXAGON HEAD	1
34	Q18410105	BOLT - HEXAGON FLANGE	1
35	Q1841055TF2	BOLT(M10x55)	1
36	Q184B12105TF6	BOLT - HEXAGON FLANGE	1
37	Q184C1045	BOLT - HEXAGON FLANGE	1
38	Q33010T13F6	BOLT	1
39	Q341B12T13F6	NUT	1

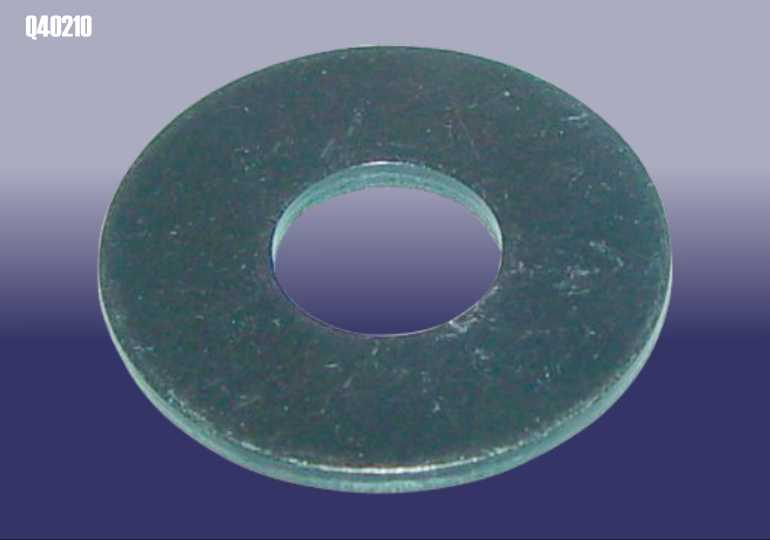

40	Q40210	WASHER	1
41	Q40312F9	WASHER - SPRING	1
42	S11-3506023	PIPE CLIP	1
43	QR36812	BOLT	1
44	CQ67625	CLAMP - WORM	1
45	Q1841255TF31	BOLT	1
46	Q1841260TF31	BOLT	1
47	FQ152C1020T0F6S	BOLT - HEXAGON HEAD	1
48	AQ60126	CLAMP - ELASTIC	1
