КАТАЛОГ: CHERY	МОДЕЛЬ: EASTAR

---

Подбор авто запчастей на ЧЕРИ EASTAR (ЕАСТАР)

Поз.	Номер	Наименование	Колличество
1	B11-2909020	CONTROL ARM ASSY-RH	1

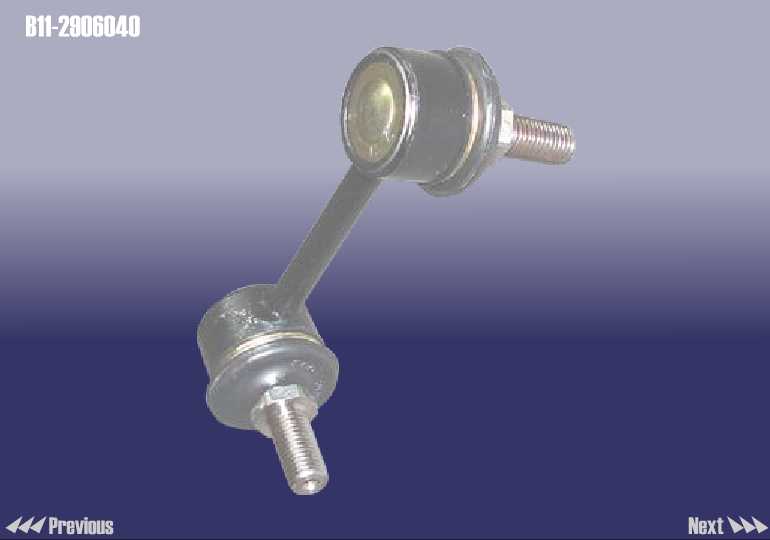

3	B11-2906040	BAR ASSY - TIE RH FT	1
4	B11-2909120	BAR ASSY - TIE RH	1

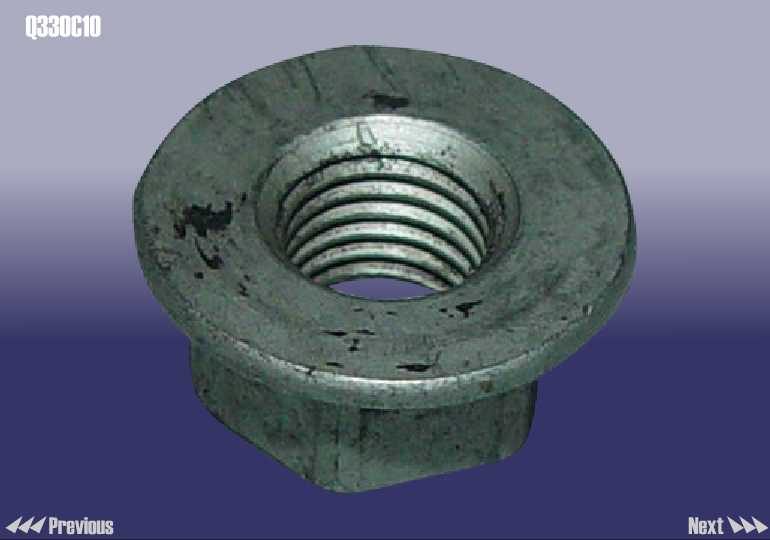

5	Q330C10	NUT	2
6-1	B11-2906010	ANCHOR STABILIZER ASSY-FR	1
6-2	B11-2906011	ANCHOR STABILIZER ASSY-FR	0
7	AQ184C1020	BOLT	2
8	B11QFCJ-CT	SLEEVE- FRONT FRAME ASSY-SECONDARY	2

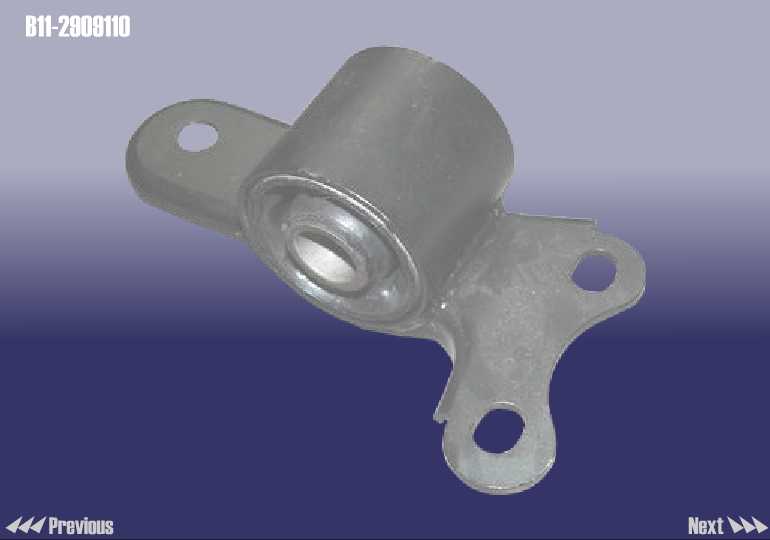

9	B11-2909110	BAR ASSY - TIE LH	1
10	B11-2906030	BAR ASSY - TIE LH FR	1

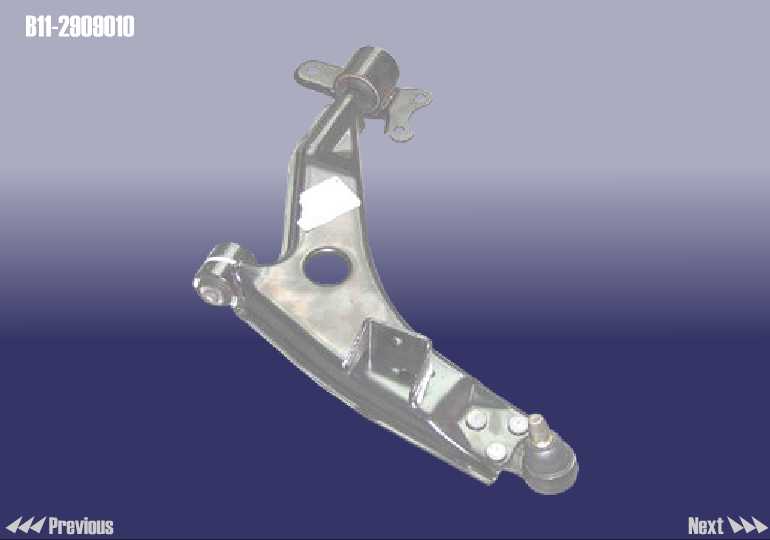

11	B11-2909010	CONTROL ARM ASSY-LH	1

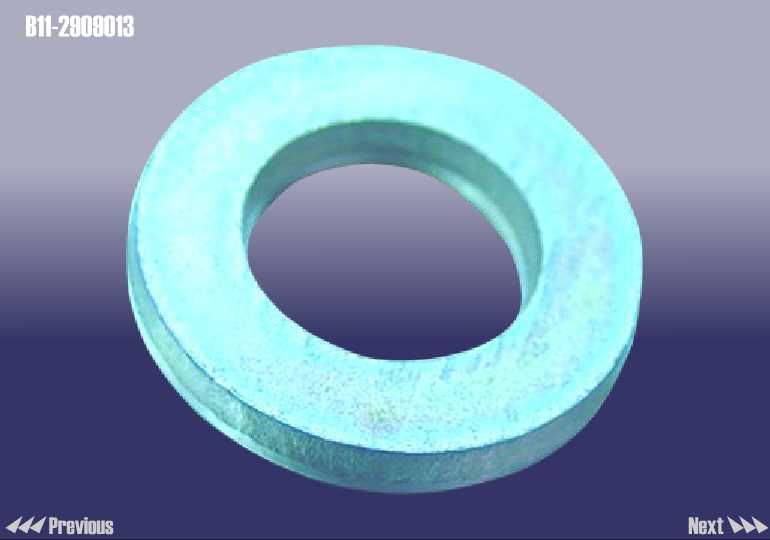

12	B11-2909013	WASHER - PLAIN	2

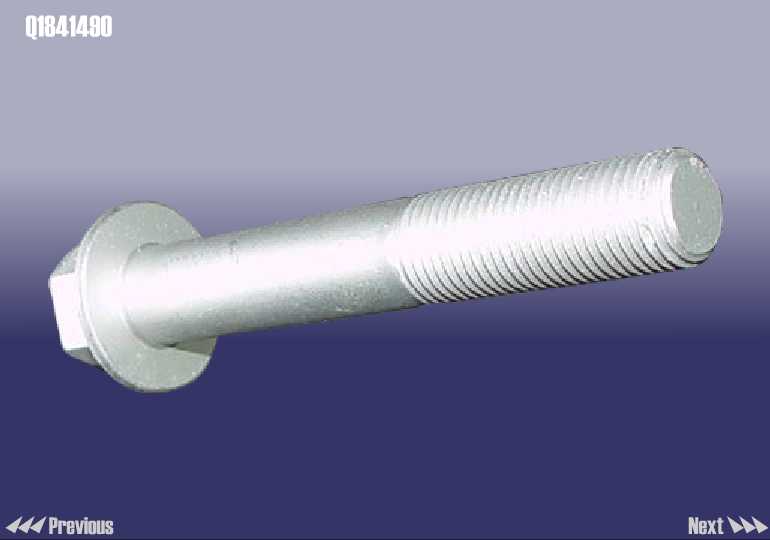

13	Q1841490	BOLT	2
14	B11-2810015	BOLT - SUB FRAME	2

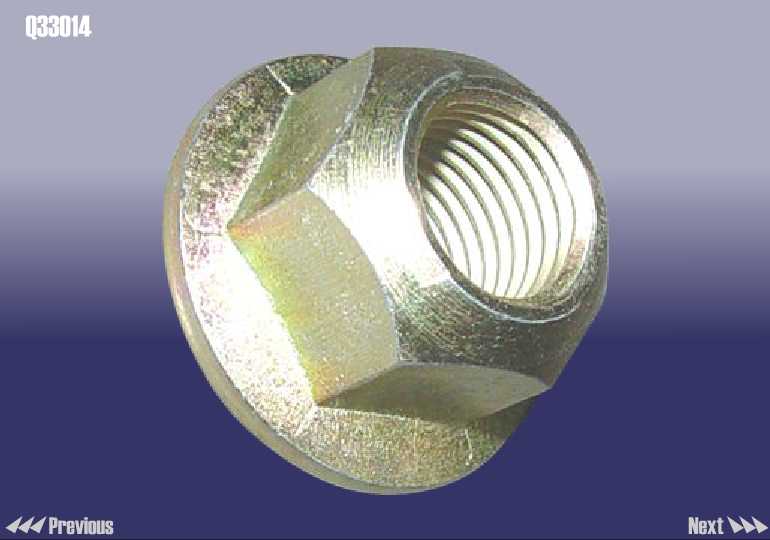

15	Q33014	LOCKNUT	2
16	B11-2810013	WASHER	2
17	B11-2810017	WASHER - PLAIN	2
18	B11-2810010	SUB FRAME ASSY	2

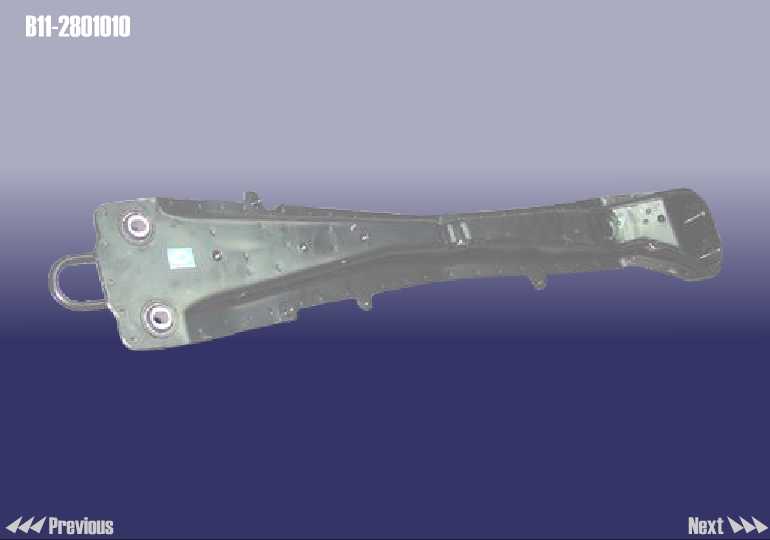

19	B11-2801010	CARLING ASSY	2
20	Q184B1255	BOLT	2
21	Q150B1245	BOLT	2

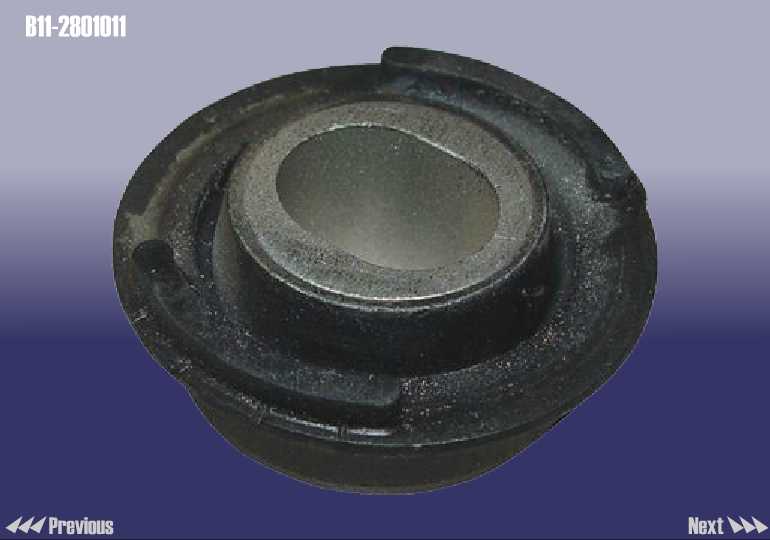

22	B11-2801011	SLEEVE - FRONT RUBBER	2

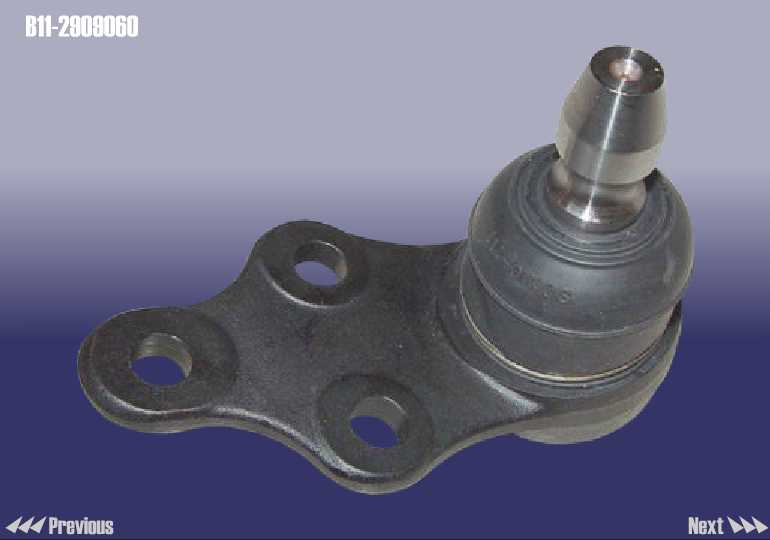

23	B11-2909060	SPHERE PIN-CONTROL ARM	2

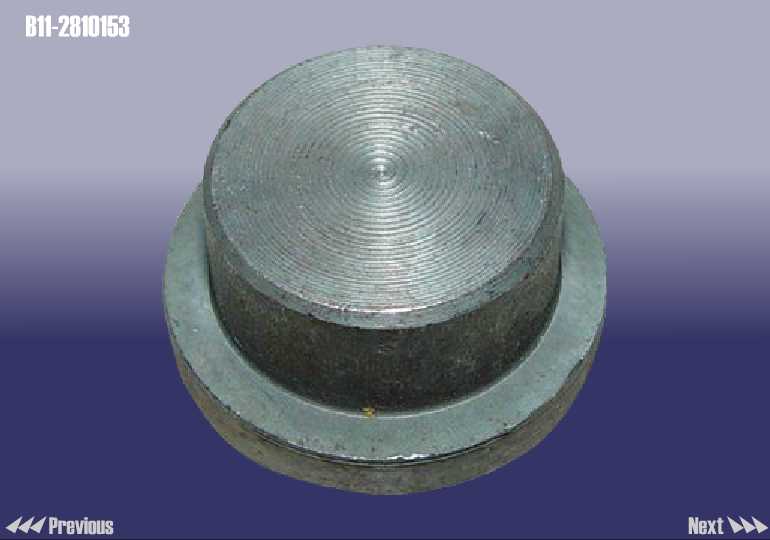

24	B11-2810153	NUT - CONTROL ARM	2
25	B11-2909050	SLEEVE - RUBBER	2

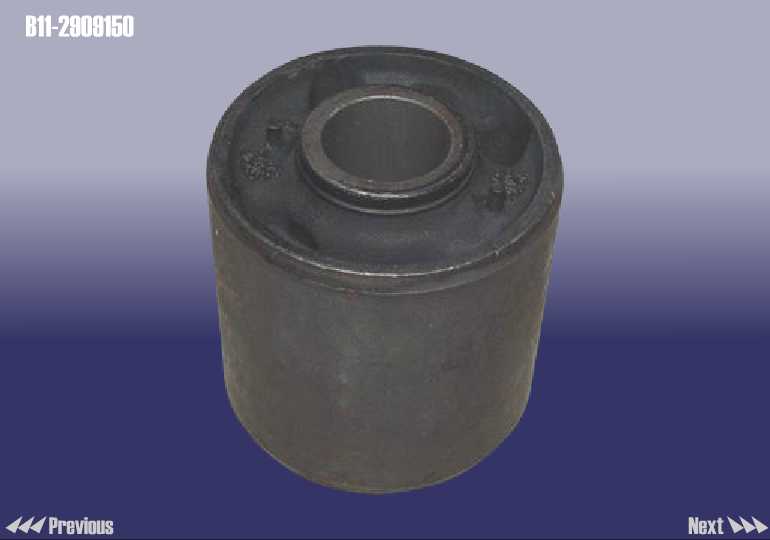

26	B11-2909150	SLEEVE ASSY	2

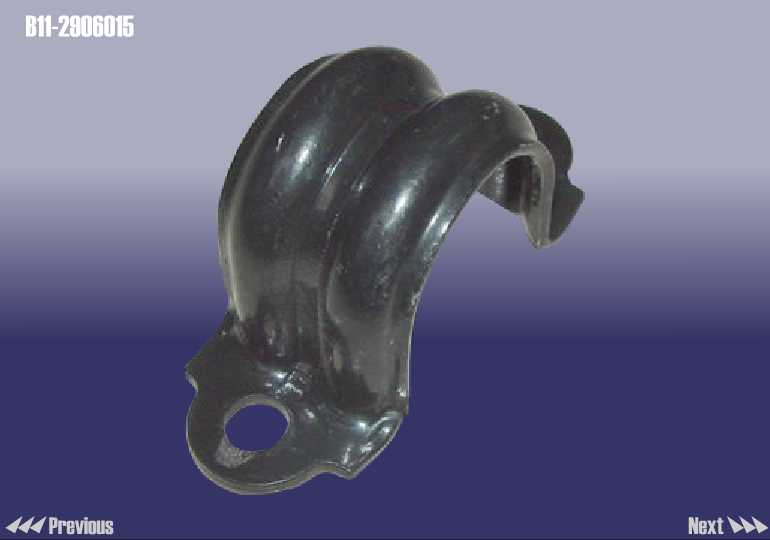

27	B11-2906015	CLAMP	2

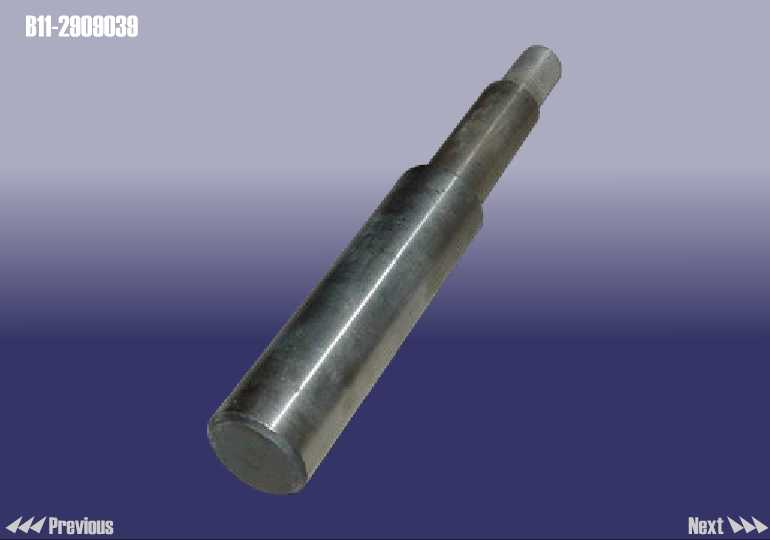

28	B11-2909039	BOLT	2

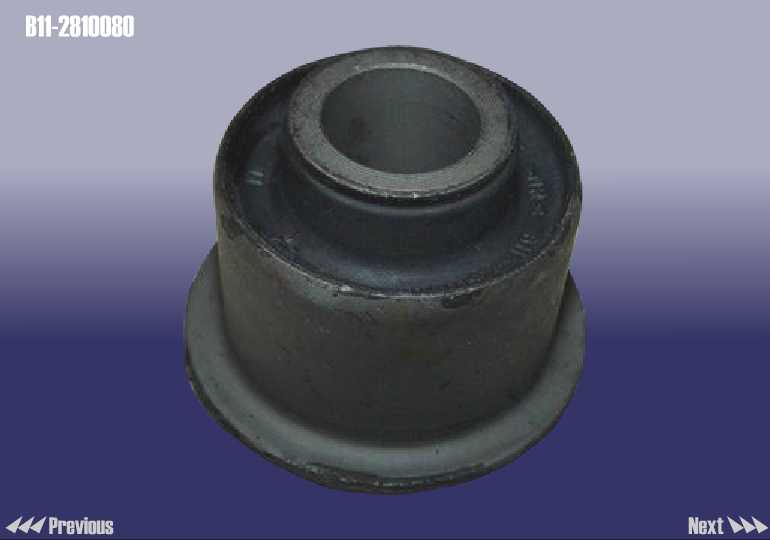

29	B11-2810080	RUBBER SLEEVE-RR	2
30	B11-2810070	SLEEVE - FRONT RUBBER	2

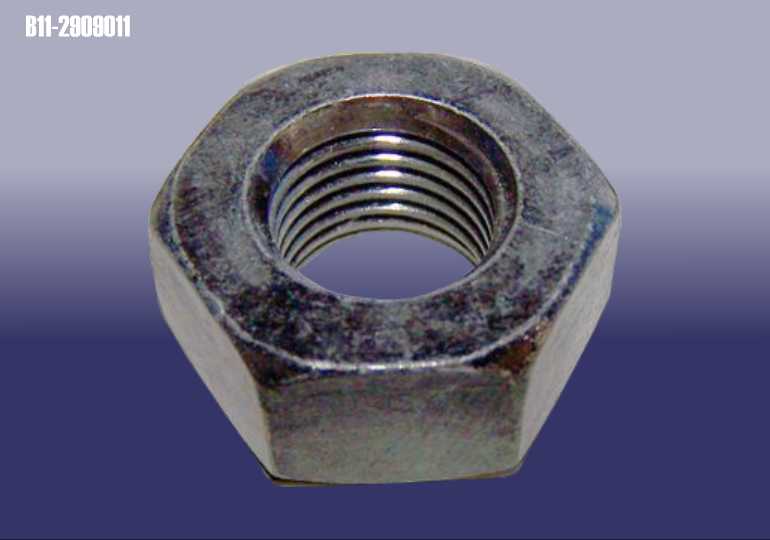

31	B11-2909011	LOCKNUT	2

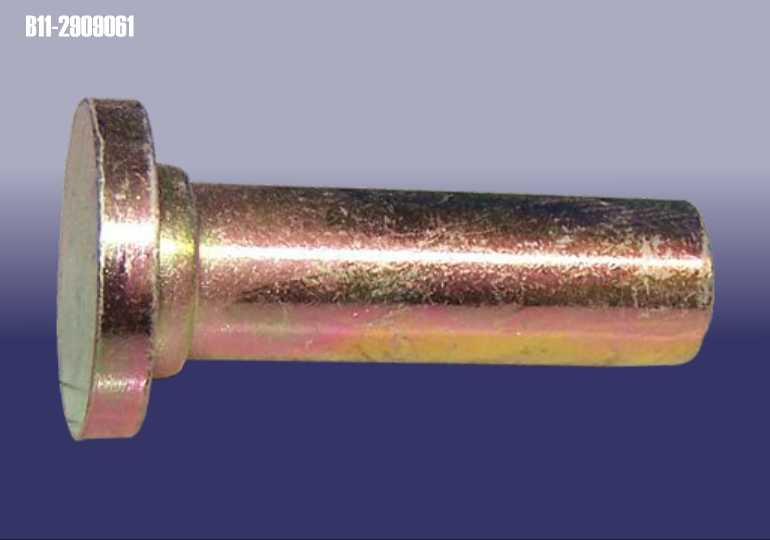

32	B11-2909061	RIVET	2
33	B11-2810011	STUD	2
