Подбор авто запчастей на ЧЕРИ FORA (ФОРА) |
| Поз. | Номер | Наименование | Колличество |
| 1 | A21KTXL-ZFQ | HVAC ASSY | 0 |

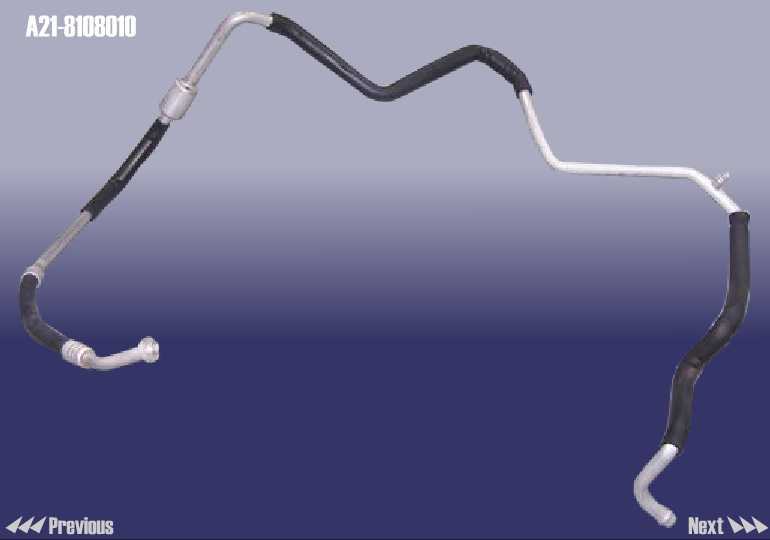

| 4 | A21-8108010 |
HOSE ASSY-EVAPORATOR TO COMPRESSOR |
1 |
| 5 | A11-8104010BB |
AIR CONDITIONER COMPRESSOR ASSY |
1 |

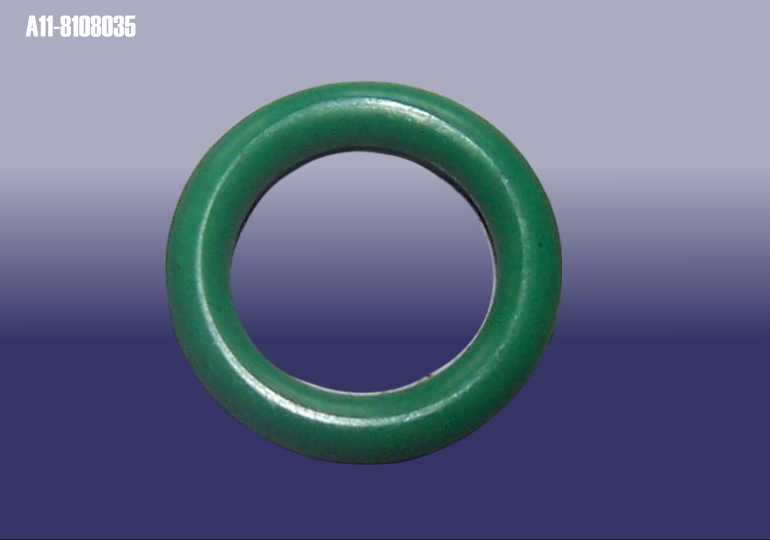

| 6 | A11-8108035 |
O RING |
1 |

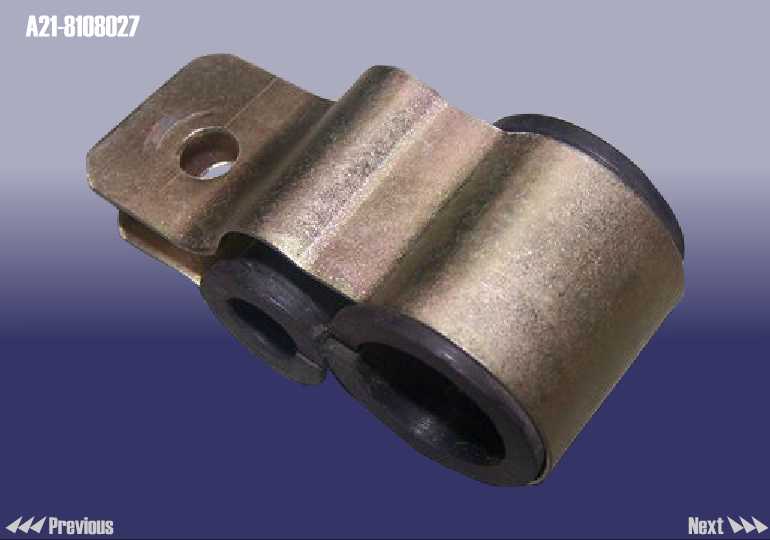

| 7 | A21-8108027 |
CLAMP |
1 |
| 9 | B11-8109117 |
BRACKET |
1 |
| 10 | B11-8109013 |
BOLT |
2 |
| 12 | Q32006 |
NUT |
2 |
| 13 | B11-8105021 |
CUSHION - RUBBER |
2 |
| 14 | A11-8111015 |
SWITCH ASSY - AIR CONDITIONER |
1 |
| 15 | A11-8108075 |
O RING |
1 |

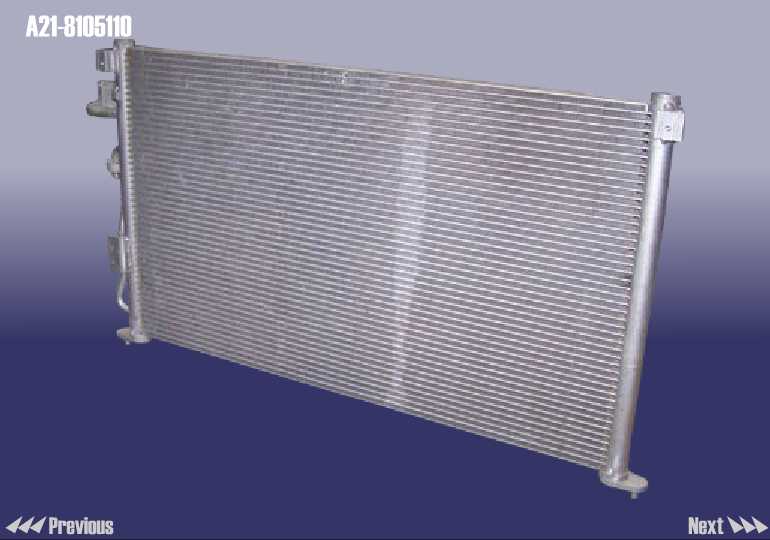

| 16 | A21-8105110 |
CONDENSER ASSY |
1 |
| 18 | A21-8108050 |
HOSE ASSY - DRIER TO EVAPORATOR |
1 |
| 20 | A11-8108055 |
O RING |
1 |
| 21 | A21KTGL-PZF | EXPANSION VALVE - H SHAPE | 1 |
| 22 | A21KTGL-CYGZP | RECEIVER ASSY | 1 |
| 23 | S11KTGL-PSG | PIPE-DRAIN | 1 |
| 24 | A21-8107910 |
AIR FILTER CORE |
1 |

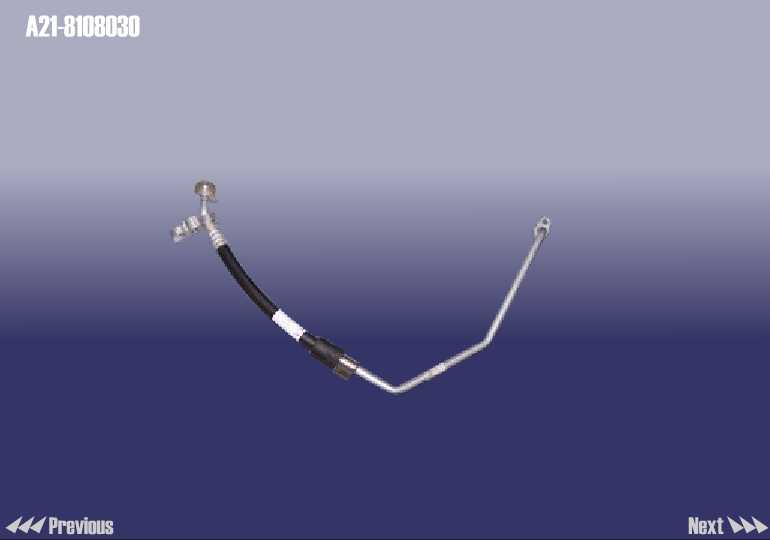

| 25 | A21-8108030 |
HOSE ASSY-COMPRESSOR TO CONDENSER |
1 |
| 26 | A21-8109117 |
BRACKET |
1 |

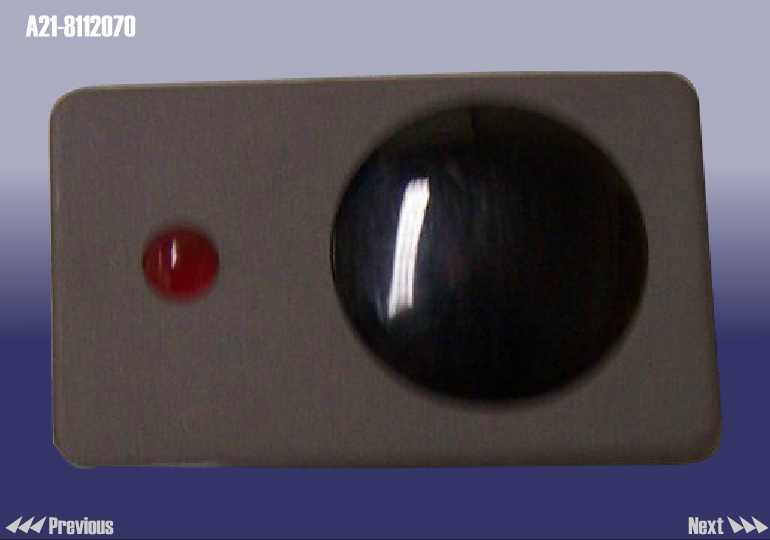

| 39109 | A21-8112070 |
SWITCH ASSY - SUN SENSOR |
1 |

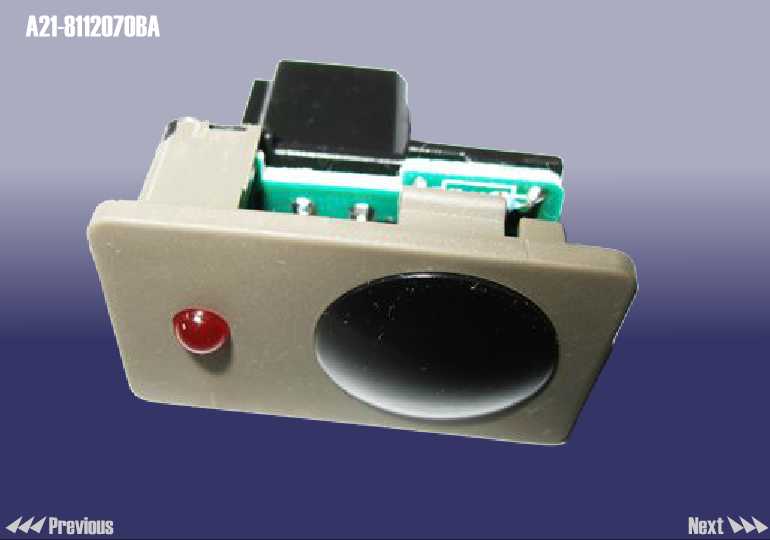

| 39140 | A21-8112070BA |
SWITCH ASSY - SUN SENSOR |
1 |

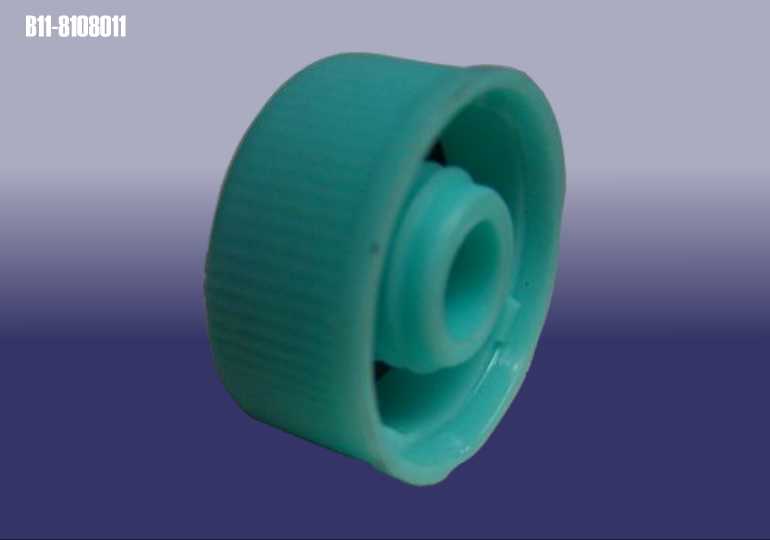

| 28 | B11-8108011 |
CAP - FILLER |
1 |
| 29 | B11-8108051 |
CAP - FILLER |
1 |
| 30 | A15-8111015 |
SENSOR - AIR CONDITIONER PRESSURE |
1 |
| 31 | A11-8108015 |
O RING |
1 |

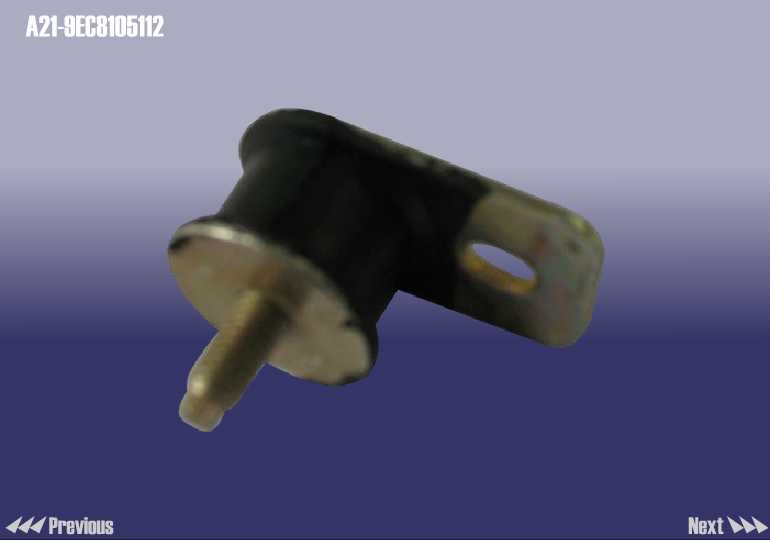

| 33 | A21-9EC8105112 |
CUSHION-CONDENSER |
1 |
