КАТАЛОГ: CHERY	МОДЕЛЬ: AMULET

---

Подбор авто запчастей на ЧЕРИ AMULET (АМУЛЕТ)

Поз.	Номер	Наименование	Колличество
1	A15-481247CV	GASKETгмSEAL	1
2	A15-481248CV	PLUG(M14)	1
3	A15-482252CV	TUBE	1
4	A15-481329CV	LOCKNUT	2
5	A15-325421CV	WASHER	2
6	A15-482197CV	SHAFT,SHIFT GEAR	1
7	A15-482099CV	SEAL,OIL	1

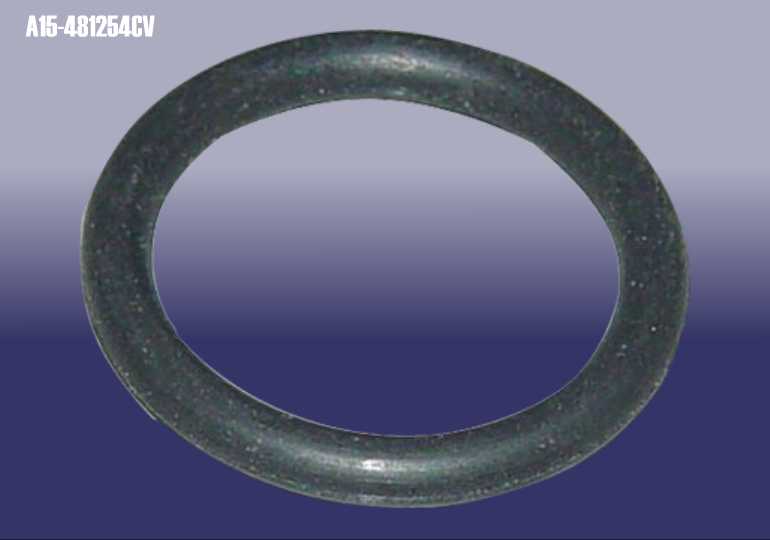

8	A15-481254CV	RINGгмбоOбп	1
9	A15-482205CV	COVER,MINOR	1

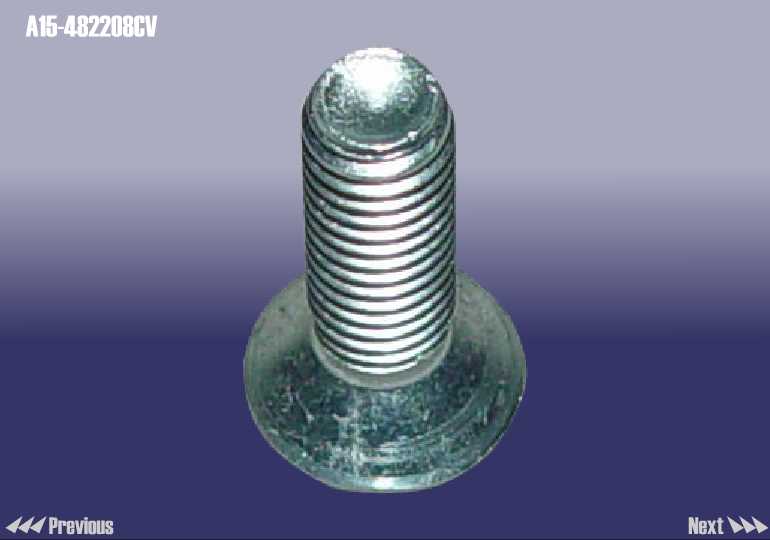

10	A15-482208CV	SCREW - COUNTERSUNK HEAD(M6x20)	4

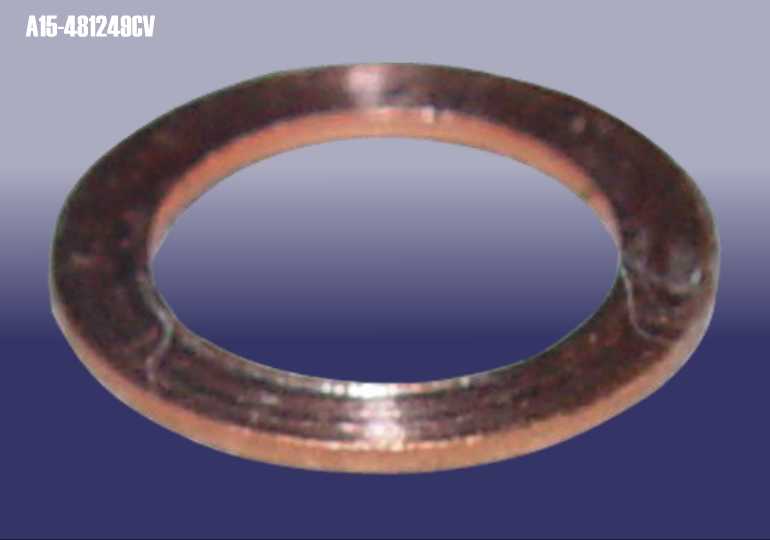

11	A15-481249CV	WASHER	1
12	A15-481250CV	PLUG(M10)	1

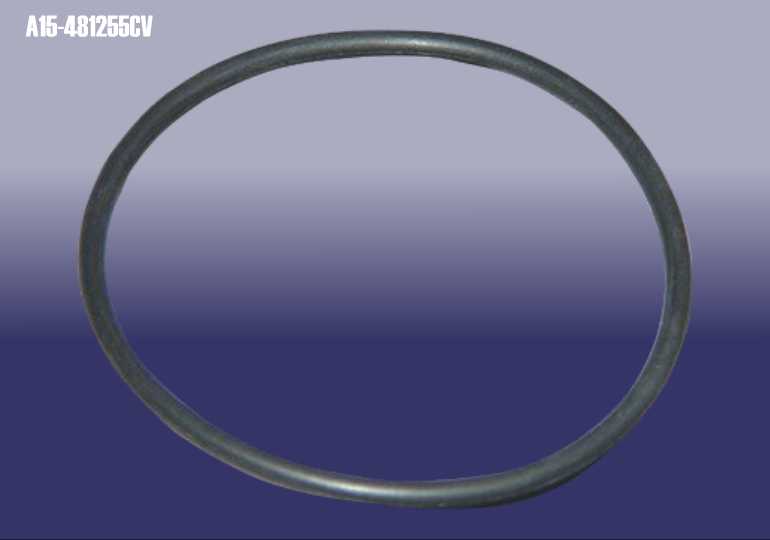

13	A15-481255CV	RINGгмбоOбп	1
14	A15-481283CV	BOLT - FLANGE	16
15	A15-481189CV	CLAMP,MAIN COVER	3
16	A15-481173CV	COVER - MAIN	1
17	A15-481877CV	RINGгмSEAL	1

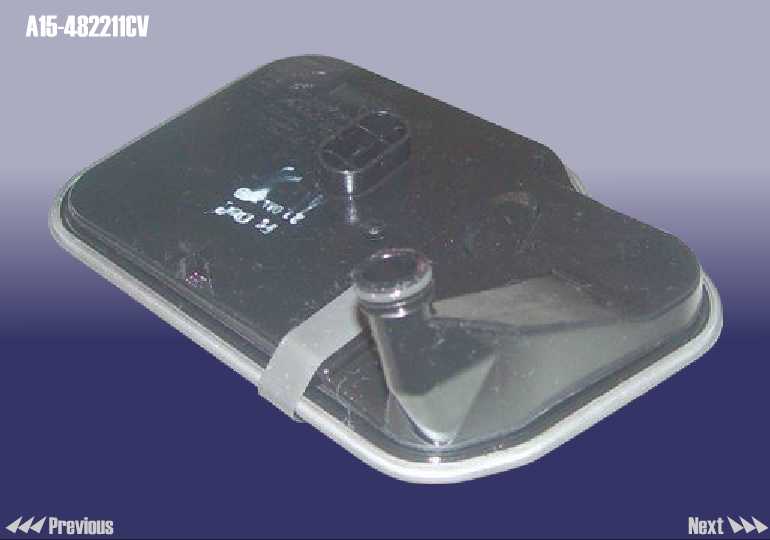

18	A15-482211CV	FILTER - GEAR OIL	1

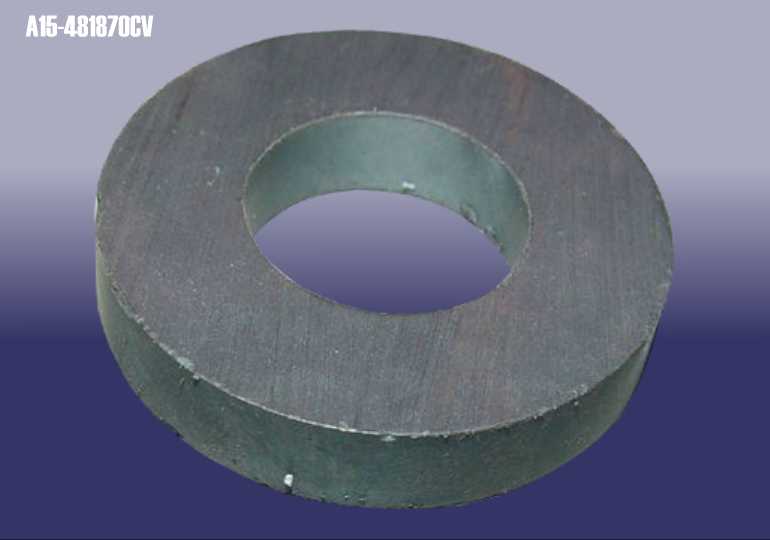

19	A15-481870CV	MAGNET	1

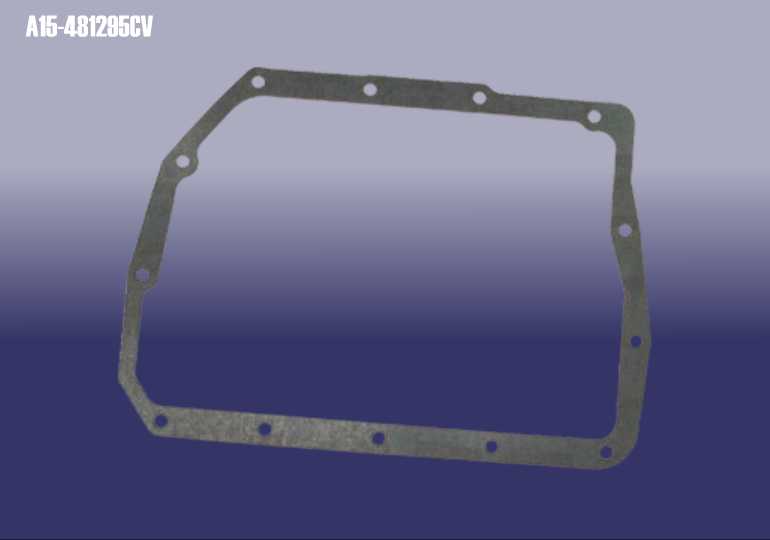

20	A15-481295CV	GASKET,OIL PAN	1

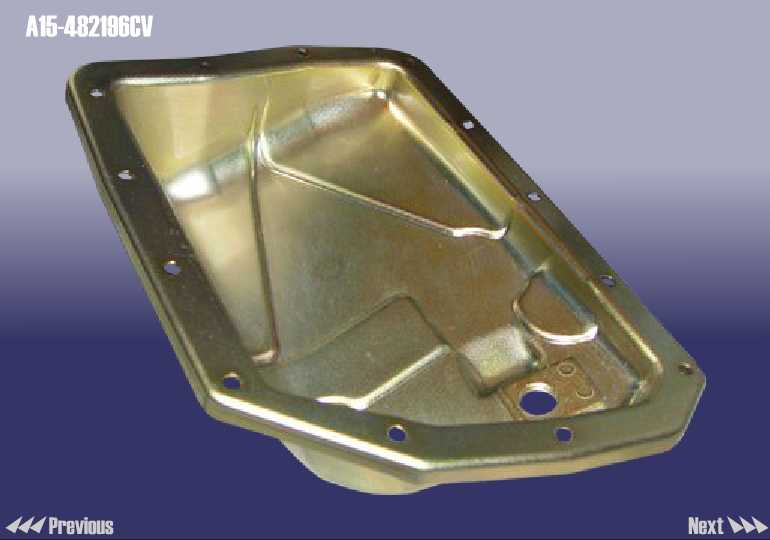

21	A15-482196CV	PAN - OIL	1
22	A15-481246CV	WASHERгмSEAL-MAGNET PLUG	1

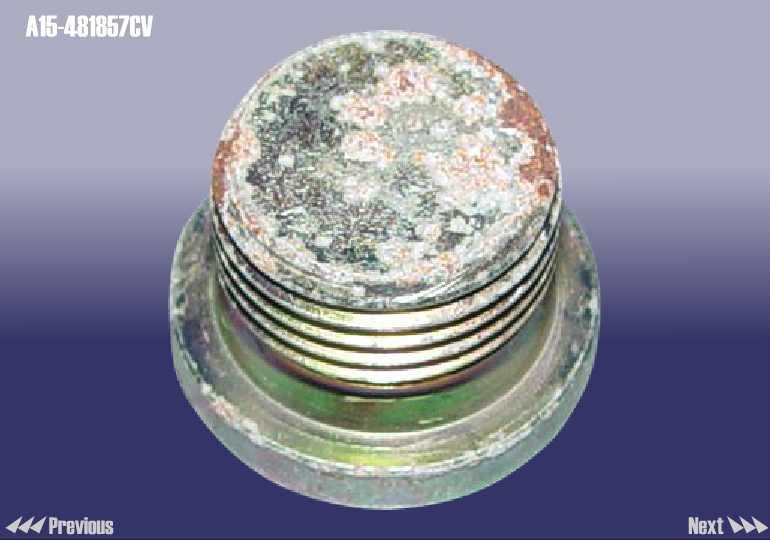

23	A15-481857CV	PLUGгмMAGNET	1
24	A15-481256CV	б-Oб-SHAPE RING	1

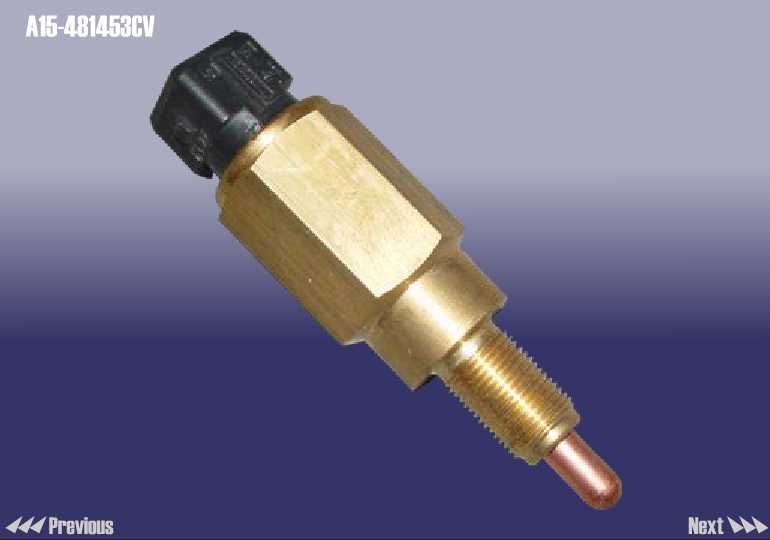

25	A15-481453CV	SWITCH,CONTROLLER	1

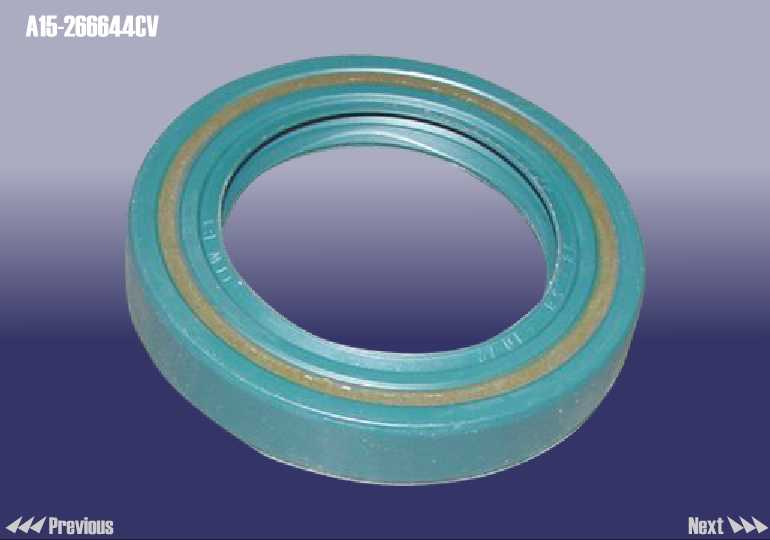

26	A15-266644CV	SEAL,OIL	2
27	A15-481274CV	OIL SEAL,INPUT SHAFT	1

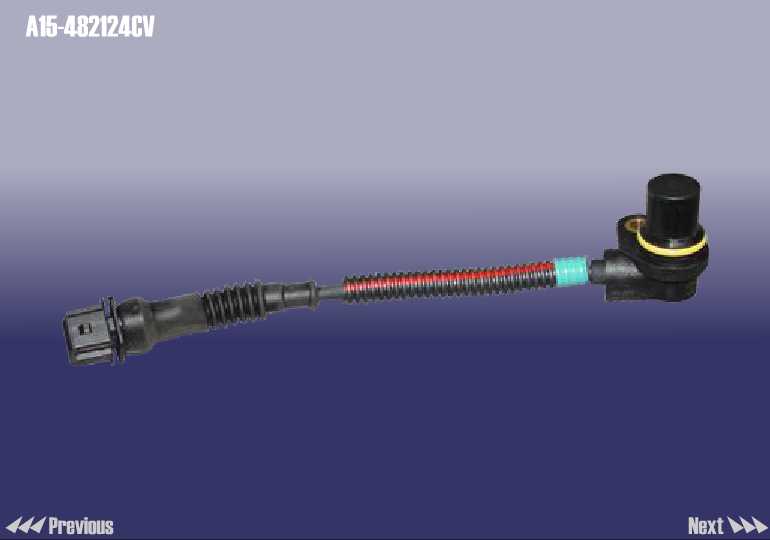

28	A15-482124CV	SENSOR,SPEED(WITH RING'O')	1
29	A15-481986CV	BOLT(M6x16)	1

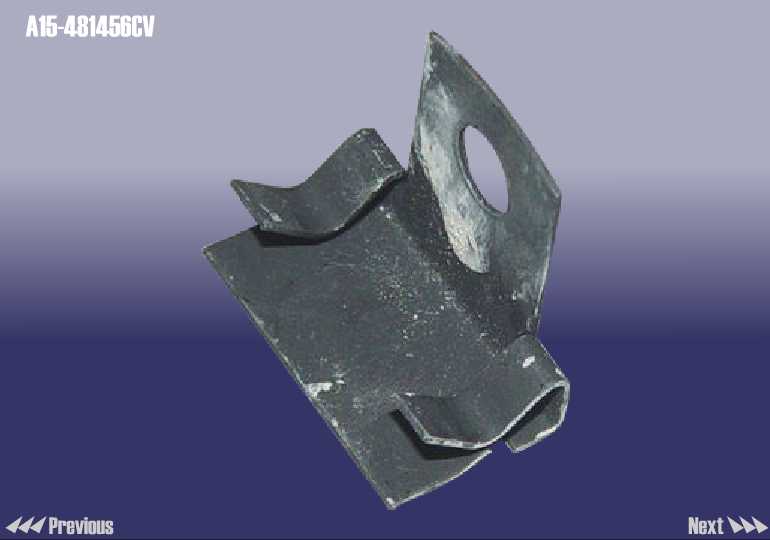

30	A15-481456CV	BRACKET,PROTECTOR	2

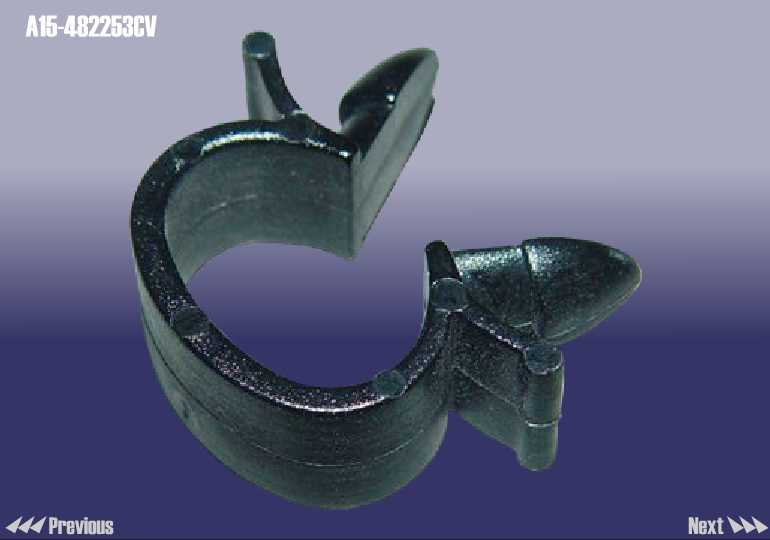

31	A15-482253CV	CLIP,TUBE	1

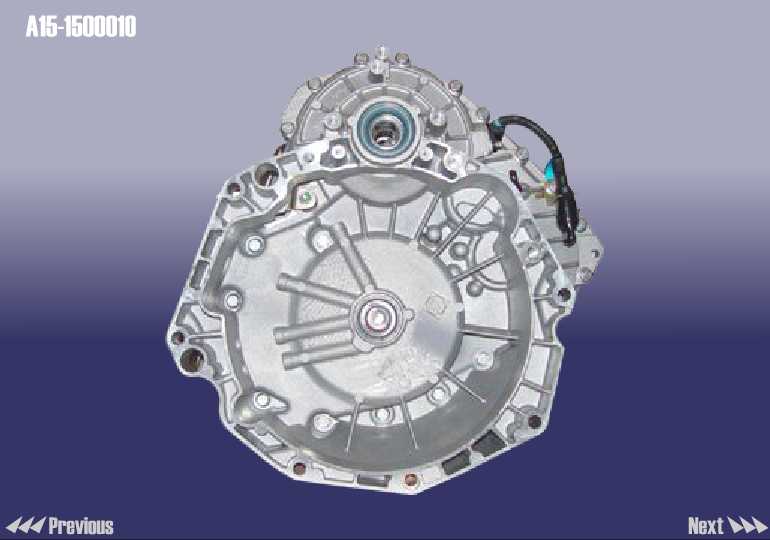

32	A15-1500010	CVT TRANSMISSION	1

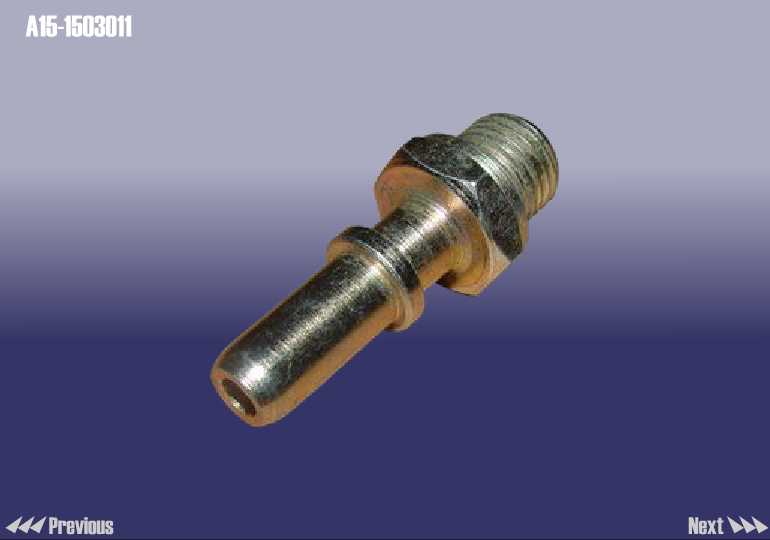

33	A15-1503011	TIE-IN	2

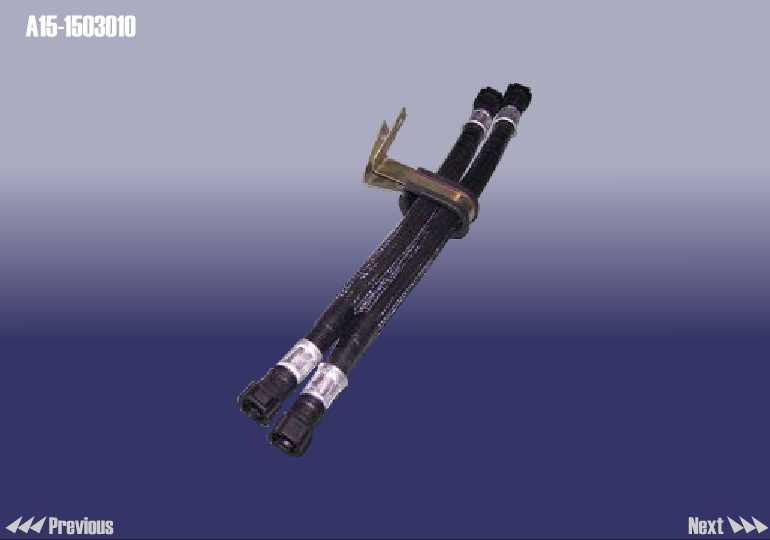

34	A15-1503010	COOLING PIPE,TRANSMISSION	2

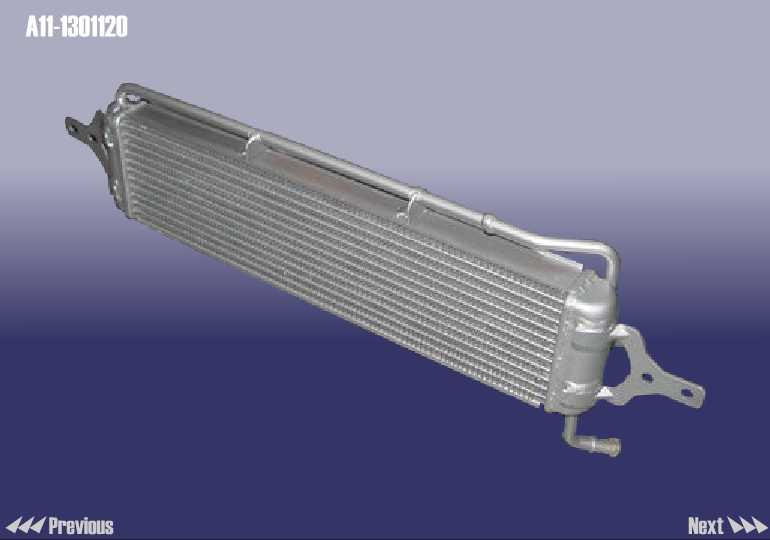

35	A11-1301120	OIL COOLER ASSY	1

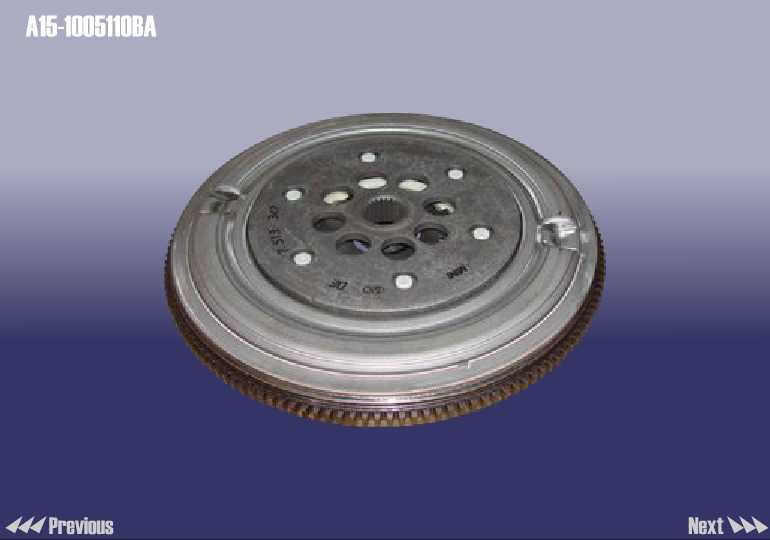

36	A15-1005110BA	FLY WHEEL ASSY	1
