КАТАЛОГ: CHERY	МОДЕЛЬ: AMULET

---

Подбор авто запчастей на ЧЕРИ AMULET (АМУЛЕТ)

Поз.	Номер	Наименование	Колличество
1	A15LNQJGL-PZF	EXPANSION VALVE	1

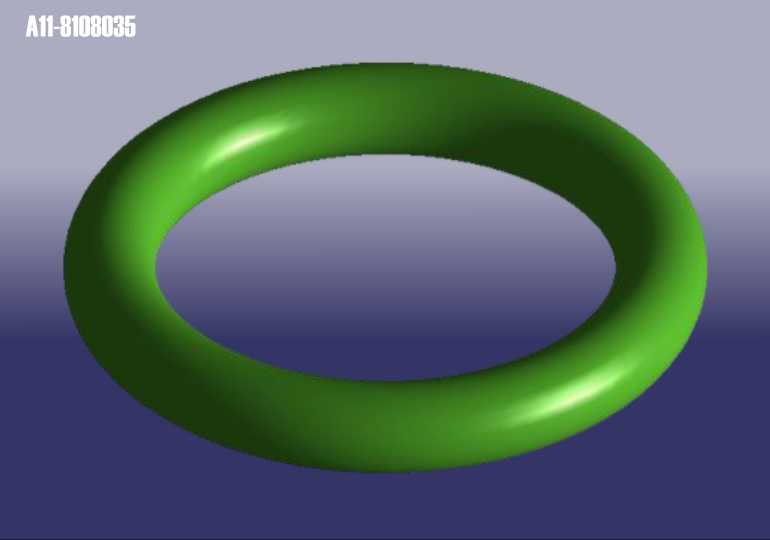

2	A11-8108035	RINGгмбоOбп	1
3	N10227803	BOLT,INNER HEXGON HEAD	1
4	A15LNQJGL-LNQZFQGL	PIPELINEгмCONDENSER-EVPORATOR	1

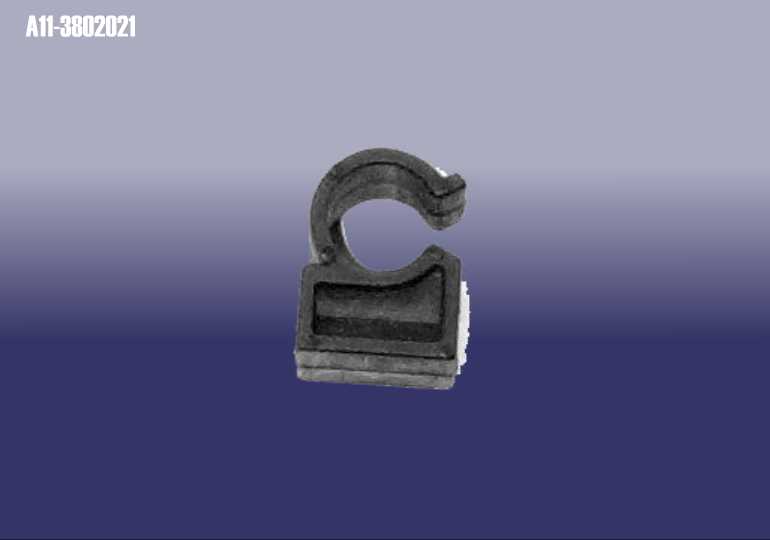

5	A11-3802021	CLAMP,FIXING	1

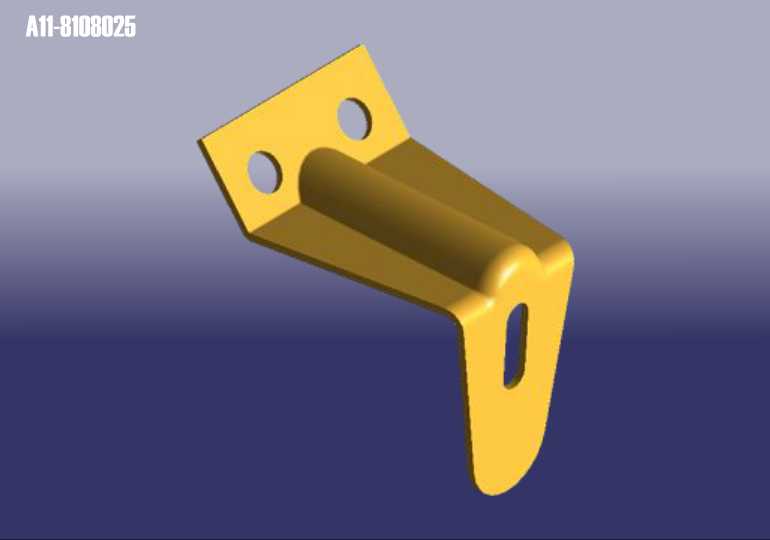

6	A11-8108025	COOLING PIPE FIXED BRACKET	1

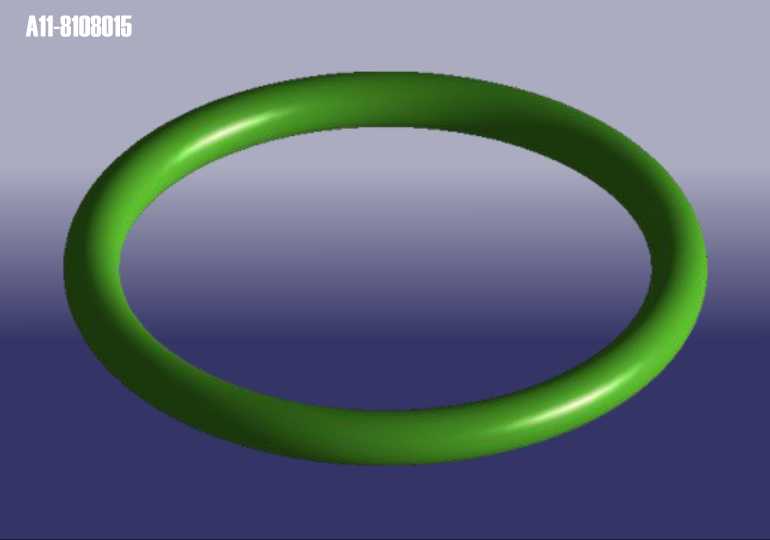

7	A11-8108015	RINGгмбоOбп	1
8	A11-8108029	BOLT	1
9	N0116667	WASHER	1
10	A15LNQJGL-ZFQYSJGL	PIPELINEгмEVPORATOR-COMPRESSOR	1

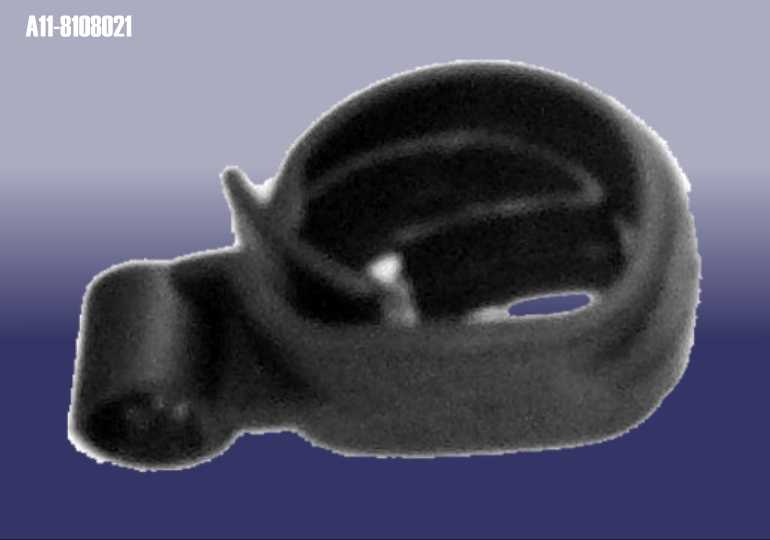

11	A11-8108021	CLAMP,FIXING	1

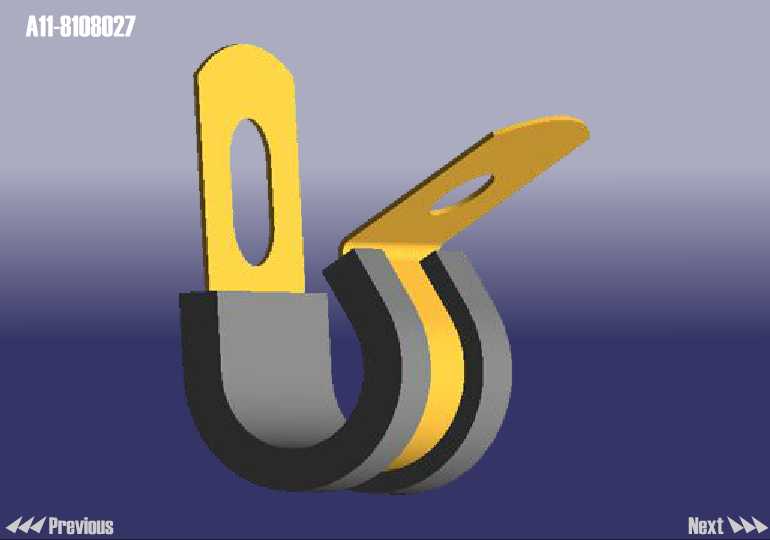

12	A11-8108027	SINGLE PIPE CLIP	1
13	N90106301	NUT(WITH WASHER)	1
14	A11-8105021	CONDENSER SLEEVE	2
15	N90213201	SELFTAPPING SCREW(R)	1
16	A11-8108055	RINGгмбоOбп	2

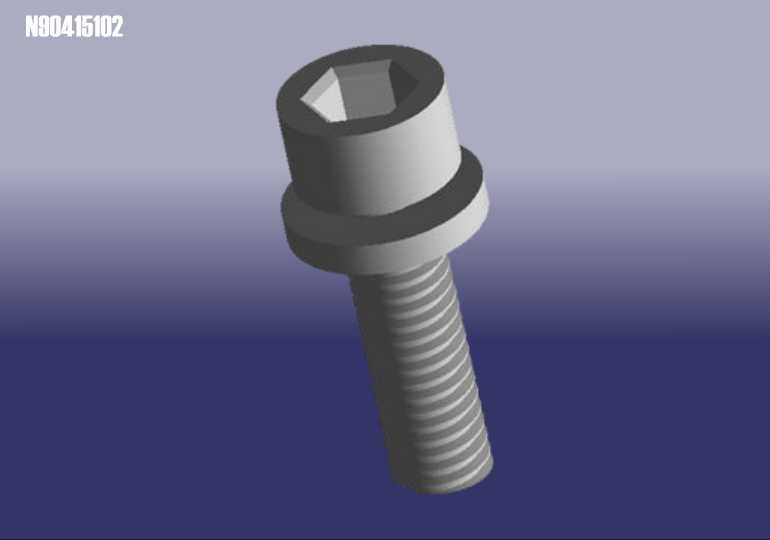

17	N90415102	BOLT,INNER HEXGON HEAD	1
18	A15LNQJGL-YSJLNQGL	PIPELINEгмCOMPRESSOR-CONDENSER	0
19	A11-8105023	CONDENSER RUBBER GASKET	2
20	A15LNQJGL-CYGZP	TANKгмLIQUID	0
21	A11-8109111	TANKгмLIQUID	1
22	A11-8105015	CONDENSER RUBBER GASKET	2
23	A15LNQJGL-LNQZC	CONDERSER ASSY	0
24	A11-8108075	RINGгмбоOбп	2
25	A11-8105017	CONDENSER RUBBER GASKET	2
26	N0221481	NUTгмHEXAGON FLANGE	2
27	A11-8105025	GASKET - FIXING	0

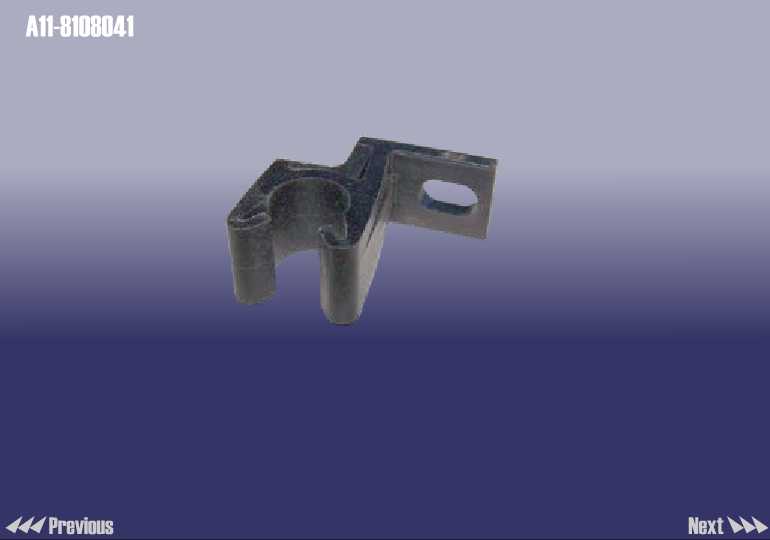

28	A11-8108041	CLAMP - TENSION	0
29	A11-8105111	BRACKET - CONDENSER	1
30	A11-8108061	CLIP - FIXING	1

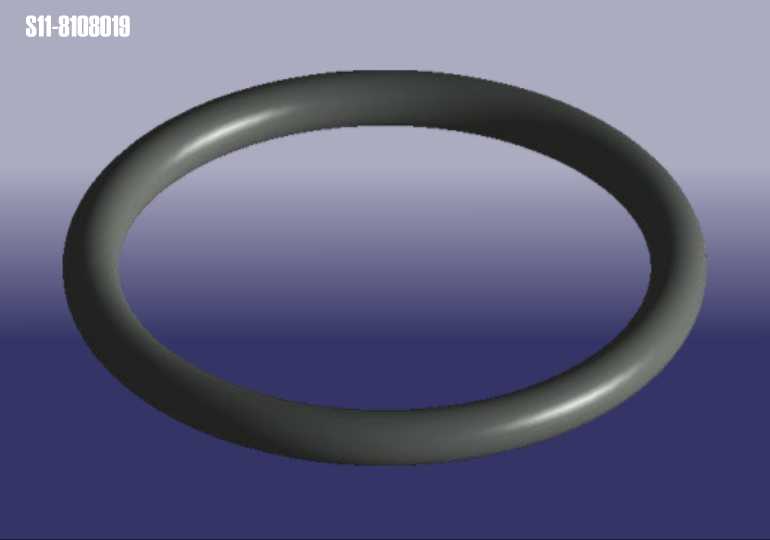

31	S11-8108019	RINGгмбоOбп	0
