КАТАЛОГ: CHERY	МОДЕЛЬ: AMULET

---

Подбор авто запчастей на ЧЕРИ AMULET (АМУЛЕТ)

Поз.	Номер	Наименование	Колличество
1	A15-2801078	BRACKET,CONDENSER	1
2	N01021214	BOLT	3
3	N0115247	WASHER	3
4-1	A15-2801010BM	CROSS MEMBER ASSY	1

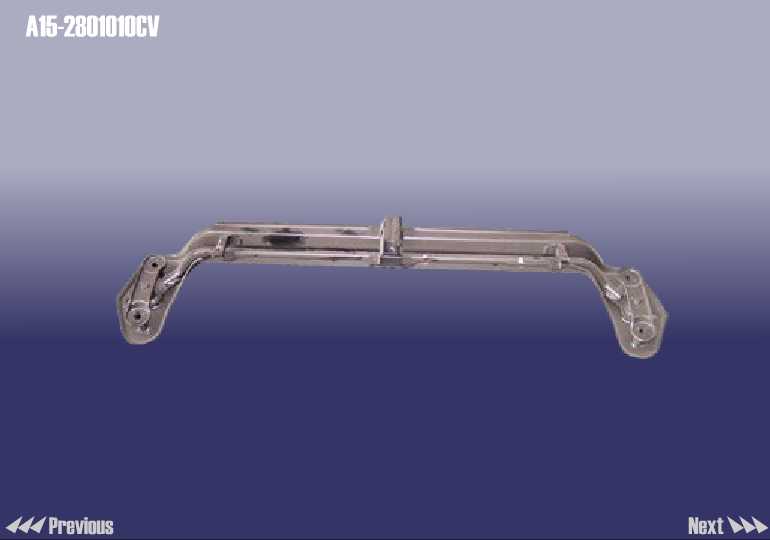

4-2	A15-2801010CV	CROSSMEMBER ASSY	1
5	N10040003	BOLT	2

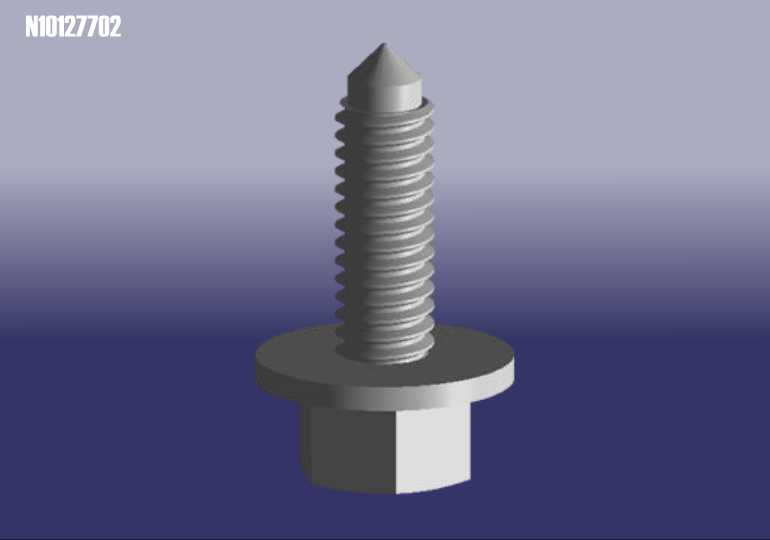

6	N10127702	BOLT	6

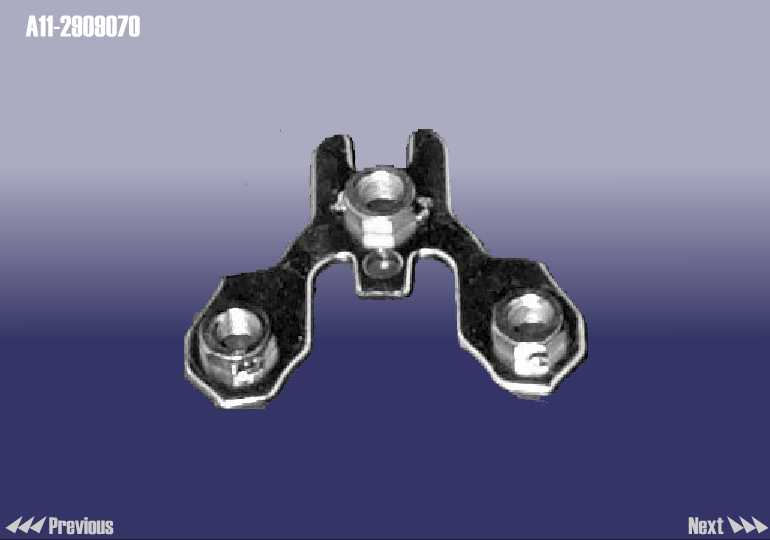

7	A11-2909070	CONNECTING WASHER ASSY	2
8	A11-2909010	LEFT CONTROL ARM ASSY	2
9	A15QXZZZ-FCJZC	SECONDARY CHASSIS WELDMENT ASSY	0

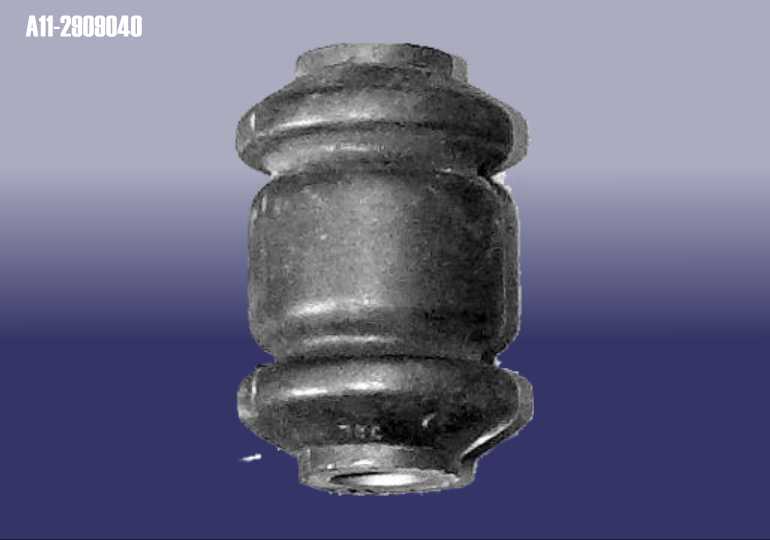

10	A11-2909040	FRONT RUBBER SLEEVE ASSY	2

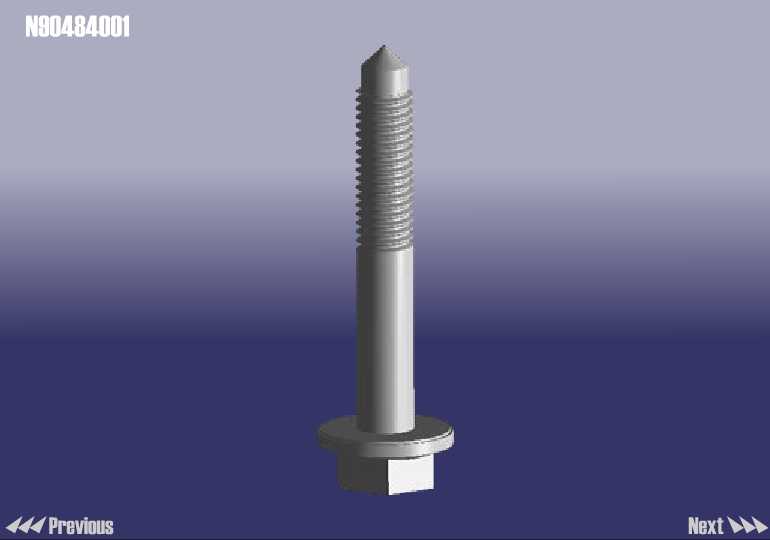

11	N90484001	BOLT-CONTROL ARM WITH AUXILIAR	2

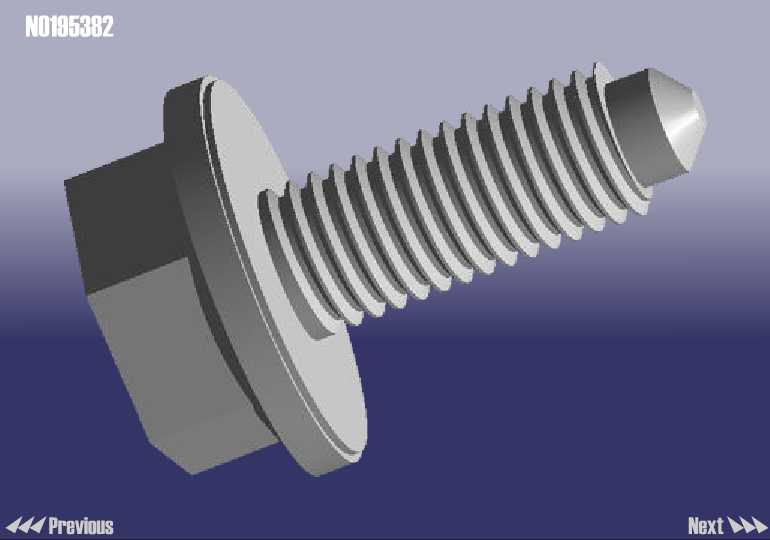

12	N0195382	BOLT	2
13	A11-2909060	CONTROL ARM BALL HEAD PIN	2

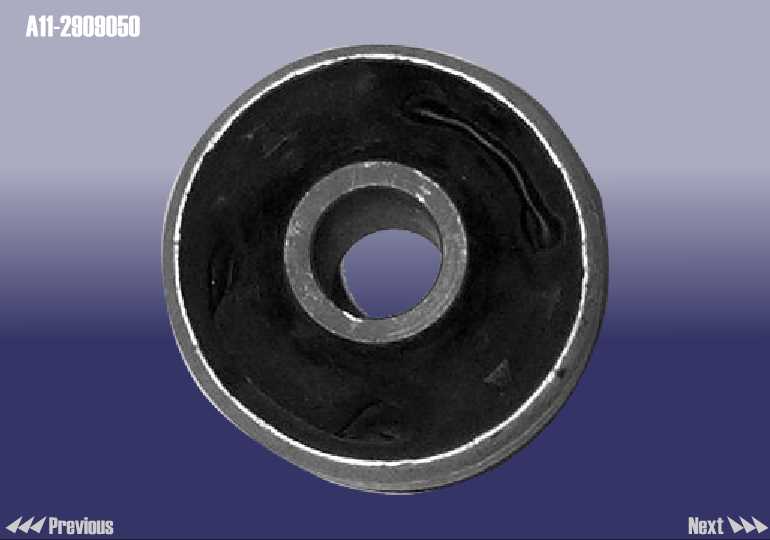

14	A11-2909050	REAR RUBBER SLEEVE ASSY	2

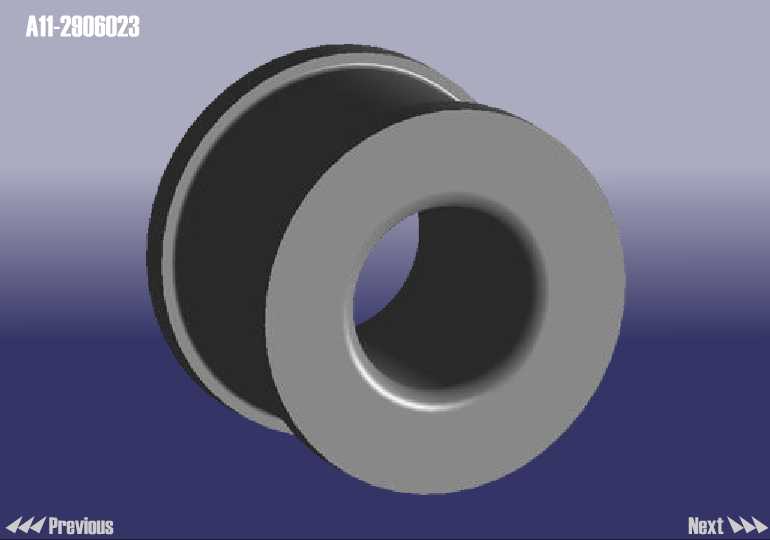

15	A11-2906023	END RUBBER SLEEVE	2
16	A11-2906021	ROD,JOINT	2
17	N10001003	SHORT BOLT	2

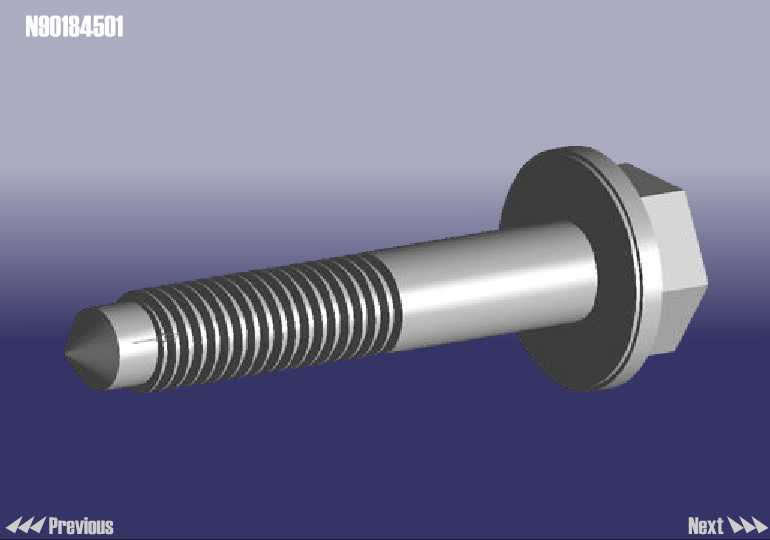

18	N90184501	BOLT-WITH STEERING GEAR	1

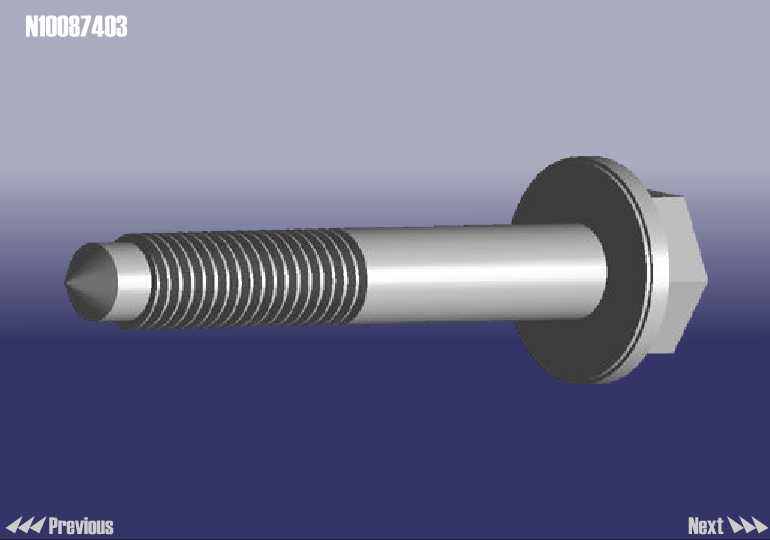

19	N10087403	LONG BOLT	2
20	QXJZZ-WDGZC	STABILIZING BAR	0
21	A11-2906030	CLIP ASSY	2
22	A11-2906025	STEADY CONTROL RUBBER SLEEVE	2
23	N0111862	NUT	2
24	A11-2906027	WASHER	4

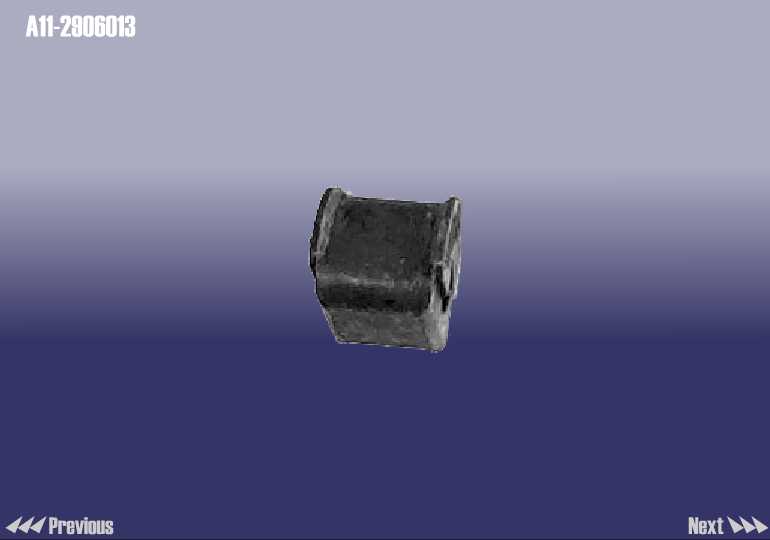

25	A11-2906013	RUBBER	2
26	A15-2801083	PLATE,JOINT	2
27	A15-2801081	MEMBER SET,REINFORCEMENT	1

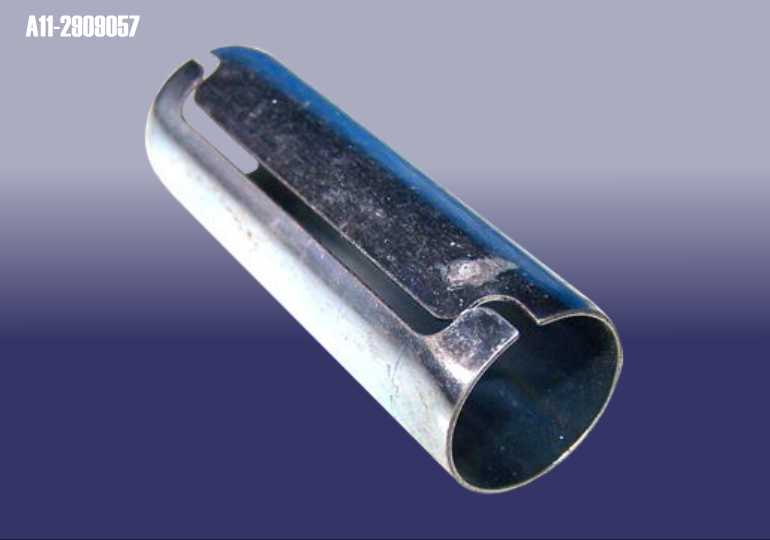

28	A11-2909057	PIPE - GUIDE	1
