КАТАЛОГ: CHERY	МОДЕЛЬ: AMULET

---

Подбор авто запчастей на ЧЕРИ AMULET (АМУЛЕТ)

Поз.	Номер	Наименование	Колличество
1	A15ZY-TZZC	RESTRAINTгмHEAD	2
2	A11-7000011	BOLT PIN	2
3	A15YHZYKB-YHZYKB	CUSHIONгиRгйгмR.SEAT	1
4	A15YHZYZD-YHZYZD	CUSHIONгиRгйгмR.SEAT	1
5	N0147613	SCREW	4
6	A15ZY-YQZY	SEATгиRгйгмFRONT	1
21	A15ZY-ZQZYHDHB2	PLATE 2#,PROTECTOR	0
22	ZY-ZJFS	ARM ASSY - CENTER REST	0

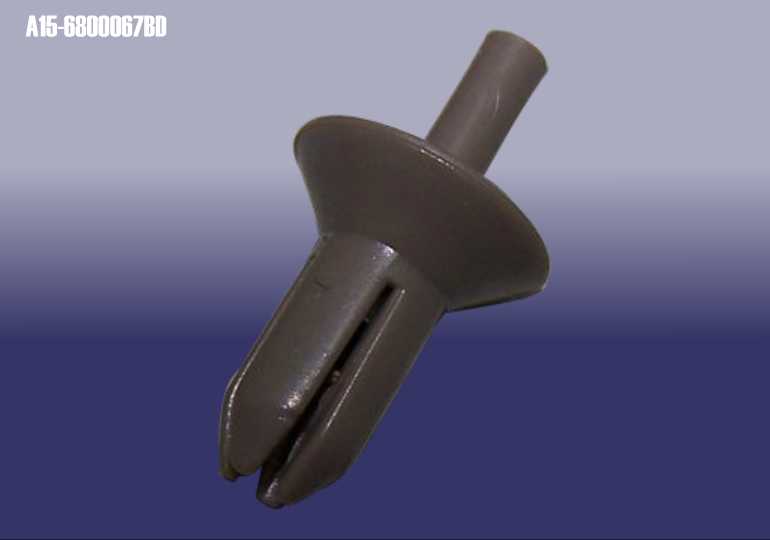

23	A15-6800067BD	CATCHER - NAIL	1
24	A15-6800064BC	PLATE 1# - PROTECTOR (SLIDEWAY)	0
25	A15-6800067	CATCHER - NAIL	0
26	A15-6800067BC	CATCHER - NAIL	0
27	ZY-ZHDSB	ADJUST BAR	0
28	ZY-TZDG	GUIDE SLEEVE - HEAD RESTREAINT	0
29	ZY-YHDSB	ADJUST BAR	0

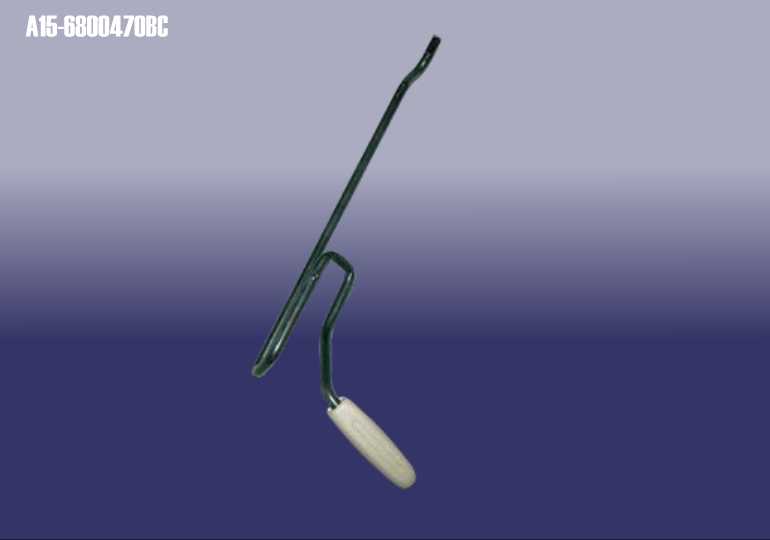

30	A15-6800470BC	HANDLE - ADJUST	0
31	ZY-ZTJQSB	HANDLE - ADJUST	0
32	ZY-YTJQSB	HANDLE - ADJUST	0

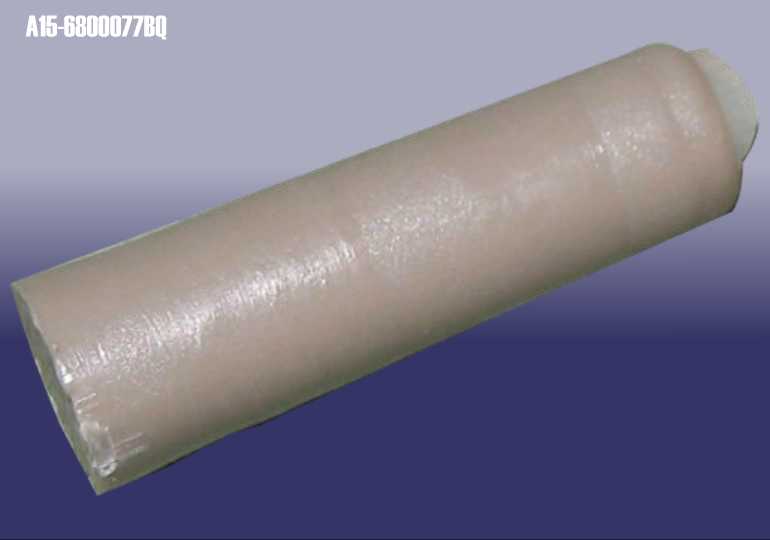

33	A15-6800077BQ	PIN-LONG	0

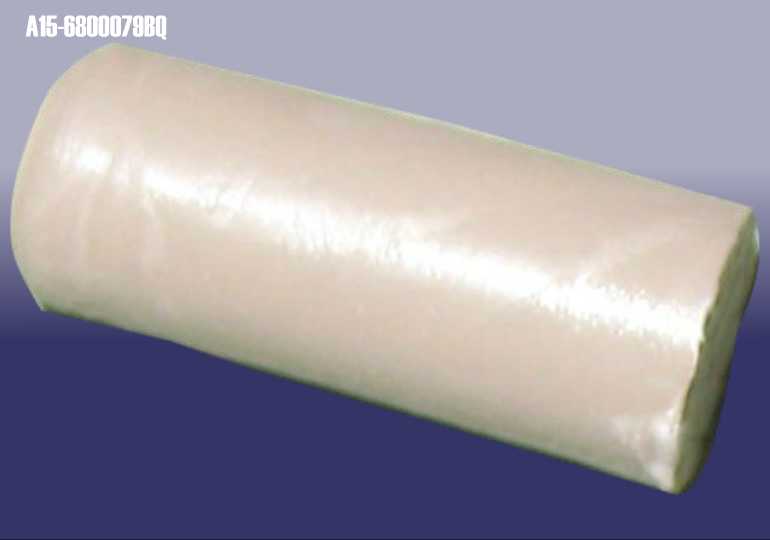

34	A15-6800079BQ	PIN	0
35	ZY-ZQZYNC	TRIM - INNER (FRONT SEAT LH)	0
37	ZY-ZWCZSB	TRIM - OUTER (FRONT SEAT LH)	0
7	A15ZY-YQZYHDHB2	PLATE 2#,PROTECTOR	1

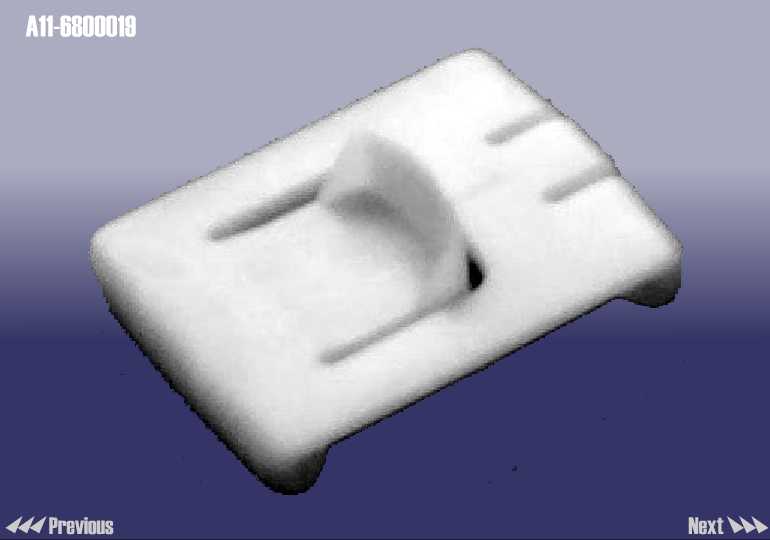

8	A11-6800019	GUIDE GASKET A	2
9	A11-6800059	LOCKING SHAFT	2
10	A11-6800057	FIXED PIN	2
11	A11-6800041	GUIDE GASKET B	2
12-1	A15-6800064	PLATE 1#,PROTECTOR	1
12-2	A15-6800064BD	PLATE 1#,PROTECTOR	1

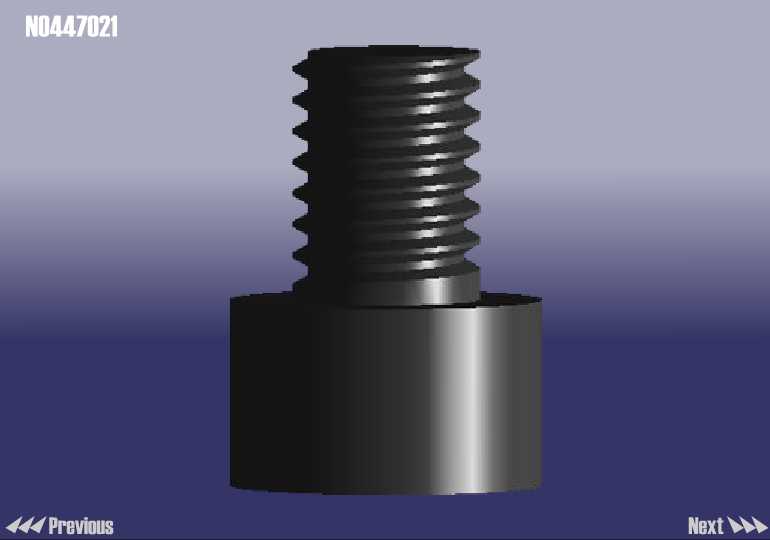

13	N0447021	LIMIT SCREW	2
14	N0111214	LIMIT NUT CAP	2
15	A11-6800061	SPRINGгмRETURN	2
16	A15ZHZYZD-ZHZYZD	CUSHIONгиLгйгмR.SEAT	1
17	N90549001	WASHERгмTHRUST	2
18	A15ZHZYKB-ZHZYKB	BACKгиLгйгмR.SEAT	1
19	A15ZY-ZQZY	SEATгиLгйгмFRONT	1
20	A15ZQZYHDFB-ZQZYHDHB	PLATE 1#,PROTECTOR	0
38	ZY-YWCZSB	TRIM - OUTER	0
40	ZY-XZSB	KNOB	0

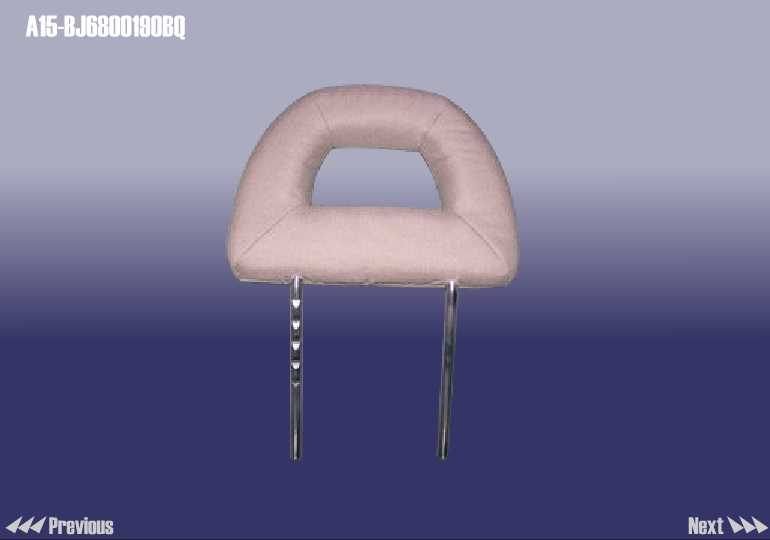

41	A15-BJ6800190BQ	RESTRAINT - HEAD	0
42	A11-7000013	WASHER	0
43	A15-36800067BD	2# SNAP - SLIDE TRACK TRIM BOARD	0
44	ZY-ZQYHB	SEAT BOARD LH FR	0
45	A15-6800112BQ	SEAT BOARD RH FR	0
46	ZY-ZNCTJQ	RECLINING KNUCKLE	0
47	A15-6800577	CONNECTING ROD	0
48	ZY-NCZSB	TRIM BOARD	0
49	ZY-WCZSB	TRIM BOARD	0
50	ZY-ZG	CAP - COVER	0
