КАТАЛОГ: CHERY	МОДЕЛЬ: AMULET

---

Подбор авто запчастей на ЧЕРИ AMULET (АМУЛЕТ)

Поз.	Номер	Наименование	Колличество
1-1	A15-6102471	BRACKETгиLгйгмDOOR-FRT.	1
1-2	A15-6102471BA	BRACKETгиLгйгмDOOR-FRT.	1
2	A11-2803551	CLIP A	1
3	N0141319	SCREW	2
4	A15-6102475	FASTENER	4
5	A11-3724241	SLEEVEгмHARNESS-FRT DOOR	1
6	ZQMHB-ZNKSBHK	COVERгиLгйгмINNER HANDLE	0
7-1	A15-6102573BA	GASKETгмARM REST	1

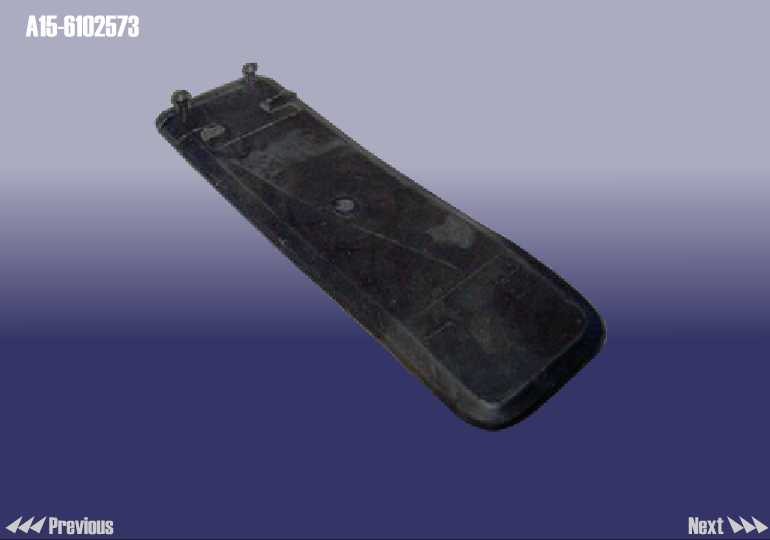

7-2	A15-6102573	GASKET - ARM REST	1
8	N0139755	SCREW	2
9	A15ZQMHB-ZQMFSG	BODYгиLгйгмARM REST	1

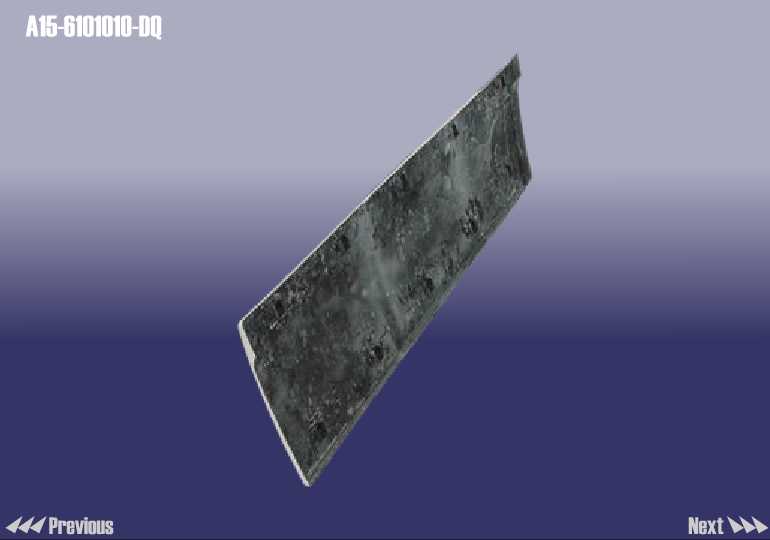

10	A15-6101010-DQ	PANEL - FR/DR OUTTER LH	1
11	A15-6102113	FASTENER	10
12	N90277601	SCREW	2
13	A11-6101221	SEATгмSCREW	2
14	A15ZQMHB-ZQMNHBZC	INNER TRIM BOARDгиLгйгмDOOR-FRT	1

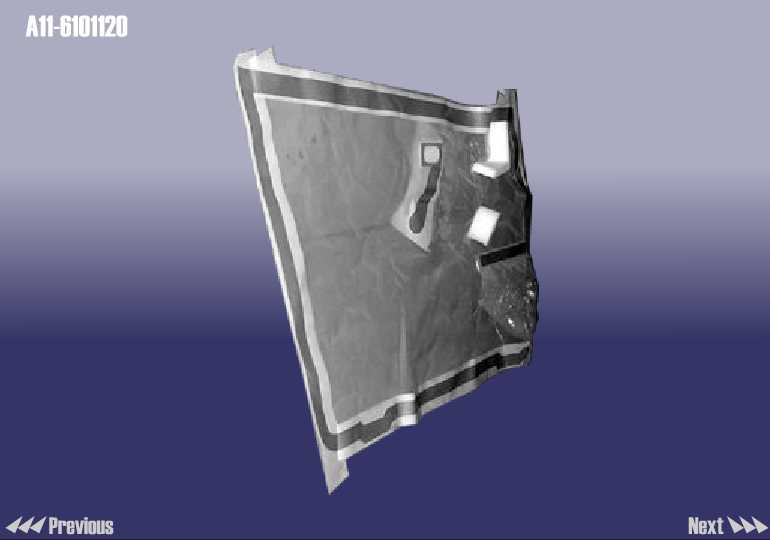

15	A11-6101120	DIAPHRAGM(L),FRONT DOOR	1

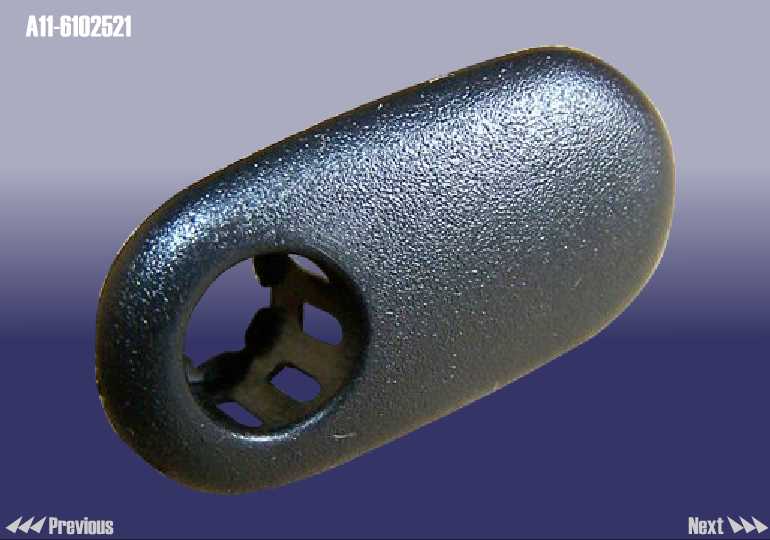

16	A11-6102521	SEAT - KNOB	0

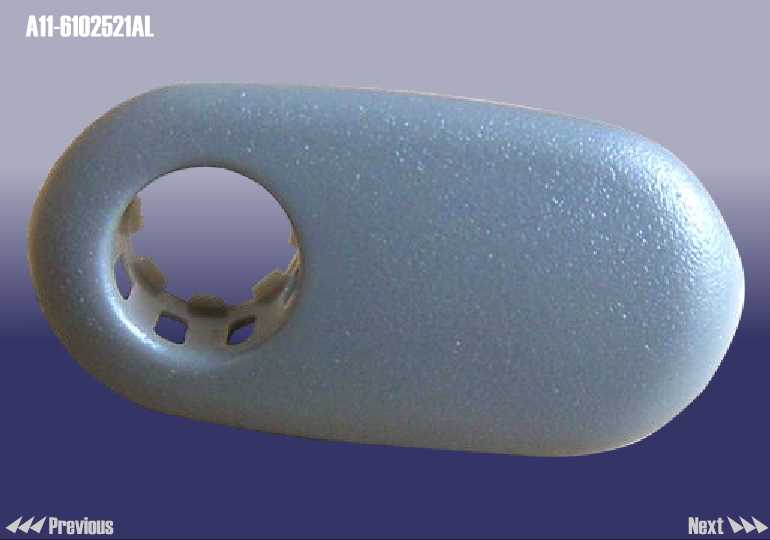

17	A11-6102521AL	SEAT - KNOB	0

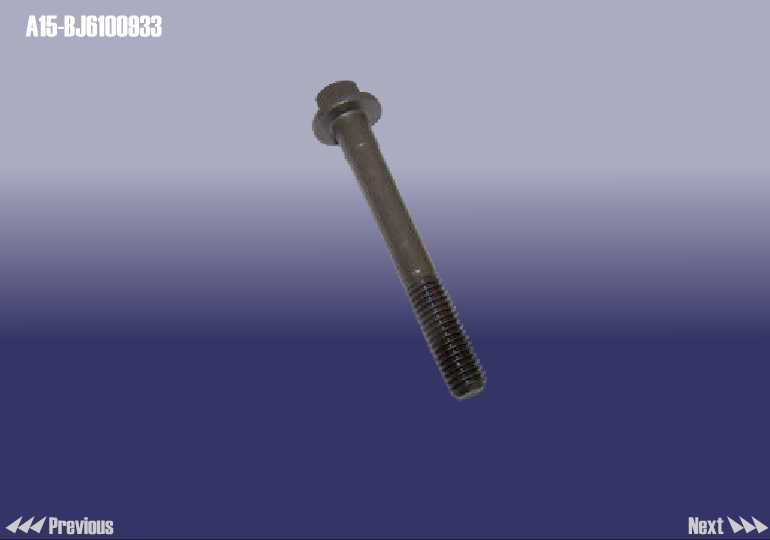

18	A15-BJ6100933	BOLT M8-1.25X65	0

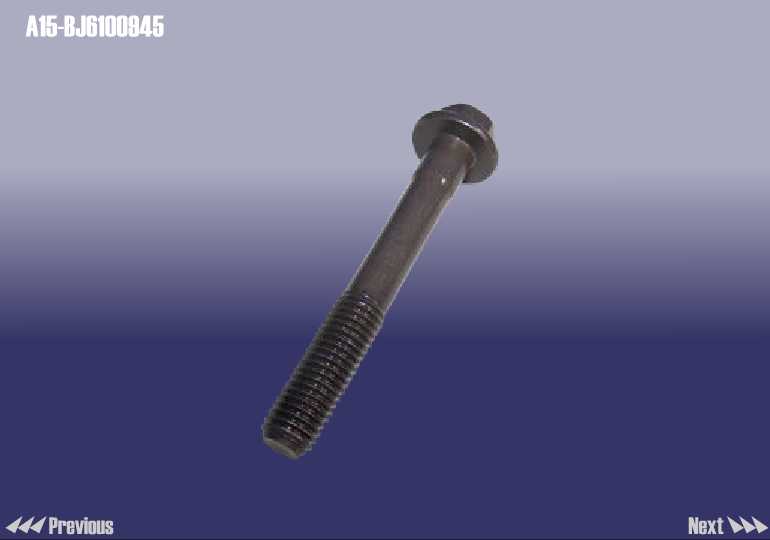

19	A15-BJ6100945	BOLT - HEXAGON HEAD	0
20	A15-BJ6101466	BOLT - HEXAGON HEAD	0

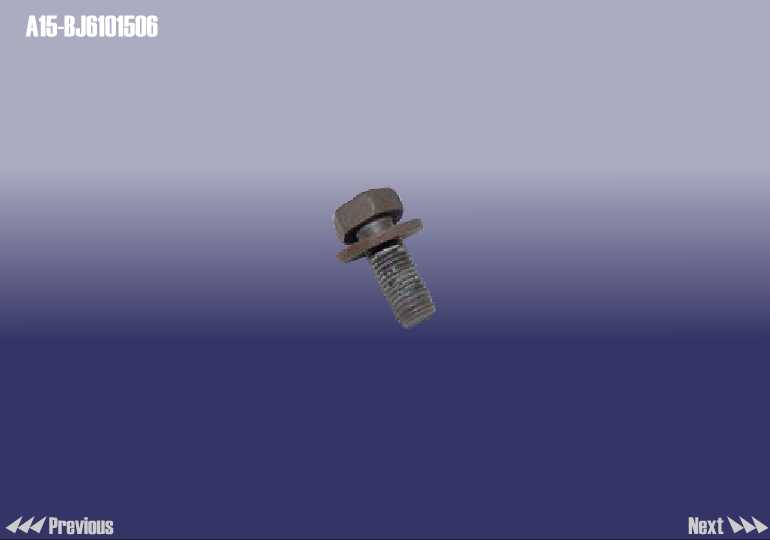

21	A15-BJ6101506	BOLT - HEXAGON HEAD	0

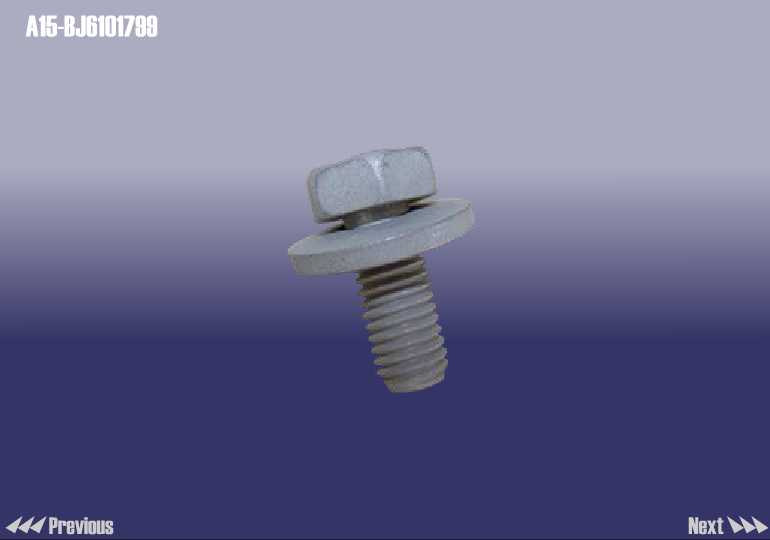

22	A15-BJ6101799	SCREW - RELAY	0
23	A15-BJ6500511	WASHER - LOCK	0
24	ZQMHB-ZQMXZST	MOULDING - FRONT DOOR LH	0

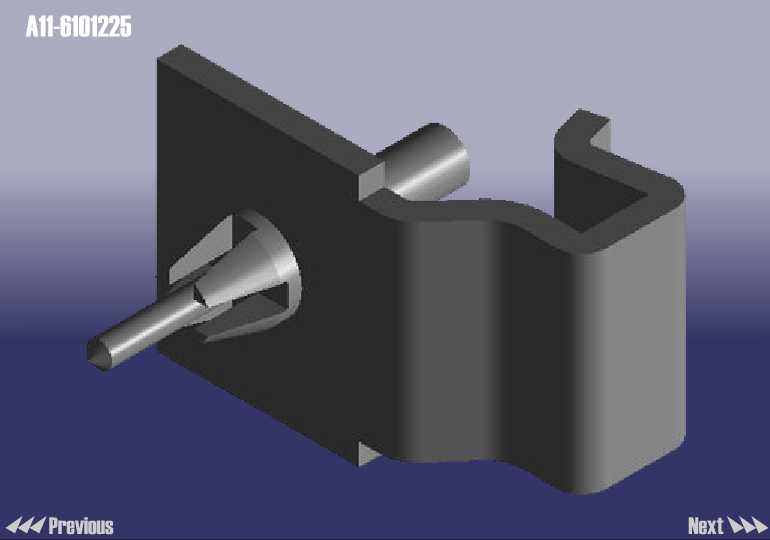

25	A11-6101225	BRACKET - LWR	0
26	ZQMHB-ZFSJT	BODY - LH ARMREST	0

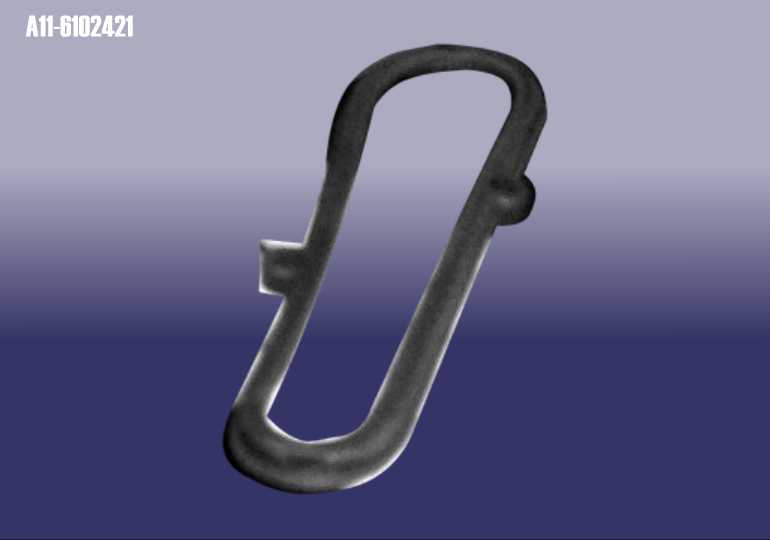

27	A11-6102421	PAD - RUBBER LH	0
28	ZQMHB-TPJ	RACK - TRAY	0

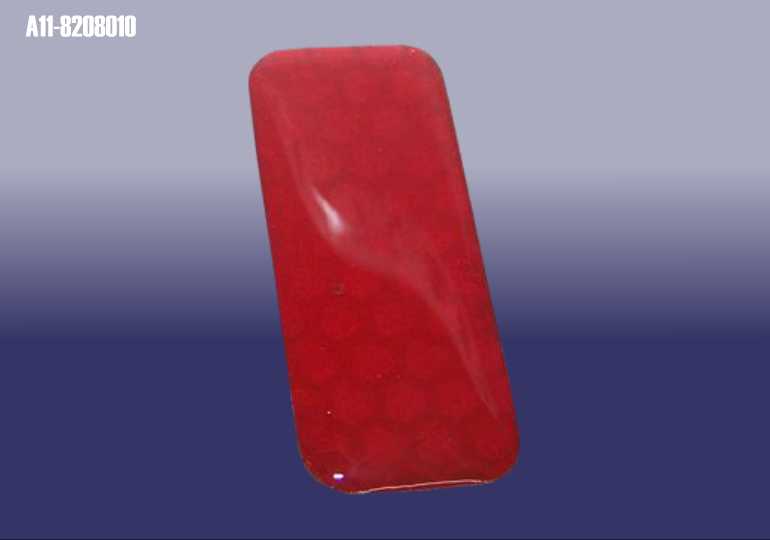

29	A11-8208010	REFLECTION LIGHT-WARNING	0
30	A15ZQMHB-ZCMNKSB	HANDLE ASSY - FR DOOR INNER LH	0

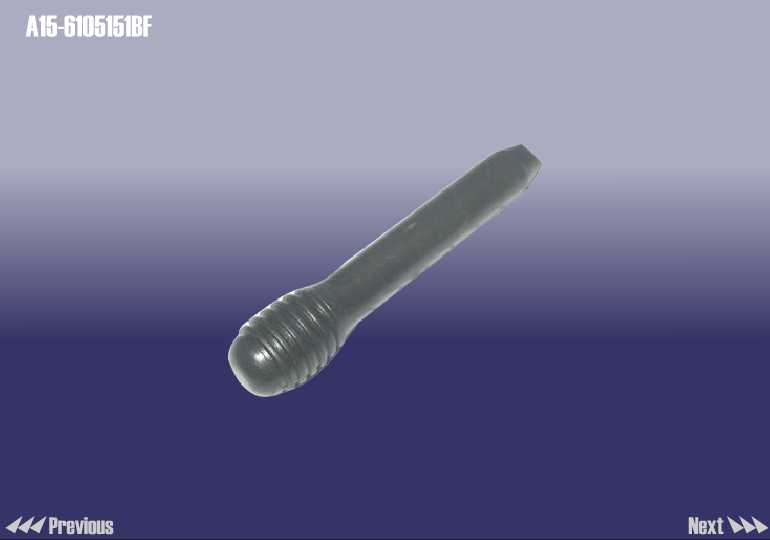

31	A15-6105151BF	KNOB - DOOR LOCK	0
