КАТАЛОГ: CHERY	МОДЕЛЬ: AMULET

---

Подбор авто запчастей на ЧЕРИ AMULET (АМУЛЕТ)

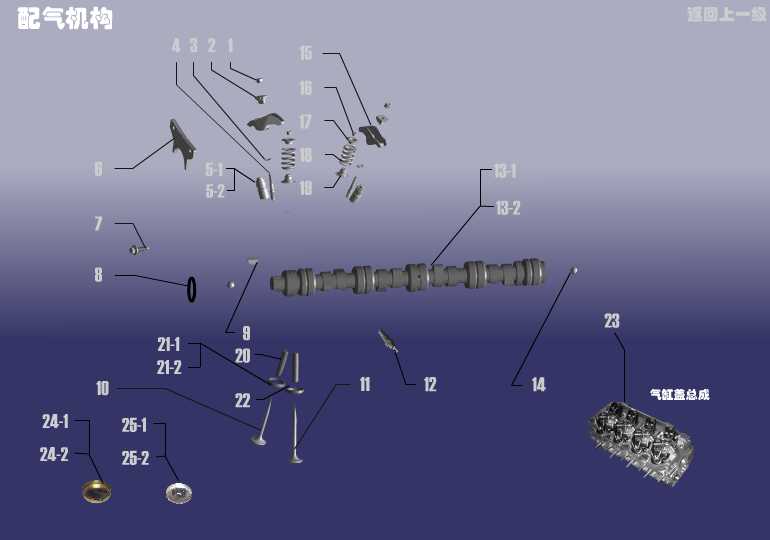

Поз.	Номер	Наименование	Колличество
1	480-1007047	NUT - LOCK (HEXAGON)	8
2	480-1007042	SEAT - ROCKER ARM	8
3	480-1007043	WASHER - ROCK ARM SEAT	8
4	480-1007046	STUD - ROCKER ARM	8
5-1	480-1007030	TAPPET ASSY - HYDRAULIC	8
5-2	480-1007030BB	TAPPET ASSY - HYDRAULIC	8
6	480-1006031	PLATE - THRUST(CAMSHAFT)	1
7	480-1006032	BOLT - HEXAGON HEAD FLANGE	2
8	480-1006020	SEAL - OIL (CAMSHAFT)	1

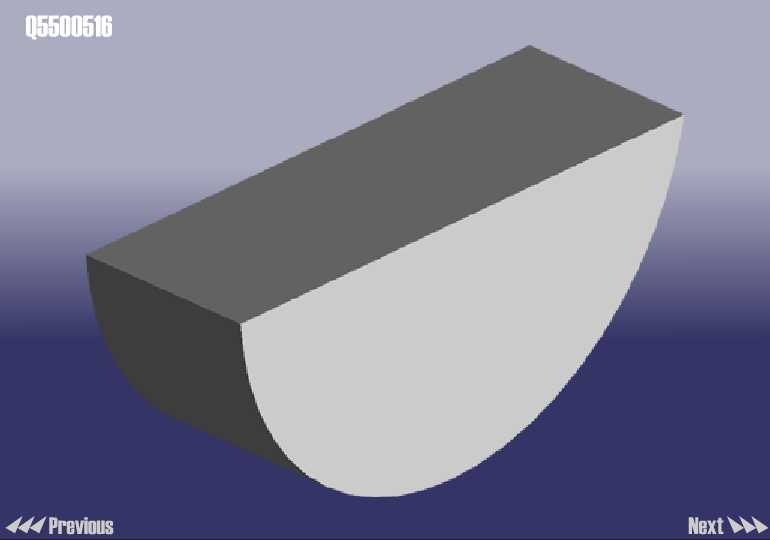

9	Q5500516	KEY - WOODRUFF	0
10	480EF-1007012	VALVE - EXHAUST	4
11	480E-1007011	VALVE - INLET	4
12	A11-3808011	SENSOR ASSY - WATER TEMPERATURE	1
13-1	480EE-BJ1006015	CAMSHAFT WITH STEEL BALL ASSY	1
13-2	480EE-1006015	CAMSHAFT	1
14	480-1006017	BALL - STEEL	2
15	480-1007041	ARM - ROCKER	8

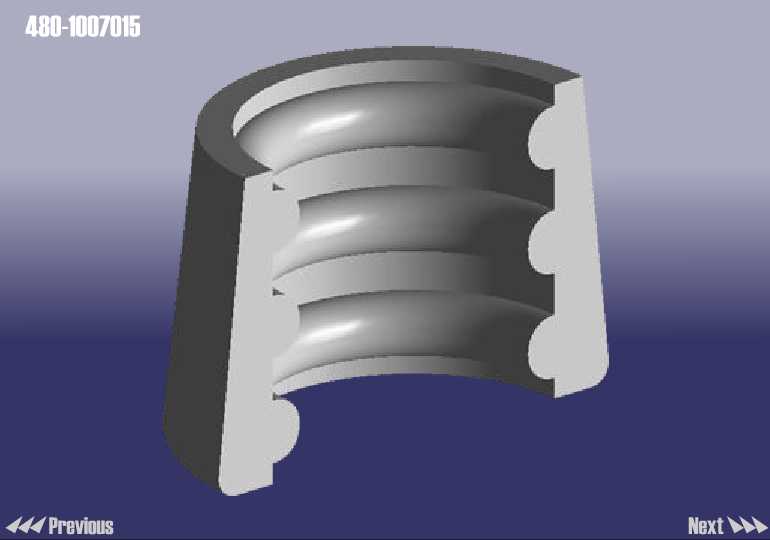

16	480-1007015	BLOCK - LOCK (VALVE)	16
17	480-1007014	SEAT - VALVE SPRING UPPER	8
18	480-1007013	SPRING - VALVE	8
19	480-1007020	SEAT ASSY - VALVE OIL SEAL SPRING	8
20	480-1003023	GUIDE - VALVE	8
21-1	480-1003022	RING - EXHAUST VALVE SEAT	4
21-2	480EF-1003022	RING - EXHAUST VALVE SEAT	4
22	480-1003021	SEAT - INTAKE VALVE	4
23	480EF-1003001	HEAD ASSY - CYLINDE	1

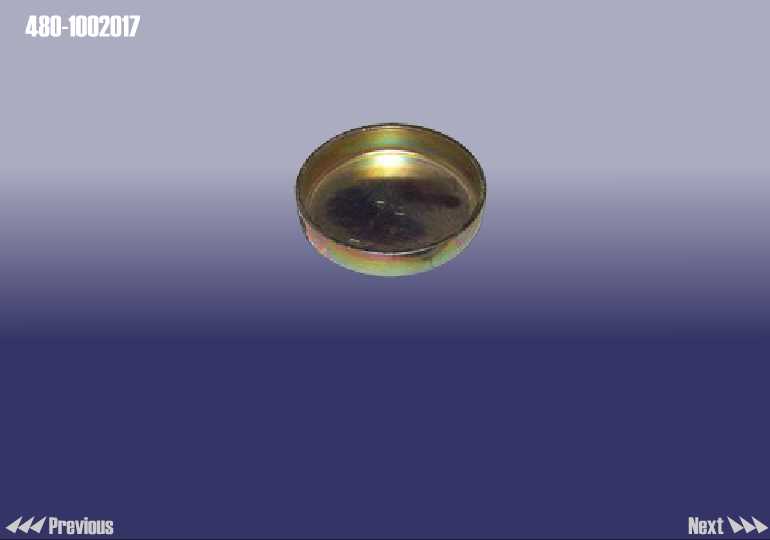

24-1	480-1002017	PLUG - BOWL SHAPE	0
24-2	480-1003017	PLUG - BOWL SHAPE	0
25-1	480-1002018	PLUG - BOWL SHAPE	0
25-2	480-1003018	PLUG - BOWL SHAPE	0
