КАТАЛОГ: CHERY	МОДЕЛЬ: AMULET

---

Подбор авто запчастей на ЧЕРИ AMULET (АМУЛЕТ)

Поз.	Номер	Наименование	Колличество
1	480-1010026	SCREW - INNER HEXAGON WITH SPRING WASHER	2
2	480-1010021	GASKET - CONNECTING FLANGE	1
3	480-1005062	KEY - WOODRUFF	1
4	480-1011020	SEAL - OIL ( CRANKSHAFT FRONT )	1
5	480-1011061	GASKET - OIL PUMP	1
6	480-1011030	PUMP ASSY - OIL	1
7	480-1011062	BOLT - HEXAGON FLANGE	6
8	480-1002010EA	BLOCK ASSY- CYLINDER	1
9	480E-1009130BA	ROD ASSY - OIL LEVER GAUGE	1
10	A11-3810011	SWITCH - OIL PRESSURE	1
11	480-1012021	CONNECTOR - OIL FILTER	1

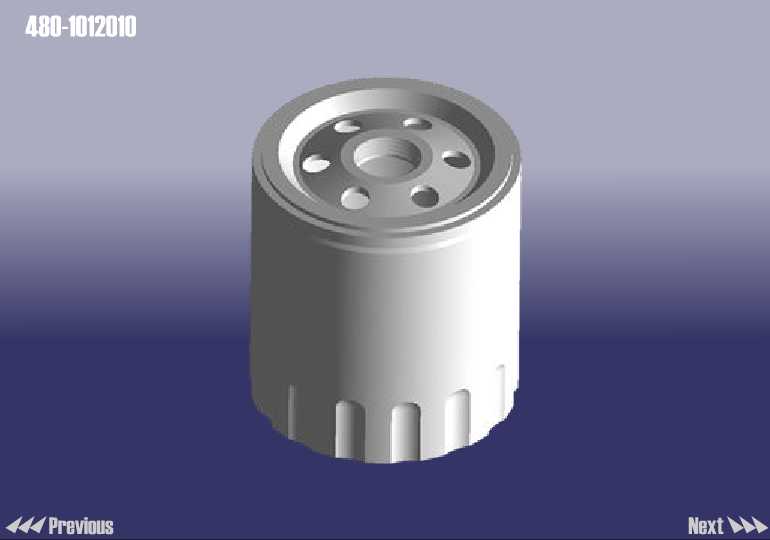

12	480-1012010	FILTER ASSY - OIL	1
13-1	480-1002031	PLUG - TAPERED (INNER HEXAGON)	1
13-2	480EF-1002031	PLUG - TAPERED (INNER HEXAGON)	1
14	480-1005031	GASKET - REAR OIL SEAL BRACKET	1
15	480-1005041	BOLT - HEXAGON FLANGE	4
16-1	480-1005030	SEAL - OIL REAR (CRANKSHAFT)	1
16-2	480-1005030BA	SEAL - OIL REAR (CRANKSHAFT)	1
17	480-1005021	BRACKET - REAR OIL SEAL	1
18	480-1014020	BAFFLE ASSY - OIL (CRANKCASE VENTILATION)	1
19	GT-QZLGJG-480EF	CRANKSHAFT MECHAMISM	1
20	480-1010027	BOLT - HEXAGON FLANGE	1
21	480-1010022	NUT - LOCK (HEXAGON)	1

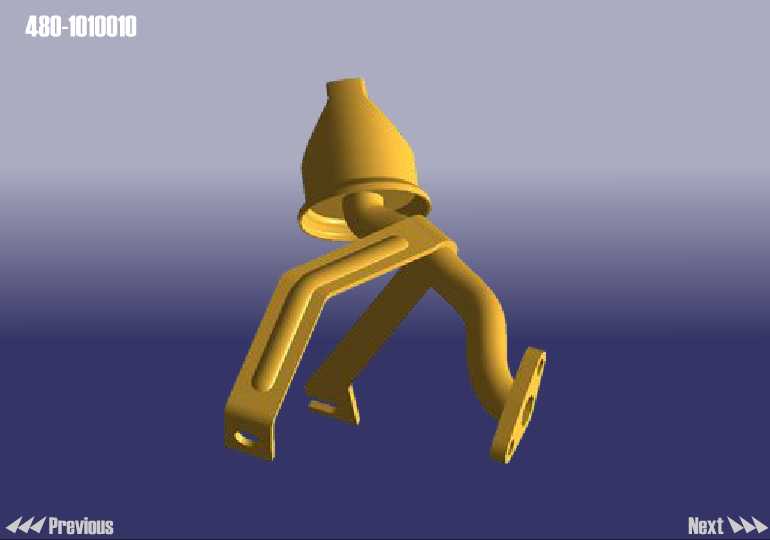

22	480-1010010	SCREEN ASSY - OIL	1
23	480ED-1000010BA	ENGINE ASSY	1
24-1	480ED-1002060	SENSOR - KNOCK	1
24-2	480EE-1002060	SENSOR - KNOCK	1
25	480-1002042	PIN - POSITION (CLUTCH BOX)	1
26	480E-1009121BA	GUIDE - OIL LEVER GUAGE	1
27	480E-1009122	RING - SNAP (OIL LEVER GAUGE GUIDE)	1
28	A11-1005120BA	SENSOR - SPEED OF ROTATION	0
