КАТАЛОГ: CHERY	МОДЕЛЬ: AMULET

---

Подбор авто запчастей на ЧЕРИ AMULET (АМУЛЕТ)

Поз.	Номер	Наименование	Колличество

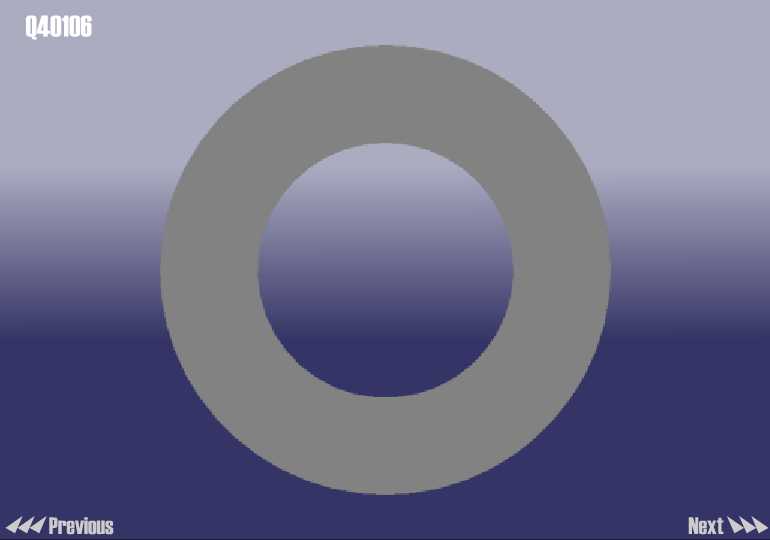

1	Q40106	WASHER	3
2	480-1003074	STUD - EQUAL LENGTH	3
3	480-1003071	WASHER - BUTTERFLY	9
4	480-1003030BB	COVER ASSY - ROCKER	1
5-1	480-1003060	GASKET - ROCKER COVER	1
5-2	480-1003060BA	GASKET - ROCKER COVER	1
6	480E-1003087	HANGER - REAR ENGINE	1
7	480-1003081	PIN - POSITION (CYLINDER HEAD)	2
8-1	480EF-1003010	HEAD ASSY - CYLINDER	1
8-2	475E-1003010	HEAD ASSY - CYLINDER	1
9-1	480-1003080	GASKET - CYLINDER	1
9-2	475E-1003080	GASKET - CYLINDER	1
10	480-1003088	SCREW - INNER HEXAGON KNURLED HEAD	1
11-1	480EE-1003086	HANGER - FRONT ENGINE	1
11-2	480E-1003086	HANGER - FRONT ENGINE	1
12	A11-3808011	SENSOR ASSY - WATER TEMPERATURE	1
13	480-1306053	WASHER - THERMOSTAT SEAT	1
14	480-1306020	THERMOSTAT ASSY	1
15	480-1306012	CLAMP - SPRING	1
16	480-1306011	RING - SEAL	1
17-1	480E-1306030CA	SEAT ASSY - THERMOSTAT	1
17-2	480E-1306030DA	SEAT ASSY - THERMOSTAT	0
18	480-1306054	BOLT - HEXAGON FLANGE	3
19	A11-3808030	SENSOR - COOLANT TEMPERATURE	1
20	480-1003026	PIPE - OIL SUPPLY	9
21	480-1003083	WASHER - PLAIN	10
22	480-1003082	BOLT - CYLINDER HEAD	10
23	480-1003040BA	CAP ASSY - OIL FILLER	1
24	Q340B06	NUT - 1 SHAPED HEXAGON	3
